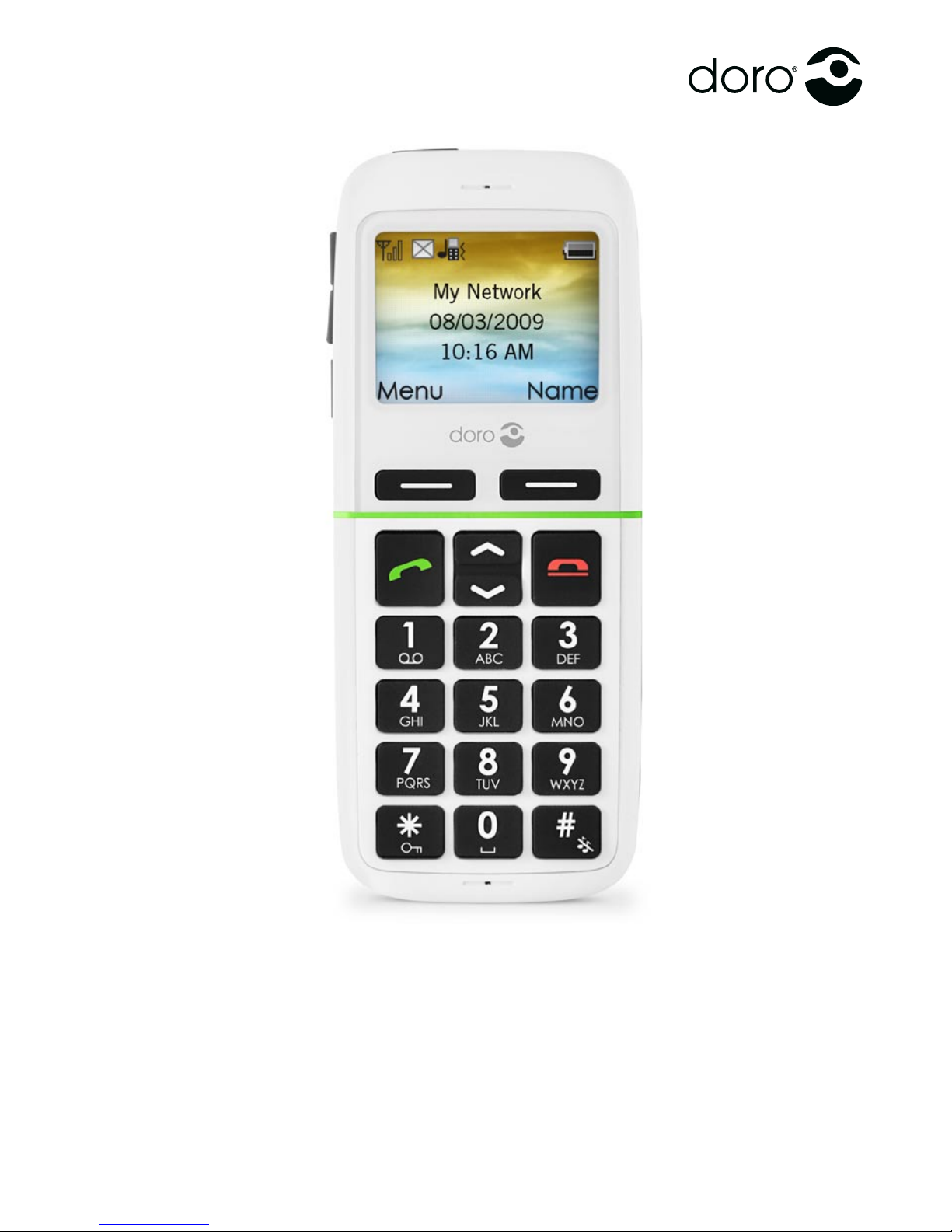

Doro PhoneEasy 345gsm Manuel utilisateur
PhoneEasy
345gsm
5
1
2
4
3
6
7
8
9
10 13
11
15
17
14
16
18 19
20
21
12
Power on/off
Flashlight
Side key (volume)
Flashlight key
Display
Left soft key
Call key
1/ Voice mail
Numeric keypad
*/ Key lock
Charging contacts
(for use with charging stand)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Microphone
# / Change prole
End call
Arrow keys
Right soft key
Loudspeaker
Emergency call key
Battery cover
Headset socket
Charging socket
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
English
Encendido / Apagado
Linterna
Tecla lateral (volumen)
Tecla de linterna
Pantalla
Tecla programable izquierda
Tecla de llamada
1/ Buzón de voz
Teclado numérico
*/ Bloqueo de teclado
Cargando contactos (para
utilizar con soporte cargador)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Micrófono
# / Cambiar perl
Fin. llamada
Teclas de echa
Tecla programable derecha
Altavoz
Tecla de llamada de
emergencia
Cubierta de la batería
Toma para auriculares
Toma para el cargador
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Español
1
2
Attaching a lanyard to the phone
Conexión de un acollador
para el teléfono
1
English
Contents
Installation .................................... 3
Installing the SIM card and battery. . . . . . . . . . . . . . . . . . 3
Charging .................................... 4
Operation...................................... 5
Activatingthephone............................ 5
Makingacall................................. 6
Making a call from the Phonebook . . . . . . . . . . . . . . . . . . 6
Receivingacall ............................... 6
Volumecontrol................................ 6
DisplaySymbols................................. 7
AdditionalFunctions.............................. 8
Calloptions .................................. 8
Callwaiting .................................. 8
Callinformation ............................... 9
Calllog ..................................... 9
Phonebook.................................. 10
Keylock.................................... 12
Silentmode................................. 12
Flashlight................................... 12
Headset.................................... 12
SOScalls................................... 13
EmergencyCallkey............................ 14
Textinput................................... 15
SMSMessaging................................ 16
Creating and sending messages . . . . . . . . . . . . . . . . . . . 16
Outgoing messages (Outbox) . . . . . . . . . . . . . . . . . . . . . 16
Incoming messages (Inbox) . . . . . . . . . . . . . . . . . . . . . . 17
2
English
Settings...................................... 18
Timeanddate................................ 18
Usersetup.................................. 19
User prole (rings & tones)....................... 21
Bluetoothsettings............................. 23
Blockingfunctions ............................ 23
Emergency.................................. 24
Voicemail .................................. 25
Speeddial.................................. 25
Callsetup................................... 26
SMSsettings ................................ 28
Securitysettings.............................. 30
MasterReset ................................ 31
MasterClear................................. 32
FMradio ................................... 33
Alarms..................................... 35
Taskreminders............................... 35
Calculator................................... 36
Games..................................... 36
Troubleshooting ................................ 37
SafetyInstructions.............................. 39
Disclaimer and Limitation of Liability . . . . . . . . . . . . . . . . . 44
CareandMaintenance ........................... 45
Warranty and Technical Data . . . . . . . . . . . . . . . . . . . . . . . 46
3
English
Installation
Note!
Turn off the phone and disconnect the charger before removing
the battery cover.
Installing the SIM card and battery
The SIM card holder is located behind the battery.
Remove the battery cover and the battery if it is already
installed.
Insert the SIM card by carefully sliding it into the holder.
Make sure that the SIM card’s gold contacts are facing
inward and that the cut-off corner is pointing upward. Take
care not to scratch or bend the contacts on the SIM card.
Insert the battery by sliding it into the battery compartment
with the contacts facing upward to the right.
Replace the battery cover.
1.
2.
3.
4.
4
English
Charging
Warning!
Only use batteries, charger and accessories that have been
approved for use with this particular model. Connecting
other accessories may be dangerous and may invalidate the
phone’s type approval and guarantee.
When the battery is running low, is displayed and a warning
signal is heard. To charge the battery, connect the AC power
adapter to a wall socket and to the charging socket y.
is displayed briey when the charger is connected to the
phone, and when it is disconnected. The battery charge
indicator will be animated while charging.
It takes approximately 3 hours to fully charge the battery.
is displayed on the screen when charging is completed.
Note!
Full battery capacity will not be reached until the battery has
been charged 3–4 times.
The temperature must be in the range 32°–104°F when
charging.
Batteries degrade over time, which means that call time and
standby time will normally decrease with regular use.
5
English
Operation
Activating the phone
Press and hold 1on the top of the phone for a few seconds to
turn it on/off. It takes several seconds so keep holding until you
hear the sound.
The following messages may be displayed:
SIM card missing or
incorrectly inserted.
SIM card damaged or not
valid.
If the SIM card is valid but protected with a PIN code (Personal
Identication Number), PIN: is displayed.
Enter the PIN code and press OK ( upper left corner of
keypad).
Delete with Clear ( upper right corner of keypad).
Trials : # shows the number of PIN attempts left. When no more
attempts remain, SIM blocked is displayed. The SIM card must
now be unlocked with the PUK code (Personal Unblocking Key).
Enter the PUK code and conrm with OK.
Enter a new PIN code and conrm with OK.
Note!
If PIN and PUK codes were not provided with your SIM card,
please contact your network operator.
Changing the language, time and date
These are all set for you. The menu language will default to
English. See Settings on how to change language, time and date.
The date and time are automatically set to the local time for the
area you are in when the phone is powered on.
1.
2.
6
English
Making a call
Enter the phone number. Skip backwards with Clear.
Press qto dial. Press Cancel to cancel dialing.
Press Lto end the call.
Note!
There is no dial tone. Simply have the phone turned on and it
is ready for use.
Note!
When making international calls, press *twice for the
international prex "+". Always use ”+” before the country
code (instead of 00 or similar) for best operation.
Making a call from the Phonebook
Press Name to open the Phonebook.
Use the arrow keys / to scroll through the
Phonebook, or quick search by pressing the key
corresponding to the rst letter of the entry, see Text input.
Press Call to dial the selected entry, or press Back to return
to standby mode.
Receiving a call
Press qto answer, or press Silent to switch off the ring
signal and then Reject to reject the call (busy signal).
Alternately, press Lto reject the call directly.
Press Lto end the call.
See also Call options.
Volume control
Use the side keys +/–to adjust the sound volume. The volume
level is indicated on the display.
1.
2.
3.
1.
2.
3.
1.
2.
7
English
Display Symbols
Signal strength Missed call
Ring only Keylock on
Vib & ring Bluetooth on
Vib only Bluetooth connected
Light only Battery level
Alarm active New message
Headset connected
SIM card missing Charger connected
SIM card error Charger disconnected
Mute Headset connected
Unlocking keypad Headset disconnected
New SMS message Handsfree on
SOS calls only Handsfree off
OK (conrmed) Warning
Query Error
Battery level low Charging (animated)
Calling Call ended
Incoming call Missed call
Searching Call on-hold
