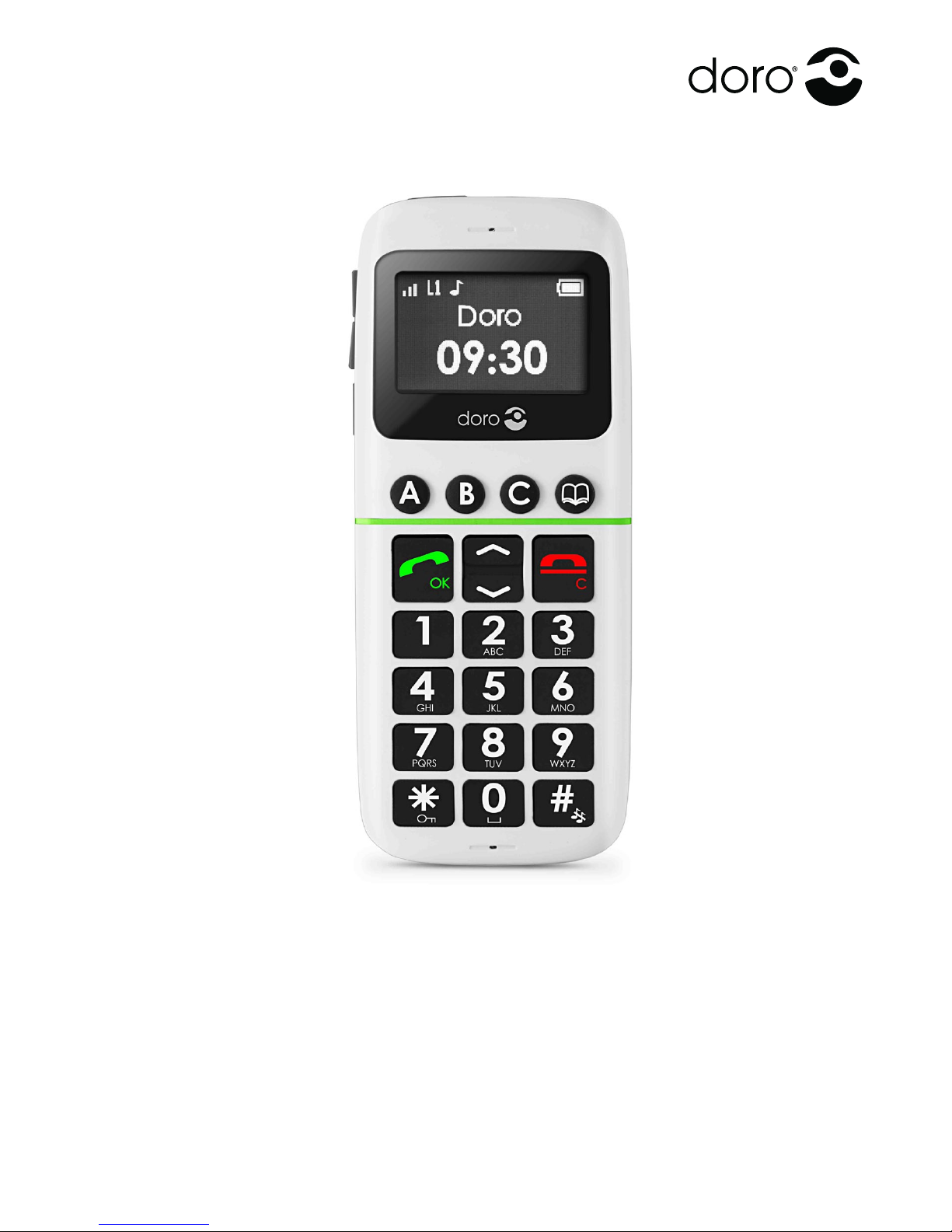

Doro PHONEEASY 338GSM Manuel utilisateur

PhoneEasy

338gsm

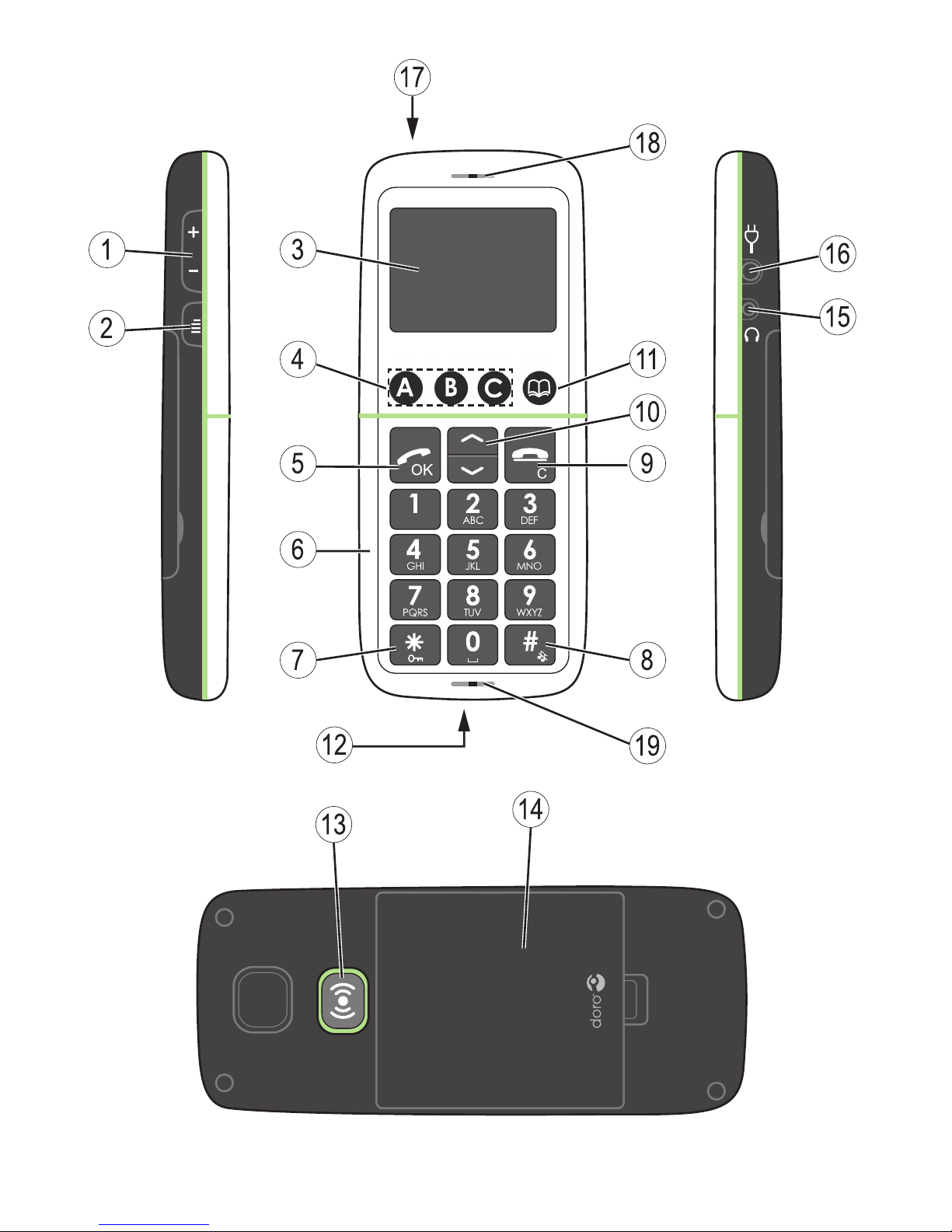

Side key (volume)

Menu key

Display

Memory keys

Call key/OK

Numeric keypad

*/ Key lock

#/ Change proﬁle

End call/back/Clear

Arrow keys

Phonebook key

10.

11.

Charging contacts (for use

with charging stand)

Emergency call key

Headset socket

Battery cover

Charging socket

Power on/off

Loudspeaker

Microphone

12.

13.

14.

15.

16.

17.

18.

19.

English

Sidoknapp (volym)

Menyknapp

Display

Snabbval

Samtalsknapp/OK

Numerisk knappsats

*/ Knapplås

#/ Byt proﬁl

Avsluta samtal/radera/bakåt

Pilknappar

Telefonbok

10.

11.

Laddningskontakter

(för användning med ett

laddningsställ)

Knapp för nödsamtal

Batterilucka

Uttag för headset

Uttag för laddare

På/av

Högtalare

Mikrofon

12.

13.

14.

15.

16.

17.

18.

19.

Svenska

Sidetast (volum)

Menytast

Display

Hurtigtaster

Ringetast/OK

Talltastatur

*/ Tastelås

#/ Endre proﬁl

Avslutt samtale/slette

Piltaster

Telefonbok

10.

11.

Ladekontakter (for bruk med

ladestativ)

Tast for nødanrop

Batterideksel

Hodesettkontakt

Ladekontakt

Strøm på/av

Høyttaler

Mikrofon

12.

13.

14.

15.

16.

17.

18.

19.

Norsk

Sidetast (lydstyrke)

Menutast

Display

Hurtig Opkald

Opkaldstast/OK

Numerisk tastatur

*/ Tastaturlås

#/ Skift proﬁl

Afslut opkald/slette

Piletaster

Telefonbog

10.

11.

Stik til oplader (til brug med

opladningsholder)

Nødopkaldstast

Batteridæksel

Stik til headset

Stik til oplader

Strøm til/fra

Højtaler

Mikrofon

12.

13.

14.

15.

16.

17.

18.

19.

Dansk

Sivupainike

(äänenvoimakkuus)

Valikko

Näyttö

Pikavalinta

Soittopainike/OK

Numeronäppäimistö

*/ Näppäinlukko

#/ Vaihda proﬁilia

Lopeta puhelu/poista

Nuolinäppäimet

10.

Puhelinmuistio

Latauksen kosketuspinnat

(lataustelinettä varten)

Turvapuhelupainike

Akkukotelon kansi

Kuulokemikrofoniliitäntä

Laturin liitäntä

Virta päälle/pois

Kaiutin

Mikrofoni

11.

12.

13.

14.

15.

16.

17.

18.

19.

Suomi

English

Contents

Installation .................................... 2

Installing the SIM card and battery.................. 2

Charging .................................... 3

Operation...................................... 4

Activating the phone ............................ 4

Making a call ................................. 5

Making a call from the Phonebook .................. 5

Receiving a call ............................... 5

Volume control ................................ 5

Call information ............................... 5

Displaysymbols................................. 6

Additionalfunctions.............................. 7

Handsfree mode (qkey) ....................... 7

Call log ..................................... 7

Text input.................................... 8

Speed dial ................................... 8

Phonebook ................................... 9

Key lock.................................... 10

Silent mode ................................. 10

Headset .................................... 10

SOS calls ................................... 11

Emergency Call key ............................ 11

SMSmessaging................................ 12

Incoming messages............................ 12

Settings ..................................... 13

Time and date................................ 13

SMS receive ................................. 15

Emergency .................................. 16

Security settings .............................. 17

Safetyinstructions.............................. 18

Troubleshooting................................ 21

Careandmaintenance ........................... 23

Warranty and technical data . . . . . . . . . . . . . . . . . . . . . . . 24

English

Installation

Warning!

Turn off the phone and disconnect the charger before remo-

ving the battery cover.

Installing the SIM card and battery

The SIM card holder is located behind the battery. Remove the

battery if it is already installed.

Insert the SIM card by carefully sliding it into the holder. Make

sure that the SIM card’s contacts are facing inwards and that the

cut-off corner is pointing upwards. Take care not to scratch or

bend the contacts on the SIM card.

English

Charging

Warning!

Only use batteries, charger and accessories that have been

approved for use with this particular model. Connecting

other accessories may be dangerous and may invalidate the

phone’s type approval and guarantee.

When the battery is running low, is displayed and a warning

signal is heard. To charge the battery, connect the mains adapter

to the wall socket and to the charging socket y.

is displayed brieﬂy when the charger is connected to the

phone, and when it is disconnected. The battery charge

indicator will be animated while charging.

Charge the battery for 3 hours the ﬁrst time. After that, it takes

approximately 3 hours to fully charge the battery.

is displayed when charging is completed.is displayed when charging is completed.

Note!

Full battery capacity will not be reached until the battery has

been charged 3–4 times.

The ambient temperature must be in the range -10 °C to

+55 °C when charging.°C when charging.C when charging.

Batteries degrade over time, which means that call time and

standby time will normally decrease with regular use.

English

Operation

Activating the phone

Press and hold 1to turn the phone on/off. The following messa-The following messa-

ges may be displayed:

Insert SIM

SIM card missing or

incorrectly inserted.

SIM card damaged or not

valid.

If the SIM card is valid but protected with a PIN code (Personal

Identiﬁcation Number), PIN: is displayed. Enter the PIN code

and press OK. Skip backwards with L.

Note!

If PIN and PUK codes were not provided with your SIM card,

please contact your network operator.

Trials: # shows the number of PIN attempts left. When no

more attempts remain, SIM blocked is displayed. The SIM

card must now be unlocked with the PUK code (Personal

Unblocking Key).

1. Enter the PUK code and conﬁrm with OK.

2. Enter a new PIN code and conﬁrm with OK.

Changing the language, time and date

If the operator supports automatic time/date setting, you might get

a question upon installation if you want to update to the suggested

time.Press Yes to accept or No to reject the suggested time.

On ﬁrst use, the phone language, time and date must be set. The

default language is determined by the SIM card. See Settings on

how to change language, time and date.

English

Making a call

Enter the phone number. Skip backwards with L.

Press qto dial.

Press Lto end the call.

Note!

When making international calls, press *twice for the

international preﬁx "+".

Making a call from the Phonebook

Press bto open the phonebook.

Use the arrow keys / to scroll through the phone-

book, or quick search by pressing the key corresponding to

the ﬁrst letter of the entry, see Text input.

Press qto dial the selected entry, or press Lto return

to standby mode.

Receiving a call

Press qto answer.

Alternately, press Lto reject the call directly.

Press Lto end the call.

Volume control

Use the side keys +/–/– to adjust the sound volume. The volume

level is indicated on the display.

Call information

During a call, the called or calling phone number and the elapsed

call time is displayed.

If the identity of the caller is withheld, Unknown is displayed.

English

Display symbols

Signal strength Missed call

Ring only Keylock on

Ring + vibration Battery level

Vibration only New message

Silent mode Roaming (connected to

other network)

Headset connected

SIM card missing Charger connected

SIM card error Charger disconnected

Keypad locked Headset connected

Unlocking keypad Headset disconnected

New SMS message Handsfree on

SOS calls only Handsfree off

OK (conﬁrmed) Error

Battery level low Charging (animated)

Calling Call ended

Incoming call Missed call

Searching
