Dorel TG7441 Manuel utilisateur

Model No:

TG7441

UPC CODE:

NOTE:

KEEP FOR FUTURE REFERENCE.

THIS INSTRUCTION BOOKLET

INFORMATION. PLEASE READ AND

INSTRUCTION MANUAL

0-65857-17416-8

CONTAINS IMPORTANT SAFETY

TUFTED ROCKING

CHAIR

Lot number:

(TAKEN FROM CARTON)

_____________________________________

Date of purchase:

_______ / _______ / _______

DO NOT RETURN PRODUCT TO THE STORE.

If a part is missing or damaged, contact our customer

service department. We will replace the part

FREE of charge.

Tel #: 1-800-295-1980

E-Mail: [email protected]

Fax #: 514-353-7819

NEED HELP!

CALL US FOR ASSISTANCE

1-800-295-1980

DO NOT RETURN PRODUCT TO STORE

E-MAIL:DAS@DOREL.COM

DO NOT leave children unattended on or beside the chair.

DO NOT use your chair as a step stool.

DO NOT sit on the edge of the seat, armrests or on the backrest as this could make the chair tip over.

* Ensure that all parts and components are located before beginning assemble.

* Assemble on soft surfaces to prevent damage to the product finish.

* Read all instructions before use of the rocking chair.

* Do not use the unit if it is damaged or broken.

* Caution: Adult assembly required.

* Assembly will require 2 people.

* Estimated assembly time: 5 minutes.

Montreal, Quebec

Canada H1G 3L1

CUSTOMER SERVICE

If you are missing parts or have any questions about this product, contact our customer service

representative first!

CALL 1-800-295-1980

You can also order parts by writing to the address listed below. Please include the product

model number, color and a detailed description of the part.

Customer Service Department No. 413

12345 Albert-Hudon Boulevard, Suite 100

WARNING: Should this product become damaged, and/or

components are broken or missing, DO NOT USE.

MAINTENANCE

Check connecting points periodically to ensure none have come loose during use.

E-MAIL: da[email protected]

WARNING

LIMITED WARRANTY

Dorel warrants its product to be free from defects in material and workmanship and agrees to

remedy any such defect. This warranty covers 1 year from the date of original purchase. This

warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair

or replacement of defective furniture components and no assembly labor is included. This

warranty does not apply to any product which has been improperly assembled, subjected to

misuse or abuse or which has been altered or repaired in any way. Any wearing, tearing or

fading of the fabric is not covered under the warranty. This warranty gives you specific legal

rights and you may also have other rights which vary from State to State.

CARE AND CLEANING

Dust regularly with a soft, dry cloth to prevent soil build-up. Keep away from heat to avoid

glazing, melting or scorching. Use a professional cleaning service to clean the fabric.

NOTES

HARDWARE LIST

1 2 3

4 5 6

PARTS LIST

A B C

METAL PLATE

2 PCS

M6 x 50mm

Ø11 x 2mm

Ø18 x 1mm

TUFTED ROCKING CHAIR

TG7441

BOLT

SPRING WASHER

FLAT WASHER

8 PCS

24 PCS

M6 x 25mm

ALLEN KEY

1 PC

BOLT

16 PCS

METAL PLATE

2 PCS

CHAIR BODY

LEFT LEG

RIGHT LEG

1 PC

Step 1:

With the help of another person, gently turn the chair body (A) upside down on a clean, smooth

surface.

Align right leg (C) to chair body (A) as shown below. Make sure that the long end of right leg (C)

is facing the back of chair body (A).

TUFTED ROCKING CHAIR

TG7441

FRONT

BACK

TUFTED ROCKING CHAIR

TG7441

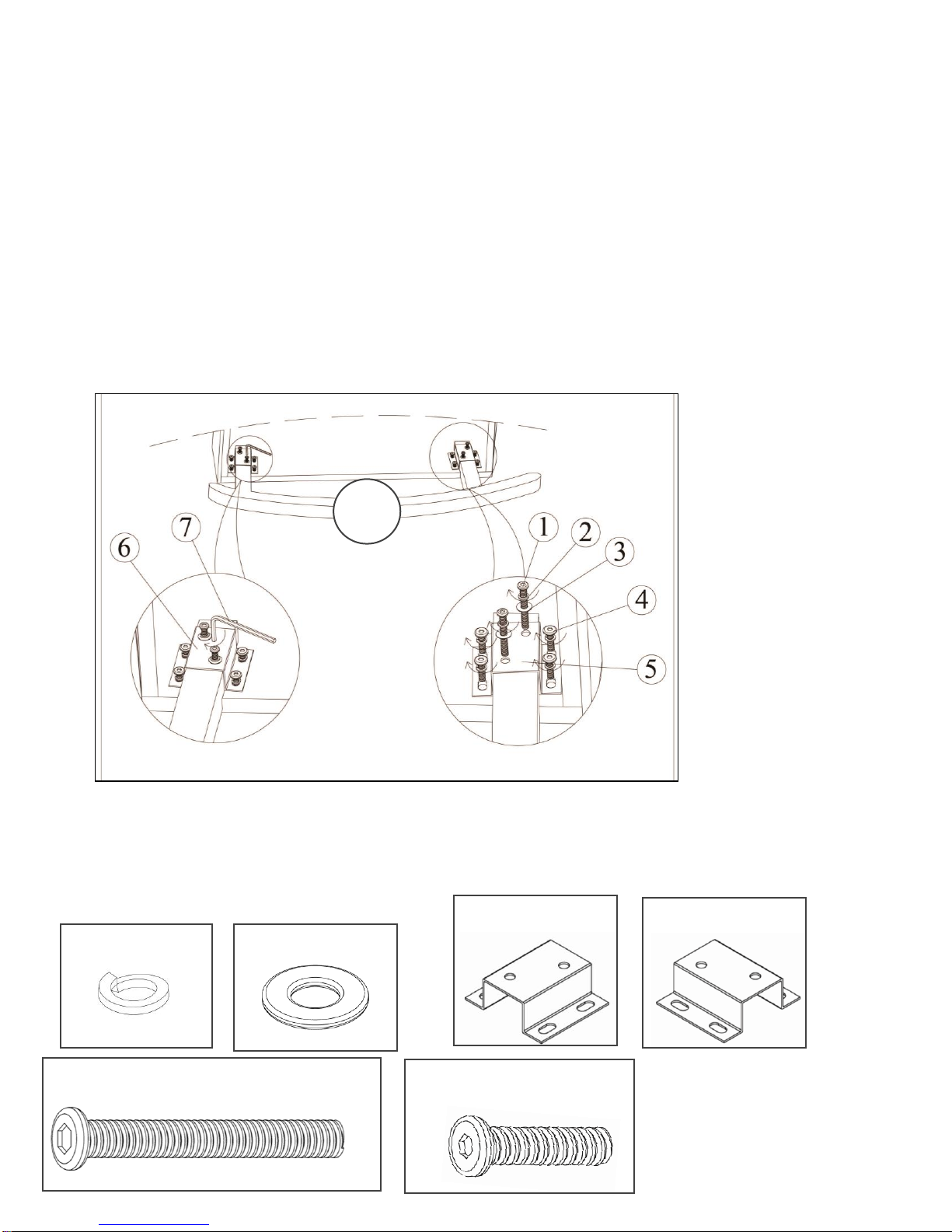

Step 2:

Attach the right leg (C) to the chair body (A) using the metal plates (5 & 6) bolts (1 & 4), spring washers

(2) and flat washers (3) as shown below.

Use Allen key (7) to tighten the bolts.

Repeat this step to attach the left leg (B) to chair body (A).

Turn the chair upright.

BACK

FRONT

TUFTED ROCKING CHAIR

TG7441

ATTENTION: Proper attachment of the chair legs is essential in maintaining

the overall structure of the chair.

CORRECT-

The legs are attached so

that the long end of the

chair legs are towards the

back of the chair body.

INCORRECT-

The legs are attached so

that the short end of the

chair legs are towards the

back of the chair body.

TUFTED ROCKING CHAIR

TG7441

CAUTION: This unit is intended for use only with the

products and/or maximum weights indicated. Use with other

products and/or products heavier than the maximum weights

indicated may result in instability or cause possible injury.

That's it! You've finished assembling your rocking chair.

DO NOT RETURN PRODUCT TO THE STORE.

If a part is missing or damaged, contact our customer service

department. We will replace the part FREE of charge.

Tel #: 1-800-295-1980

E-Mail: [email protected]

Fax #: 514-353-7819

Dust regularly with a

soft, dry cloth to

prevent soil build up.

Keep away from heat

to avoid glazing,

melting or scorching.

Use a professional

cleaning service to

clean the fabric.

Intended Maximum Weight =

225 lbs

NEED HELP!

CALL US FOR ASSISTANCE

1-800-295-1980

DO NOT RETURN PRODUCT TO STORE

E-MAIL:DAS@DOREL.COM

MODEL #:TG7441

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE

PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING

NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).

Request Date:

Name:

Shipping Address:

Street & Number:

City & State:

Zip Code:

Day Time Phone Number:

(including area code)

Date & Place of Purchase:

Part(s) description and quantity: (Please be sure to list model number or SKN number)

Email: das@dorel.com

Customer Service Phone Number 1-800-295-1980

Customer Service Fax Number 514-353-7819

Customer Service Representative Mailing Address:

Customer Service

Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
