DoorKing 1601-235 Manuel utilisateur
Test hub UP and DOWN position
before installing bracket.
Arm and Reverse Edge Note:
Arm (sold separately) has already been assembled when
using 2-piece arm. See page 5 for more information.
Reverse edge with/without LEDs (sold separately) has already
been installed on arm. See page 6 for more information.
Install Bracket
OCTAGON ARM REVERSE/LED EDGE INSTALLATION
Installation
DoorKing Part Number
1601-235
Octagon Arm Hardware Kit
DoorKing Part Number
1601-242
Arm Hardware Kit
This kit is designed for a 1601 barrier gate operator WITHOUT convenience open OR 1603 auto-spikes barrier operator.It CANNOT
be used with a 1602 operator. The kit provides a reversing edge with OR /without Red/Green LEDs for a octagon arm. When the arm
is raised, LEDs turn GREEN, and turns RED when lowered and remains RED in the down position. Arm will reverse if lowering and a
obstruction is encountered.
Note: DO NOT operate arm with a malfunctioning reverse edge.
Allow arm to protrude
about 1” past the end
of arm bracket. Make
sure arm cover fits
over arm.
When installing a octagon
arm ONLY.
Arm Bracket
Hub
Arm
Reverse Edge
Drawings NOT to scale
Octagon Arm
Reverse/LED Edge Copyright 2019 DoorKing®, Inc. All rights reserved.
120 S. Glasgow Avenue
Inglewood, California 90301 U.S.A.
Hub MUST already be installed on gate operator.
See 1601 Installation/Owner’s manual for correct hub installation.
1
1601-268-B-12-19
Run Wire Harness (1601-345)
Choose which side of the operator the arm is mounted on, remove knock-out and run wire harness accordingly as shown.
Wire
Guard
Knock-Out
Knock-Out
Far Side
Option
Near Side
Option
Note for Older Operators:
A 5/8” hole will have to be
drilled in the operator
cabinet approximately
where Knock-Out is
shown. Make sure 5/8”
hole is clear of all internal
components.
Note for Older Covers:
See page 4.
Use bottom hole on arm bracket to secure wire guard.
Plug in reverse edge.
Arm Cover
Wire Harness Secured
to Top of Cabinet for
FAR side option
Included Adhesive
Zip Ties
IMPORTANT: Allow a loop in the
wire harness for rotating arm.
IMPORTANT: Allow a loop in the
wire harness for rotating arm.
Install Arm Cover
IMPORTANT: Wire harness MUST
remain clear of the rotating arm and
the arm cover to avoid wire chaffing.
DO NOT operate arm with a
malfunctioning reverse edge.
Use supplied adhesive
zip tie to secure harness
to bottom of bracket.
Wiring:
See page 3.
2
1601-268-B-12-19
REVERSE
SENSITIVITY
TIME
DELAY
POWER
1
ON
2 3 4 5 6 7 81
ON
2 3 4 5 6 7 8
NC NO
UP
LOOP
DOWN
LOOP
12345678910 11 12 13 14
SW 1
SW 2
ON
OFF
AC POWER
AUTO
DOWN
UP
NONCC
Wiring
Power
Transformer
Terminal 14 -
Yellow Reverse Edge
Red+
Black-
(1601-345)
Transformer Plug
C - Common - WHITE Wire
NC - Close - ORANGE Wire (Red LED)
NO - Open - GREEN Wire (Green LED)
Keep wire
harness
clear of
all moving
parts.
MAKE SURE ALL POWER IS TURNED OFF TO OPERATOR!
Arm Relay
Contacts
Terminal 9 - Yellow Reverse Edge
1601 operators WITH
convenience open
CANNOT be USED.
3
1601-268-B-12-19

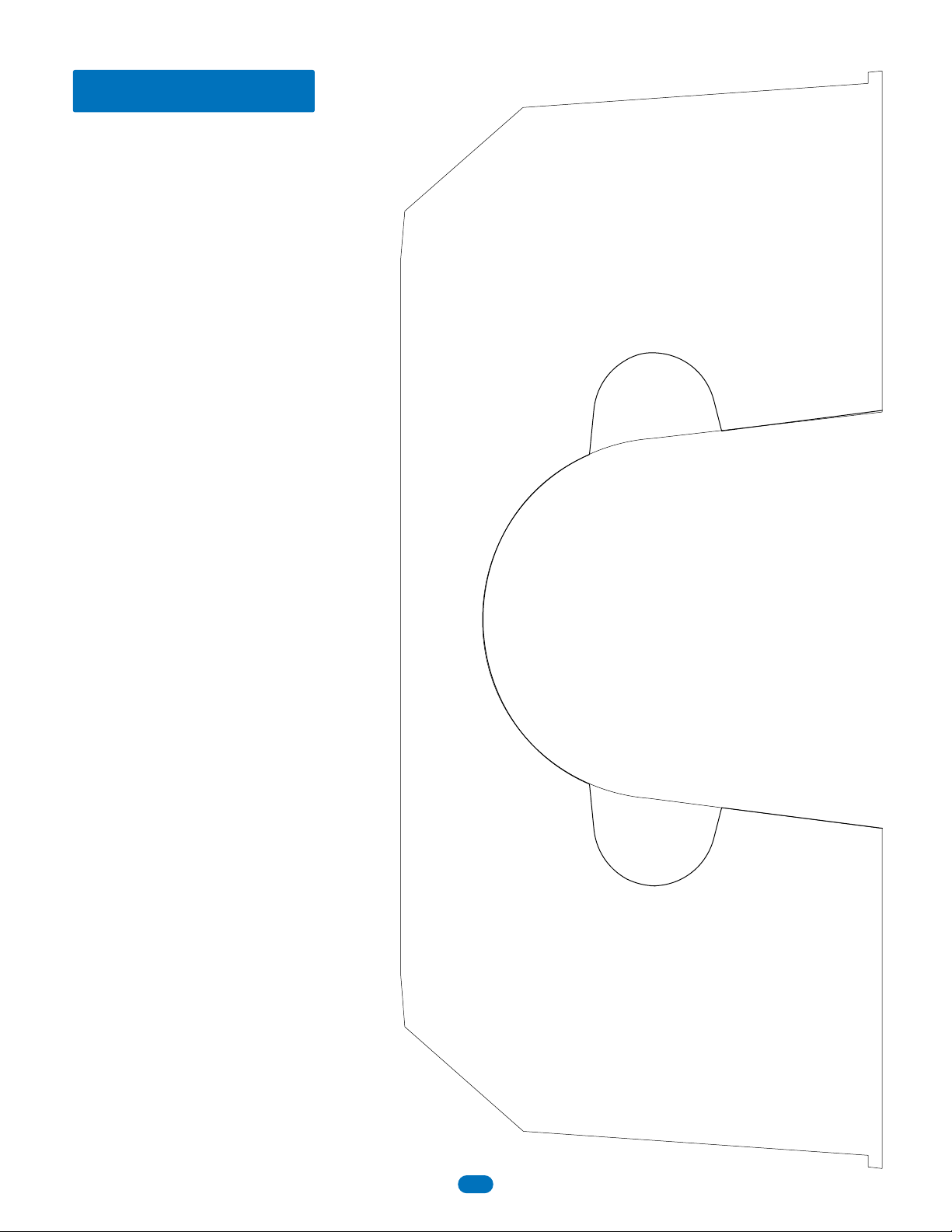

Older Arm Cover
X
X
Older arm cover will need to have the reverse edge
cut out of the existing cover. Only one side of the
cover will need to be cut out depending on which
side of the operator the arm is mounted on. Use
this template as a guide to remove material from
the cover.
4
1601-268-B-12-19

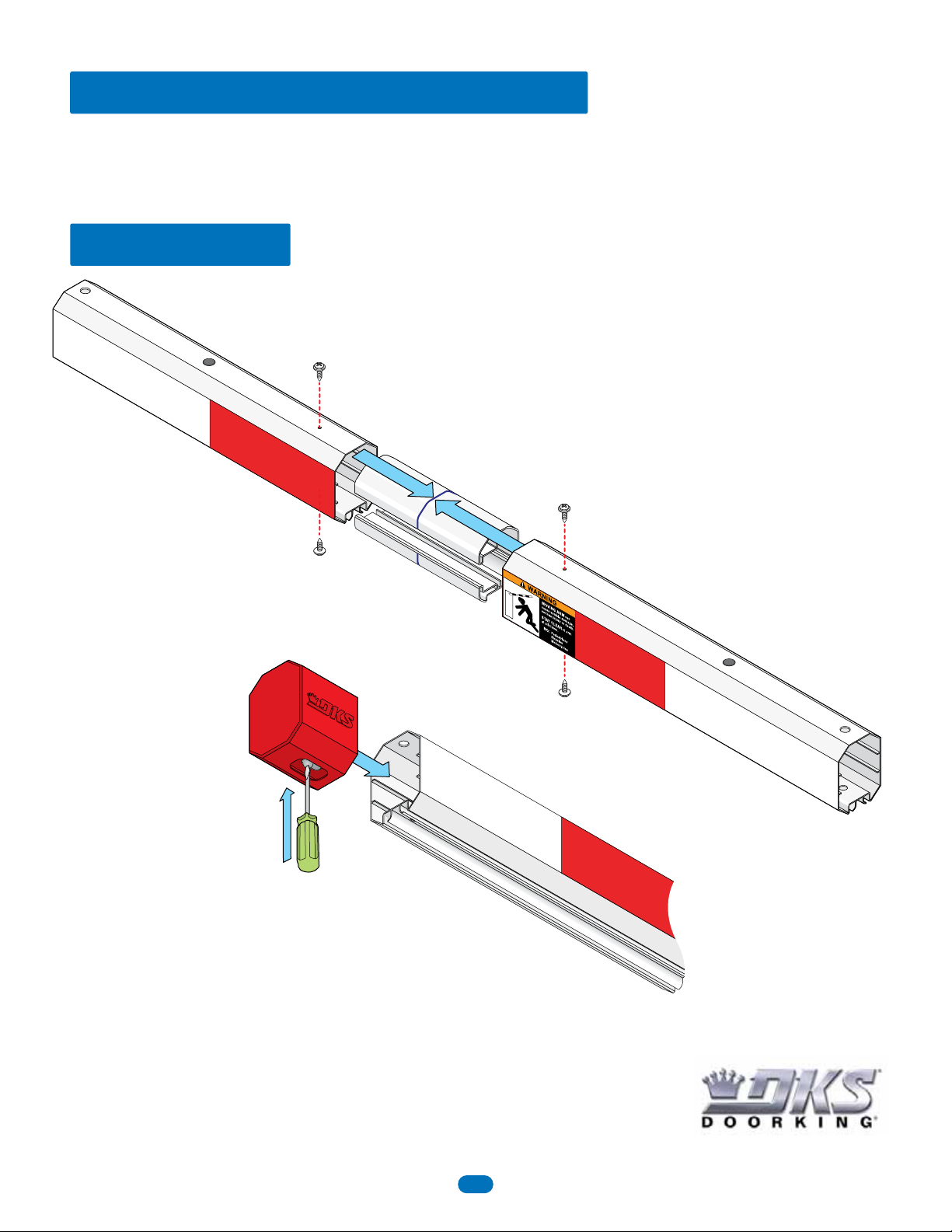

14 FT 2-PIECE OCTAGON ARM ASSEMBLY
Assemble Arm
DoorKing Part Number
1601-567
14 Ft 2-Piece Octagon Arm Kit
This kit is designed for use on a 1601 or 1603 barrier gate operators ONLY. It has 2-7 ft arm sections
that assemble into a 14 ft arm.
7 Ft Arm Section 7 Ft Arm Section
Coupler
Drawing NOT to scale
Slide one section of the arm on coupler to the center line and secure
with screws before inserting other arm section and securing.
Note: Holes are pre-drilled in the arm sections, but not in the coupler.
Pre-drilled Hole
Pre-drilled Hole
CenterLine
Install End Cap
Push a screwdriver through the hole in cap to
release spring while pushing cap on. Keep pushing
cap on until a “CLICK” is heard, locking it in place.
Copyright 2019 DoorKing®, Inc. All rights reserved.
120 S. Glasgow Avenue
Inglewood, California 90301 U.S.A.
Self-tapping screws
through pre-drilled
holes in arm sections.
5
1601-268-B-12-19
Remove End Cap
REVERSE EDGE / RED GREEN LED INSTALLATION
Installation
DoorKing Part Numbers
8080-080
Reverse Edge
8080-096
Reverse Edge + Red/Greed LED
This kit is designed to install on a 14 ft aluminum octagon arm for a 1601 barrier gate operator or
a 1603 auto spikes operator. It CANNOT be used with a 1602 operator.
Note: DO NOT operate arm with a malfunctioning reverse edge.
Push a screwdriver through hole
in bottom of end cap to release
spring while pulling cap off.
Push a screwdriver through the hole in cap to release
spring while pushing cap on. Keep pushing cap on
until a “CLICK” is heard which locks it in place.
Copyright 2019 DoorKing®, Inc. All rights reserved.
120 S. Glasgow Avenue
Inglewood, California 90301 U.S.A.
Tip: Liquid soap will help
reverse edge slide on easier.
Reinstall End Cap
Slide on Edge
1
2
3
Octagon Arm
Reverse/LED Edge
6
1601-268-B-12-19
