Dometic CT 4110 Manuel utilisateur

Cassette toilet for recreational

vehicles

Operating manual. . . . . . . . . . . . . . . .2

Toilettes à cassette pour

véhicules de loisirs

Notice d’utilisation . . . . . . . . . . . . . .16

Inodoros de cassette para

vehículos de tiempo libre

Instrucciones de uso . . . . . . . . . . . .32

Sanitário de cassete para

veículos de recreio

Manual de instruções . . . . . . . . . . . .46

CT4110, CTS4110

“More information https://www.caravansplus.com.au"

2EN

Dometic Group is a customer-driven, world-leading provider of leisure products for the RV, automotive, truck and marine mar-

kets. We supply the industry and aftermarket with a complete range of air conditioners, refrigerators, awnings, cookers, sanita-

tion systems, lighting, mobile power equipment, comfort and safety solutions, windows, doors and other equipment that make

life more comfortable away from home.

Dometic Group supplies a wide range of workshop equipment for service and maintenance of built-in air conditioners. Dometic

Group also provides specially designed refrigerators for hotel rooms, offices, wine storage and transport and storage of medi-

cal products.

Our products are sold in almost 100 countries and are produced mainly in wholly-owned production facilities around the world.

Model number .............................................

Product number .............................................

Serial number .............................................

Record for future reference:

©Dometic GmbH - 2011-2015 - Subject to change without prior notice

Dometic GmbH

In der Steinwiese 16

D-57074 Siegen

www.dometic.com

Dometic Corporation, Sanitation Division

13128 SR 226, PO Box 38

Big Prairie, OH 44611 USA

Customer support: 1-800-321-9886 (USA and Canada)

330-439-5550 (International)

“More information https://www.caravansplus.com.au"

Table of contents

1.0 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.2 Information on this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.3 Copyright protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.4 Explanation of symbols used in this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.5 Limitation of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.6 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.7 Customer services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.8 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.9 Environmental notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3.0 Description of model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.1 Model identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.2 Toilet identification label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.0 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.2 User's responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.3 Use of sanitary additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2.4 Working upon and checking toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.3 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3.4 Description of components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4.0 Using the toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.2 Preparing cassette tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.3 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4.4 Using the toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4.5 Emptying the cassette tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4.6 Winter operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

4.7 Decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

4.8 Positioning the toilet seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

4.9 Removing the toilet seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

4.10 Replacing the fuse on the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

4.11 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

4.11.1 Dismantling the cassette seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

4.11.2 Installation of the cassette seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

4.12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

“More information https://www.caravansplus.com.au"

General

You have made an excellent choice in selec-

ting this Dometic cassette toilet. We are sure

that you will be satisfied with your new sanita-

tion system in all respects. This toilet meets

high quality standards and guarantees the effi-

cient utilisation of resources and energy

throughout its entire life cycle, during manu-

facture, in use and when being disposed of.

The information, texts and illustrations in these

instructions are copyright protected and are

subject to industrial property rights. No part of

these instructions may be reproduced, copied

or utilised in any other way without written aut-

horisation by Dometic.

Before operating the toilet read and under-

stand the contents of this manual.

These instructions provide you with the neces-

sary guidance for the proper use of the toilet.

Observe the safety instructions in particu-

lar. Observing the instructions and handling

recommendations is important for dealing with

the toilet safely and for protecting you from

injury and the toilet from damage. You must

understand what you have read before you

carry out a task..

Keep this manual in a safe place close to the

toilet so it may be referred to at any time.

Warning notices are identified by symbols. A

supplementary text gives you an explanation

of the degree of danger.

Observe these warning notices rigorously.

You will thus protect yourself and other

people from injury, and the sanitation

system from damage.

Warning notices

CAUTION indicates a potentially hazardous

situation which may result in minor or modera-

te injury if the given instructions are not adher-

ed to.

Environmental tip

ENVIRONMENTAL TIP gives you useful gui-

dance for saving energy and disposal of the

sanitation system.

NOTICE (used without the safety alert symbol)

indicates a potentially hazardous situation

which may result in damage to the appliance if

the given instructions are not adhered to.

NOTICE!

Information

INFORMATION gives you supplementary and

useful guidance when dealing with your toilet.

CAUTION!

1.4 Explanation of symbols

used in this manual

1.3 Copyright protection

1.2 Information on this

manual

1.1 Introduction

1.0 General

“More information https://www.caravansplus.com.au"

General

Warranty arrangements are in accordance

with the normal conditions applicable for the

country concerned. For warranty or other

maintenance, please contact your dealer in

the event of a warranty claim. Any damage

due to improper use is not covered by the war-

ranty. The warranty does not cover any modi-

fications to the appliance or the use of non-

original Dometic parts. The warranty does

not apply if the installation and operating

instructions are not adhered to and no liability

shall be entertained.

All information and guidance in these opera-

ting instructions were prepared after taking

into consideration the applicable standards

and regulations as well as the current state of

the art. Dometic reserves the right to make

changes at any time which are deemed to be

in the interest of improving the product and

safety.

Dometic will assume no liability for damage in

the case of:

non-observation of the operating instructi-!

ons

application not in accordance with the!

regulations or provisions

use of non-original spare parts!

modifications and interferences to the!

appliance.

Find your authorised customer service centre

on the internet www.dometic.com.

When contacting Dometic Customer Services,

please state the model, product number and

serial number together with the MLC code, if

applicable. You will find this information on the

toilet identification label. We recommend that

you note these details in the field provided on

the front page of this operation manual.

Dometic Corporation, Sanitation Division

13128 SR 226, PO Box 38

Big Prairie, OH 44611 USA

Customer support:

1-800-321-9886 (USA and Canada)

330-439-5550 (International)

Spare parts can be ordered from our customer

services department.

Always state the model and product number

when you contact customer services. You will

find this information on the toilet identification

label ( see section 3.2 “

Toilet identification

label“

)

Please observe the usage notes on the packa-

ging when using sanitary additives.

In order to ensure that the recyclable packa-

ging materials are re-used, they should be

sent to the customary local collection system.

The appliance should be transferred to a suit-

able waste disposal company that will ensure

re-use of the recyclable components and pro-

per disposal of the rest.

Disposal

Use of sanitary additives

1.9 Environmental notices

1.8 Spare parts

1.7 Customer services

1.6 Warranty

1.5 Limitation of liability

“More information https://www.caravansplus.com.au"

Safety instructionts / Description of model

Store these sanitary additives so that they

are out of the reach of children.

CAUTION!

This toilet is designed for installation in recrea-

tion vehicles such as caravans or motorho-

mes. The toilet is designed for a maximum

person weight of 130 kg (286.6 lb).

Anyone operating the sanitation system must

be familiar with the safe handling and under-

stand the advice in these operating instructi-

ons. Children may only operate the sanitation

system if they have been made aware of how

to operate it safely and the dangers attending

incorrect operation.

Before using sanitary means when using and

cleaning the toilet, observe the usage notes on

the packaging.

Prevent accidental closing of the toilet

slide during cleaning and greasing. Risk of

injury!

CAUTION!

Leave maintenance and service work to spe-

cialist staff.

Regular greasing of the seals mentioned in!

the item

Maintenance.

Removal of the cassette seal!

Exception

The CTx 4110 cassette toilet consists of a toi-

let which is installed fixed in the vehicle and a

removable, mobile cassette as a blackwater

tank. The cassette can be accessed from the

outside through a door. The toilet receives the

flush water from a fresh water tank installed in

the vehicle.

CT S 4110

Cassette Toilet

S = free-standing, without flush water

tank, with console

Example:

The identification label contains all important

details. You can read off from this the model

identification (1) , the product number (2) and

the serial number (3) . You will need these

details whenever you contact the customer

services centre or when ordering spare parts.

You will find the identification label within the

cassette housing after removing the cassette.

Fig. 1

Example

2.4 Working upon and

checking toilet

2.3 Use of sanitary additives

2.2 User's responsibility

2.1 Intended use

2.0 Safety instructions

3.2 Toilet identification label

3.1 Model identification

3.0 Description of

model

“More information https://www.caravansplus.com.au"

Description of model

Supply voltage: 12 V DC

Current consumption: max. 5 A with external

pump.

Dimensions: s. details in installation manual

Operating temperature:

0°C up to + 50°C (32 °F up to +122 °F)

Required pump output: minimum 7 l/min

(1.85 US.gal./min)

Fig. 2

Level indicator / flush (control panel)

Wall socket console

Removable seat

Ceramic toilet bowl

Emptying blade for the toilet bowl

Housing for cassette tank

Fresh water tank (option)

Pour out spout

Vent button for emptying

Pull-out handle

(cassette tank movable on wheels)

Inspection/Certification

10 R - 047317

3.4 Description of

components

3.3 Technical data

“More information https://www.caravansplus.com.au"

Using the toilet

4.1 Cleaning

4.2 Preparing cassette tank

Before you use the toilette for the first time:

Open the service door.!

Unlock the cassette tank by pushing the!

lock upwards.

Place the cassette tank in an upright positi-!

on and turn the pour out spout upwards by

approx. 90°. Remove the cap from the

spout.

Pull the cassette out to the stop and remo-!

ve it completely.

Fig. 3

Fig. 4

Fig. 5

Put the cassette back in and push it in until!

it stops. Ensure that the tank can be

smoothly inserted. Do not use force!

The tank's lock shuts automatically when!

inserted. But check that the cassette tank is

firmly attached.

Close and lock the service door.!

Avoid turning the spout by more than 90°,

as it may otherwise come loose.

NOTICE!

Before using the toilet for the first time, we

recommend cleaning the toilet on the inside

and outside.

Use a soft cloth and lukewarm water with a

mild detergent. Then rinse the surfaces with

clear water.

Clean the toilet bowl at regular intervals with a

mild and colorless detergent.

Cleaning agents for the toilet must not

contain chlorine or alcohol!

NOTICE!

Fig. 6

Add Dometic tank treatment (available!

separately) via the spout into the cassette

tank in accordance with instructions for

use.

4.1 Cleaning

4.0 Using the toilet

“More information https://www.caravansplus.com.au"

Using the toilet

Fig. 7

"Flush" button

"Cassette tank removed" display

"Fill fresh water tank" display*

"Cassette tank 3/4 full" display

"Cassette tank full" display

* not connected as a rule when using the on-board tank.

4.4 Using the toilet

Pull the blade handle (2) forwards.!

Leave the blade open during use.!

Let some water run into the bowl before!

use. Operate the flush button (1) for this.

!When lifting the toilet seat, it locks in an

approximately 2/3 position. Use a little

more force if you want to open the seat fur-

ther.

Fig. 8

Fig. 9

Fig. 10

Operate the flush button (1) again after use!

to flush the bowl.

Close the blade handle (2).!

4.3 Control panel

“More information https://www.caravansplus.com.au"

Using the toilet

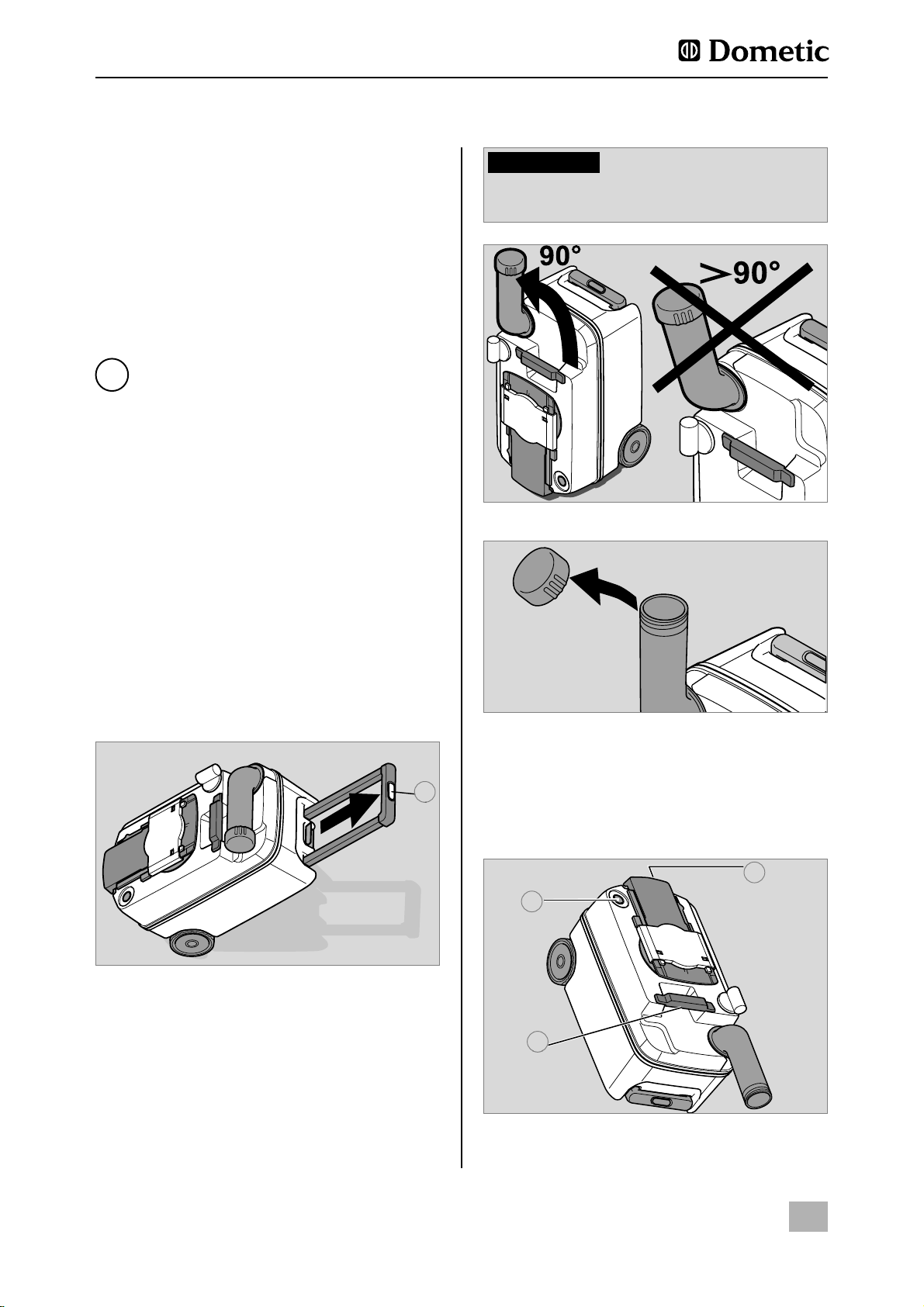

To bring the handle back into its original!

position, press the handle's unlock key and

push the handle back into the cassette.

Place the cassette tank in an upright positi-!

on and turn the emptying spout upwards.

Remove the cap from the spout.

Avoid turning the spout by more than 90°,

as it may otherwise come loose.

NOTICE!

Fig. 13

Fig. 12

Fig. 11

4.5 Emptying the cassette

tank

Empty the cassette tank when the level indica-

tor LED lights up.

The cassette tank has a capacity of 19 l

(5.02 US.gal.). When LED (4), Fig. 7, lights up,

the tank is approx. 80 % full. This means that

it can be used only a couple of times.

Remove the cassette tank as described in!

section

"4.2"

Carry or wheel the holding tank to the nea-!

rest authorized waste disposal point.

The cassette tank is provided with wheels

and a pull-out handle. To unlock the hand

le, push in the button (1) in middle of the

handle. Pull out the handle until it stops.

When the cassette is 3/4 full, the toilet may

only be used with the blade open.

On a slope (e.g. extended inclination of the

vehicle), the cassette must not be more

than 3/4 full. An overflow through the venti-

lation is possible.

Hold the cassette tank with one hand by!

the handle (2) . With the other hand hold it

at the blade handle (3) so that you can ope-

rate the vent button (1) during emptying.

Fig. 14

“More information https://www.caravansplus.com.au"

Autres manuels pour CT 4110

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dometic Toilettes

Dometic

Dometic SeaLand MasterFlush MF 7200 Series Manuel utilisateur

Dometic

Dometic VacuFlush 4848 Manuel utilisateur

Dometic

Dometic Saneo B Manuel utilisateur

Dometic

Dometic 972 Manuel utilisateur

Dometic

Dometic MasterFlush 7600 Series Manuel utilisateur

Dometic

Dometic SeaLand VacuFlush 4800 Series Manuel utilisateur

Dometic

Dometic RushFlush 9000 Series Manuel utilisateur

Dometic

Dometic 970 SERIES Manuel utilisateur

Dometic

Dometic Saneo Series Manuel utilisateur

Dometic

Dometic MasterFlush 8740 Manuel utilisateur

Dometic

Dometic CT 4110 Manuel utilisateur

Dometic

Dometic 4410N Manuel utilisateur

Dometic

Dometic 3200 Series Manuel utilisateur

Dometic

Dometic MasterFlush 8100 Series Manuel utilisateur

Dometic

Dometic 310 Series Manuel utilisateur

Dometic

Dometic Saneo B Manuel utilisateur

Dometic

Dometic CT*4 series Manuel utilisateur

Dometic

Dometic Saneo B Manuel utilisateur

Dometic

Dometic VacuFlush 5000 Series Manuel utilisateur

Dometic

Dometic SeaLand MasterFlush IT 8100 Series Manuel utilisateur

Dometic

Dometic 510H Manuel utilisateur

Dometic

Dometic VacuFlush 4800 Series Manuel utilisateur

Dometic

Dometic 8000 Series Manuel utilisateur

Dometic

Dometic T4050 Manuel utilisateur

Manuels Toilettes populaires d'autres marques

Toto

Toto Washlet TCF4911 Series Manuel utilisateur

Kohler

Kohler K-6419 Manuel utilisateur

Grohe

Grohe Sensia ARENA Manuel utilisateur

Kohler

Kohler K-5171K Instructions de montage

Geberit

Geberit AQUACLEAN MERA CLASSIC Manuel utilisateur

Kohler

Kohler K-24097X Instructions de montage

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Manuel utilisateur

American Standard

American Standard CONCEPT Cube TF-2704 Manuel utilisateur

BIOLAN

BIOLAN ECO Manuel de la liste des pièces

Thetford

Thetford C260 Series Manuel utilisateur

KELISS

KELISS T162A Series Manuel utilisateur

Kohler

Kohler K-22241K Instructions de montage

Kohler

Kohler ESCALE K-32771T-NS Manuel utilisateur

BIOLAN

BIOLAN GARDEN TOILET Manuel de la liste des pièces

washloo

washloo Prestige Manuel utilisateur

JABSCO

JABSCO 37010 Series Manuel utilisateur

Drive

Drive TSE 150 Manuel utilisateur

Olympia

Olympia EPOQUE 69209 Mode d’emploi
