Dometic RML9336 Manuel utilisateur

RML9336

Absorber refrigerator

Installation Manual. . . . . . . . . . . . . . . . . . . . . 9

Absorber-Kühlschrank

Montageanleitung. . . . . . . . . . . . . . . . . . . .22

REFRIGERATION

9 SERIES

RML9336-I-EN-DE.book Seite 1 Mittwoch, 17. Januar 2018 1:54 13

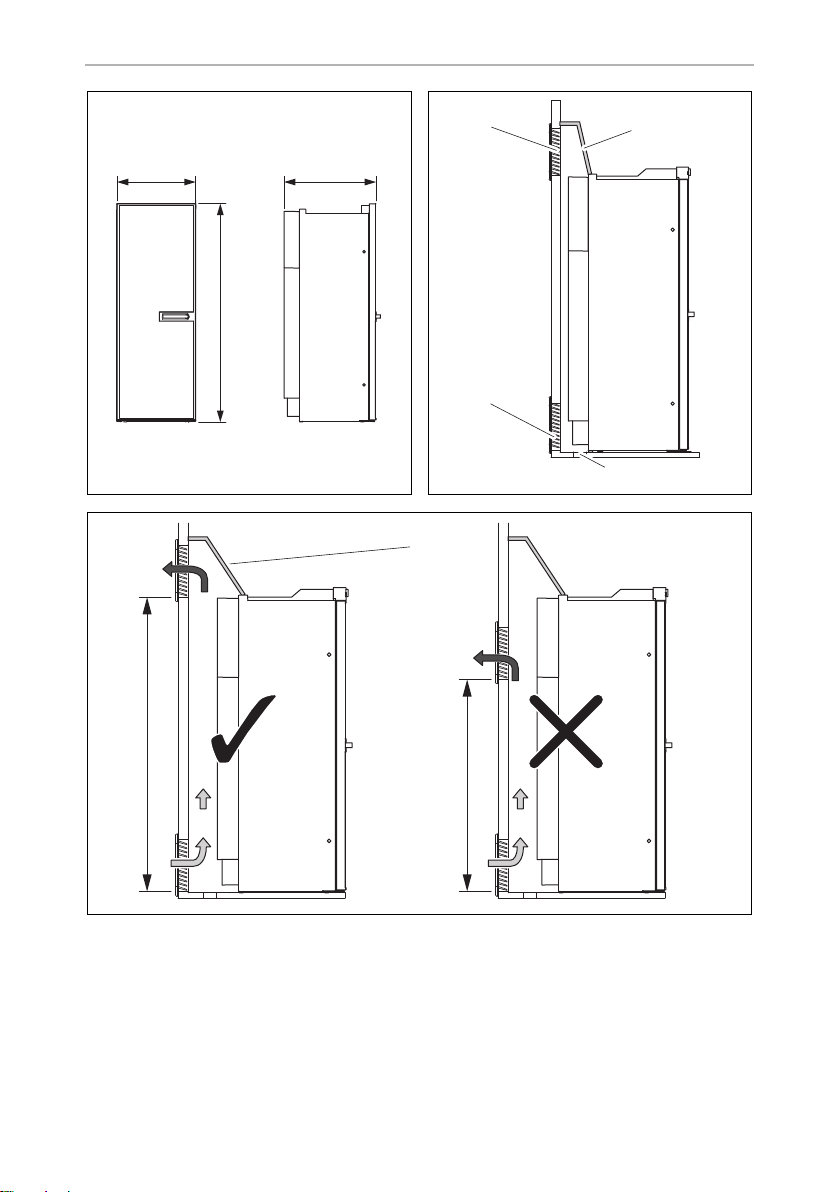

RML9336

586,5 mm420 mm

1293 mm

≥1050

< 1050

RML9336-I-EN-DE.book Seite 2 Mittwoch, 17. Januar 2018 1:54 13

RML9336

15 – 25

> 25 > 25

≥1350

15 – 25

RML9336-I-EN-DE.book Seite 3 Mittwoch, 17. Januar 2018 1:54 13

RML9336

≥300

1 2

RML9336-I-EN-DE.book Seite 4 Mittwoch, 17. Januar 2018 1:54 13

RML9336

LS 230 LS 330

LS 230

LS 330

LS 230

LS 330

LS 230

LS 330

RML9336-I-EN-DE.book Seite 5 Mittwoch, 17. Januar 2018 1:54 13

RML9336

RML9336-I-EN-DE.book Seite 6 Mittwoch, 17. Januar 2018 1:54 13

RML9336

≤2,5

402

189

1270,5

49583,5

402

189

1270,5

49583,5

A B

SW 17

SW 14

RML9336-I-EN-DE.book Seite 7 Mittwoch, 17. Januar 2018 1:54 13

RML9336

bu bn ye gn rd bk wh

EN Blue Brown Yellow Green Red Black White

DE Blau Braun Gelb Grün Rot Schwarz Weiß

bl (violet)

ws (86)

rt (87)

br (30)

sw (85)

8586

8730

X17

X16

X15

X15 X13

X12

X32

–

D+

X30

X07

X09

X20

X22

RML9336-I-EN-DE.book Seite 8 Mittwoch, 17. Januar 2018 1:54 13

RML9336 Explanation of symbols

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

5 Installing the refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

6 Connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

7 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

1 Explanation of symbols

NOTE

You can find details on the operation in the manual.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

RML9336-I-EN-DE.book Seite 9 Mittwoch, 17. Januar 2018 1:54 13

Safety instructions RML9336

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

!WARNING!

•Never open the absorber unit. It is under high pressure and can cause

injury if it is opened.

•Ensure clean and residue-free handling if silicon sealant or similar is

used. There is a risk of fire if silicone filaments come into contact with

hot parts or naked flames.

•Do not operate the refrigerator if it is visibly damaged.

•If the AC power cable for this refrigerator is damaged, it must be

replaced by the manufacturer, customer service or a similarly qualified

person in order to prevent safety hazards.

•Never use a naked flame to check the refrigerator for leaks.

•This refrigerator may only be repaired by qualified personnel. Inade-

quate repairs may cause serious hazards.

•Only use propane or butane gas (not natural gas).

•Only operate the refrigerator at the pressure shown on the type

plate. Only use pressure controllers with a fixed setting which comply

with the national regulations (in Europe EN 12864).

•Dismantle all refrigerator doors for the disposal of the old refrigerator

and leave the shelves in the refrigerator to prevent accidental enclo-

sure and suffocation.

!CAUTION!

•Danger of crushing! Do not put your fingers into the hinge.

•Before starting the device, ensure that the power supply line and the

plug are dry.

ANOTICE!

•Only hold the refrigerator at the body of the refrigerator during trans-

port. Never hold the refrigerator at the absorber unit, the cooling fins,

the gas pipes, the door or the control panel.

RML9336-I-EN-DE.book Seite 10 Mittwoch, 17. Januar 2018 1:54 13
