MODEL NO.: DOTR12CWIV/DOTR12CBIV

Please read and save these

installation instructions.

P/N: 3828W5U0202

OVER THE RANGE

MICROWAVE OVEN

INSTALLATION

INSTRUCTIONS

- 2 -

Read this entire manual before you begin.

BEFORE YOU START

• Proper installation is the installer's responsibility!

– Write the model & serial numbers on the owner’s manual. The model number label is located on the oven

front. See Figure 1. The mounting plate is located on the back side of the microwave oven. See Figure 2.

BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:

FOR YOUR SAFETY:

• You will need TWO people to install this oven. It is heavy and could cause personal injury if not handled

properly. The dimensions of the oven are as follows:

Height : 16 1/8inches

Width : 22 inches

Depth : 16 5/8inches

Weight : 48 pounds

• Avoid Electrical Shock!

– Before you drill into the wall, note where electrical outlets are and where electrical wires might be

concealed behind the wall. YOU COULD GET AN ELECTRIC SHOCK if you contact electrical wires

with your drill bit.

– Locate and disconnect the power to any electrical circuits that could be affected by installing this oven.

IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.

• ELECTRICAL RATING OF THIS OVEN : 120V AC 60Hz.

12.5 A / 1350 W (Microwave oven + Cooktop Lamps + Ventilation Fan)

Ventilation Capacity 130 CFM

– You need a DEDICATED 120V, 60Hz, AC only, 15 or 20A, fused electrical supply (located in the cabinet

above the microwave as close as possible to the microwave) serving only the microwave.

YOUR SAFETY FIRST

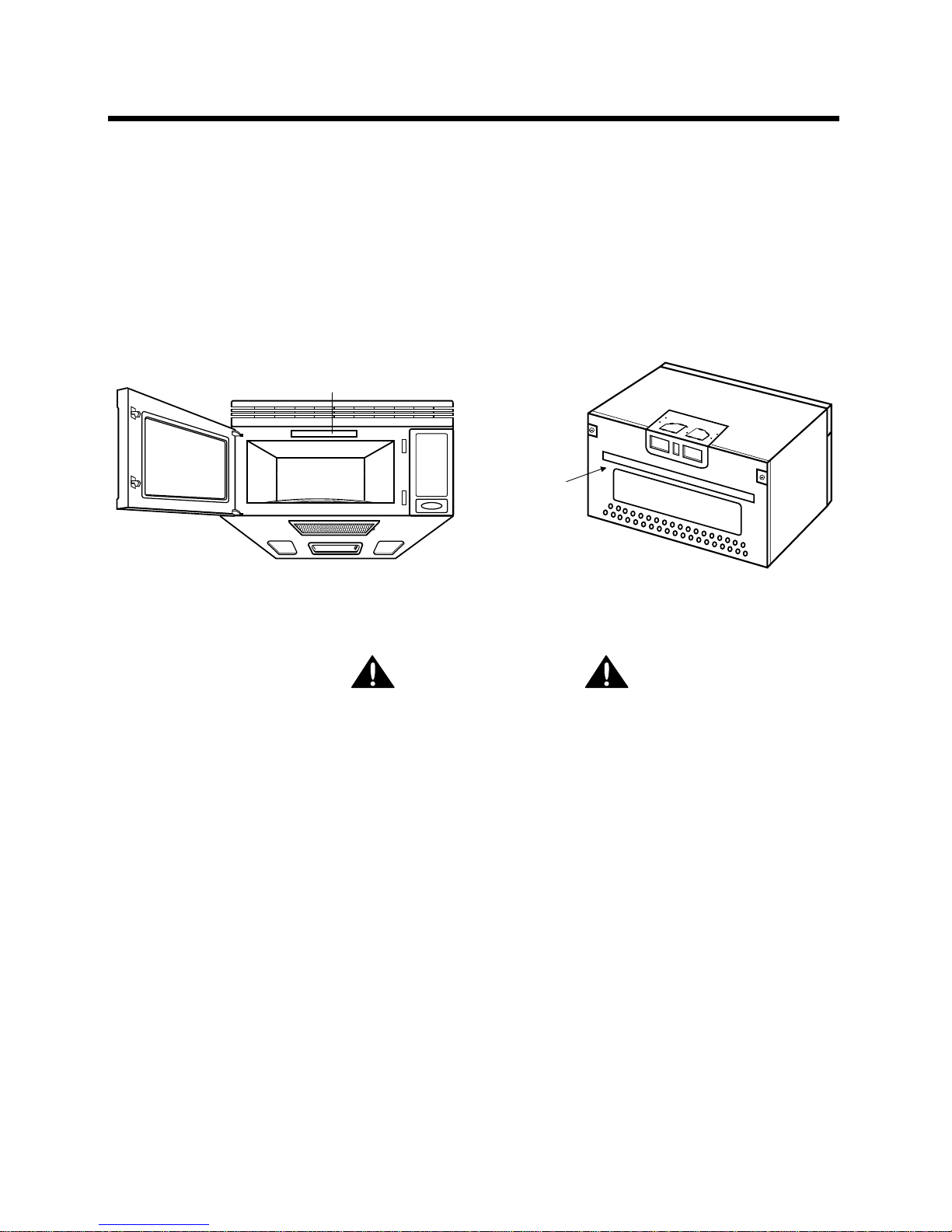

Figure 1

Model and Serial

Number Plate

Mounting

plate

( Remove from

oven to install. )

Back of oven

Figure 2

W A R N I N G

- 3 -

• THIS APPLIANCE MUST BE GROUNDED!

–If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape

wire for the electric current. This appliance is equipped with a cord having a grounding wire with a

grounding plug.

• Place the plug into a properly installed and grounded outlet. See Figure 3.

• Do not use an extension cord.

• Keep the power cord dry and do not pinch or crush it.

• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE

POWER SUPPLY CORD GROUNDING PRONG!

This appliance MUST be grounded!

If you use the grounding plug improperly, you risk electric shock!

–Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you do

not completely understand the grounding instructions.

DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.

Improper grounding could result in electric shock or other personal injury.

SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

• DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!

–DO NOT try to operate the microwave oven with the door open.

–DO NOT tamper with or defeat the safety interlocks.

–DO NOT place objects between the microwave oven front face and the door.

–

DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.

–DO NOT operate the microwave oven if it is damaged.

–The microwave oven door must close properly to operate safely.

–DO NOT USE THE MICROWAVE OVEN:

• If the door is bent.

• If the hinges or latches are broken or loose.

• If the door seals, sealing surfaces or glass is broken.

–DO NOT ATTEMPT TO ADJUST OR REPAIR THE OVEN YOURSELF!

It should be adjusted and repaired by a qualified technician who can check for microwave leakage

after repairing the oven.

If you do not use the microwave oven as instructed,

you could be exposed to excessive microwave energy.

YOUR SAFETY FIRST

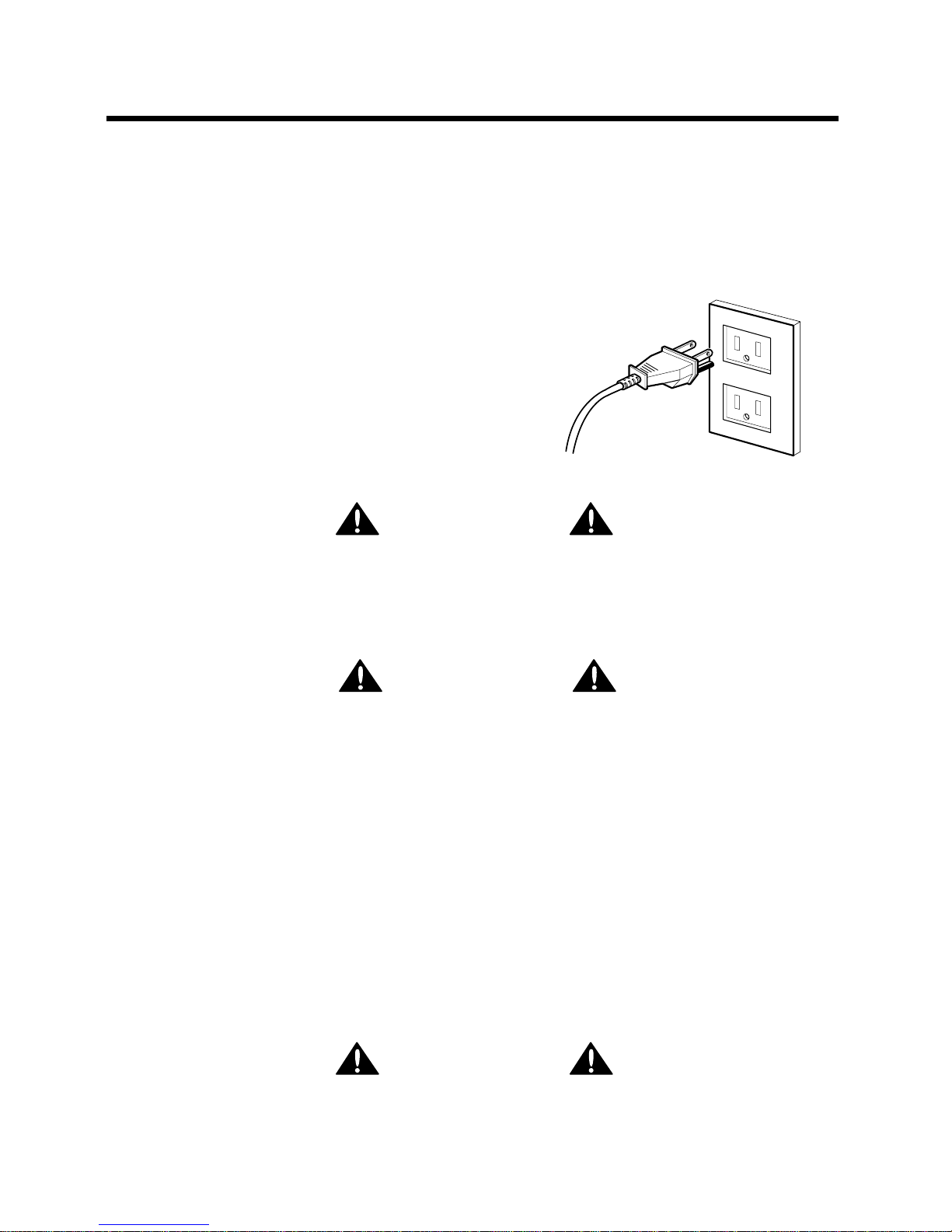

PROPERLY POLARIZED AND

GROUNDED OUTLET

Three-Pronged (Grounding) Plug

Figure 3

W A R N I N G

- 4 -

• MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.

–Mount the oven against a flat, vertical wall, so it is supported by the wall. The wall should be constructed

to support 150 lbs.

–ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, frame member.

–DO NOT mount the microwave oven to an island or peninsula cabinet.

–BE SURE the rear wall structures are able to support 150 lbs., plus the weight of any items you place

inside the oven or upper cabinet.

–Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.

–BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.

If you do not mount the oven as instructed,

you risk personal injury and/or property damage.

CAUTION

• Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY

MATERIAL (a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.

Failure to protect these surfaces could result in property damage.

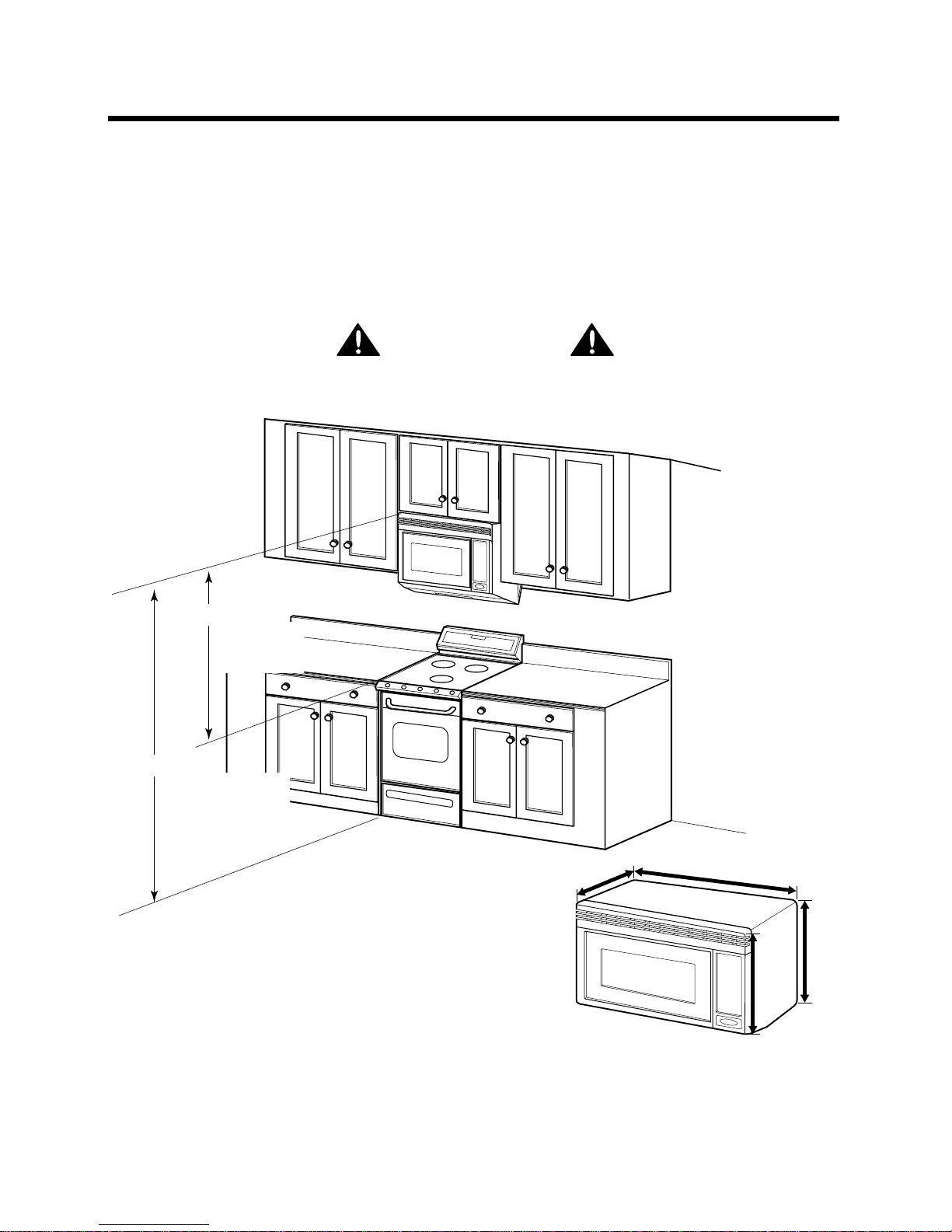

MOUNTING SPACE

W A R N I N G

Figure 4

217/8"

165/8"

153/8"

161/8"

66”

30”

more than

from cooking

surface

more from the floor

to the top of the

micrwave oven

THE FOLLOWING PARTS ARE NOT SUPPLIED WITH THE OVEN EXCEPT DUCT CONNECTOR.

NOTE: Depending on your ventilation requirements, you may not use all of these parts.

NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall.

The mounting area must meet the 150 lbs. weight requirement.

- 5 -

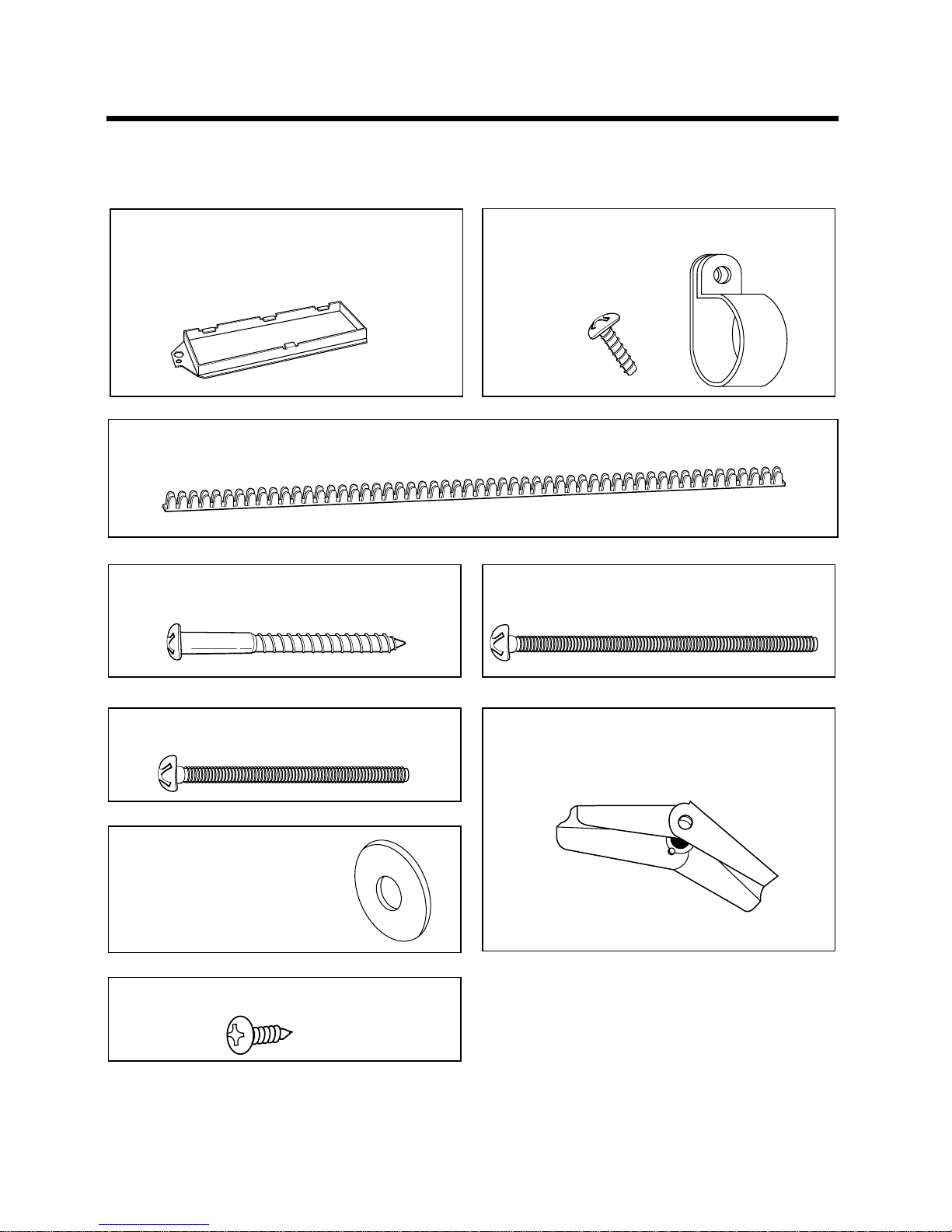

INSTALLATION HARDWARE

Duct connector

(for roof-venting or wall-venting installation)

Not Actual Size

One power cord clamp and

One dark-colored mounting screw

(to hold the power cord)

Actual Size

Two self - tapping screws - Actual Size

(for attaching the damper duct connector)

Four 1/4" x 2" lag screws - Actual Size

(for wall stud holes)

Two 1/4" x 2" bolts - Actual Size

(for securing to the upper cabinet) Four spring toggle heads - Actual Size

(for the toggle bolts)

Two washers - Actual Size

(for the two upper cabinet bolts)

Four 1/4" x 3" toggle bolts - Actual Size

(for drywall holes)

One power cord clamp bushing - Actual Size

(for the cord hole in a metal upper cabinet)

- 6 -

YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION:

Carton or other heavy material for covering the counter top.

• If you have brick or masonry walls, you will need special hardware and tools.

• The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft

damper.(Shown on page 5.)

Clear tape

(for taping the templates to the wall) Stud finder or thin nail.

Saber saw (for cutting vent

holes for roof or wall venting)

Keyhole saw (for the power cord hole)

Electric drill

3/8" and 3/4" wood drill bits

1/2" and 3/16"

drill bits

Phillips screwdriver (for the screws)

Pencil

Flat blade screwdriver (for the mounting rod)

Measuring tape (metal preferred)

Small side cutters or tin snips Caulking gun

Plumb line

Duct Tape

- 7 -

AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!

1. Locate the grounded electric outlet for this oven in the cabinet

above the oven, as shown in Figure 5.

NOTE: The outlet should be on a circuit dedicated to the

microwave oven (120V, 60Hz., AC only) with a

15 or 20A fused electrical supply.

IMPORTANT: If you do not have the proper wall outlet, you

MUST have one installed by a qualified

electrician.

2. Attach the upper cabinet template to the upper cabinet wall

with clear type and cut the power-supply-cord hole (shown in

Figure 5) later when you prepare the wall and upper cabinet in

Step 4.

NOTE: Do not use an extension cord.

Keep the power cord dry and do not pinch or crush it.

Improper grounding could result in

electric shock or other personal injury.

• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY

CORD GROUNDING PRONG!

This appliance MUST be grounded!

STEP1: PREPARE THE

ELECTRICAL CONNECTIONS

Grounded Outlet

( Inside Cabinet )

Upper

Cabinet

Upper Cabinet

Template

Power Supply

Cord Hole

Figure 5

W A R N I N G

- 8 -

NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard

ductwork fittings and length are shown in Figure 10, page 9.

THIS OVEN MUST BE PROPERLY VENTED!

You may vent your oven in one of three ways. However, do NOT vent into a wall cavity, an attic,

or an unused area.

Roof-venting If your oven is located on an outside wall near the roof, as in Figures 7 (31/4" x

10" duct) and 9 (6" round duct.)

Wall-venting If your oven is located on an outside wall of your house, as in Figure 6 (31/4" x 10"

duct) and Figure 9 (6" round duct.)

Room-venting If your oven is located on an inside wall of your house, as in Figure 8.

NOTE: If you choose the rear exhaust method (roof-or wall-venting), be sure there is enough clearance

within the wall for the exhaust duct.

REMEMBER AS YOU INSTALL THE

VENTING:

• Keep the length of the ductwork and the

number of elbows to a minimum to

ventilate your oven efficiently.

See examples on page 9.

• Keep the size of the ductwork the same.

• Do not install two elbows together.

• Use duct tape to seal all joints in the duct

system.

• Use caulking to seal the exterior wall or

roof opening around the cap.

STEP 2:

PREPARE THE VENTING SYSTEM

Wall Venting

Wall venting through-the-wall

wall cap

3 1/4"x10"

duct

Figure 6

cabinet

oven

Roof Venting

through-the-roof

3 1/4"x10"

duct

Figure 7

roof cap

Roof venting

cabinet

oven

6" min.

diameter

round duct

3 1/4" to round

duct transition 3 1/4" to round

ductwork transition

Figure 9

roof cap

wall cap

elbow

W A R N I N G -F I R E H A Z A R D

Room Venting

Figure 8

cabinet

oven

- 9 -

STANDARD FITTINGS

NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3"

extension duct installed between the damper assembly and the adapter to prevent the exhaust

damper’s sticking.

DUCT LENGTH

The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must

not exceed the equivalent of 140 feet.

For best performance, do not use more than three 90 degree elbows.

Below are the standard fittings and their equivalent length in feet.

To calculate the equivalent length of each ductpiece used, see the examples below.

STEP 2:

PREPARE THE VENTING SYSYTEM

Figure 10

4567

3 1/4"x10"

to 6"=5ft.

90ßelbow

=10ft. 45ßelbow

=5ft.

3 1/4"x10"

wall cap

=40ft.

3 1/4"x10"

flat elbow

=10ft.

3 1/4"x10" roof

cap=24ft. 3 1/4"x10" 90ß

elbow=25ft.

Examples

For 3 1/4"x10" SYSTEMS

1-3 1/4" x 10" 90ßelbow

1-Wall Cap

8 feet straight duct

TOTAL LENGTH

1-transition

2-90ßelbows

1-Wall Cap

8 feet straight

TOTAL LENGTH

For 6" ROUND SYSTEMS

6ft.

2ft. 2ft.

3 1/4"x10"

90ßelbow wall cap 6ft.

90ßelbows

transition

wall cap

= 25 ft.

= 40 ft.

= 8 ft.

= 73 ft.

= 5 ft.

= 20 ft.

= 40 ft.

= 8 ft.

= 73 ft.

- 10 -

Your microwave oven is shipped with the vent motor assembled for wall venting. If you want roof-venting or

room-vented (recirculating) installation, you must change the fan, as detailed below.

ELECTRICAL SHOCK HAZARD!

UNPLUG UNIT BEFORE WORKING ON IT.

• DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could

result in electrical shock.

ROOM-VENTED (Recirculating)

INSTALLATION:

1. Remove ventgrille by removing two screws on the

ventgrille

2. Turn two mounting rods anti-clockwise with flat

blade screwdriver and take off the mounting plate

from the unit. See figure 11.

3. The vent motor in your microwave oven is installed

for room vented installation at shipping.

ROOF-VENTED INSTALLATION:

1. Remove ventgrille by removing two screws on the

ventgrille

2. Turn two mounting rods anti-clockwise with flat

blade screwdriver and take off the mounting plate

from the unit. See figure 11.

3. Detach mount-all from out case by removing two

mount-all mounting screws and one motor

mounting screw. See figure 12.

4. Keep the motor wire being connected , lift up,

rotate and reattach the motor so that the exhaust

ports face the upper of the cabinet. See figure 13.

5. Use side cutters or tin snips to cut and remove

knockouts from mount-all. Be careful not to distort

the plate. See figure 14.

6. Reattach the mount-all on the cabinet with three

screws.

STEP 3:

PREPARE THE VENT MOTOR

mount-all

mounting screws

mount-all

motor

mounting screw

Vent motor

Figure 12

Figure 13

back plate

exhaust ports

motor wire

Remove

mounting

plate.

Figure 11

Vent Grille

Controller

Mounting

Plate

Mounting

Rod

Door

Out Case

Mount-all

Flat blade

screw driver

(2-screw positions

are optional.)

W A R N I N G

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dometic Four à micro-ondes

Dometic

Dometic Roadmate 230 Manuel utilisateur

Dometic

Dometic DOTR12CBIV Manuel utilisateur

Dometic

Dometic C2286.000 Manuel d'utilisation et d'entretien

Dometic

Dometic DOTRM13B Manuel utilisateur

Dometic

Dometic DOTRM15B Manuel utilisateur

Dometic

Dometic DCMW11B.F Manuel utilisateur

Dometic

Dometic CDMW07B Manuel utilisateur

Dometic

Dometic MWO240 Manuel utilisateur

Dometic

Dometic DOTR12CWl Manuel utilisateur

Dometic

Dometic MWO240 Manuel utilisateur

Dometic

Dometic DMBU09BAM Manuel utilisateur

Dometic

Dometic DOTRC11B Manuel utilisateur

Dometic

Dometic DOTRC11SS Manuel utilisateur

Dometic

Dometic DOTRC11SS Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Dometic

Dometic DOTRC17BC Manuel utilisateur

Dometic

Dometic DCMC11B.F Manuel utilisateur

Dometic

Dometic DMW10MW Manuel utilisateur

Dometic

Dometic MWO24 Manuel utilisateur

Dometic

Dometic DMT113U1B Manuel utilisateur

Dometic

Dometic CDMW10MW Manuel utilisateur

Dometic

Dometic DMT113U1B Manuel utilisateur

Dometic

Dometic MWO24 Manuel utilisateur

Dometic

Dometic DMW14MW Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur

Impecca

Impecca CM07M2 Manuel utilisateur

Sanyo

Sanyo EM-G5596V UK2 Manuel utilisateur
