Features
02_03 |
Parts Name
04 |
Safety first for electrical leakage and shock prevention
05
Notice on Operation06_07 |
Display on operating
08 |
Check before Operation
09_10
Washing & Cleaning
11 |
Trouble shooting
12_13 |
Dimensions & Specifications
14
Contents
02 /
Features
Dolphin Automatic Dishwasher >>
CUSTOMER SATISFACTION QUALITY!
WORLD BEST TECHNOLOGY!
Which is the necessities of a kitchen
/ 03
Features
Commercial Dishwasher
Powerful Wash
Hygienic Wash & Rinse
Built in chemical dispensers
Easy to operate
Easy to maintenance
No detergent risidual
Built in hot water booster
FEATURES
04 /
Parts Name
Dolphin Automatic Dishwasher >>
CUSTOMER SATISFACTION QUALITY!
WORLD BEST TECHNOLOGY!
Which is the necessities of a kitchen
Parts Name
High quality & durable parts in AISI 304 Stainless Steel body
Window
Display & Control
Rinse arm
Wash arm
Strainer
Drain pipe
Wash pump filter
Commercial Dishwasher
Safety first for electrical leakage and shock prevention
/ 05
Chemical Caps Instruction Manual Racks
Safety first for electrical leakage and shock prevention
Basic Components
Never grou-
nd to a gas pipe
Ground wire
Copper pipe
25
㎝
↕
▶
Connect the wire to meatal water pipe
[no PVC pipe]
▶
Never to gas pipe
▶
Never to connect explosive materials
▶
Connect the wire to Copper wire
Ground wire
✽
Make sure to ground the wire to avoid an electrical accident
◎
Never ground to a gas pipe
◎
◎
Ground Examples
◎
06 /
Notice on Operation
Dolphin Automatic Dishwasher >>
CUSTOMER SATISFACTION QUALITY!
WORLD BEST TECHNOLOGY!
Which is the necessities of a kitchen
Notice on Operation
■Never to wash the vessels with poisons
that can be dangerous if contamintated to
the dishes
■Never put an inflammable liquid into the tank
that can be the cause of explosive accident
■Never open the door while operating that
might be dangerous to get burned by hot
water
■Keep the door closed while operating,
otherwise dangerous to get burned
by hot water
■Call service center if any problem
Only an authorized technician is possible
for maintenance
■Make sure to groud the wire, otherwise
dangerous to cause electrical
shock & leakage
■Do not put thing on top of dishwasher that
may cause of mechanical
defects
■Do not pour the much water to the machine
that can cause of electrical leakage
while cleaning M/C
Commercial Dishwasher
/ 07
Notice on Operation
■Make sure to install machine where have
good vent & no flammable agent
■When ignition defects of gas booster, call
service office, Immediately,
Make sure to close gas valve
and check gas leakage
■Use only low forming detergent for dishwa
-sher purpose
High forming in other soaps can beobstac
-le for good wash
■Keep chemical agents away from childern
■Do not get the detergent in skin, clothes
and eyes when exchanging chemicals
Severely corrosive to skin, eyes and
clothes
■Do not inducing vomitting if drinking
detergent. Instead give two glasses of water
And then, immediately
go to see a doctor
■Avoid the Materials; reactive with acids
and alkalis etc
■
Wear chemically impervious gloves
and apron while cleaning and moving
M/C
08 /
Display on operating
Dolphin Automatic Dishwasher >>
CUSTOMER SATISFACTION QUALITY!
WORLD BEST TECHNOLOGY!
Which is the necessities of a kitchen
Display on operating
“
Easy to use at both sides of Machine
”
Available to hook on left or right hand of dishwasher
Usage of Dishwasher
Power
power On/Off
Ready
ready to operate/lock the M/C
●
Water : watering to wash tank
●
Ready : ready to operate [heating & detergent]
●
Stand by : preparation for operation
●
Wash : wash dishes
●
Rinse : rinse dishes
●
Detergent : feeding for detergent
●
Rinse aid : feeding for rinse aid
●
Finish
Commercial Dishwasher
Check points before operating
Check points before operating
/ 09
▶

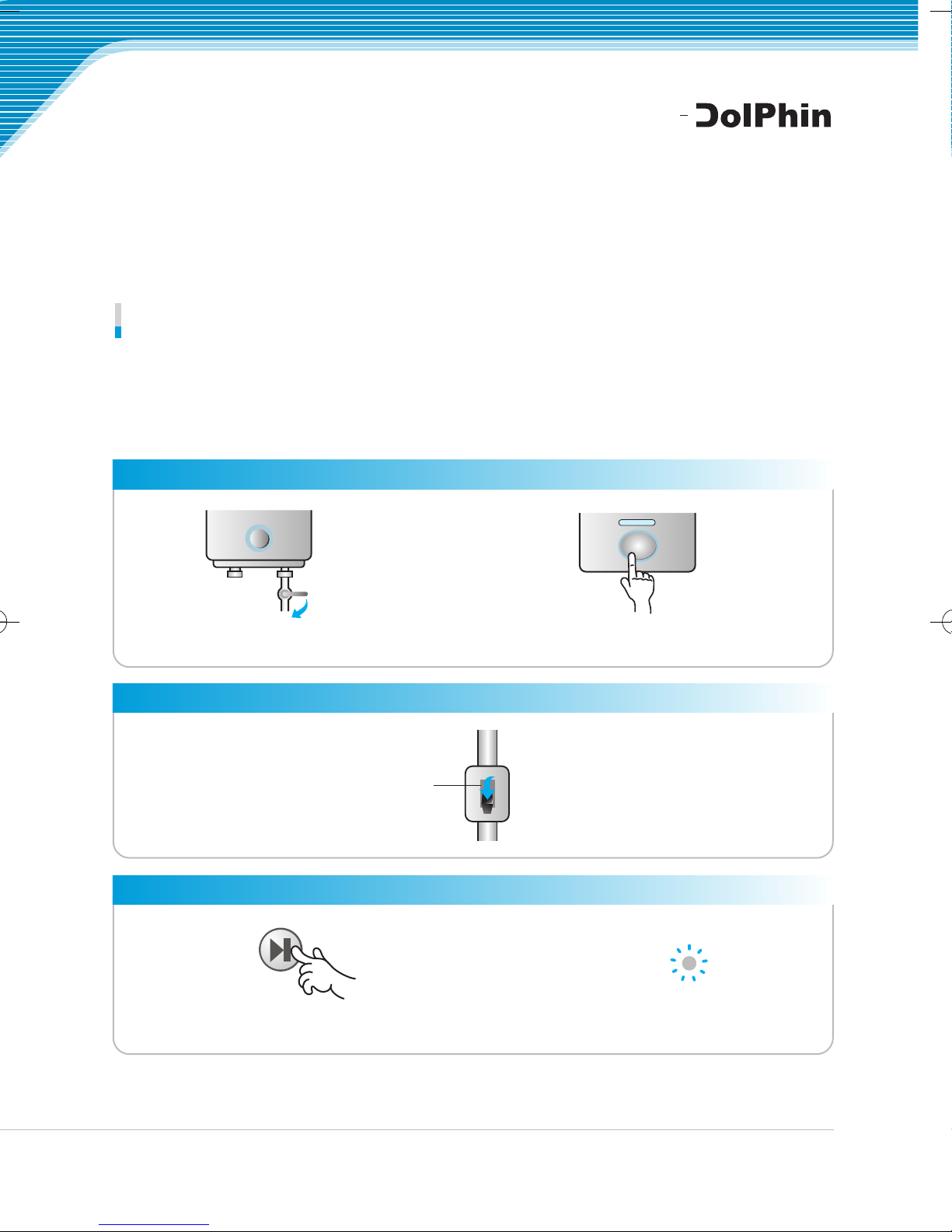

Open gas valve?
▶
Check ON switch of gas booster?
Open
1. Place drain pipe and strainer on right place
2. Check the electricity, water and gas
ON
❶
In case of using gas booster, open valve of gas booster
▶
Check flickering Lamp after push the ready button
❷
Turn on the main switch
❸
Controller
Ready
Ready
10 /
Check points before operating
Dolphin Automatic Dishwasher >>
CUSTOMER SATISFACTION QUALITY!
WORLD BEST TECHNOLOGY!
Which is the necessities of a kitchen
▶
Automatically fill up the water to the tank
▶
After finished up the watering, water lamp off and detergent feeding,
detergetnt lamp off and then, stand by lamp on
❹
Await for watering after closing the door
▶
Put the dishes into the rack
▶
Put the lack into the machine
▶
Close the door automatically operated by door actuation system
❺
Wash
▶
After finsh up the wash course, automatically operate as programed
❻
Rinse the dishes and Rinse aid feeding
▶
Buzz for the finish and finsh & stand by lamp on
❼
Finish
