Dnake 905D-Y4 Manuel utilisateur

Model: 280SD-C12

280SD-R2

280SD-R5

Quick Start Quide

Door Station

The picture is only a schematic diagram. The actual product shall prevail.

USER MANUAL

Please follow the user manual for correct installation and

testing. If there is any doubt please call our tech-supporting

and customer center.

Our company applies ourselves to reformation and

innovation of our products. No extra notice for any change.

The illustration shown here is only for reference. If there is

any difference, please take the actual product as the

standard.

The product and batteries must be handled separately from

household waste. When the product reaches the end of

service life and needs to be discarded, please contact the

local administrative department and put it in the designated

collection points in order to avoid the damage to the

environment and human health caused by any disposal. We

encourage recycling and reusing the material resources.

REMARK

CATALOG

Technical Parameters...............................................1

Package Contents ....................................................1

Basic Function..........................................................1

Pictures.....................................................................2

Basic Operations......................................................3

Basic Settings ..........................................................5

Web Settings ..........................................................14

System Configuration ............................................20

System Diagram.....................................................21

Installation..............................................................24

Troubleshooting .....................................................26

Safety Instructions .................................................27

TECHNICAL PARAMETERS

1. Working voltage: DC12V

2. Rated power: 25W

3. Standby power: 5W

4. Working temperature: -40℃～+55℃

5. Storage temperature: -40℃～+70℃

6. Working Humidity: 10% to 90% (noncondensing)

8. RAM: 2GB

9. ROM: 8GB

10. Camera: 1920*1080CMOS

PACKAGE CONTENTS

Quick Start Guide

Door Station Screw Expansion Tube Screw Wrench

BASIC FUNCTION

1. Video intercom with indoor monitor and master station;

2. Support unlocking by IC card;

3. It can register IC card information on the door station and store up to

100,000 IC cards;

4. Support password unlocking and exit button unlocking;

5. Support face recognition function;

Package Contents

Please make sure the package contains the following items:

PICTURES

LED Light

Display

Camera

Microphone

Card reader area

Speaker

BASIC OPERATIONS

After the door station is powered on, the LCD display is shown as below:

Call: RoomNo+#

Center: 0000+#

Unlock: #+PSW+#

Cancel: Press*

Admin:

Press * twice to start face recognition.

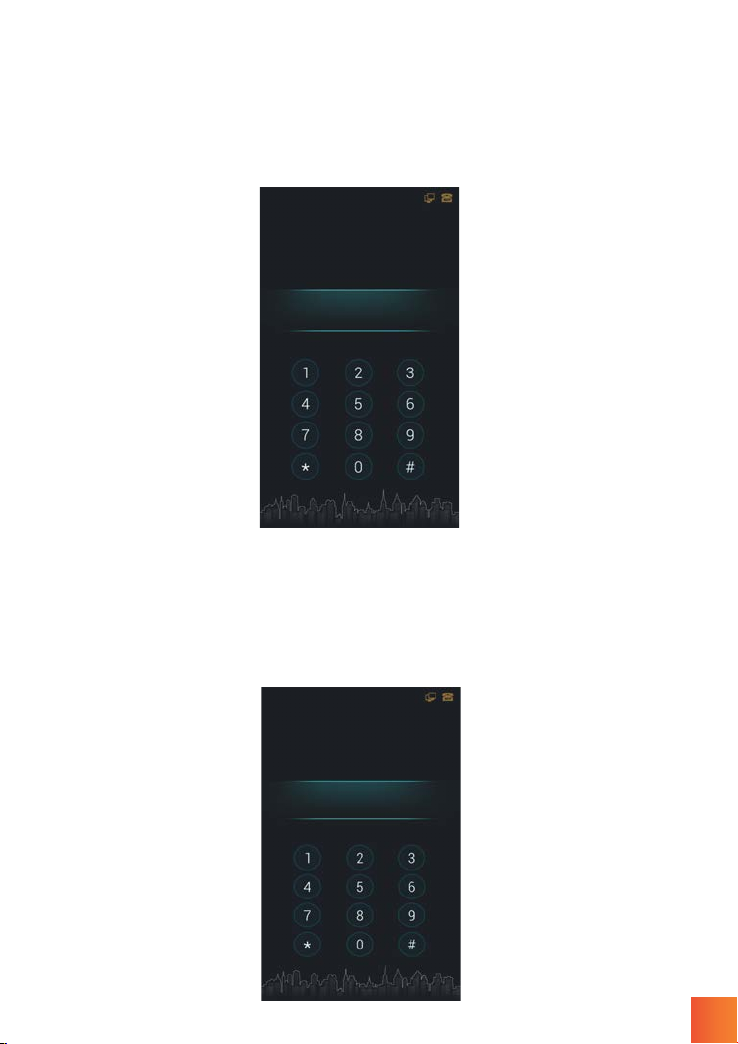

In a standby mode, inputting "0000"(4 digits) on door station, the LCD display

is as shown as below, then press “#” to enter the call state.

Note: During communication, pressing “*” on the door station, the call will be

cut off.

Call: RoomNo+#

Center: 0000+#

Unlock: #+PSW+#

Cancel: Press*

0000

Press * twice to start face recognition.

1. Calling indoor monitor

In a standby mode, input room number on door station, for example, when

inputting "123" on door station, the LCD display will show as below, then press

“#” to enter the call state.

Call: RoomNo+#

Center: 0000+#

Unlock: #+PSW+#

Cancel: Press*

123

Press * twice to start face recognition.

2. Unlock the door

2.1. Unlocking by access password

In a standby mode, press “#” key and enter the access password(default is

0000). Then press “#” key to confirm. If the password is correct, the door

will be unlocked; if not, it will make a sound like “Deng Deng”.

Call: RoomNo+#

Center: 0000+#

Unlock: #+PSW+#

Cancel: Press*

Password

Press * twice to start face recognition.

2.2. Unlocking by IC card

Put the registered IC card on card reader area of the door station. If

successful, the door will be unlocked.

2.3. Unlocking by Face Recognition

When someone looks at the LCD screen, door station will automatically

start the face recognition or the user can press the “*” key twice to enable

the face recognition. If the face has been registered, the door will be

unlocked.

BASIC SETTINGS

Pressing the "#" key twice, LCD display will show as below. Enter six-digit

admin password(default password: 123456) and go to settings.

Call: RoomNo+#

Center: 0000+#

Unlock: #+PSW+#

Cancel: Press*

Admin:

Press * twice to start face recognition.

System settings

Dev i ce Set ting s Net work Se ttin gs

Acc ess Set ting s Fac e S ett i ngs

Mis c S e tti ngs Abo u t S yst em

In System Settings page, you can set the following items.

1. Device settings

Press to enter the following setting interface:

Device S ettings

Mode: Unit Panel

Language: English

Building: 1

Unit: 1

Index: 1

Password: 123456

Volume: 6

Size: 640x480

1.1 Device Mode

The device can be used as unit panel or wall panel. The device mode

can be set through the item "Mode".

Press “OK” to confirm after inputting. When the door station gives an

indication tone, it means that it is changed successfully. If the device is

used as unit panel, it can only call the indoor monitors in this unit. If the

device is used as wall panel, it can call all the indoor monitors in the whole

community.

1.2 Language, Volume and Size

The language, volume and size (resolution) are set in the same way as

the settings of device mode. "Language" is used to set the language to be

shown on the door station, supporting simplified Chinese, English,

traditional Chinese and Spanish. "Volume" is used to set the prompt tone of

door station, including 1-6 volume levels selection. There is 320x240,

640x480 or 1280x720 for the size.

1.3 Building No., Unit No., Index and Password

Select the item to set Input the number to change Press “OK” to

confirm. When the door station gives an indication tone, it means that it is

changed successfully.

Note: Please keep the admin password confidential. If the password is

forgotten, the user will not be able to log into the system. The password

can only be recovered by resetting to factory defaults.

2. Network Settings

Press to enter the following setting interface:
