CHIPPER SHREDDER TOP LOADING
REV 4 9-7-2020
OFF ROAD TOWING ONLY
CHIPPER ASSEMBLY GUIDE
MODEL: OPC503
3 INCH CHIPPER SHREDDER TOP LOAD
DETAIL K2 INC.
DK2 POWER USA
4301 S Valley View Blvd STE 10-11
Las Vegas, NV 89103
1-702-331-5353
DETAIL K2, INC.
1080 Clay Avenue Unit 2
Burlington, Ontario, Canada L7L0A1
DK2 USA EAST
6245 Industrial Parkway
Whitehouse, OH 43571
PARTS AND SERVICE 702-331-5353 OR WWW.DK2POWER.COM CONTACT US
1. Install the axle with bolts provided.
STEP 1:
1. Install wheels. Use locking pins in axle to lock wheels from
moving while your chipping, or free wheel when towing.
STEP 2
1. Install drop stand
2. Install Tow Bar
STEP 3:
1. Install the 3 inch tree feed chute with the bolts provided.
STEP 4:
1. Install handle with 4 bolts.
STEP 5:
1. Mount the top chute to the unit.
2. Plug in the white connector for the key switch
STEP 6:
1. Mount the chip chute
STEP 7:
1. Fill oil 10w30
2. Gas mid grade
3. Small sticks 3/8 dia max and leaves in top hopper
4. Trees up to 3 inches into side feed chute
STEP 8:
STEP 9:
READ THE ENGINE MANUAL SUPPLIED WITH YOUR UNIT FOR
FULL ENGINE OPERATION, SAFETY, AND MAINTENANCE.

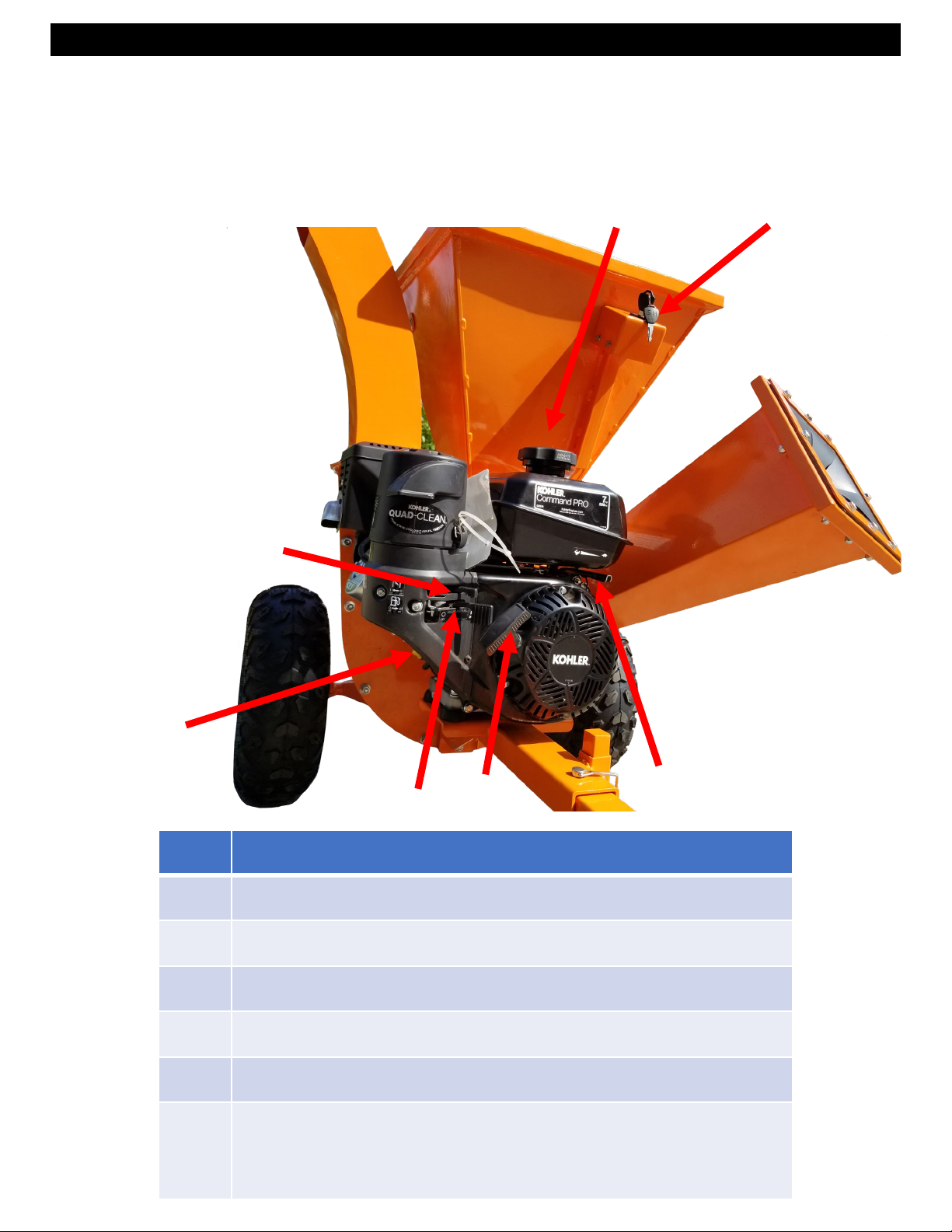

1ON/OFF KEY LOCK
2GAS –USE MID GRADE OR HIGHER
3CHOKE –LEFT IS ON / RIGHT IS OFF (RUN POSITION)
4GAS ON/OFF SWITCH –LEFT IS OFF / RIGHT IS ON
5THROTTLE –RABBIT FAST / TURTLE SLOW
6PULL STARTER –PULL TIGHT-THEN PULL START
7OIL –FILL TO MARK 10W30, WILL NOT START IF OIL IS
LOW, HAS LOW OIL SHUTOFF PROTECTION. 2 YELLOW
CAPS ARE OIL FILL CAPS. USE EITHER ONE TO FILL OIL.
3
2
6
4
7
5
1
