Swing Gate Installation Manual
Address : 24400 Sperry Drive. Westlake, Ohio 44145
Phone No : (440) 348-9460 Toll Free : (800) 504-4016
Email : Info@FallProtect.com Website: www.FallProtect.com
Revised: 5/26/2020
PURPOSE
•PURPOSE:
•The purpose of this document is to illustrate the
assembly of a Gen2 Swing Gate.
•EQUIPMENT AND CONSUMABLES:
• 1/4” Drive Impact Gun
• 3/8” Male Socket Adapter
• 1/4” Allen Key Socket or Wrench
• 1/2” Socket
• 1/4” Nut Driver
2

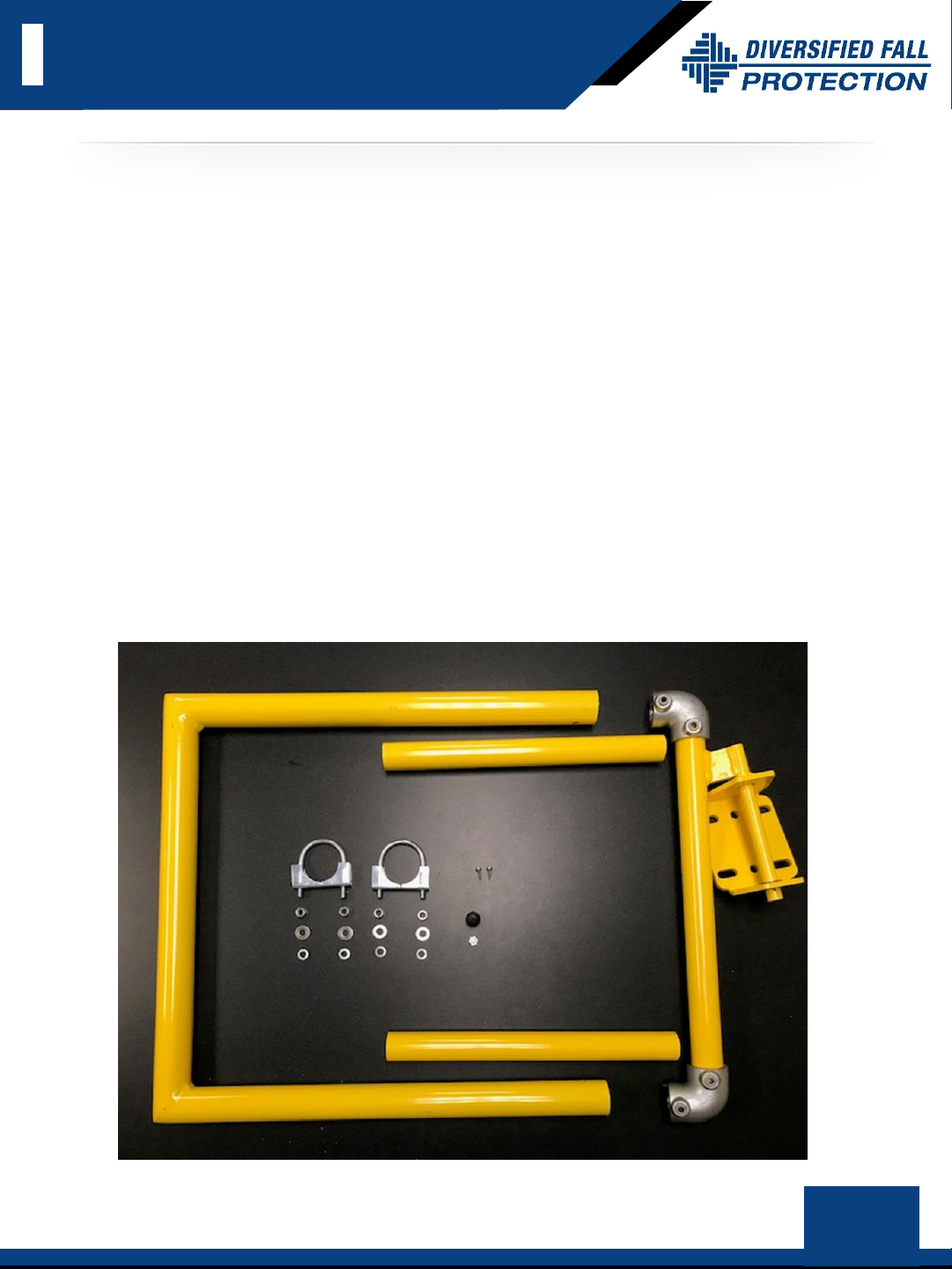

PARTS LIST
Description QTY.
Self
-Tapping Screw 2
Flat Washer (5/16”)
4
Lock Washer (5/16”)
4
Nut (5/16”)
4
U
-Bolt with Backer Plate 2
Cotter Pin
1
Rubber Bumper
1
¼”
-20 Tap Bolt 1
90 Degree Elbow Clamp with Set
Screws
2
Swing Gate Assembly (welded pipe to
shaft)
1
“P” Return
1
Internal Sleeve (14.25” Long)
2
Hinge Bracket
1
Flange Bearing
2
3
WORK INSTRUCTIONS
•Begin by inserting the internal sleeves into the 90
degree elbow clamps; do not tighten set screws on
clamps.
•Next, with the internal sleeves loosely inserted into the
elbow clamps, slide the “P”-Return over top of the
sleeves until the desired overall length is achieved.
4
WORK INSTRUCTIONS
•Once the gate has been adjusted to the desired length,
tighten the set screw on both elbow clamps to secure
the internal sleeve. Very Important, make sure the
internal sleeve is inserted fully into the elbow clamp.
This can be visually confirmed by looking through the
hole in the set screw.
5
WORK INSTRUCTIONS
• Next, secure the “P” return using the impact gun and
a ¼” nut driver; insert the self-tapping screws (2)
through the pilot holes on the “P” returns into the
internal sleeves.
6
WORK INSTRUCTIONS

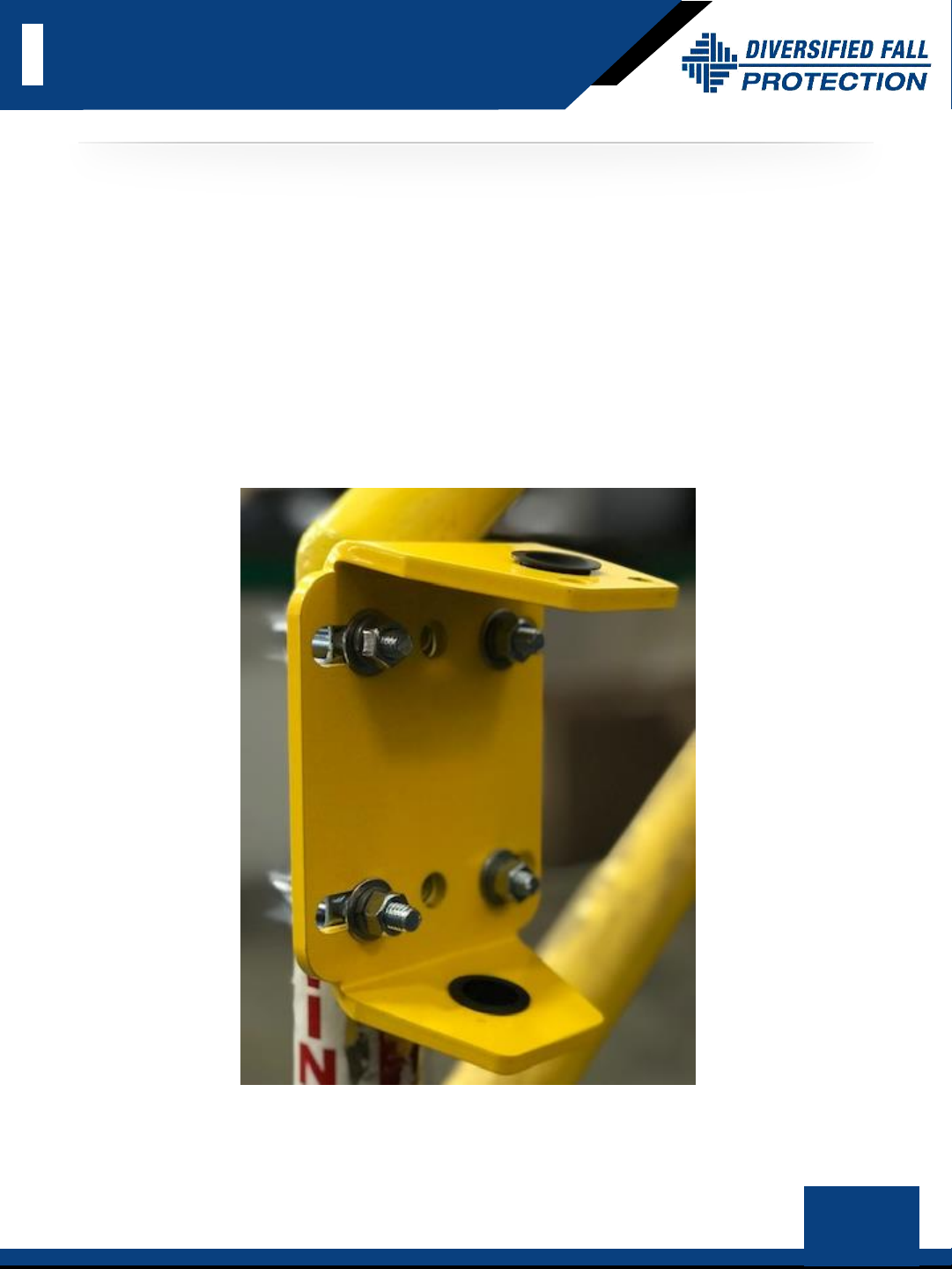

•It is now time to mount of the swing gate. Tip:
remove the hinge bracket from the rest of the swing
gate. Do this by removing the cotter pin and sliding
the hinge bracket down the shaft. Using the supplied
U-bolts, flat washers, lock washers, and nuts; mount
the hinge bracket in its desired location. Use the
impact gun to properly tighten u-bolts.
7
WORK INSTRUCTIONS
•Once the hinge bracket has been secured, mount the gate by
inserting the shaft through both of the flange bearing. Secure the
gate by re-installing the cotter pin.
•Lastly, install the rubber bumper onto the hinge bracket in one of
the two holes on the top of the bracket. Determine which hole to
use based on the swinging direction of the gate. When installed
properly the gate will open in only one direction.
8
WORK INSTRUCTIONS
•Installed Swing Gate:
9
