KOS1402
LOOP POWERED
TRIP AMPLIFIER
kos1402manualB.doc
30727053
Oct.99
1.0 S
PECIFICATION @20ºC
1.1 KOS1402 LOOP POWERED TRIP
Input
Type
2 wires 4
-
20mA, 50mA Max
Protection
Reverse conection protected
Loop Drop
5V MAX
Output
Alarms
2x high/low alarms selected by switches (side entry)
Contact
2 x N.O. relay contacts with shared com
mon
Rating
Resistive load 2A @ 250V AC/125V DC
Max Power 150W (Inductive Loads)
Indication
2 x Alarm LED on module front face
Setpoint
0-
100% multi turn trip set potentiometer,(access
on module front face). (Re
peatability
0.2%)
Hysteresis
Fixed at 0.5%
Delay
0.5 second fixed delay
Failure mode
On loss of signal:
High level: no alarm condition
Low level: Alarm condition
(ie Alarm operates as if signal has fallen to
-
25% or 0mA)
Minimum Current
3.5mA
1.2 GENERAL SPECIFICATIONS
Isolation
3000VAC rms between contacts and input
1000VAC rms between contacts
Ambient
0-
50ºC; 10
-
95% RH non condensing
Conection
Captive clamp screws
Cable size
4mm sq solid / 2.5mm sq stranded
Case material
Grey Polyam
ide
Case Flammability
UL94
-
V0 VDE 0304 pt3 level IIIA

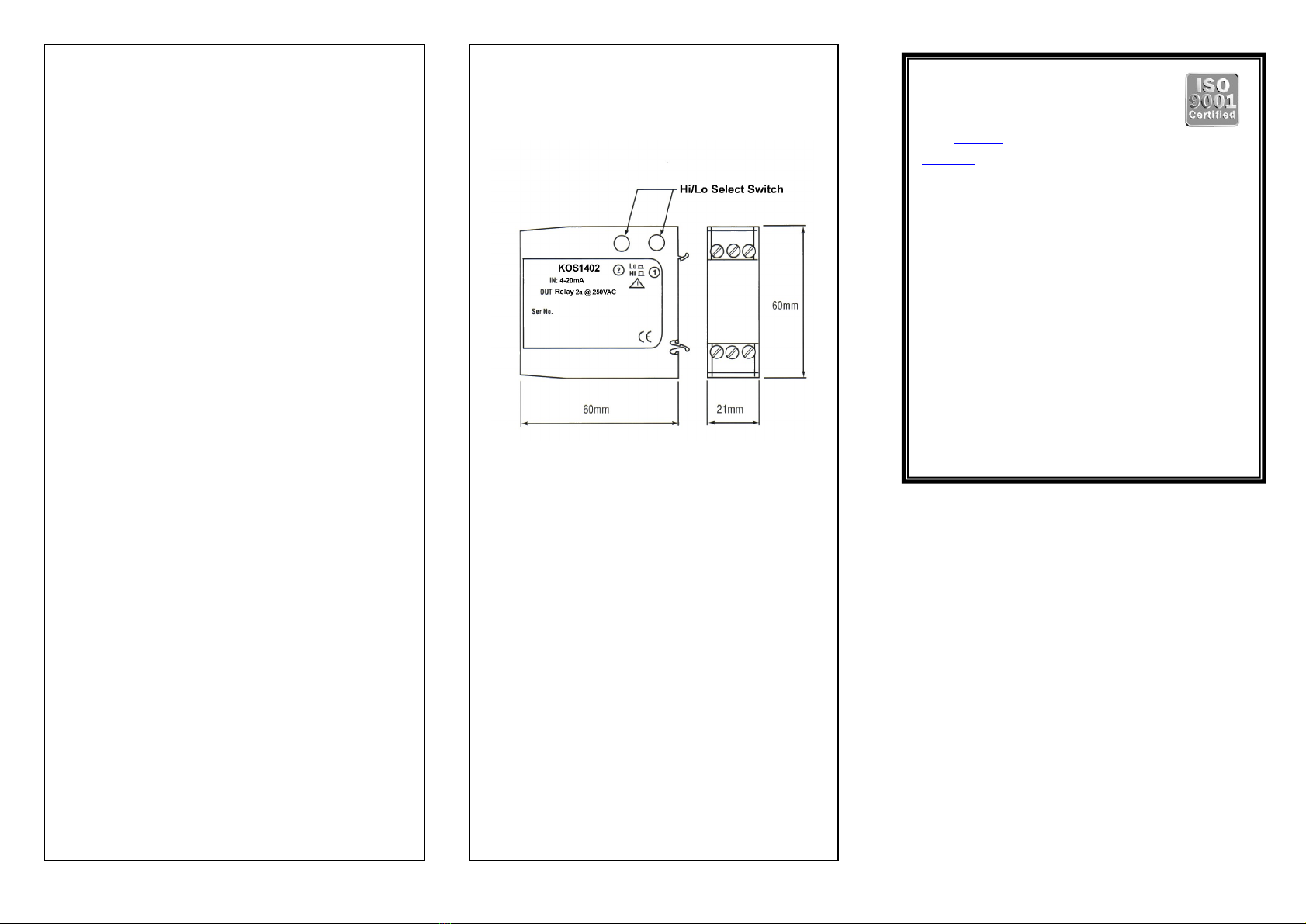

Dimensions
60x60x21mm
Mounting
Rail DIN EN 50022
-
35
Max Vibration
12G 10 to 55Hz at double amplitude 2mm
Shock Res
12G
Compliant with
EN50081
-
1, EN50082
-1
Weight
60g
2.0 INSTALLATION
Warning
-
Hazardous voltages may be present on the terminals
-
the
equipment must
be installed by suitability qualified personnel and
mounted in an enclosure providing protection to at least IP20.
Warning
-
If not installed and used in accordance with these instructions,
protection against hazards may be impaired.
(IMPORTANT NOTE: it ma
y be preferable to set the user adjustment on
the bench prior installation. Please read Section 2 before installation).
2.1 MECHANICAL
This trip must be housed within a suitable enclosure that will provide
protection from external enviroment, ensuring tha
t the stated temperature
and humidity operating ranges are maintained. As KOS1402 contains high
quality relays, the usual precautions taken when using products containing
relays apply, such as care must be taken to ensure the trip is not
subjected to stron
g shock or vibration, as this may result in momentary
opening of the relay contacts. The KOS1402 must not be located near a
strong magnetic field, such as a transformer,solenoid or electric motor.
The KOS1402 case designed to snap fit onto a standard "TOP
HAT" DIN
Rail. To remove from DIN rail, apply pressure at the bottom face at the
back upwards towards the rail to release the spring clip and tip away from
the top. The trip may be mounted in any orientation and stacked side by
side along the rail.
2.2 ELECTRICAL
Conections to the tr
ip are made via screw terminals with wire protector
plates provided inside each terminal. To maintain CE compliance twisted
pair (screened) cables are recommended for signal connections. It is also
good practice to ensure that all 4
-
20mA loops are grounded
at a single
point. Before installation ensure the 4
-
20mA loop has enough voltage
available to drive the trip. Refer to the above specification for the loop
voltage drop. The dual contacts provided by the KOS1402 are capable of
switching 250V AC 125V DC @
2A resitive load, 150Watts inductive load.
Internal Varistors are connected across the contacts to protect against
over voltage. It is advised that a external R/C snubber network is used
when switching inductive AC loads, see fig 1. When switching DC
induc
tive loads, a diode connected in parallel with the inductor must be
used to protect the contacts from the energy stored in the inductor (See fig
2).
WARRANTY
The instruments are warranted against defective materials and
workmanship for a period of three years from date of delivery.
If a product appears to have a defect or fails during the normal use
within the warranty period, please contact the distributor from which
you purchased the product.
This warranty does not apply to defects resulting from action of the
buyer such as mish
andling or improper interfacing.
The liability under this warranty shall extend only to the repair of the
instrument. No responsability is assumed by the manufacturer for
any damage which may result from its use.
