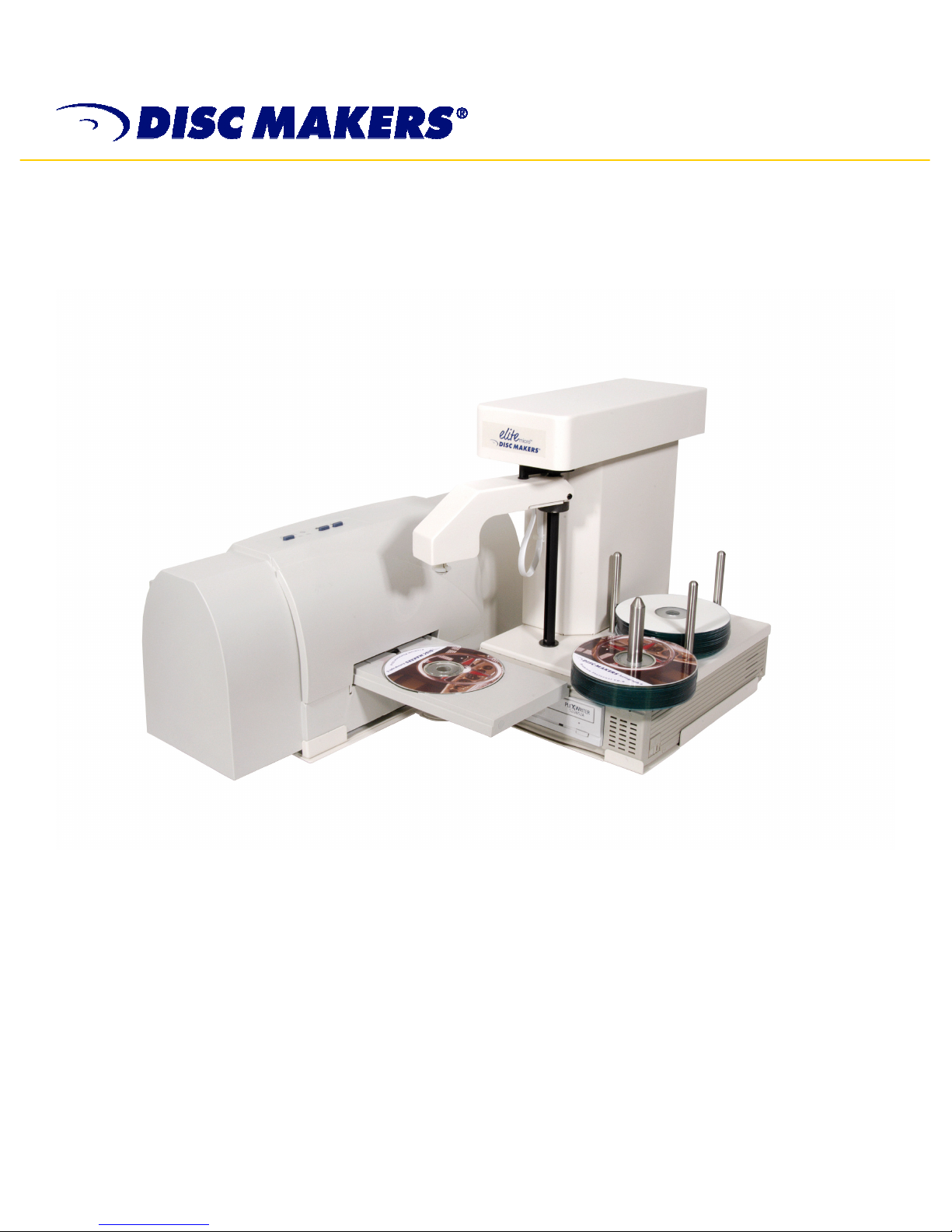

Disc Makers EliteMicro Instructions de montage

VERSION 1.2

07/26/04

Hardware Installation and Setup Guide

EliteMicro CD-R/DVD-R Publisher

USB 2.0

www.discmakers.com 1-800-237-6666 2

Service and Contact Information

Free lifetime technical support

Disc Makers’ technical support team is here to help you every step of the way with your duplication

system. Our goal is to minimize your downtime and maximize the return on your investment. We offer

FREE technical support to you for as long as you own your duplicator. If you run into any problems or

have any questions, call us at 1-888-800-4041.

Our tech support hours are 9am to 5pm EST Monday through Friday.

Call our tech support team toll free at 1-888-800-4041.

or email us at techsuppo[email protected].

Download manuals and software upgrades at www.dmelite.com.

Please register your Elite unit by visiting

http://www.dmelite.com/register.

This will allow you to be notified of future software upgrades.

Need blank CDs and DVDs?

www.discmarket.com is your one-stop source for high-quality, low-cost CD-Rs, DVD-Rs, and

DVD+Rs. We also have a complete line of on-disc printer supplies, packaging supplies, and CD/DVD

mailers. Go to www.discmarket.com for easy ordering and great web-only specials.

You are our customer and we will meet your needs and exceed your expectations!

Plant and Main Office

7905 N. Route 130

Pennsauken, NJ 08110-1402

Toll Free 800-468-9353

Local 856-663-9030

Fax 856-661-3458

www.discmakers.com 1-800-237-6666 3

FOREWORD

It is illegal to duplicate copyrighted discs for any reason other than personal use, unless you happen

to be the copyright owner. The EliteMicro recording unit is intended for use only to those identities

that are the owners of the copyright or are properly licensed to use the copyright.

Manual Revision 110904

Disc Makers and the Disc Makers logo © Disc Makers

EliteMicro is a trademark of Disc Makers

Microsoft, Windows, XP and .NET are registered Trademarks of Microsoft Corp.

Intel and Celeron are registered Trademarks of Intel Corporation

Plextor is a registered trademark of Plextor Corporation

Pioneer is a registered trademark of Pioneer Electronics

Padus and Discjuggler are registered trademarks of Padus Inc

Primera is a registered trademark of Primera Technology, Inc

Signature IV is a trade name of Primera Technology, Inc

Discus is a trademark of Magic Mouse Productions, Inc

All other trademarks and registered trademarks are the property of their respective owners.

The EliteMicro is manufactured under license of Patent 6,141,298 and other Patents Pending

www.discmakers.com 1-800-237-6666 4

Table of Contents

Welcome and Introduction ........................................................... 5

Installation Requirements and Cautions……………………….. .... 6

Hardware Configuration .............................................................. 7-8

Minimum PC Hardware Requirements ........................................ 9

Unpacking the Hardware ............................................................. 10-11

Carton Contents .......................................................................... 12

Installation of Printer Adapter Kit ................................................. 13

Installation of Printer .................................................................... 14

Connection of the EliteMicro ....................................................... 15

Turn On EliteMicro & Install Drivers ............................................. 16-17

Powering Off Duplicator ............................................................... 18

Powering On Printer..................................................................... 19

Startup CD-ROM ......................................................................... 20-21

Installation of Recording Software .............................................. 22-23

Installation of Autoloader Command Console ............................. 24-26

Using Drive Assigner ................................................................... 27

Installation of Labeling Software ................................................. 28

Disabling CD ROM “Auto-Run” .................................................... 29

Set Print Image for Media ............................................................ 30-32

Load Blank CDs and Start Duplication ........................................ 33-34

Set Print Image for DiscJuggler ................................................... 35

Start the Job................................................................................. 36-37

Troubleshooting ......................................................................... 38-39

Warranty……………………………………………………… ........... 40

www.discmakers.com 1-800-237-6666 5

EliteMicro™ with Inkjet Printer

Welcome

Thank you for choosing the EliteMicro CD-R / DVD-R publisher. This system has been designed and

manufactured under strict quality guidelines to give you years of dependable and trouble free

operation.

The EliteMicro comes with all the hardware and software needed for easy installation with your

computer hardware. Please be sure to review the minimum computer requirements prior to

installation.

The EliteMicro comes standard with a CD-R writer or a DVD-R/CD-R writer that is controlled by

Padus’® award-winning DiscJuggler® recording software. The recording software offers an easy to

use duplication process with trouble-free operation. The DiscJuggler® software is firmly embedded

within the EliteMicro™ Autoloading software, providing seamless and reliable operation.

If you purchased the optional CD Printer Adapter Kit hardware, Discus© labeling software is included

to enhance your discs. The Discus© label design software is a simple and easy-to-use program that

will enable you to create professional quality CDs and DVDs.

www.discmakers.com 1-800-237-6666 6

Installation Requirements and Cautions

The EliteMicro is an investment for your company. It is very reliable and you can count on it to

produce quality CDR and DVDR disks as needed, over and over for many years.

Review and try to double check the following items if, after following the installation directions

in this manual, the system does not work correctly.

1- Burn speed is set too high. This problem is a leading and unnecessary trouble spot and

causes CDRs and DVDRs to be wasted. The EliteMicro uses an automated process and

production throughput is based on many factors. In the early stages of using this system

we recommend that you set your DATA burn speed at 60% and your AUDIO burn speed at

40% of the rated drive speed. (For example, set at 40x for 52x CD writers and set at 2x for

4x DVDR writers.) Once you understand the overall process, then you may want to adjust

these settings. In over 90% of cases, increasing the burn speed will not increase the

production and/or output of the Elite.

2- Cables are not connected. Verify that all cables are connected.

3- Improper or bad print files (output.prn). Print a label manually before you make the print

file. Be sure what you are sending the printer can be used.

4- Print file not set. The print file is not properly set in the recording software.

5- Media placed upside down (or label side down). If media is inserted upside down into a

write drive, the Elite cannot determine what has occurred and will generally lock up. Pay

close attention to the way the media is stacked when it is received from the supplier. Insert

the blanks into the input section as they are stacked from the supplier.

6- Bad media. Taiyo Yuden (TY) media and DiscMakers Ultra media, which are certified to

the speed listed on your write drive, are recommended by the drive manufactured for use

on the Elite. Optical Write Media is made with different methods, depending on the

manufacturer. Do not sacrifice your product by using cheap media. Use of consumer

media and/or media that is “specially priced” is not recommended either. This is generally

write disc product rejected when a manufacturer makes commercial write media. Poor

quality discs will cause operational and quality issues.

7- Changing settings. The Elite and the software provided are preset for optimal performance.

Do not make any changes in the setup options of the recording software unless you test

and verify that your settings changes do not affect operational performance.

8- Serial number not correctly entered into the software. If the recording software does not

have the correct serial number, it will default to demo or 1x burn speed. Enter the number

carefully.

www.discmakers.com 1-800-237-6666 7

Hardware Configuration

Before starting the installation, please review the following figures showing the EliteMicro hardware

and functions.

Pick Arm

Input Spindle

Output Spindle

AC Power Input

Power Switch

USB 2.0 to PC USB 2.0 to Printer

Printer Control Cable

www.discmakers.com 1-800-237-6666 8

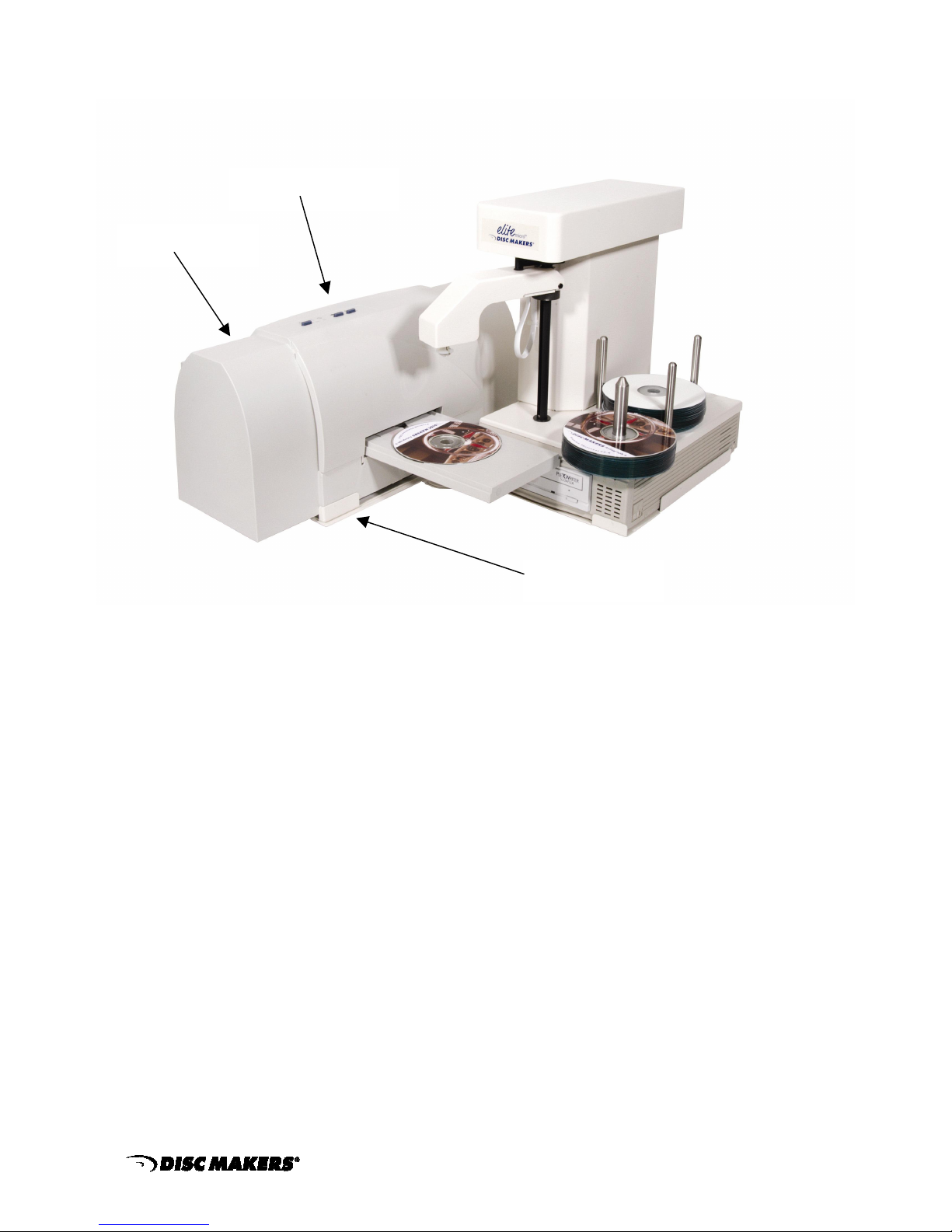

EliteMicro with color inkjet printer

Printer Guide

Disc Printer

Printer Controls

www.discmakers.com 1-800-237-6666 9

Minimum Hardware and Software Requirements

Desktop duplication systems change rapidly and the EliteMicro was designed for use with PC

systems that are relatively new models.

The following are minimum requirements for the PC to which the EliteMicro is to be connected. These

are very important. Due to the high speed of the writer, sufficient memory and FAST hard drives are

required.

Minimum PC Requirements:

• 1.0 GHz Celeron® Processor or equivalent

• 256 MB RAM

• 7200 RPM 20 GB Hard drive (CD-R) with 50% free space

• 7200 RPM 40GB (DVD-R) with 70% free space

• Available USB 2.0 Port*

Software Requirements:

• Windows 2000 or Windows XP

* CAUTION: Use only with a USB 2.0 port. The use of USB 1.1 will dramatically reduce performance.

If Windows displays a message that a fast USB device is detected on a slow USB port, then you need

to upgrade your computer by adding a USB 2.0 port.

www.discmakers.com 1-800-237-6666 10

This brief setup guide is provided to get the EliteMicro operational out of the box. Once you get the

system operational, complete online help can be accessed from the DiscJuggler HELP Section.

Step 1

Unpacking the Hardware:

Your EliteMicro system is shipped in one main carton. If you ordered an EliteMicro with printer, you'll

also receive a box with the printer adapter kit and a box with the inkjet printer.

Main Carton w/ EliteMicro

• USB 2.0 Cable

• AC Power Cord

• Printed Manual

• Installation CD with EliteMicro Software

Printer Adapter Kit Carton

• Printer Guide Plates (2 pcs)

• Printer Control Cable

• Label Printing Software

Carefully open the boxes and remove the top protective cardboard sheet. You will then be able to

remove the contents from the top section of the carton.

Remove the top foam section from the shipping carton. This will reveal the EliteMicro in a plastic bag.

Grasp the EliteMicro on the top section and place the other hand underneath the unit. Gently lift out of

the shipping box and set onto a table.

Remove the EliteMicro out of the bag and place all shipping components back into the shipping

carton for future use.

Next, remove the printer and adapter kit from their shipping carton and place all the components on

the table.

Account for all the components.

NOTE: Any item that needs to be returned for a warranty repair must be returned in original

packaging. You must call Disc Makers for a return authorization number (RMA) before returning any

product. In the event that the original packaging has been discarded, you can purchase replacement

packaging from Disc Makers. The sender will be responsible for any damage incurred if product is not

returned in original or replacement packaging. To obtain replacement packaging, call Disc Makers

technical support at 1-888-800-4041 with the model of your duplicator.

Autres manuels pour EliteMicro

Table des matières

Autres manuels Disc Makers duplicateur de disques

Disc Makers

Disc Makers MacElite 2 Manuel utilisateur

Disc Makers

Disc Makers MacElite 2 Manuel utilisateur

Disc Makers

Disc Makers ReflexMax1 Manuel utilisateur

Disc Makers

Disc Makers Reflex 1 Manuel utilisateur

Disc Makers

Disc Makers reflex series Manuel utilisateur

Disc Makers

Disc Makers ReflexUltra Manuel utilisateur

Disc Makers

Disc Makers ReflexUltra Manuel utilisateur

Disc Makers

Disc Makers EliteMicro Instructions de montage

Disc Makers

Disc Makers Autograph Autograph VII Manuel d'installation et d'exploitation

Disc Makers

Disc Makers Pico MAC Manuel utilisateur

Disc Makers

Disc Makers Flash Duplicator Manuel utilisateur

Disc Makers

Disc Makers ElitePro Manuel utilisateur

Disc Makers

Disc Makers reflex series Manuel utilisateur

Disc Makers

Disc Makers ReflexMax1 Manuel utilisateur

Disc Makers

Disc Makers Forte Manuel utilisateur

Disc Makers

Disc Makers ReflexUltra Manuel utilisateur

Disc Makers

Disc Makers ElitePro1 Manuel

Disc Makers

Disc Makers ReflexFlash11 Manuel utilisateur

Disc Makers

Disc Makers ReflexMax1 Manuel utilisateur

Disc Makers

Disc Makers ReflexMax1 Manuel utilisateur

Disc Makers

Disc Makers ReflexAuto 8 Manuel utilisateur

Manuels duplicateur de disques populaires d'autres marques

Riso

Riso CV Series Manuel

MicroBoards Technology

MicroBoards Technology GX-2 Manuel utilisateur

Addonics Technologies

Addonics Technologies HDUS325DX Manuel utilisateur

Carry

Carry Pro118 Manuel utilisateur

CopyPro

CopyPro PowerPro II Manuel utilisateur

Primera

Primera Max Manuel utilisateur

Logicube

Logicube EchoPlus-NG Manuel utilisateur

Silca

Silca Delta 2000 SA Manuel utilisateur

Reflex7

Reflex7 Daisy Chain Series Manuel utilisateur

Vinpower Digital

Vinpower Digital SharkCopier DC Manuel utilisateur

Codonics

Codonics Virtua E Manuel utilisateur

Octave

Octave Copy Master II Manuel utilisateur

Kanguru

Kanguru U2-DVDDUPE-S Manuel utilisateur

StarTech.com

StarTech.com 8STSATDUP11 Manuel utilisateur

DUPLO SEIKO CORPORATION

DUPLO SEIKO CORPORATION Duprinter DP-460 Manuel utilisateur

Addonics Technologies

Addonics Technologies UDFH7 Manuel utilisateur

Vinpower Digital

Vinpower Digital MiniLoader VDX-1 Manuel utilisateur

Addonics Technologies

Addonics Technologies CFASTD5 Manuel utilisateur
