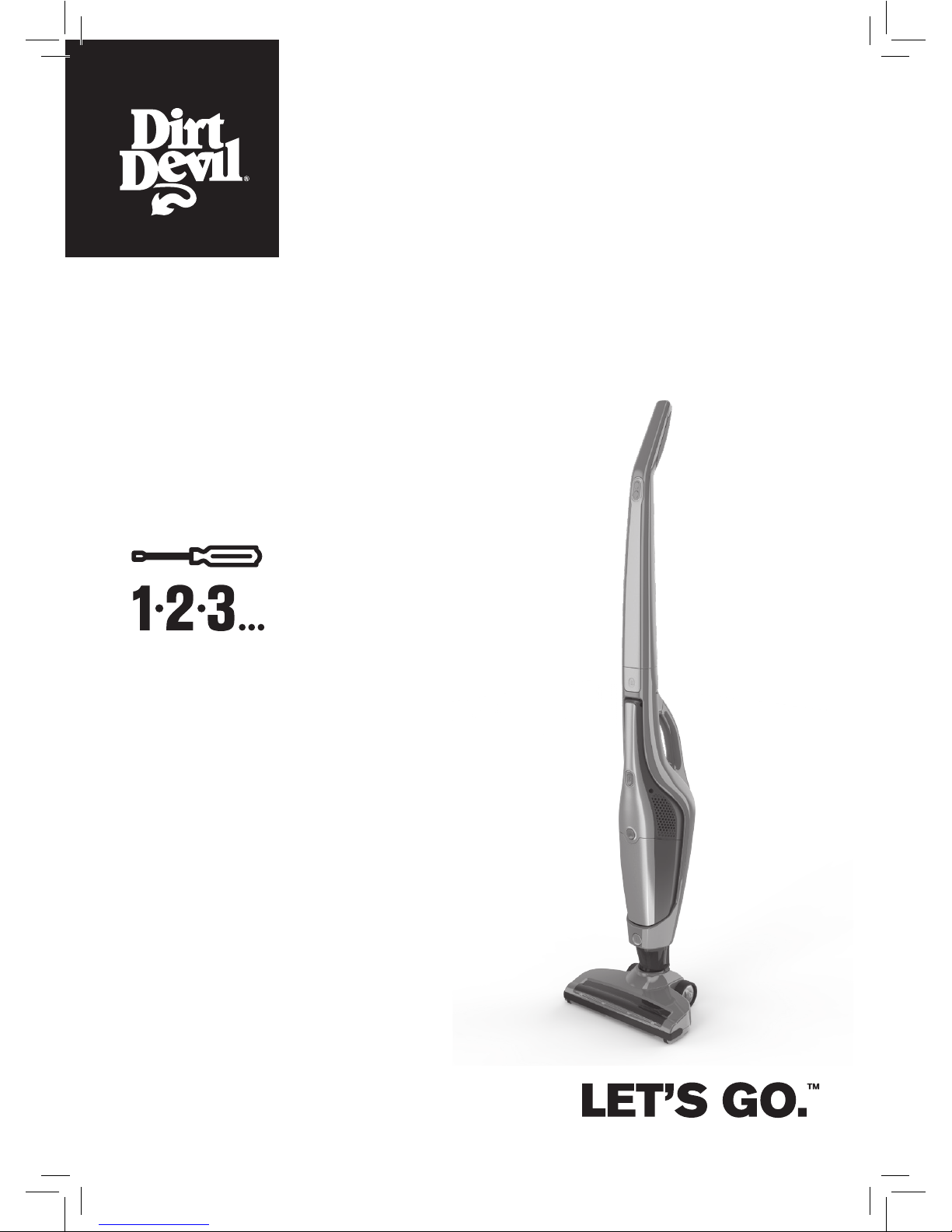

Handstick Vacuum

CORDLESS 2-IN-1

USER GUIDE

DDH01-E01/ DDH01-E02

WARNING

BASIC SAFETY PRECAUTIONS

• This vacuum cleaner is intended

for household use only and NOT

for commercial or industrial use.

• It is a battery-operated

appliance, the battery being

charged outside the appliance.

• Only use the vacuum cleaner

indoors and keep the area you’re

cleaning well lit.

• Keep ngers, hair and loose

clothing from moving parts and

openings whilst using the

vacuum cleaner.

• This vacuum cleaner can be

used by children aged from 8

years and above and persons

with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if

they have been given supervision

or instruction concerning use of

the vacuum cleaner in a safe way

and understand the hazards

involved. Children should not

play with the vacuum cleaner.

Cleaning and user maintenance

should not be made by children

without supervision.

• Only Vax recommend charger,

tools and accessories should be

used with this vacuum cleaner.

• Don’t charge the Cordless

upright outdoors, or leave the

charger connected to the mains

when not in use.

• Don’t use this vacuum cleaner if

it has been dropped, damaged,

immersed in water or left

outdoors.

• Don’t handle the charger plug or

use the vacuum cleaner with

wet hands.

• Don’t run over the charger cord

or use the vacuum cleaner if the

charger cord or plug is

damaged. Please contact our

Customer Care Line on:

0330 026 2626 (Mon-Fri

9:00am to 5:00pm).

• Don’t vacuum up hard or sharp

objects such a glass, nails,

screws, coins, etc.

• Don’t use the charger cord as

a handle, pull the charger cord

around corners or sharp edges

or close a door over the charger

cord. Don’t unplug charger

by pulling on the charger cord.

• Don’t attempt to remove

blockages with sharp objects as

this may cause damage to your

vacuum cleaner.

DON'TS

WARNING

• Always make sure the lter and

dirt container are tted correctly

before using your vacuum

cleaner.

• Always turn off and unplug the

vacuum cleaner from the charger

before carrying out any

maintenance.

• Turn off all controls on the

vacuum cleaner before

disconnecting or connecting the

charger.

• Take extra care when cleaning

on the stairs.

• Always protect the charger cord

from heated surfaces or near

open ames.

• Use only CE approved 13amp

extension cords, non-approved

extension cords may overheat.

Care should be taken to arrange

the extension cord as it can be

a trip hazard.

• Always carry the vacuum cleaner

by the handle.

• Store your vacuum cleaner in a

cool, dry area.

PLEASE KEEP

INSTRUCTIONS FOR

FURTHER USE.

DO'S

DON'TS CONTINUED

• Don’t use the vacuum cleaner

with incorrect voltage as this

may result in damage or injury

to the user. The correct voltage

is listed on the ratings label.

• Don’t vacuum up hot coals,

cigarette butts, matches or

smoking hot burning items or

use in an area where there may

be harmful uids (chlorine,

bleach, and ammonia drain

cleaner).

HI. WElCOmE.

Congrats on purchasing your new CORDLESS

2IN1 vacuum. Inside, you’ll ﬁnd everything you

want to know from tools to how to.

So what are you waiting for? LET’S GO.™

Taking care of your carpets

and hard ﬂoors

The Cordless 2-in-1 is designed to make

vacuuming carpets and hard floors regularly,

as effectiveand efficient as possible and this

user guide will help you get the most out of

your machine.

Maintaining your carpets and hard floors

will ensure they keep their appearance for

longer and Dirt Devil will help you take

good care of them.

Taking care of your

Cordless 2-in-1

Also inside this guide are instructions on

maintaining your new machine, so that it’s

always ready when you are to tackle your

carpets and hard floors.

Taking care of you

We’re here if you need us. Instead of taking

me back to the shop, simply visit:

www.DirtDevil.co.uk/support

or call our Customer Service

Department at 0330 026 2626

Monday-Friday 9:00am to 5:00pm.

Calls are charged at the UK local rate.

Please make a note of the serial number

and model number of the product before

calling.

Alternatively, you can write to us at:

Dirt Devil Ltd.

Plot 302,

Stonebridge Cross Business Park,

Hampton Lovett,

Droitwich,

WR9 0LW,

TABlE OF CONTENTS

Let's talk safety 2

Getting to know your machine 6

Getting started 8

Using your machine 9

Taking care of your machine 11

Let’s talk technical 14

Accessories 16

Troubleshooting 17

Guarantee 18

Notes 19

On/Off switch

Suction control

button

Handheld On/Off

button

Dirt container

release button

Floorhead

release button

Floorhead

Handheld release

button

Machine

charging port

Charging point

2-in-1 tool holder

GETTING TO kNOW YOUR mACHINE

TECHNICAL

SPECIFICATION

Product 1 - DDH01-E02

Battery voltage - 14.4v

Run time - 15mins

Charge time - 10hours

Weight - 2.7kg

Dust bin capacity - 0.5l

Part number - 6-1-136559-00

Product 2 - DDH01-E01

Battery voltage - 18v

Run time - 17mins

Charge time - 10hours

Weight - 2.7kg

Dust bin capacity - 0.5l

Part number - 6-1-136419-00

ACCESSORIES &

CONSUMABLES

Pre-motor ﬁlter (Type 132)

1-1-135931-00

2-in-1 tool (Type 3)

1-1-135932-00

Subject to technical change without notice.

To purchase consumables and accessories, please

visit www.DirtDevil.co.uk

INCLUDED WITH

YOUR MACHINE

Docking station

2-in-1 tool

connector

Charger

CAUTION

Please read 'Lets talk safety' at the beginning before use.

1. Line up ﬂoorhead

with main body, push

ﬁrmly into place.

2. Line up handle with

main body and lower

into place.

3. Insert screw into back of

the handle and tighten

with a cross head

screwdriver until handle

is secured into place.

ASSEMBLING YOUR 2IN1 VACUUM CLEANER

1. Plug the charger into

the back of the docking

station and plug into

mains.

2. Slide the vacuum onto

the docking station.

The LED indicator will

initially turn green, then

illuminate red to

indicate that it is in

place and charging.

3. Once fully charged

(8-10) hours the LED

indicator on the On/Off

button will illuminate

green and turn off to

power saving mode.

CHARGING YOUR 2IN1 VACUUM CLEANER

NOTE: Charging will be required before ﬁrst use. Initial charge requires 10 hours.

4. When the vacuum needs recharging the

LED light on the On/Off button will ﬂash

red and the machine will cut out.

TIP: The brushbar will not rotate when the vacuum cleaner is in the upright position.

USING YOUR mACHINE

OPERATING AS AN UPRIGHT VACUUM CLEANER

NOTE: Do not use brushbar on hard ﬂoors as it may cause damage.

1. Unplug the charger

from the mains and

remove the vacuum

from the docking

station.

2. Place foot on the

ﬂoorhead and pull the

handle backwards to

recline the machine.

3. Press the ON button on

the handle to turn the

machine on.

4. To select between high

and low suction press

the suction controller

button.

CAUTION

Always take extra care when cleaning stairs. Always switch the

handheld off before connecting or disconnection the accessories

and before returning the handheld to the main body.

1. Press the handheld

release button. Lift to

remove the handheld

from the main body.

2. To operate press the

On/Off button to

switch the handheld on.

OPERATING AS A HANDHELD VACUUM CLEANER

3. For a more detailed clean, push to attach the 2-in-1

tool connector into the handheld and line up the

2-in-1 with the nozzle on the connector and push

ﬁrmly into place.

4. Press the On/Off button

to switch the handheld

off. Pull to remove

accessory from nozzle.

Line up and return

handheld to main body.
