USER

GUIDE

DDC05-E01/DDC05-P01

Bagless cleaner

CYLINDER VACUUM

DD_Real Power M28_OUTPUT-RK.indd 1 26/03/2015 10:48

DD_Real Power M28_OUTPUT-RK.indd 2 26/03/2015 10:48

OVERVIEW

Overview of the scope of delivery (Fig. 1)

1Dirt container release button

2Post-motor ﬁlter

3Post-motor ﬁlter cover

4Cord retraction button

5On/Off switch

6Blockage light

7Floor tool parking slot

8Power cord with plug

9Small motor protection ﬁlter

10 Release catch

11 Dirt container

12 Separator and shroud

13 Pre-motor ﬁlter sponge

14 Pre-motor ﬁlter

15 Dirt container lid

16 Carrying handle

17 Handle

18 Air vent

19 Telescopic tube

20 Dusting brush

21 Crevice tool

22 Hose connector

23 Hose release buttons

24 Combi ﬂoor tool

25 “Carpet/hard ﬂoor” selector (illustration serves

as an example)

26 Parking hook

MACHINE OVERVIEW TABLE OF CONTENTS

Technical Data

Bagless cylinder vacuum cleaner

Cyclone XS

DDC05-(E01/P01)

220 – 240V ~, 50 Hz

1,000 W

max. capacity: approx. 1.8 litres

approx. 5 m

approx. 4 kg

Type of appliance

Model name

Model number

Voltage

Power

Dust bin capacity

Power cord length

Weight

We reserve the right to make changes to technical and

design specifications in the interest of continuous product

improvement. © Dirt Devil.

1Overview of your vacuum 2

Technical data 3

Guarantee 3

2Safety instructions 4

3Before use 6

3.1 Selecting a tool/accessory 6

3.2 Assembly 7

4Use 8

4.1 Operational safety 8

4.2 How to Use 8

4.3 Switching off 9

4.4 Transport and storage 9

5 Maintenance 10

5.1 Empty the dirt container 10

5.2 Cleaning dirt container and pre-motor ﬁlter 11

5.3 Cleaning the post-motor ﬁlter 12

5.4 Spare parts and accessories 13

5.5 Troubleshooting 14

LIMITED GUARANTEE

It’s quick and easy to register for your free 1 year guarantee online at

www.DirtDevil.co.uk.

Please retain your original receipt for proof of purchase. Please make a note of

the serial number and model number of the product before calling.

DD_Real Power M28_OUTPUT-RK.indd 3 26/03/2015 10:48

WARNING

BASIC SAFETY PRECAUTIONS

• This vacuum cleaner is

intended for household use

only and NOT for commercial

or industrial use.

• Only use the vacuum cleaner

indoors on dry surfaces and

keep the area you’re cleaning

well lit.

• Keep ngers, hair and loose

clothing away from moving

parts and openings whilst

using the vacuum cleaner.

• This vacuum cleaner can be

used by children aged from 8

years and above and persons

with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if

they have been given

supervision or instruction

concerning use of the vacuum

cleaner in a safe way and

understand the hazards

involved. Children shall not

play with the vacuum cleaner.

Cleaning and user

maintenance shall not be made

by children without supervision.

• Only Dirt Devil recommended

tools should be used with the

vacuum cleaner, use of

non-branded Dirt Devil

accessories/tools will invalidate

your guarantee.

• Don’t use the vacuum cleaner

if it has been dropped,

damage or left outdoors.

• Don’t run over the power cord

or use vacuum cleaner if the

power cord or plug is

damaged. Please contact our

Customer Service on:

0330 026 2626 (Mon-Fri

9:00am-5:00pm).

• Don’t handle the plug or use

the vacuum cleaner with

wet hands.

• Don’t pull or carry the vacuum

cleaner by the power cord.

• Don’t use the power cord as a

handle, pull the power cord

around corners, sharp edges

or close a door over the

power cord.

• Don’t unplug the vacuum

cleaner by pulling on the

power cord.

• Don’t vacuum up any

ammable or combustible

materials (lighter uid, petrol,

kerosene etc) or use the

vacuum cleaner in an area with

explosive vapours or liquid.

• Don’t vacuum up hot coals,

cigarette butts, matches or

smoking hot burning items

DON'TS

DD_Real Power M28_OUTPUT-RK.indd 4 26/03/2015 10:48

WARNING

or use in an area where

there may be harmful uids

(chlorine, bleach, and

ammonia drain cleaner).

• Don’t attempt to remove

blockages with sharp objects

as this may cause damage

to the vacuum cleaner, remove

blockages only as instructed

in this guide.

• Don’t vacuum up hard or sharp

objects such as glass, nails,

screws or coins etc.

• Don’t use the vacuum cleaner

with incorrect voltage as this

may result in damage or injury

to the user. The correct voltage

is listed on the ratings label.

DON'TS CONTINUED...

• Turn off all controls on the

vacuum cleaner before

disconnecting or connecting

the plug from the mains socket.

• Always make sure both the

pre-motor/post-motor lters are

in place before use.

• Take extra care when using

and positioning the vacuum

cleaner on the stairs

• Always switch off the vacuum

cleaner before disconnecting

or connecting the hose

and accessories.

• Keep all openings clear and

free from debris as this may

affect the airow/suction.

• Always replace the fuse in the

plug with a British 13amp fuse.

Always protect the power

cable from heated surfaces

and open ames.

• Use only CE approved 13amp

extension cords, non-approved

extension cords may overheat.

Care should be taken to

arrange the extension cord

as it can be a trip hazard.

• Store the vacuum cleaner in

a cool, dry area. If the lters

have been cleaned as per

the user guide instructions

ensure they are thoroughly

dry before storing away.

PLEASE KEEP INSTRUCTIONS

FOR FURTHER USE AND USE

ONLY AS INSTRUCTED IN

THIS GUIDE.

DO'S

SAFETY

INSTRUCTIONS

DD_Real Power M28_OUTPUT-RK.indd 5 26/03/2015 10:48

2. Check the selected tool/accessory

for damage.

1. Select the tool/accessory according to

the surface to be cleaned:

- Combi tool (Fig. 2/1):

Floor tool for cleaning both carpets

and hard ooring.

- Crevice tool (Fig. 2/2):

Use this to vacuum dust from hard

to reach places.

- Dusting brush (Fig. 2/3):

Use this to vacuum dust off objects

that have sensitive surfaces.

- Turbo tool (Fig. 2/4*):

Is used to vacuum non-sensitive carpets,

runners, mats, and the like.

*Some models only:

ATTENTION: Use only intact tool/accessory.

If damaged, the nozzle may allow dust to escape

or scratch the surface.

3.1 SELECTING A TOOL/ACCESSORY

DD_Real Power M28_OUTPUT-RK.indd 6 26/03/2015 10:48

BEFORE

USE

CAUTION

Before vacuuming, make sure that the ﬁtted tool/

accessory suits the surface to be cleaned. Also observe

the ﬂooring manufacturer's recommendations.

IMPORTANT: Risk of injury! Only attach the tool/accessory if the appliance is not connected to the power supply. The

cylinder vacuum cleaner could be switched on by accident.

*(Some models only)

1. Attach the selected tool/accessory to

the bottom end of the telescopic tube

(Fig. 3/A1) or hose handle (Fig. 3/B1).

2. Insert the end of the suction hose into

the intake opening (Fig. 4/A) of the

vacuum cleaner until you hear and feel it

locking into place.

If using the telescopic tube:

3. Insert the hose handle into the upper end

of the telescopic tube (Fig. 4/B).

4. Adjust the length of the telescopic tube

(Fig. 4/C). Press down the release latch

on the tube to do this. Then extend the

telescopic tube to the desired length.

Let go of the release catch while pulling

until it locks in place. You will hear

a distinct click.

3.2 ASSEMBLY

DD_Real Power M28_OUTPUT-RK.indd 7 26/03/2015 10:48

CAUTION

Only use the cylinder vacuum cleaner when all ﬁlters are intact,

dry and correctly ﬁtted. Make sure that no objects obstruct the

telescopic tube, the suction hose or other openings.

4.1 OPERATIONAL SAFETY

IMPORTANT: Risk of injury! Check machine and power cord before each use. A damaged machine must never be used.

IMPORTANT: Take extra care when positioning and using the vacuum cleaner on the stairs

IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does

overheat the thermostat will automatically turn the vacuum cleaner off. If this happens, switch the vacuum cleaner

off and unplug. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum

cleaner to cool for approximately 1 hour (if you have cleaned the ﬁlters please wait 24 hours for the ﬁlters to fully dry

before putting back into the machine).

4.2 HOW TO USE

IMPORTANT: When unwinding the power cord do not pull further than the yellow marker.

1. Pull out the cord by the

plug up to the yellow mark

(Fig. 5/1) and no further

than the red mark

(Fig. 5/2).

2. Plug into the mains.

3. Switch on the cylinder

vacuum cleaner with the

on/off switch (Fig. 5/4).

4. If using the combi tool, set

the "carpet/hard floor"

selector according

to the type of floor that is

to be cleaned (Fig. 6):

- Fig. 6/A: for deep- and

short-pile carpets, rugs.

- Fig. 6/B: for smooth

floors, e.g. parquet, tiles,

PVC, etc.

5. Open the air vent on the

handle to reduce the

suction if required.

IMPORTANT: When leaving your working-area, switch off the appliance and comply with the notices in chapter 4.3,

"Switching off". This will help avoid accidents.

DD_Real Power M28_OUTPUT-RK.indd 8 26/03/2015 10:48

CAUTION

Never store the machine directly next to heat sources

(e.g. heater, oven). Avoid exposure to direct sunlight.

Heat can damage the machine.

USE

4.3 SWITCHING OFF

1. Switch off the cylinder vacuum cleaner

with the on/off switch (Fig. 5/4) and unplug

from the mains.

2. Keep the plug in your hand.

3. To retract the power cord, push the cord

retracting button (Fig. 5/3).

4.4 TRANSPORT AND STORAGE

n Only carry the machine by its

carrying- handle (Fig. 7/1).

nIf you want to store the machine for

longer period of time, empty the dirt

container, > Chapter 5.1, 'Emptying

the dirt container module'.

nStore the machine in a cool, dry place, out

of the reach of children. For storage you

can park the telescopic tube on the

vacuum cleaner by inserting the

parking-hook (Fig. 7/2) of the combi

tool into the parking slot (Fig. 7/3).

DD_Real Power M28_OUTPUT-RK.indd 9 26/03/2015 10:48

5.1 EMPTYING THE DIRT CONTAINER

CAUTION

Switch off the machine before emptying

the dirt container. This will prevent dirt

from damaging the machine.

n It is best to empty the dirt container after

each vacuuming session.

nEmpty the dirt container at the latest:

- if the blockage light (Fig. 8/A1)

lights up;

- the "MAX" marking (Fig. 8/B1) has been

reached; or

- before prolonged storage or dispatch.

1. Switch off the machine, chapter 4.3,

'Switching off'.

2. Remove the dirt container from its bracket

by pressing the dirt container release button

on the dirt container lid (Fig. 8/A2).

3. Empty the dirt container by holding it low

over a dustbin and only then press the

release catch (Fig. 8/B).

4. If the dirt container can no longer be

completely cleaned by simply opening

the bottom, the separator and shroud

has to be removed to be cleaned. >

Chapter 5.2 'Cleaning the dirt container

and pre-motor filter'.

DD_Real Power M28_OUTPUT-RK.indd 10 26/03/2015 10:48

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dirt Devil Aspirateur

Dirt Devil

Dirt Devil M083414 Manuel utilisateur

Dirt Devil

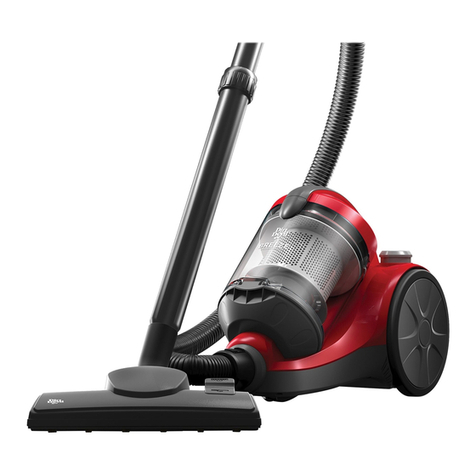

Dirt Devil Breeze Manuel utilisateur

Dirt Devil

Dirt Devil Swivel Glide Vision M088920 Manuel utilisateur

Dirt Devil

Dirt Devil M085570 Manuel utilisateur

Dirt Devil

Dirt Devil 1-113354-000 Manuel utilisateur

Dirt Devil

Dirt Devil M083410 Manuel utilisateur

Dirt Devil

Dirt Devil Scorpion Manuel utilisateur

Dirt Devil

Dirt Devil Infinity VS8 Turbo M5037 Manuel utilisateur

Dirt Devil

Dirt Devil CAPOERA Manuel utilisateur

Dirt Devil

Dirt Devil Matrixx Swirl Y12 Manuel utilisateur

Dirt Devil

Dirt Devil Rocco Manuel utilisateur

Dirt Devil

Dirt Devil Centrino Cleancontrol M2881-6 Manuel utilisateur

Dirt Devil

Dirt Devil DD2505 Manuel utilisateur

Dirt Devil

Dirt Devil Quick & Light FH50010 Manuel utilisateur

Dirt Devil

Dirt Devil Lifty PLUS Manuel utilisateur

Dirt Devil

Dirt Devil vito 5.0 Manuel utilisateur

Dirt Devil

Dirt Devil ND40100BPC Manuel utilisateur

Dirt Devil

Dirt Devil DDH01-E01 Manuel utilisateur

Dirt Devil

Dirt Devil Vacuum Cleaner Manuel utilisateur

Dirt Devil

Dirt Devil SD20015 Manuel utilisateur

Dirt Devil

Dirt Devil EQU SILENCE MC Manuel utilisateur

Dirt Devil

Dirt Devil 960-009-627 Manuel utilisateur

Dirt Devil

Dirt Devil BD10255 Manuel utilisateur

Dirt Devil

Dirt Devil BLADE 24V Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
