LDDS45 - LoRaWAN Distance Detection Sensor
User Manual
last modified by Xiaoling
on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
Table of Contents
1. Introduction ........................................................................................................................................................................ 4
1.1 What is LoRaWAN Distance Detection Sensor ........................................................................................................ 4
1.2 Features ........................................................................................................................................................................ 5
1.3 Specification .................................................................................................................................................................. 5
1.3.1 Rated environmental conditions ........................................................................................................................... 5
1.3.2 Effective measurement range Reference beam pattern .................................................................................... 6
1.5 Applications ................................................................................................................................................................... 7
1.6 Pin mapping and power on ........................................................................................................................................ 7
2. Configure LDDS45 to connect to LoRaWAN network .................................................................................................. 7
2.1 How it works ................................................................................................................................................................. 7
2.2 Quick guide to connect to LoRaWAN server (OTAA) ............................................................................................. 7
2.3 Uplink Payload ............................................................................................................................................................ 13
2.3.1 Battery Info ........................................................................................................................................................... 13
2.3.2 Distance ................................................................................................................................................................. 13
2.3.3 Interrupt Pin .......................................................................................................................................................... 13
2.3.4 DS18B20 Temperature sensor .......................................................................................................................... 14
2.3.5 Sensor Flag .......................................................................................................................................................... 14
2.3.6 Decode payload in The Things Network ........................................................................................................... 14
2.4 Uplink Interval ............................................................................................................................................................ 14
2.5 Show Data in DataCake IoT Server ........................................................................................................................ 15
2.6 Frequency Plans ........................................................................................................................................................ 17
2.6.1 EU863-870 (EU868) ............................................................................................................................................ 17
2.6.2 US902-928(US915) ............................................................................................................................................. 18
2.6.3 CN470-510 (CN470) ........................................................................................................................................... 18
2.6.4 AU915-928(AU915) ............................................................................................................................................. 19
2.6.5 AS920-923 & AS923-925 (AS923) ................................................................................................................... 20
2.6.6 KR920-923 (KR920) ............................................................................................................................................ 20
2.6.7 IN865-867 (IN865) ............................................................................................................................................... 21
2.7 LED Indicator .............................................................................................................................................................. 21
2.8 Firmware Change Log ............................................................................................................................................... 21
2.9 Mechanical .................................................................................................................................................................. 22
3. Battery & How to replace ................................................................................................................................................ 22
3.1 Battery Type ................................................................................................................................................................ 22
3.2 Replace Battery ........................................................................................................................................................... 23
3.3 Power Consumption Analyze ..................................................................................................................................... 23
3.3.1 Battery Note ........................................................................................................................................................... 24
3.3.2 Replace the battery ............................................................................................................................................... 24
4. Configure LDDS45 via AT Command or LoRaWAN Downlink ................................................................................. 25
4.1 Access AT Commands ............................................................................................................................................. 25
4.2 Set Transmit Interval Time ....................................................................................................................................... 26
4.3 Set Interrupt Mode ..................................................................................................................................................... 27
5. FAQ .................................................................................................................................................................................. 27
5.1 What is the frequency plan for LDDS45? ............................................................................................................... 27
5.2 How to change the LoRa Frequency Bands/Region ............................................................................................. 27
6. Trouble Shooting ............................................................................................................................................................ 27
6.1 AT Command input doesn't work ............................................................................................................................ 27
7. Order Info ........................................................................................................................................................................ 28
8. Packing Info ..................................................................................................................................................................... 28
9. Support ............................................................................................................................................................................. 28
Page 2 / 28 - last modified by Xiaoling on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
Table of Contents:
•1. Introduction
•1.1 What is LoRaWAN Distance Detection Sensor
•1.2 Features
•1.3 Specification
•1.3.1 Rated environmental conditions
•1.3.2 Effective measurement range Reference beam pattern
•1.5 Applications
•1.6 Pin mapping and power on
Page 3 / 28 - last modified by Xiaoling on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
•2. Configure LDDS45 to connect to LoRaWAN network
•2.1 How it works
•2.2 Quick guide to connect to LoRaWAN server (OTAA)
•2.3 Uplink Payload
•2.3.1 Battery Info
•2.3.2 Distance
•2.3.3 Interrupt Pin
•2.3.4 DS18B20 Temperature sensor
•2.3.5 Sensor Flag
•2.3.6 Decode payload in The Things Network
•2.4 Uplink Interval
•2.5 Show Data in DataCake IoT Server
•2.6 Frequency Plans
•2.6.1 EU863-870 (EU868)
•2.6.2 US902-928(US915)
•2.6.3 CN470-510 (CN470)
•2.6.4 AU915-928(AU915)
•2.6.5 AS920-923 & AS923-925 (AS923)
•2.6.6 KR920-923 (KR920)
•2.6.7 IN865-867 (IN865)
•2.7 LED Indicator
•2.8 Firmware Change Log
•2.9 Mechanical
•3. Battery & How to replace
•3.1 Battery Type
•3.2 Replace Battery
•3.3 Power Consumption Analyze
•3.3.1 Battery Note
•3.3.2 Replace the battery
•4. Configure LDDS45 via AT Command or LoRaWAN Downlink
•4.1 Access AT Commands
•4.2 Set Transmit Interval Time
•4.3 Set Interrupt Mode
•5. FAQ
•5.1 What is the frequency plan for LDDS45?
•5.2 How to change the LoRa Frequency Bands/Region
•6. Trouble Shooting
•6.1 AT Command input doesn't work
•7. Order Info
•8. Packing Info
•9. Support
1. Introduction
1.1 What is LoRaWAN Distance Detection Sensor
The Dragino LDDS45 is a LoRaWAN Distance Detection Sensor for Internet of Things solution. It is used to
measure the distance between the sensor and a flat object. The distance detection sensor is a module that uses
ultrasonic sensingtechnology for distance measurement, and temperature compensation is performed
internally to improve the reliability of data. The LDDS45 can be applied to scenarios such as horizontal distance
measurement, liquid level measurement, parking management system, object proximity and presence detection,
intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, bottom water level
monitoring, etc.

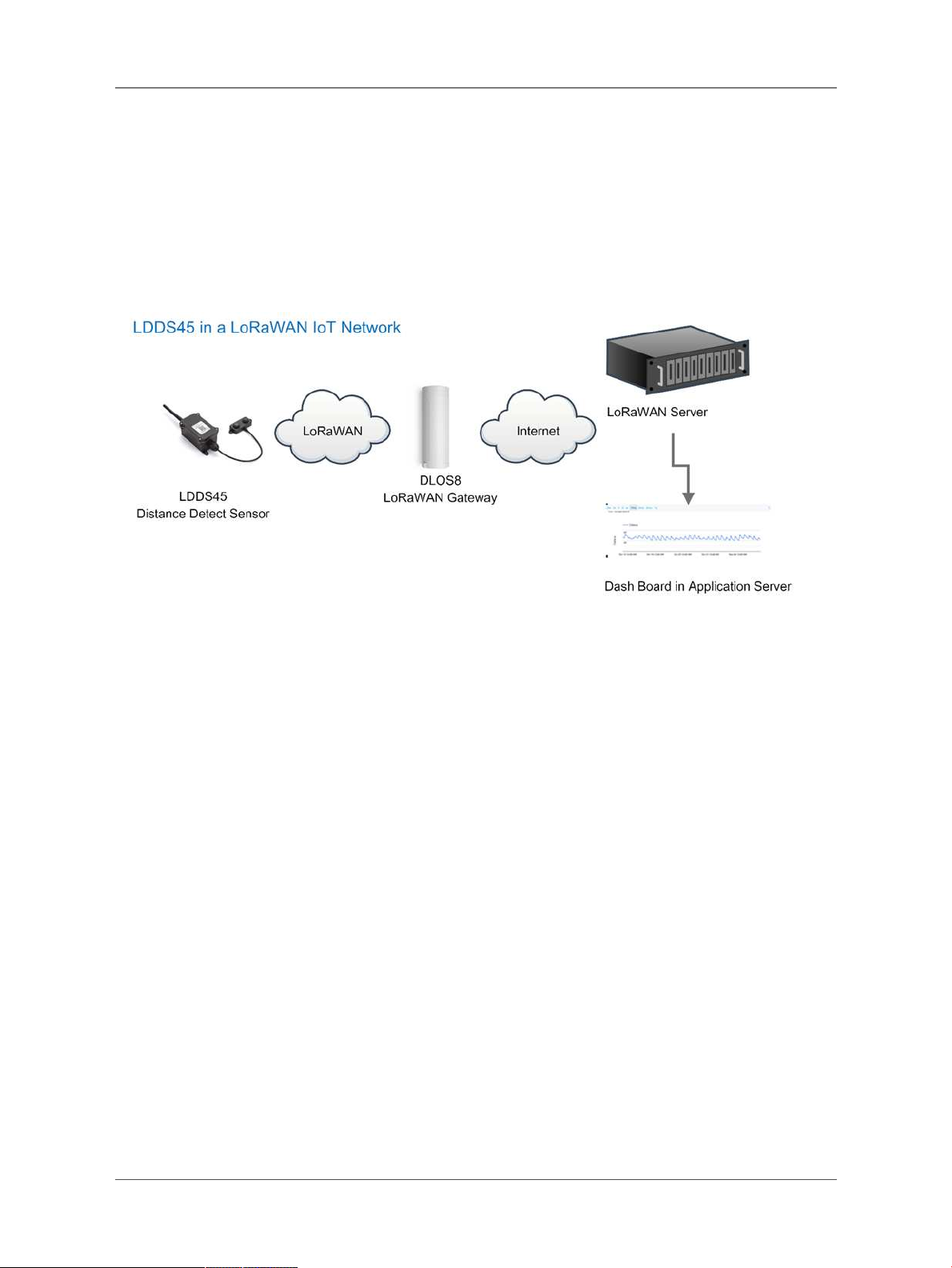

It detects the distance between the measured object and the sensor, and uploads the value via wireless to
LoRaWAN IoT Server.
Page 4 / 28 - last modified by Xiaoling on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
The LoRa wireless technology used in LDDS45 allows device to send data and reach extremely long ranges at
low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst
minimizing current consumption.
LDDS45 is powered by 8500mAh Li-SOCI2 battery; It is designed for long term use up to 10 years*.
Each LDDS45 pre-loads with a set of unique keys for LoRaWAN registrations, register these keys to local
LoRaWAN server and it will auto connect if there is network coverage, after power on.
*Actually lifetime depends on network coverage and uplink interval and other factors.
1.2 Features
• LoRaWAN 1.0.3 Class A
• Ultra-low power consumption
• Distance Detection by Ultrasonic technology
• Flat object range 30mm - 4500mm
• Accuracy: ±(1cm+S*0.3%) (S: Distance)
• Measure Angle: 60°
• Cable Length : 25cm
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• AT Commands to change parameters
• Uplink on periodically
• Downlink to change configure
• IP66 Waterproof Enclosure
• 8500mAh Battery for long term use
1.3 Specification
1.3.1 Rated environmental conditions
Page 5 / 28 - last modified by Xiaoling on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
Remarks: (1) a. When the ambient temperature is 0-39 ℃, the maximum humidity is 90% (non-
condensing);
b. When the ambient temperature is 40-50 ℃, the highest humidity is the highest
humidity in the natural world at the current temperature (no condensation)
1.3.2 Effective measurement range Reference beam pattern
(1) The tested object is a white cylindrical tube made of PVC, with a height of 100cm and a diameter of
7.5cm.
(2) The object to be tested is a "corrugated cardboard box" perpendicular to the central axis of 0 °, and
the length * width is 60cm * 50cm.
Page 6 / 28 - last modified by Xiaoling on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
1.5 Applications
• Horizontal distance measurement
• Liquid level measurement
• Parking management system
• Object proximity and presence detection
• Intelligent trash can management system
• Robot obstacle avoidance
• Automatic control
• Sewer
• Bottom water level monitoring
1.6 Pin mapping and power on
2. Configure LDDS45 to connect to LoRaWAN
network
2.1 How it works
The LDDS45 is configured as LoRaWAN OTAA Class A mode by default. It has OTAA keys to join LoRaWAN
network. To connect a LoRaWAN network, you need to input the OTAA keys in the LoRaWAN IoT server and power
on the LDDS45. If there is coverage of the LoRaWAN network, it will automatically join the network via OTAA and
start to send the sensor value
In case you can't set the OTAA keys in the LoRaWAN OTAA server, and you have to use the keys from the server,
you can use AT Commandsto set the keys in the LDDS45.
2.2 Quick guide to connect to LoRaWAN server (OTAA)
Following is an example for how to join the TTN v3 LoRaWAN Network. Below is the network structure; we use the
LG308 as a LoRaWAN gateway in this example.
Page 7 / 28 - last modified by Xiaoling on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
The LG308 is already set to connected to TTN network, so what we need to now is configure the TTN server.
Step 1: Create a device in TTN with the OTAA keys from LDDS45.
Each LDDS45 is shipped with a sticker with the default device keys, user can find this sticker in the box. it looks like
below.
For OTAA registration, we need to set APP EUI/ APP KEY/ DEV EUI. Some server might no need to set APP EUI.
Enter these keys in the LoRaWAN Server portal. Below is TTN V3 screen shot:
Add APP EUI in the application
Page 8 / 28 - last modified by Xiaoling on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
Page 9 / 28 - last modified by Xiaoling on 2022/10/27 17:11
User Manual for LoRaWAN End Nodes - LDDS45 - LoRaWAN Distance Detection Sensor User Manual
Page 10 / 28 - last modified by Xiaoling on 2022/10/27 17:11
