Directed 933.NISS3HT Manuel utilisateur

DS3+ / DS4+ 933.NISS3HT

v3.15.195.3

2010 Nissan Murano (Smart Key)

THNIN3 Compatible

(Sold Separately)

Introduction 3

Vehicle function compatibilities 4

Pre-installation and application warnings 5

Installation 6

Wiring diagram with T-Harness (THNIN3) with automatic transmission 6

Wiring diagram with T-Harness (THNIN3) with manual transmission 7

Wiring diagram with automatic transmission 8

Wiring diagram with manual transmission 9

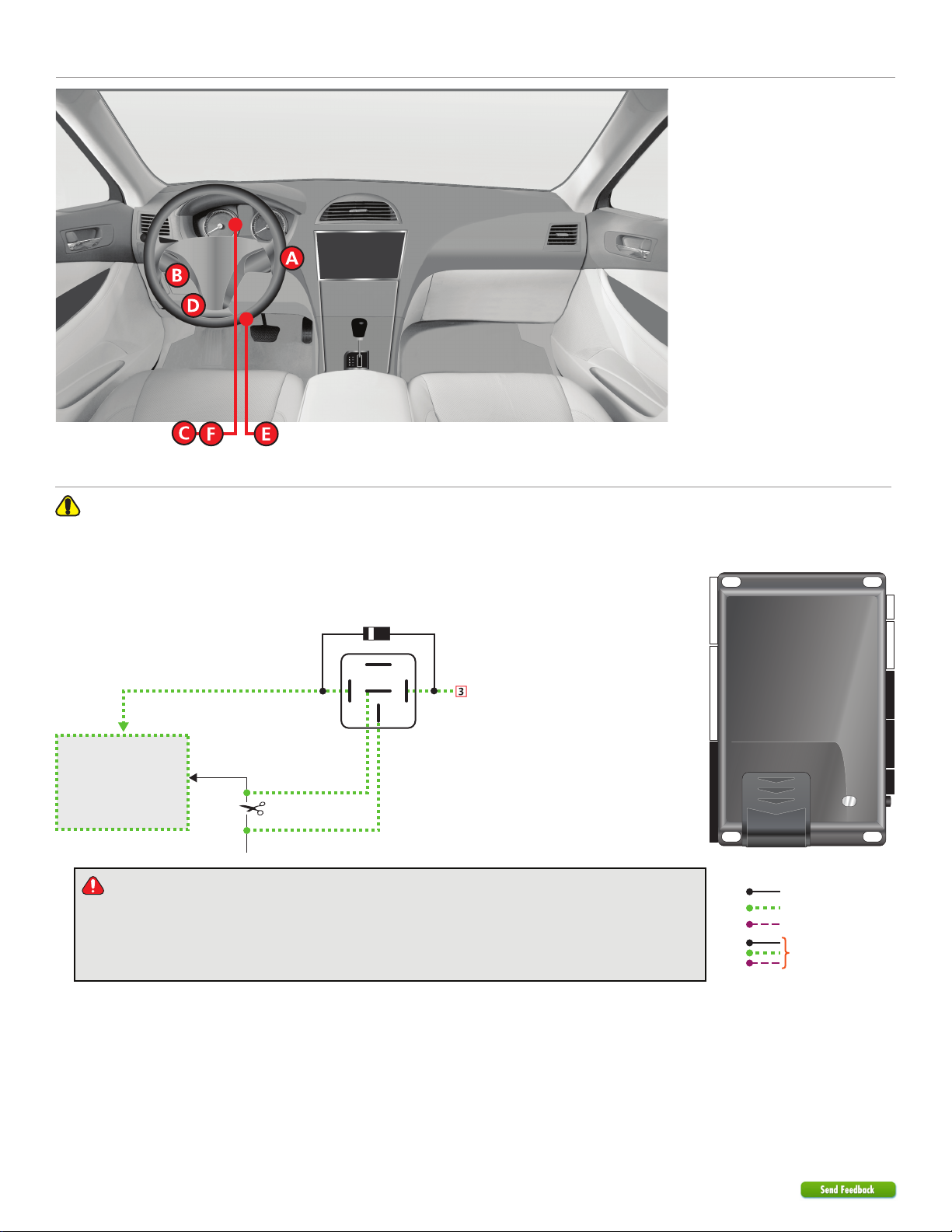

Locating components in the vehicle 10

Vehicle connections 11

Module programming 14

(For security-only programming, see next section.) 14

Module programming for security-only installations 16

Pairing remotes 17

Connecting the module 17

8556T Temperature Sensor 17

8504D Combo Sensor 17

RF Systems 17

When used in conjunction with SmartStart 18

D2D port configuration 18

Manual transmission 19

LED diagnostics and troubleshooting 20

Soft reset 22

Hard reset 22

Tach learning procedure (not needed with Virtual Tach) 23

Initializing Virtual Tach (not needed with hardwired or data tach applications) 23

Limited lifetime consumer warranty 24

Quick reference guide 25

Contents

3933.NISS3HT 3.15.195.3 2010 Nissan Murano (Smart Key)

Introduction

This guide provides information on the installation of the DS3/DS3+ and DS4/DS4+ modules as a digital solution. Using these modules in a

digital conﬁguration require the module to be ﬂashed with vehicle speciﬁc ﬁrmware. Refer to our website (www.directechs.com) and click on

the DIRECTLINK text in the header for additional information.

DS3/DS3+ and DS4/DS4+ modules provide an all-in-one solution for most modern vehicles, and include remote start, keyless entry, security,

and immobilizer bypass capabilities. T-harnesses may also be used in many applications for easy installation.

The following methods are available to conﬁgure modules:

• Web: www.directechs.com (DS3/DS3+ and DS4/DS4+)

• Desktop Application: Directlink DT (DS3/DS3+ and DS4/DS4+)

• Mobile Device: Directlink App (DS4/DS4+ only)

When Flashing via Directlink DT (Desktop app) or via the Web, an XKloader2 will be required.

To conﬁgure via Web or DirectLink DT (mobile app):

1. Disconnect the main module from any (+) 12V power source.

2. Connect the module to your computer using the XKLoader2.

3. Follow the steps in the pop-up window that will be displayed when the module is detected.

Notes:

•Flashing via web is only possible using Internet Explorer on Windows 8, 8.1, and 10.

•This method is not compatible with any other browser (Edge, Chrome, Firefox, etc.)

•When using Windows 11 or newer, Directlink DT is mandatory.

The DS4/DS4+ module is designed to be conﬁgured using the DirectLink application through mobile devices.

To download the DirectLink mobile application, visit the Google Play or Apple store. They can also be

conﬁgured via Web and DirectLink DT. The DS4/DS4+ features are built in Bluetooth® 4.0, allowing you to

conﬁgure and control your system. The DS3/DS3+ module is not equipped with Bluetooth®, therefore is not

compatible with the DirectLink app for mobile devices.

To conﬁgure via DirectLink DT (mobile app):

1. Follow and complete the wiring diagram(s) related to your installation through the app.

2. When installation is complete, select Conﬁgure DS4/DS4+.

3. Follow the on-screen instructions.

FLASH REQUIRED!

4 White

4933.NISS3HT 3.15.195.3 2010 Nissan Murano (Smart Key)

Vehicle function compatibilities

This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.

Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.

Parking Lights Control

Arm Factory Security

Disarm Factory Security

Door Lock Control

Door Unlock

Driver Priority Unlock

Trunk / Hatch Release

Control of aftermarket alarm with OEM remote

Fuel level/EV battery level

* Odometer

Immobilizer Bypass-Data No Key Req'd

3x LOCK START (Start control using OEM Remote)

3x LOCK STOP (Stop control using OEM Remote)

Accessory Activation

Ignition Activation

RAP Shut Down (Retained ACC Power)

Remote Start Takeover

SmartStart

Start (Crank) Activation

Tach / RPM Output

Entry Monitoring ALL Door Pins

Entry Monitoring Hood Pin

Entry Monitoring Trunk/Hatch Pin

Brake Status (foot brake)

Door Locks Status

Ignition Status

5933.NISS3HT 3.15.195.3 2010 Nissan Murano (Smart Key)

Pre-installation and application warnings

Firmware notes: This section highlights important information for this speciﬁc ﬁrmware and will assist in

pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.

T-Harness

compatible THNIN3 Keys required for

programming 1Keys required for

operation 0

The optional Plug & Play THNIN3 T-Harness is sold separately.

Important! All T-Harness wires NOT listed in the diagram are NOT required for the installation. Loose wires such as Siren

Output and Hood Input may need to be pulled from the tapped section of the T-Harness. Refer to the “Wiring diagram with

T-Harness” for more information on connections and installation instructions.

The OBDII Diagnostic Connector features will remain the same even when the T-Harness is installed.

Unless speciﬁed otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic

connector.

It is important to check that the fuses are positioned correctly in the module. Proper fuse positioning is displayed on each

wiring diagram.

Refer to the "Vehicle connections" following the installation diagram.

General notes: This section highlights important information for this speciﬁc ﬁrmware.

[1] The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.

[2] The siren is ONLY required when enabling the security features during module ﬂashing.

[3] For Security Only Installations, refer to 'Locating components in the vehicle' for the optional starter disable connection.'

6933.NISS3HT 3.15.195.3 2010 Nissan Murano (Smart Key)

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

20 19 18 17

15 14 13 12 11 10 9 8 76 5 4 3 2

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

(-) Driver Door Trigger: Lt.Blue, pin 39

BCM conn.

(Green connector behind instrument cluster)

Note: insert pin if wire is not present

(-) RAP Off Output: Lt. Blue/Black

(-) Hood Input: Gray

(+) Siren Output: Brown/Red

Siren

Hood Pin

Diagnostic

Connector

OBDII

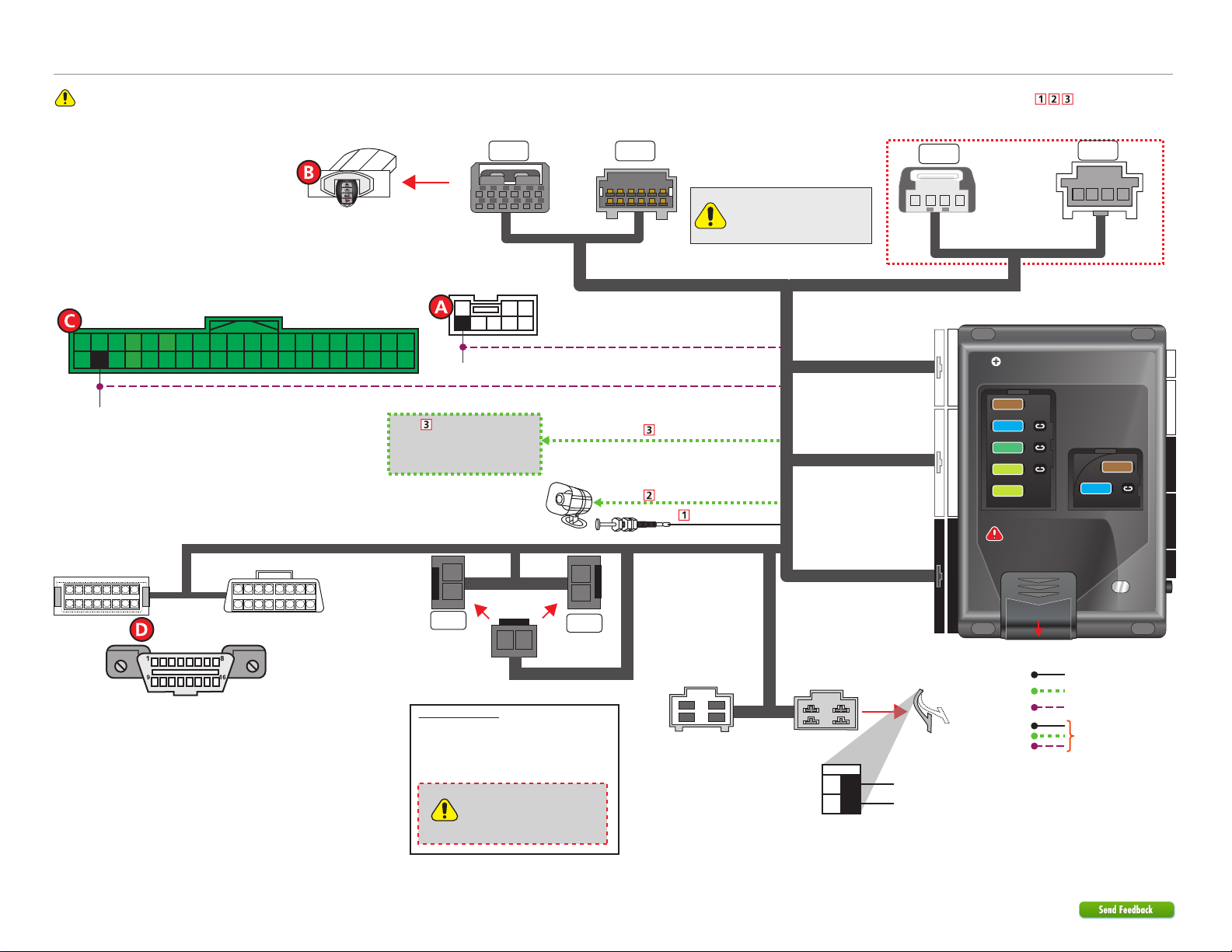

Wiring diagram with T-Harness (THNIN3) with automatic transmission

Clock & Data Wire

at Key Port Connector

Refer to Vehicle connections

for wire location.

THNIN3

(optional T-Harness)

Refer to the Vehicle

connections section for

more specific T-harness

compatibility.

Refer to the

Optional starter disable

connection section for relay

and connection details.

(-) GWA Output: Blue/White

Brake Switch T-Harness Connection

NOT USED

T-02

T-01

Brake Pedal

(+) Brake to B-01

(+) Brake to B-02

Brake Switch

(White conn. at brake switch)

Brake Switch T-Harness

8-pin White Connector

22-pin White Connector

12-pin Black Connector

Nissan (Smart Key)

ALTIMA 2007-12 PIN2 B-02

ALTIMA COUPE 2013 PIN2 B-02

MAXIMA 2009-14 PIN4 B-01

MURANO 2009-14 PIN2 B-02

B-02 B-01

Security Only

Mandatory Connections

Remote Start Only

Legend:

Remote Start + Security

22 812

4 2442

Slide to open

A module can also be used for

this installation.

IMPORTANT:

Position the

fuses correctly!

MAIN (5A) (+)

(-) RLY3 PK LIGHT (15A) (+)

(-) ACC & START (30A) (+)

(-) FLEX RLY (20A) (+)

IGN (20A) (+)

MAIN (5A) (+)

(-) RLY3/PK LIGHT(15A) (+)

(-) Push-To-Start Output: Lt. Green/Black

(-) Push-to-Start:

Brown, pin 4

45 6 7 8

Push-to-Start

(Brown conn. at

Push-to-Start switch)

Note: Reverse the B-01 or

B-02 connectors if the

vehicle does not remote start.

7933.NISS3HT 3.15.195.3 2010 Nissan Murano (Smart Key)

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

Hood Pin

(-) Hood Input: Gray

Siren

(+) Siren Output: Brown/Red

Clock & Data Wire

at Key Port Connector

Refer to the Vehicle wiring

reference charts for wire

location.

(-) RAP Off Output: Lt. Blue/Black

(-) Push-To-Start Output:

Lt. Green/Black

Diagnostic

Connector

OBDII

(+) Clutch Activation Output: White

Clutch Interrupt (conn. side): Lt. Green

Clutch Interrupt (veh. side): Lt. Green/White

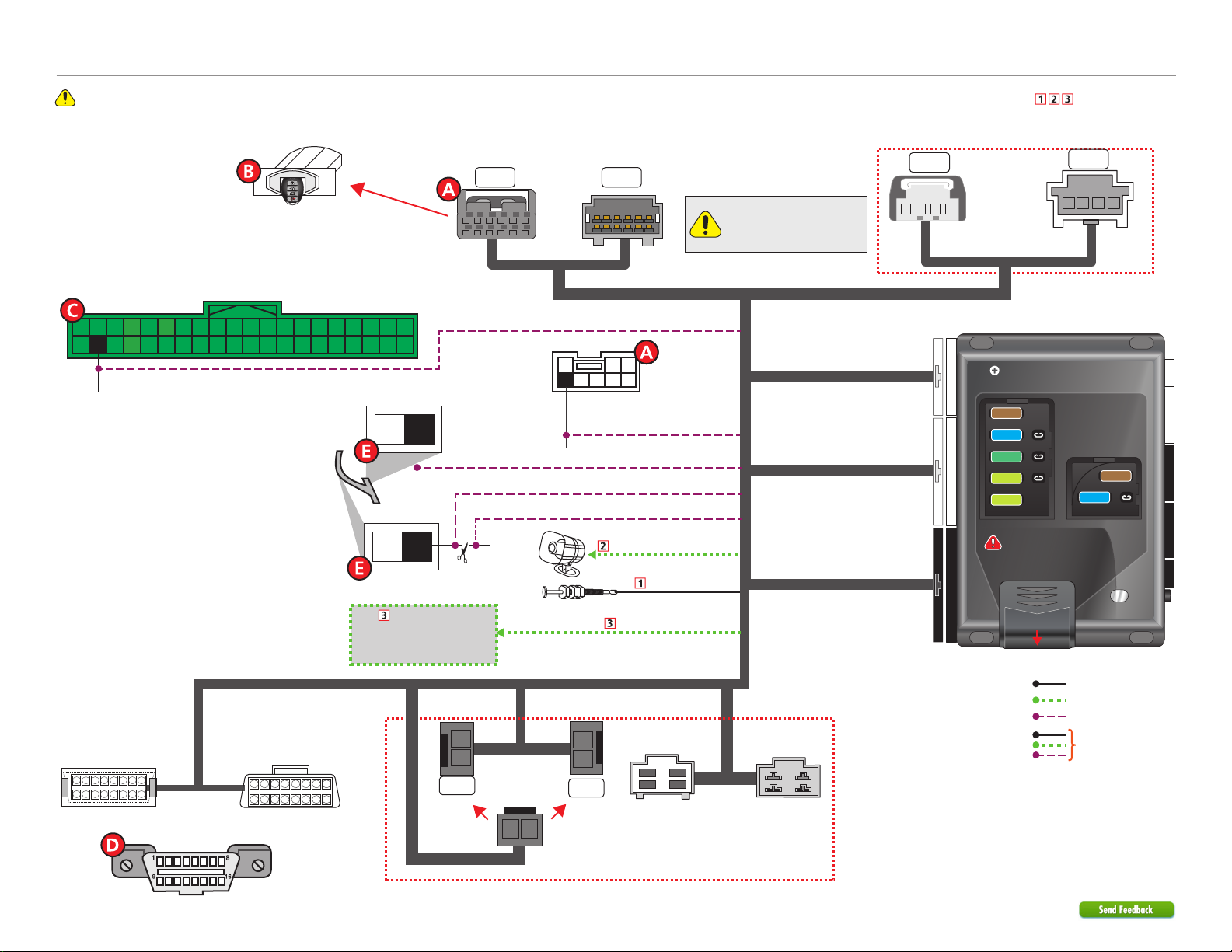

Wiring diagram with T-Harness (THNIN3) with manual transmission

CUT

Clutch Pedal 2

Clutch Pedal 1

Clutch

Pedal

Clutch Interrupt: Pin 2

(+) Clutch Output: Pin 2

45 6 7 8

Push-to-Start

(Brown conn. at

Push-to-Start switch)

(-) GWA Output: Blue/White

NOT USED

Brake Switch T-Harness

Refer to the

Optional starter disable

connection section for relay

and connection details.

THNIN3

(optional T-Harness)

8-pin White Connector

22-pin White Connector

12-pin Black Connector

Refer to the Vehicle

connections section for

more specific T-harness

compatibility.

NOT USED

T-02

T-01

Security Only

Mandatory Connections

Remote Start Only

Legend:

Remote Start + Security

22 812

4 2442

Slide to open

A module can also be used for

this installation.

IMPORTANT:

Position the

fuses correctly!

MAIN (5A) (+)

(-) RLY3 PK LIGHT (15A) (+)

(-) ACC & START (30A) (+)

(-) FLEX RLY (20A) (+)

IGN (20A) (+)

MAIN (5A) (+)

(-) RLY3/PK LIGHT(15A) (+)

B-02 B-01

20 19 18 17

15 14 13 12 11 10 9 8 76 5 4 3 2

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

(-) Driver Door Trigger: Lt.Blue, pin 39

BCM conn.

(Green connector behind instrument cluster)

Note: insert pin if wire is not present

(-) Push-to-Start:

Brown, pin 4

8933.NISS3HT 3.15.195.3 2010 Nissan Murano (Smart Key)

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

Diagnostic

Connector OBDII

Clock: Lt. Blue or

Green/Orange, pin 2

CUT

Clock, Data & Keysense

at Key Port Connector

Refer to the Vehicle connections

“Connectors: PTS, Key Port”

45 6 7 8

Push-to-Start

(Brown conn. at

Push-to-Start switch)

12 3 5 6

7 8 9 10 12

(+) Keysense: Yellow, pin 11

(+) Brake: Pin 7

20 19 18 17

15 14 13 12 11 10 9 8 7 6 5 4 3 2

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

HS CAN Low: Tan: 1

HS CAN High: Tan/Black: 2

Immo. Clock Output: Yellow/Black: 8

Immo. Data Output (veh. side): Orange/Black: 7

(-) Push-To-Start Output: Lt. Green/Black: 1

(+) Keysense Output: White: 7

(-) RAP Off Output: Lt. Blue/Black: 10

Hood Pin

(-) Hood Input: Gray: 21

Siren

(+) Siren Output: Brown/Red: 11

(+) Brake Activation Output: White: 5 & 11

(+) 12V Input: Red: 6 & 12

Ground: Black: 10

Immo. Data Interrupt (veh. side): Blue/White: 1

Immo. Data Interrupt (conn. side): Blue: 3

BCM conn.

(Green connector behind instrument cluster)

Note: insert pin if wire is not present

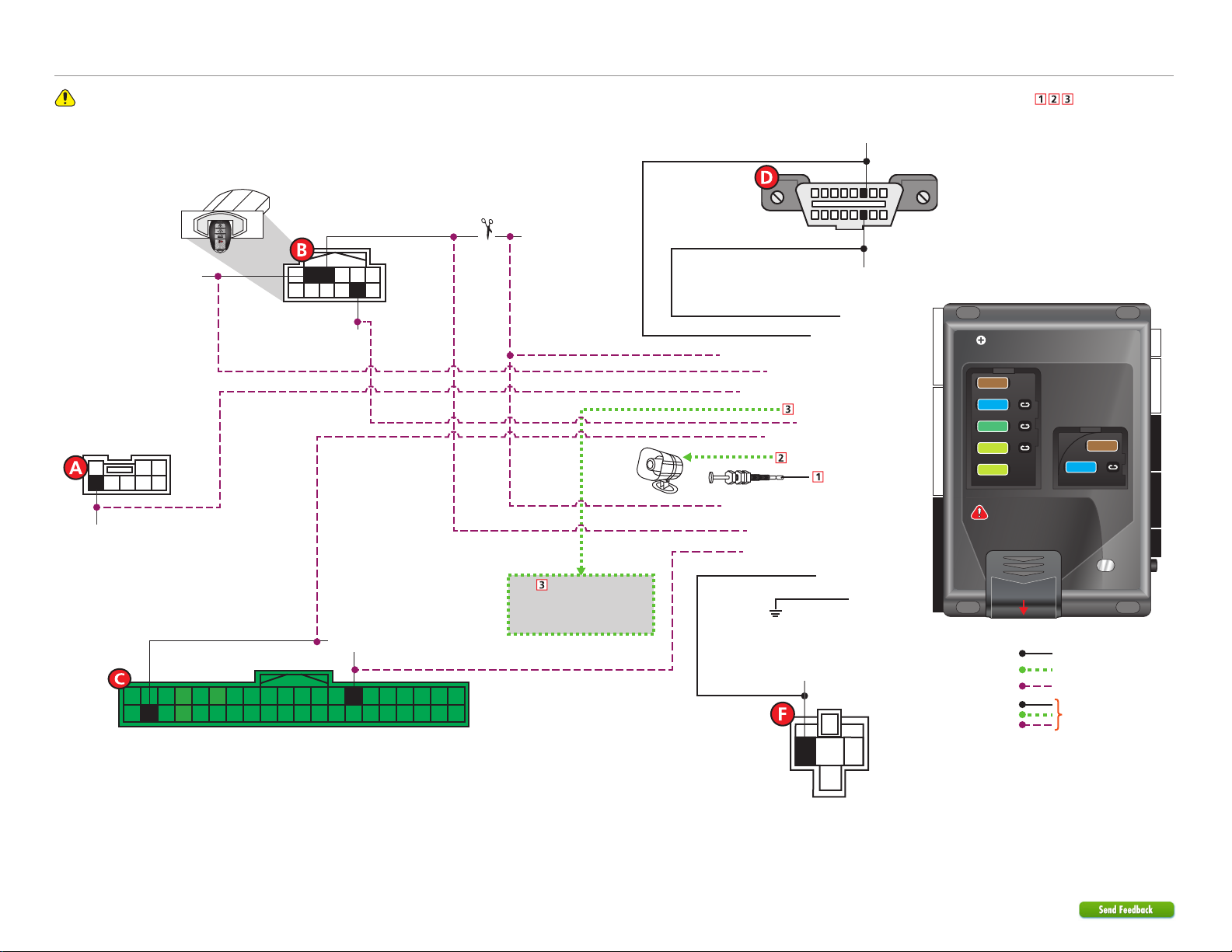

Wiring diagram with automatic transmission

(-) GWA Output: Blue/White: 2

Refer to the

Optional starter disable

connection section for relay

and connection details.

Security Only

Mandatory Connections

Remote Start Only

Legend:

Remote Start + Security

22 812

4 2442

Slide to open

A module can also be used for

this installation.

IMPORTANT:

Position the

fuses correctly!

MAIN (5A) (+)

(-) RLY3 PK LIGHT (15A) (+)

(-) ACC & START (30A) (+)

(-) FLEX RLY (20A) (+)

IGN (20A) (+)

MAIN (5A) (+)

(-) RLY3/PK LIGHT(15A) (+)

HS CAN Low: Pink, pin 14

HS CAN High: Blue, pin 6

(-) Push-to-Start: Brown, pin 4

Data: Orange, pin 3

(-) Driver Door Trigger: Lt.Blue, pin 39

BCM conn.

(Black connector behind instrument cluster)

(+)12V: White or

White/Black, pin 1

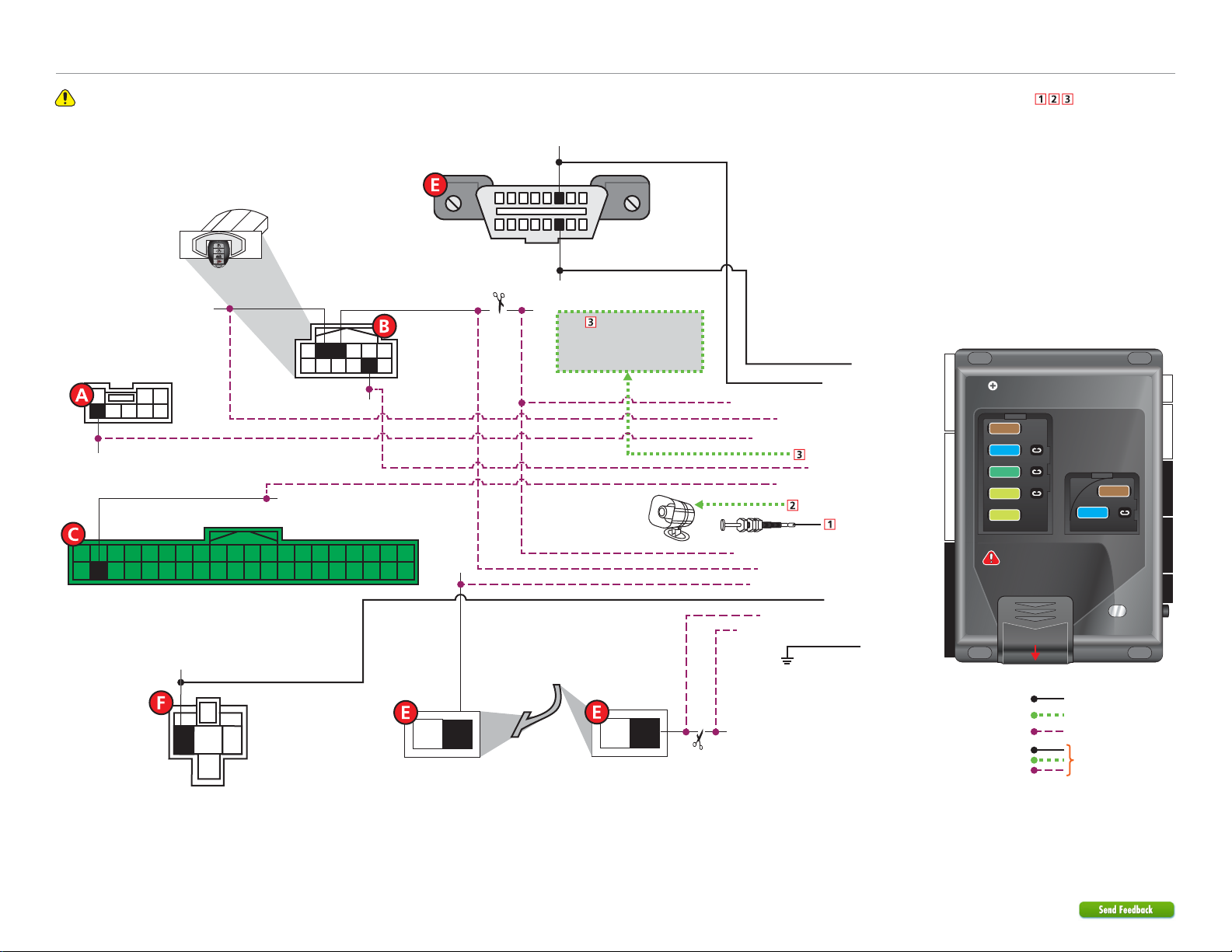

9933.NISS3HT 3.15.195.3 2010 Nissan Murano (Smart Key)

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

CUT

Diagnostic

Connector OBDII

CUT

Clock, Data & Keysense

at Key Port Connector

Refer to the Vehicle connections

“Connectors: PTS, Key Port”

45 6 7 8

Push-to-Start

(Brown conn. at

Push-to-Start conn.)

12 3 5 6

117 8 9 10 12

20 19 18 17

15 14 13 12 11 10 9 8 7 6 5 4 3 2

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

Clutch

pedal

Clutch Pedal 2

HS CAN Low: Tan: 1

HS CAN High: Tan/Black: 2

Immo. Clock Output: Yellow/Black: 8

Immo. Data Output (veh. side): Orange/Black: 7

(-) Push-To-Start Output: Lt. Green/Black: 1

(+) Keysense Output: White: 7

(-) RAP Off Output: Lt. Blue/Black: 10

Hood Pin

(-) Hood Input: Gray: 21

Siren

(+) Siren Output: Brown/Red: 11

Immo. Data Interrupt (veh. side): Blue/White: 1

Immo. Data Interrupt (conn. side): Blue: 3

(+) Clutch Activation Output: White: 5 & 11

(+) 12V Input: Red: 6 & 12

Clutch Interrupt (conn. side): Lt. Green: 8

Clutch Interrupt (veh. side): Lt. Green/White: 9

Ground: Black: 10

BCM conn.

(Green connector behind instrument cluster)

Note: insert pin if wire is not present

Wiring diagram with manual transmission

Clutch Interrupt:

Pin 2

(-) GWA Output: Blue/White: 2

Refer to the

Optional starter disable

connection section for relay

and connection details.

Security Only

Mandatory Connections

Remote Start Only

Legend:

Remote Start + Security

22 812

4 2442

Slide to open

A module can also be used for

this installation.

IMPORTANT:

Position the

fuses correctly!

MAIN (5A) (+)

(-) RLY3 PK LIGHT (15A) (+)

(-) ACC & START (30A) (+)

(-) FLEX RLY (20A) (+)

IGN (20A) (+)

MAIN (5A) (+)

(-) RLY3/PK LIGHT(15A) (+)

HS CAN Low: Pink, pin 14

HS CAN High: Blue, pin 6

(-) Push-to-Start: Brown, pin 4

Data: Orange, pin 3

(+) Keysense:

Yellow, pin 11

(-) Driver Door Trigger: Lt.Blue, pin 39

Clock: Lt. Blue or

Green/Orange, pin 2

BCM conn.

(Black connector behind instrument cluster)

Clutch Pedal 1

(+) Clutch

Output: Pin 2

(+)12V: White or

White/Black, pin 1

10 933.NISS3HT 3.15.195.3 2010 Nissan Murano (Smart Key)

Locating components in the vehicle

Optional starter disable connection

22 812

4 2442

Refer to the

Vehicle connections

section for wire

and connector

details.

(-) Ground When Armed (GWA) Output: Blue/White: 2

(+) Ignition

Security Only

Mandatory Connections

Remote Start Only

Legend:

Remote Start + Security

1A Diode [1N4002+]

Starter (connector side)

Starter (vehicle side)

Cut

86 85

87a

When using an external relay, use a 1N4002 diode or larger.

Important: When flashing your module for Security Only, the Ground When Armed (GWA)

function is pre-configured. When flashing your module for Remote Start & Security, you must

manually assign the designated output to Anti Grind (AG) Starter Kill.

(Applicable to CORE 194+.)

Table des matières

Autres manuels Directed Accessoires automobiles

Directed

Directed DS4+ Manuel utilisateur

Directed

Directed XPRESSKIT solex DLCH-CHDL6+ Manuel utilisateur

Directed

Directed Directechs DB3 Manuel utilisateur

Directed

Directed XpressKit DBALL Manuel utilisateur

Directed

Directed DBALL Manuel utilisateur

Directed

Directed Directechs DB3 Manuel utilisateur

Directed

Directed Directechs DB3 Manuel utilisateur

Directed

Directed DB3 403.KIA8 Manuel utilisateur

Directed

Directed XpressKit DBALL Manuel utilisateur

Directed

Directed DIRECTECHS CHRYSLER3 Manuel utilisateur

Directed

Directed DS3+ Manuel utilisateur

Directed

Directed Directechs DB3 Manuel utilisateur

Directed

Directed DS3+ Manuel utilisateur

Directed

Directed 403.NISS4HT 2.39 RSR Manuel utilisateur

Directed

Directed Directechs VW08 Manuel utilisateur

Directed

Directed Xpresskit DBALL2 Manuel utilisateur

Directed

Directed GM11 Manuel utilisateur

Directed

Directed Directechs DB3 Manuel utilisateur

Directed

Directed VOXX DEI 933.VW14 v2.11.198.12 Manuel utilisateur

Directed

Directed MIT4 Manuel d'utilisation et d'entretien

Directed

Directed Directechs DB3 Manuel utilisateur

Directed

Directed Xpresskit DBALL-NISS08EU Manuel utilisateur

Directed

Directed Directechs DS3 Manuel utilisateur

Directed

Directed 933.SUBARU5 Manuel utilisateur

Manuels Accessoires automobiles populaires d'autres marques

James Baroud

James Baroud Odyssey Manuel utilisateur

Motorola

Motorola i50sx Manuel utilisateur

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuel utilisateur

Feniex

Feniex T3 Manuel utilisateur

Renault

Renault 77 11 423 180 Manuel utilisateur

Kia

Kia E8300-4D000 Manuel utilisateur

Brink

Brink 756843 Manuel utilisateur

Whispbar

Whispbar K085W Manuel utilisateur

v.link

v.link CI-VL2-PC-HSD Manuel utilisateur

Viking

Viking Stack-Rack Guide de configuration rapide

Aries

Aries 203015 Manuel utilisateur

Choetech

Choetech AT0005 Manuel utilisateur

ZZ2

ZZ2 ZZAIR-PRO Manuel utilisateur

Holman

Holman 4A80L Manuel utilisateur

Thule

Thule 2075 Manuel utilisateur

Motorola

Motorola T325 Manuel utilisateur

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guide d'installation

DV8

DV8 FBJL-02 Manuel utilisateur
