Directed Electronics READY REMOTE 24927 Guide de démarrage rapide

MMooddeell2244992277

➤

OOwwnneerr’’ss//IInnssttaallllaattiioonnGGuuiiddee

LLiiffeettiimmeeCCoonnssuummeerrWWaarrrraannttyy

For a period of one calendar year from the date of purchase of this auto-security, remote

start or keyless entry device, as applicable (hereinafter "Unit"), Directed Electronics

("Directed") promises to the ORIGINAL PURCHASER to repair or replace (at

Directed's election) with a comparable, reconditioned Directed DIY Unit (excluding

without limitation, the siren, remote transmitters and associated sensors and accessories)

which proves to be defective in workmanship or material under reasonable use PROVID-

ED the following conditions are met: (i) the Unit was purchased from an authorized

Directed dealer, (ii) the Unit is returned (shipping prepaid) to Directed's warranty depart-

ment at: Directed Electronics, Attn: Warranty, One Viper Way, Vista, CA 92081, along

with a cashier's check or money order made payable to Directed Electronics in the amount

of $20 for postage and handling, and (iii) a bill of sale or other dated proof of purchase

bearing the following information is included: Date of purchase, name and location of

merchant who sold the Unit and product description. This warranty does not cover labor

costs for the removal or reinstallation of the Unit. This warranty is non-transferable and

does not apply to any Unit that has been modified or used in a manner contrary to its

intended purpose, and this warranty does not cover damage to any Unit caused by instal-

lation or removal of the Unit. This warranty is void if the Unit has been damaged by acci-

dent or unreasonable use, negligence, Acts of God, improper service or other causes not

arising out of defects in materials or workmanship. If this Unit is an auto-security device,

then the Unit may be a deterrent against possible theft, however Directed makes no war-

ranty against vandalism, damage or theft of a vehicle or its parts or contents and Directed

expressly disclaims any liability whatsoever, including without limitation, liability for

theft, damage and/or vandalism. ALL UNITS RECEIVED BY DIRECTED FOR WAR-

RANTY REPAIR WITHOUT PROOF OF PURCHASE WILL BE DENIED.

THE FOREGOING WARRANTY IS THE EXCLUSIVE PRODUCT WARRANTY,

OTHERWISE, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO

EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY OF MER-

CHANTABILITY FOR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESS-

LY EXCLUDED AND DISCLAIMED TO THE MAXIMUM EXTENT ALLOWED

BY LAW, AND DIRECTED NEITHER ASSUMES NOR AUTHORIZES ANY PER-

SON TO ASSUME FOR IT ANY LIABILITY IN CONNECTION WITH THE SALE

OF THE PRODUCT. DIRECTED HAS ABSOLUTELY NO LIABILITY FOR ANY

AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-

ERS OR INSTALLERS. SOME STATES DO NOT ALLOW LIMITATIONS ON

HOW LONG AN IMPLIED WARRANTY WILL LAST OR THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE

LIMITATIONS HEREIN MAY NOT APPLY TO YOU.

Consumer's remedy is limited to repair or replacement of the Unit, and in no event shall

Directed's liability exceed the purchase price of the Unit. IN ANY EVENT, DIRECT-

ED SHALL NOT BE LIABLE FOR ANY DAMAGES, INCLUDING, BUT NOT

LIMITED TO, ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE

OR CONSEQUENTIAL DAMAGES, LOST PROFITS, DAMAGE TO VEHICLE,

LOST SAVINGS, OR, TO THE EXTENT ALLOWED BY APPLICABLE LAW, DAM-

AGES RESULTING IN DEATH OR INJURY ARISING OUT OF OR IN CON-

NECTION WITH THE INSTALLATION, USE, IMPROPER USE, OR INABILITY

TO USE THE PRODUCT, EVEN IF THE PARTY HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES. The consumer consents and agrees that all dis-

putes between the consumer and Directed shall be resolved in accordance with California

laws in San Diego County, California. This warranty is only valid for the sale of prod-

uct(s) within the United States of America. Product(s) sold outside of the United States

of America are sold "AS-IS" and shall have NO WARRANTY, express or implied.

IIMMPPOORRTTAANNTTNNOOTTEE::

This product warranty is automatically void if its date code or serial number is defaced,

missing, or altered. This warranty will not be valid unless you have completed the war-

ranty card and mailed it to Directed within 10 days after purchase to the address listed on

the warranty registration card.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

➤Date of purchase

➤Authorized dealer's company name and address

➤Item number

920-0005-2007-08

TTaabblleeooffCCoonntteennttss

LLiiffeettiimmeeCCoonnssuummeerrWWaarrrraannttyy......................................................................................33

IInnssttaallllGGuuiiddee..........................................................................

......................................77

What Is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

FCC/Id Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Warning! Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

WWiirriinnggQQuuiicckkRReeffeerreenncceeGGuuiiddee............................

......................................................1111

H1 Harness - 6 pin connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

H2 Harness - 8 pin connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

H3 harness - 3 pin connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Relay Heavy Gauge Wires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Step 1, Heavy Gauge Wire Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Step 2, H1, Main Harness Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Step 3, H3 Door Lock Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Step 4, H2 Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Step 5, Mounting the Receiver/Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Step 6, Immobilizer Bypass Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Step 7, Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

System Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Remote Start Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Testing the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

OOwwnneerr’’ssGGuuiiddee............................

..............................................................................7755

Transmitter Button Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Remote Start Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Alarm and Security Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Convenience Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Glossary of Terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

NNootteess............

..............................................................................................................9911

QQuuiicckkRReeffeerreenncceeGGuuiiddee::.................................................................

.............................9933

Install Guide

What Is Included

Control Module

6-Pin Main H1 Harness

8-Pin H2 Secondary Harness

Heavy Gauge Wires

Antenna and Cable

Two 5-button Remotes

Crash Code Card

3-pin Keyless Entry Harness

Combination Momentary Switch and LED

Hood Pin Switch

Hardware Kit

DVD—Do-It-Yourself Installation Video

Additional parts may be required (such as relays or a bypass

module).

Installation Tools

Digital Multi-Meter

Drill

1/4Drill Bit (for hood pin switch)

Screwdrivers (Phillips and Flathead)

Wire Stripper

Solder Iron

Electrical Tape

Pliers

Crimping Tool

Safety Glasses

Note: The installation tools listed above may be

optional. The required tools will vary depending on

your vehicle.

Important Information

Congratulations on the purchase of your remote start keyless entry

system. This system will allow convenient access to your vehicle

with the push of a button, as well as remote start and other

optional features. Properly installed, this system will provide years

of trouble-free operation.

Please take the time to carefully read this User’s Guide in its

entirety and watch the READY REMOTE Do-It-Yourself

Installation Video (DVD) prior to installing your system.

You can print additional or replacement copies of this manual

by accessing the Directed web site at www.readyremote.com.

Guide Translations

If you want a Spanish or French version of the Installation/Owners

Guide, please download it from www.readyremote.com and click on

On-Line Tech Support.

Estimado Cliente:

Si buscas los guías de instalación/del usario, por favor de bajar lo

del Soporte Técnico en-línea en el sitio www.readyremote.com

Cher consommateur:

Si vous désirez une version française ou espagnole du guide d'util-

isateur ou d'installation, veuillez s.v.p. le télécharger à l'adresse

suivante: www.readyremote.com en appuyant sur l'icône <<On-line

Tech Support>>.

Important! If you are not comfortable working with

electronics or unfamiliar with the tools required,

please contact your local dealer for advice or ask to

have the remote start professionally installed to avoid

costly damages. Failure to properly install the remote

starter may result in property damage, personal injury,

or both.

System Maintenance

The system requires no specific maintenance. Your transmitter

is powered by a miniature 12-volt battery (type 23A) that will

last approximately one year under normal use. When the

battery begins to weaken, the operating range will be

reduced.

FCC/Id Notice

This device complies with Part 15 of FCC rules. Operation is

subject to the following conditions: (1) This device may not

cause harmful interference, and (2) This device must accept

any interference received, including interference that may

cause undesirable operation.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate this device.

Warning! Safety First

The following safety warnings must be observed at all times:

When properly installed, this system can start the vehicle

via a command signal from the remote control trans-

mitter. Therefore, never operate the system in an area

that does not have adequate ventilation. The following

precautions are the sole responsibility of the user;

however, the following recommendations should be made

to all users of this system:

1. Never operate the system in an enclosed or partially

enclosed area without ventilation (such as a garage).

➜

2. When parking in an enclosed or partially enclosed

area or when having the vehicle serviced, the remote

start system must be disabled by placing the system

into Valet Mode.

3. It is the user's sole responsibility to properly handle

and keep out of reach from children all remote control

units to assure that the system does not uninten-

tionally remote start the vehicle.

4. The user must install a carbon monoxide detector in

or about the living area adjacent to the vehicle. All

doors leading from adjacent living areas to the

enclosed or partially enclosed vehicle storage area

must remain closed at all time.

Use of this product in a manner contrary to its intended mode of

operation may result in property damage, personal injury, or death.

Except when performing the Safety Check outlined in this user’s

guide, (1) Never remotely start the vehicle with the vehicle in gear,

and (2) Never remotely start the vehicle with the keys in the igni-

tion.

After the remote start module has been installed, test the remote

start module in accordance with the Safety Check outlined in this

installation guide. If the vehicle starts when performing the

Neutral Safety Shutdown Circuit test, the remote start unit has not

been properly installed. The remote start module must be removed

or properly reinstalled so that the vehicle does not start in gear.

OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS

IN GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION.

OPERATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS

MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. IMMEDI-

ATELY CEASE THE USE OF THE UNIT AND REPAIR OR DISCONNECT THE

INSTALLED REMOTE START MODULE. DIRECTED WILL NOT BE HELD

RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION

COSTS.

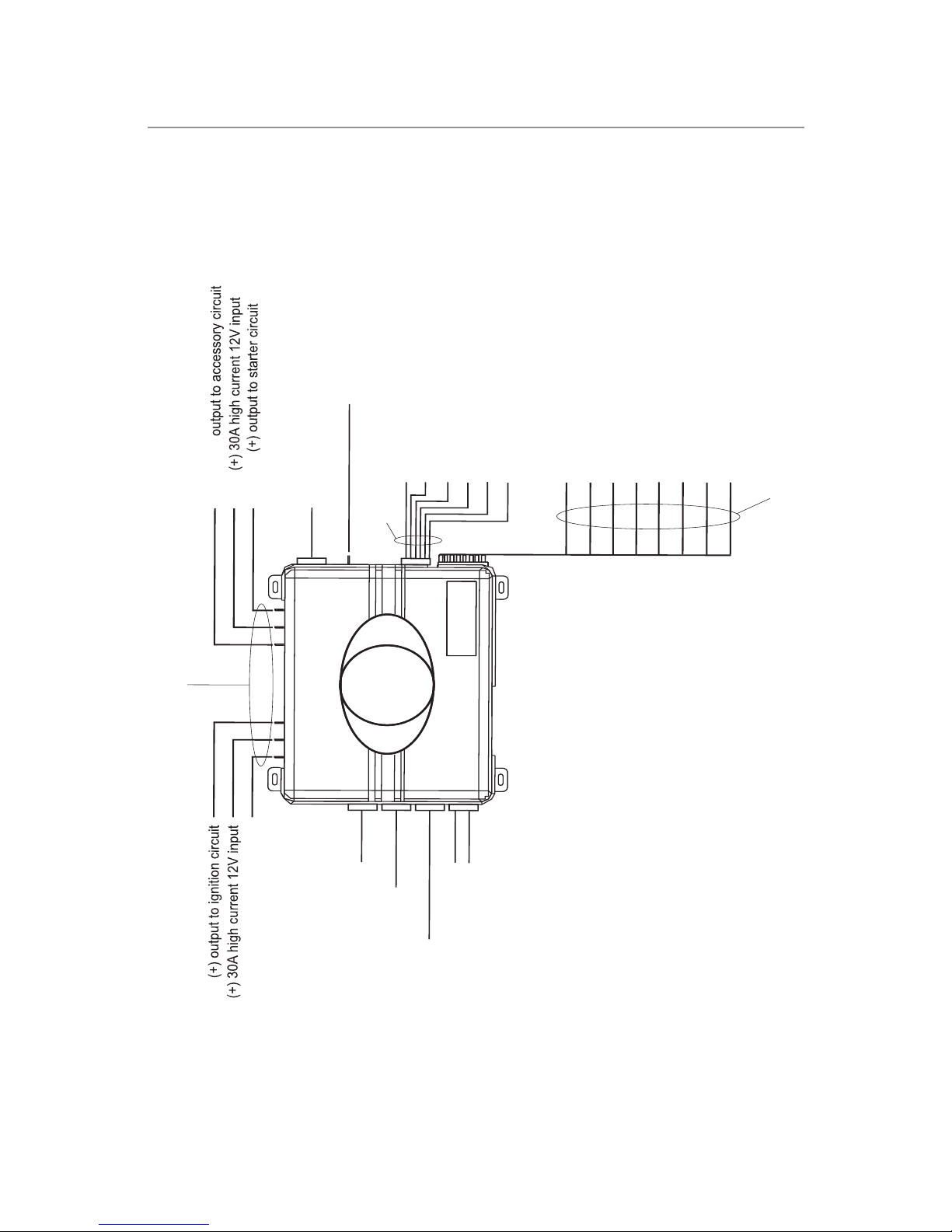

Wiring Quick Reference Guide

Heavy Gauge

Wires

BLUE WHITE (+)

YELLOW

PINK

GREEN (+) output to ign/acc2 circuit

YELLOW/RED (-) lock or (+) unlock output

WHITE/RED (-) unlock or (+) lock output

MOMENTARY SWITCH PORT

ANTENNA CABLE PORT

SENSOR PORT

Fused light

flash jumper Black (-)

Heavy gauge

ground wire

YELLOW (+/-) parking light output

BROWN/WHITE (-) factory alarm disarm output

VIOLET (-) negative hood pin shutdown output

ORANGE (+) brake input

WHITE/BLACK (-) 400mA status output

RED/WHITE (-) remote start activation

GREEN Tachometer input

BLUE (-) 400mA horn/siren output

RED/BLACK (-) wait-to-start input

YELLOW/GREEN (+) ignition output

GREEN/WHITE (-) 400mA trunk release output

BROWN (-) 400mA RAP, Dome light, Starter kill output

YELLOW/BROWN (-) 400mA Headlight output

GRAY/BLACK (-) Door trigger input

Table des matières

Autres manuels Directed Electronics Démarreur à distance

Directed Electronics

Directed Electronics 3000 Manuel utilisateur

Directed Electronics

Directed Electronics Ready Remote Guide de démarrage rapide

Directed Electronics

Directed Electronics SmartStart 5000-series Manuel utilisateur

Directed Electronics

Directed Electronics Viper Manuel utilisateur

Directed Electronics

Directed Electronics AutoCommand 41026 Guide de démarrage rapide

Directed Electronics

Directed Electronics ProSecurity RK20 Manuel utilisateur

Directed Electronics

Directed Electronics DB3 Manuel utilisateur

Directed Electronics

Directed Electronics Smart start Manuel utilisateur

Directed Electronics

Directed Electronics READY REMOTE 24926 Guide de démarrage rapide

Directed Electronics

Directed Electronics ProStart CT-5472TW Manuel utilisateur

Directed Electronics

Directed Electronics AutoCommand 25523T Manuel utilisateur

Directed Electronics

Directed Electronics 410 Manuel utilisateur

Directed Electronics

Directed Electronics 4103 Series Manuel utilisateur

Directed Electronics

Directed Electronics READY REMOTE 24923 Manuel utilisateur

Directed Electronics

Directed Electronics ONE-WAY FM AUTOMATIC/MANUAL TRANSMISSION Manuel utilisateur

Directed Electronics

Directed Electronics AutoCommand 25522 Manuel utilisateur

Directed Electronics

Directed Electronics PS-4461TWE-FM Manuel utilisateur

Directed Electronics

Directed Electronics Valet 561R Manuel utilisateur

Directed Electronics

Directed Electronics Python 1401 Manuel utilisateur

Directed Electronics

Directed Electronics AutoCommand 28624TN Guide de démarrage rapide

Directed Electronics

Directed Electronics Cyber 110XV Manuel utilisateur

Directed Electronics

Directed Electronics AutoCommand 40026 Manuel utilisateur

Directed Electronics

Directed Electronics Valet 712T Manuel utilisateur

Directed Electronics

Directed Electronics Python 580 Manuel utilisateur

Manuels Démarreur à distance populaires d'autres marques

AstroStart

AstroStart 803U Manuel utilisateur

Durite

Durite 0-649-20 Manuel

EINHELL

EINHELL BT-PS 1000 Manuel

Linear

Linear ACCESS AK-21 Caractéristiques techniques

Soundstream

Soundstream TARANTULA RS.2 Manuel utilisateur

Jaycar Electronics

Jaycar Electronics MB3752 Manuel utilisateur

Ultra Start

Ultra Start 72 Series Manuel utilisateur

ADS

ADS FLASHLOGIC FLRSVW1 Manuel utilisateur

Selecta

Selecta JS012 Manuel utilisateur

Black Widow Security

Black Widow Security BW RAS 400 Manuel utilisateur

Vector

Vector Power City DK080706 Supplément

Code Alarm

Code Alarm CA-535 Manuel utilisateur

Ozito

Ozito OJS-800 Manuel utilisateur

Profi-Partner

Profi-Partner 46387 Manuel utilisateur

EZ STARTER

EZ STARTER EZ-45 Manuel utilisateur

Viper

Viper 4204 Manuel utilisateur

Essex Electronics

Essex Electronics KE-1701 Manuel utilisateur

EINHELL

EINHELL EGS 3600 Manuel
