Directed Electronics TOY-SC1 Manuel utilisateur

TOY-SC1

Toyota/Lexus/Scion

SIRIUS Interface

Installation Guide

FCC NOTICE:

This device complies with Part 15 of FCC rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation. Changes or modiﬁcations not expressly approved by the party responsible for compliance could

void the user’s authority to operate this device.

Directed Electronics is not responsible for any radio or TV interference caused by unauthorized modiﬁca-

tions to this equipment. Such modiﬁcations could void the User’s authority to operate the equipment.

Desktop Docking Station

Toyota/Lexus/Scion SIRIUS Interface

Table of Contents

FCC Notice 2

Warning and Safety information 4

Congratulations and Package Contents 6

Compatibility and Features 7

Installation 10

Connections 11

Mounting Instructions 13

Activating Your Installed SIRIUS Tuner 14

Operating the system 15

Examples of factory units 16

Troubleshooting Guide 18

Warranty 19

Copyrights & Trademarks

“SIRIUS”, "SiriusConnect", the SIRIUS dog logo, channel names and logos are

Warning and Safety Information

Satmode,

bank selector

AUDIO

PWR

REWFF

PLAY /PROG NR

3456

DISC- DISC+

11:53

XM1-1 CH-001

VOL

SCAN SOUND

AM/FM

CD/AUX

SAT

RADIO

SEEK

SKIP

RPT

DISP -

MODE

A.SEL

RDM

TUNE

AUTO

OFF

DUAL

A/C MODE

Channel control

Category

Control

Te xt selector.

Hold for 10secto toggle

channelor category

tune modes.

Toggles

Scan mode

Bank and

present

indicator

Channel

and text

indicator

Preset 1-6.

Hold until beepto

savetoapreset.

CATEGORY

Tune mode

indicator

MODE

DUAL

OFF

AUTO

MAP/

GUIDE MENU SETUP

INFO ZOOM CANCEL AUDIO

AUTO

MODE

A/C

LOAD

DISC

TAPE AM/FM DISP

MODE

SCAN RPT A.SEL/RDM-SEEK +

1234

DISC- DISC+

VOL

PWR

PUSH

TUNE

SOUND

PUSH

XM1-1

VOL

CHANNEL

CATEGORY

NAME

TITLE

MODE SCAN SOUND

001-HITS1

POP

MUSICNAME

MUSIC TITLE

Channel control

Category

Control

001 014 018

040 065 115

Toggles between

channel and

category modes

Bank and

present

indicator

Upper display

text mode

selector

Sat mode

and bank

selector

Preset 1-6.

Press until

beepto save

to a preset.

Channeland text

Indicator fields

Toggles

Scan mode

Tune mode

indicator

ANTENNA

SC OUTPUT

Sirius-Ready, SAT Radio Ready or select OEM headunits with optional Honda Bus Compatible Translator

Headunit bus cableSiriusConnect Cable

HON-SC1

Honda Bus

Compatible

Translator

Warning

Please read these instructions carefully before proceeding. Failure to heed them can result in serious injury or death. DO

NOT OPERATE EQUIPMENT UNDER ANY CIRCUMSTANCES THAT IMPAIRS YOUR ABILITY TO DRIVE OR OPERATE YOUR

VEHICLE SAFELY.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop

the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

• DO NOT OPEN, DISASSEMBLE OR ALTER THE UNIT IN ANY WAY. Doing so may result in re, electric shock or

product damage.

• DO NOT INSERT ANY OBJECTS INTO THE UNIT. Doing so may result in re, electric shock or product damage.

• USE THE CORRECT CURRENT (AMPERAGE) RATING WHEN REPLACING FUSE. Failure to do so may result in re,

electric shock or product damage.

• MAKE THE CORRECT CONNECTIONS. Failure to make proper connections may result in re or product damage.

• DO NOT SPLICE INTO ELECTRICAL CABLES. Never cut away cable insulation to supply power to other equipment.

Doing so will exceed the current carrying capacity of the wire and result in ﬁre or electric shock.

• DO NOT INSTALL IN LOCATIONS THAT MIGHT HINDER VEHICLE OPERATION. Doing so may obstruct vision or

hamper movement which can result in a serious accident. If you are attaching the unit directly to the vehicle’s

chassis, be sure that you check to make sure the area behind the unit is clear from moving parts, fuel or break

lines, wire harnesses or any other items which may get damaged by drilling a mounting hole or using the supplied

screws.

• DO NOT EXPOSE THE UNIT TO HIGH LEVELS OF HUMIDITY, MOISTURE OR DUST. Doing so can result in electric

shock or product failure.

Desktop Docking Station

Toyota/Lexus/Scion SIRIUS Interface

Warning and Safety Information

Satmode,

bank selector

AUDIO

PWR

REWFF

PLAY /PROG NR

3456

DISC- DISC+

11:53

XM1-1 CH-001

VOL

SCAN SOUND

AM/FM

CD/AUX

SAT

RADIO

SEEK

SKIP

RPT

DISP -

MODE

A.SEL

RDM

TUNE

AUTO

OFF

DUAL

A/C MODE

Channel control

Category

Control

Te xt selector.

Hold for 10secto toggle

channelor category

tune modes.

Toggles

Scan mode

Bank and

present

indicator

Channel

and text

indicator

Preset 1-6.

Hold until beepto

savetoapreset.

CATEGORY

Tune mode

indicator

MODE

DUAL

OFF

AUTO

MAP/

GUIDE MENU SETUP

INFO ZOOM CANCEL AUDIO

AUTO

MODE

A/C

LOAD

DISC

TAPE AM/FM DISP

MODE

SCAN RPT A.SEL/RDM-SEEK +

1234

DISC- DISC+

VOL

PWR

PUSH

TUNE

SOUND

PUSH

XM1-1

VOL

CHANNEL

CATEGORY

NAME

TITLE

MODE SCAN SOUND

001-HITS1

POP

MUSICNAME

MUSIC TITLE

Channel control

Category

Control

001 014 018

040 065 115

Toggles between

channel and

category modes

Bank and

present

indicator

Upper display

text mode

selector

Sat mode

and bank

selector

Preset 1-6.

Press until

beepto save

to a preset.

Channeland text

Indicator fields

Toggles

Scan mode

Tune mode

indicator

ANTENNA

SC OUTPUT

Sirius-Ready, SAT Radio Ready or select OEM headunits with optional Honda Bus Compatible Translator

Headunit bus cableSiriusConnect Cable

HON-SC1

Honda Bus

Compatible

Translator

Caution

Please read these instructions carefully before proceeding. Failure to follow these safety instructions and warnings may

result in a serious accident and/or personal injury.

• HALT USE IMMEDIATELY IF A PROBLEM ARISES. Failure to do so may cause personal injury or damage to the

product. Return the unit to your authorized retailer or nearest service center for repairing..

• ENSURE THE WIRING UPON INSTALLATION IS NOT CRIMPED OR PINCHED BY SCREWS OR SHARP METAL

EDGES. Route the cables away from moving parts or sharp pointed edges. This will prevent crimping and damage

to the wiring. If the wiring must pass through a metal hole, be sure to use a rubber grommet to prevent the wire’s

insulation from being cut by the metal edge of the hole.

• USE ONLY THE SPECIFIED PARTS AND INSTALL THE PRODUCT SECURELY. Be sure to use only the specied ac-

cessory parts. Use of non-speciﬁed parts may damage this unit internally or may not securely install the unit in

place. This may cause parts to become loose, resulting in hazards or product failure.

• USE CAUTION IF or WHEN DISCONNECTING THE BATTERY TERMINAL. Please consult the vehicle’s owner’s

manual or a service technician prior to removing the battery positive or ground connection, as it may cause dam-

age to the vehicle’s electrical system or require reprogramming of the vehicle’s computer-controlled devices.

Congratulations

Congratulations on the Purchase of your new TOY-SC1 SiriusConnect Interface! Your TOY-SC1 is designed to be com-

patible with select vehicles that support Satellite Radio operation (requires additional purchase of & connection to a

SiriusConnect tuner or dock). Your interface is designed to replace the factory satellite tuner in your Toyota, Lexus or

Scion vehicle. It is also compatible with systems that do not have the factory satellite tuner installed. For the latest infor-

mation about this and other SIRIUS products and accessories, visit http://www.directedsirius.com.

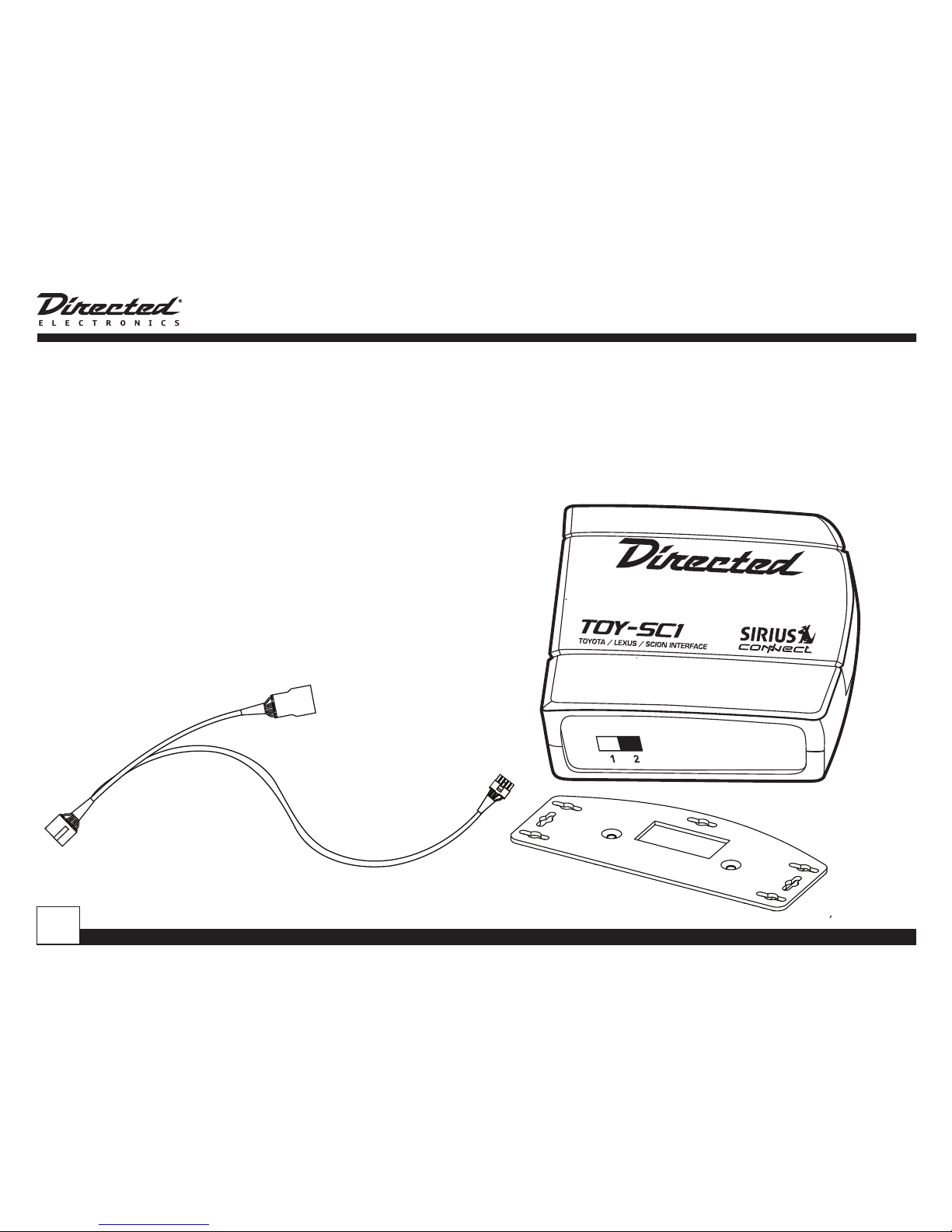

Package Contents

1 TOY-SC1 interface module

1 Toyota/Lexus/Scion interface cable

1 Mounting bracket w/screws

This guide

Satmode,

bank selector

AUDIO

PWR

REWFF

PLAY/PROG NR

3456

DISC- DISC+

11:53

XM1-1 CH-001

VOL

SCAN SOUND

AM/FM

CD/AUX

SAT

RADIO

SEEK

SKIP

RPT

DISP -

MODE

A.SEL

RDM

TUNE

AUTO

OFF

DUAL

A/C MODE

Channel control

Category

Control

Text selector.

Hold for 10secto toggle

channelor category

tune modes.

Toggles

Scan mode

Bank and

present

indicator

Channel

and text

indicator

Preset 1-6.

Hold until beepto

savetoapreset.

CATEGORY

Tune mode

indicator

MODE

DUAL

OFF

AUTO

MAP/

GUIDE MENU SETUP

INFO ZOOM CANCEL AUDIO

AUTO

MODE

A/C

LOAD

DISC

TAPE AM/FM DISP

MODE

SCAN RPT A.SEL/RDM-SEEK +

1234 56

DISC- DISC+

VOL

PWR

PUSH

TUNE

SOUND

PUSH

XM1-1

VOL

CHANNEL

CATEGORY

NAME

TITLE

MODE SCAN SOUND

001-HITS1

POP

MUSICNAME

MUSIC TITLE

Channel control

Category

Control

001 014 018

040 065 115

Toggles between

channel and

category modes

Bank and

present

indicator

Upper display

text mode

selector

Sat mode

and bank

selector

Preset 1-6.

Press until

beepto save

to a preset.

Channeland text

Indicator fields

Toggles

Scan mode

Tune mode

indicator

ANTENNA

SC OUTPUT

Sirius-Ready, SAT Radio Ready or select OEM headunits with optional Honda Bus Compatible Translator

Headunit bus cableSiriusConnect Cable

HON-SC1

Honda Bus

Compatible

Translator

Desktop Docking Station

Toyota/Lexus/Scion SIRIUS Interface

Compatibility

The TOY-SC1 is designed to be compatible with select

Toyota/Lexus vehicles. Please consult table for compat-

ibility listing.

Compatible Headunit Types:

• CD only Headunits*

• CD + Cassette Headunits*

• 6-CD changer Headunits*

• Touch Screen Monitor Headunits

• Non-Touch Screen Monitor Headunits

*Note that the units must have a “SAT” button to access

SIRIUS audio modes.

In addition, the TOY-SC1 is compatible with most additional

factory audio accessories that might be included, such as:

• Rear Seat Audio Control Center

• Rear Seat Entertainment (DVD/Monitor) System

• Heads up display (HUD)

• Steering wheel controls

Note that the TOY-SC1 is not compatible with the factory

satellite radio antenna that might be installed in the ve-

hicle. For best operation you must install a SIRIUS compat-

ible antenna as supplied with the compatible SiriusConnect

tuner or dock.

List of compatible vehicle/radio types:

MAKE MODEL YEAR

Lexus IS 250/350 2006+ 6-Disc MP3

Lexus ES 330 2005+ 6-Disc + Tape

Lexus GS 300/430/450h 2006+ 6-Disc

Lexus LS 430 2004+ 6-Disc + Tape

Lexus LX 470 2005+ w/Navigation

Lexus RX 330/350 2006+ 6-Disc, MP3 + Tape

Toyota 4Runner 2006+ 6-Disc, JBL NAV,

JBL Synth 6-Disc

Toyota Avalon 2005-2007

Toyota Camry 2005+ 6-Disc + Tape, JBL

6-Disc, NAV

Toyota FJ Cruiser 2007+ All

Toyota Land Cruiser 2005+ w/Navigation

Toyota Prius 2005+ All

Toyota Rav-4 2007+ JBL

Toyota Sienna 2007+ JBL, NAV

Toyota Solara 2004+ 6-Disc + Tape

Toyota Tundra 2007+ All

Scion xA 2004+ All

Scion xB 2004+ All

Scion tC 2004+ All

Features

The TOY-SC1 is designed to emulate many of the factory

SDAR (Satellite Digital Audio Radio) commands found in

your vehicle.

• Channel Tune (Up and Down)

• Fast Tune (Up and Down)

• Category Search (Up and Down)

• Category Tune (Tune within a category)

• 12 presets (6 for each band)

• Preset Scan (UP)

Note about features listed: Each Toyota/Lexus/Scion radio

type operates differently, so consult the vehicle owners

manual for proper operation methods.

Headunit Display Capability

When the TOY-SC1 is installed, the following information

can be displayed on the headunit display.

• Channel Number

• Channel Name

• Category Name

• Artist Name

• Song Title Name

Note: Number of characters displayed varies by headunit

type (8 ~16 Characters).

Text Scrolling Conﬁguration

Text Scrolling and/or Paging can be enabled or disabled

during installation of the HON-SC1. Enabling scrolling will

allow radio types with limited displays to show complete

text strings for artist name or song title. Text scrolling

should be disabled for radios with large displays where it

isn't needed. The unit is set for text scrolling enabled at the

factory.

Note: Some Toyota/Lexus headunits will display “XM1” or

“XM2” as the display source. This information is hard coded

in the headunit design and can not be changed.

Dip Switch Settings

Two dip switches located on the side panel are used to con-

ﬁgure the unit for correct display to match your headunit.

Labeled 1and 2for text scroll and display length settings

respectively.

Desktop Docking Station

Toyota/Lexus/Scion SIRIUS Interface

Text display switch conﬁguration:

Scroll Length/Text

Off

16 characters

11 characters

1. Set dip switch 1to Scroll ON/ Scroll OFF as follows:

a) Radios with media or navigation displays: OFF (up

position)

b) For radios with smaller text displays, set switch 1 to

ON (down) if text scrolling is desired.

2. Set dip switch 2to the up position for the 16 character

setting or to the down position for the 11 character posi-

tion in order to match the display of your speciﬁc radio.

Note: The default settings from the factory are scroll "Off"

and "16 characters". In order for text display conﬁguration

switch settings to take effect, you must disconnect power

to the TOY-SC1 module then reconnect and turn ignition on

again.

Installation

Directed Electronics recommends that you have this prod-

uct professionally installed. It is recommended that prior to

starting the installation, you thoroughly read this manual

and follow the guidelines listed below:

Some installations may use the factory satellite radio

tuner location. If you are using this location, please follow

the factory instructions for installing the TOY-SC1 in your

vehicle. If you are not using this location, please read the

following installation guidelines.

Consider the mounting location carefully. You should make

sure that you avoid the following:

• Any location where the unit is exposed to moisture.

• Any location where the unit is exposed to extreme heat.

• Any location that would interfere with moving parts on

the vehicle or hamper driving.

Mounting the TOY-SC1 Interface: Be sure that you ﬁnd a

location that is ﬂat and has clearance above the unit to

prevent any damage as well as allow for ventilation.

Do not install the TOY-SC1 under the carpet or in a small

enclosed area without proper ventilation. Doing so can

result in damage to the tuner or the vehicle.

Use the supplied screws to securely fasten the unit.

Note: Please refer to the SIRIUS SCC1 or SCVDOC1

manuals for additional installation instructions needed to

complete the system

Table des matières

Autres manuels Directed Electronics Accessoires automobiles

Directed Electronics

Directed Electronics Xpresskit SoleX Series Manuel utilisateur

Directed Electronics

Directed Electronics Xpresskit Solex PLJX Manuel utilisateur

Directed Electronics

Directed Electronics XPRESSKIT DLPKCHG1-CHRY2 Manuel utilisateur

Directed Electronics

Directed Electronics DB3 Manuel utilisateur

Directed Electronics

Directed Electronics 1100X/F-FM Manuel utilisateur

Directed Electronics

Directed Electronics Honda/Acura SIRIUS Interface HON-SC1 Manuel utilisateur

Directed Electronics

Directed Electronics PYTHON 872 Manuel utilisateur

Directed Electronics

Directed Electronics VIPER 9252 Manuel utilisateur

Directed Electronics

Directed Electronics Xpresskit DBALL Manuel utilisateur

Directed Electronics

Directed Electronics DB3 Manuel utilisateur

Directed Electronics

Directed Electronics Xpresskit DBALL Manuel utilisateur

Manuels Accessoires automobiles populaires d'autres marques

James Baroud

James Baroud Odyssey Manuel utilisateur

Motorola

Motorola i50sx Manuel utilisateur

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuel utilisateur

Feniex

Feniex T3 Manuel utilisateur

Renault

Renault 77 11 423 180 Manuel utilisateur

Kia

Kia E8300-4D000 Manuel utilisateur

Brink

Brink 756843 Manuel utilisateur

Whispbar

Whispbar K085W Manuel utilisateur

v.link

v.link CI-VL2-PC-HSD Manuel utilisateur

Viking

Viking Stack-Rack Guide de configuration rapide

Aries

Aries 203015 Manuel utilisateur

Choetech

Choetech AT0005 Manuel utilisateur

ZZ2

ZZ2 ZZAIR-PRO Manuel utilisateur

Holman

Holman 4A80L Manuel utilisateur

Thule

Thule 2075 Manuel utilisateur

Motorola

Motorola T325 Manuel utilisateur

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guide d'installation

DV8

DV8 FBJL-02 Manuel utilisateur
