Thank you very much for purchasing our products.

Please read this manual carefully before using the

remote controller.

The design and specifications are subject to change without

prior notice for product improvement. Consult with the sales

agency or manufacturer for details.

REMOTE CONTROLLER ILLUSTRATION

(Function selection)

1

2

4

Handling the remote controller ...................................

Remote controller specification...................................

Features of remote controller buttons .......................

How to set up the funcitons.........................................

CONTENTS

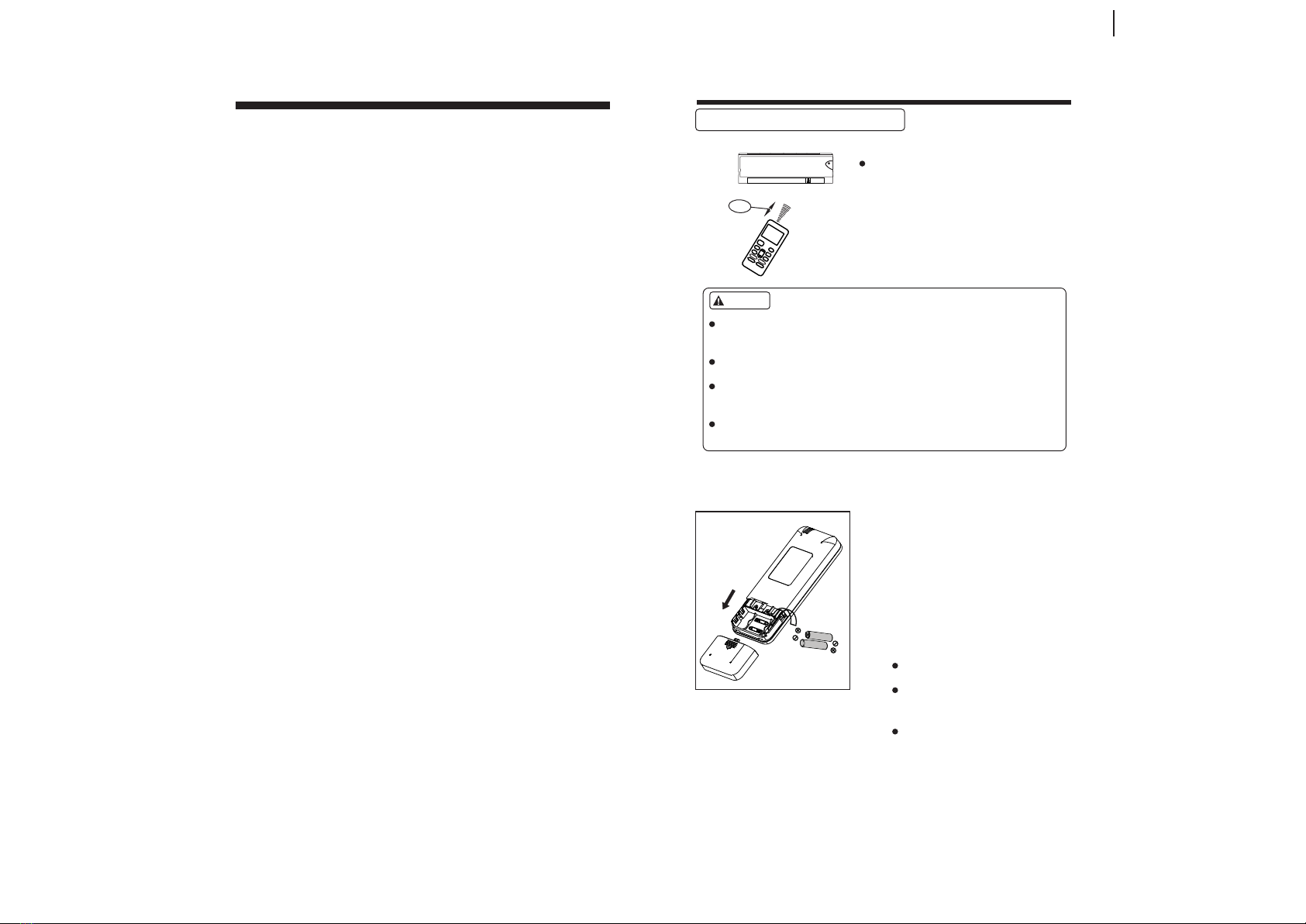

Keep the remote controller where its

signals can reach the receiver of the

indoor unit. (a distance of 8m is allowed).

Location of the remote controller.

8m

CAUTIONS

The air conditioner will not operate if curtains, doors or other

materials block the signals from the remote controller to the indoor

unit.

Prevent any liquid from falling into the remote controller. Do not

expose the remote controller to direct sunlight or heat.

If the infrared signal receiver on the indoor unit is exposed to direct

sunlight, the air conditioner may not function properly. Use curtains

to prevent the sunlight from falling on the receiver.

If other electrical appliances react to the remote controller, either

move these appliances or consult your local dealer.

The remote controller uses two

alkaline dry batteries (R03/LR03X2)

(1) Slide the cover of the battery

compartment off according to the

arrow direction, then replace the

old batteries with new ones.

(2) Insert the new batteries, making

sure that the(+) and (-) of battery

are installed correctly.

(3) Reattach the cover by sliding it

back into position.

NOTE:

Do not mix old and new batteries

or batteries of different types.

Do not leave the batteries in the

remote controller if they are not

going to be used for 2 or 3 months.

Do not dispose batteries as

unsorted municipal waste.

Collection of such waste separately

for special treatment is necessary.

Replacing batteries

Handling the remote controller

1

POWER

OFF

MODIFY

ADJUST

CONFIRM

2

3

Model

Rated Voltage

RG57A3/BGEF

。。

-5 C 60 C

8m

3.0V(Dry batteries R03/LR03×2)

~

Remote Controller Specification

Environment

Signal Receiving Range

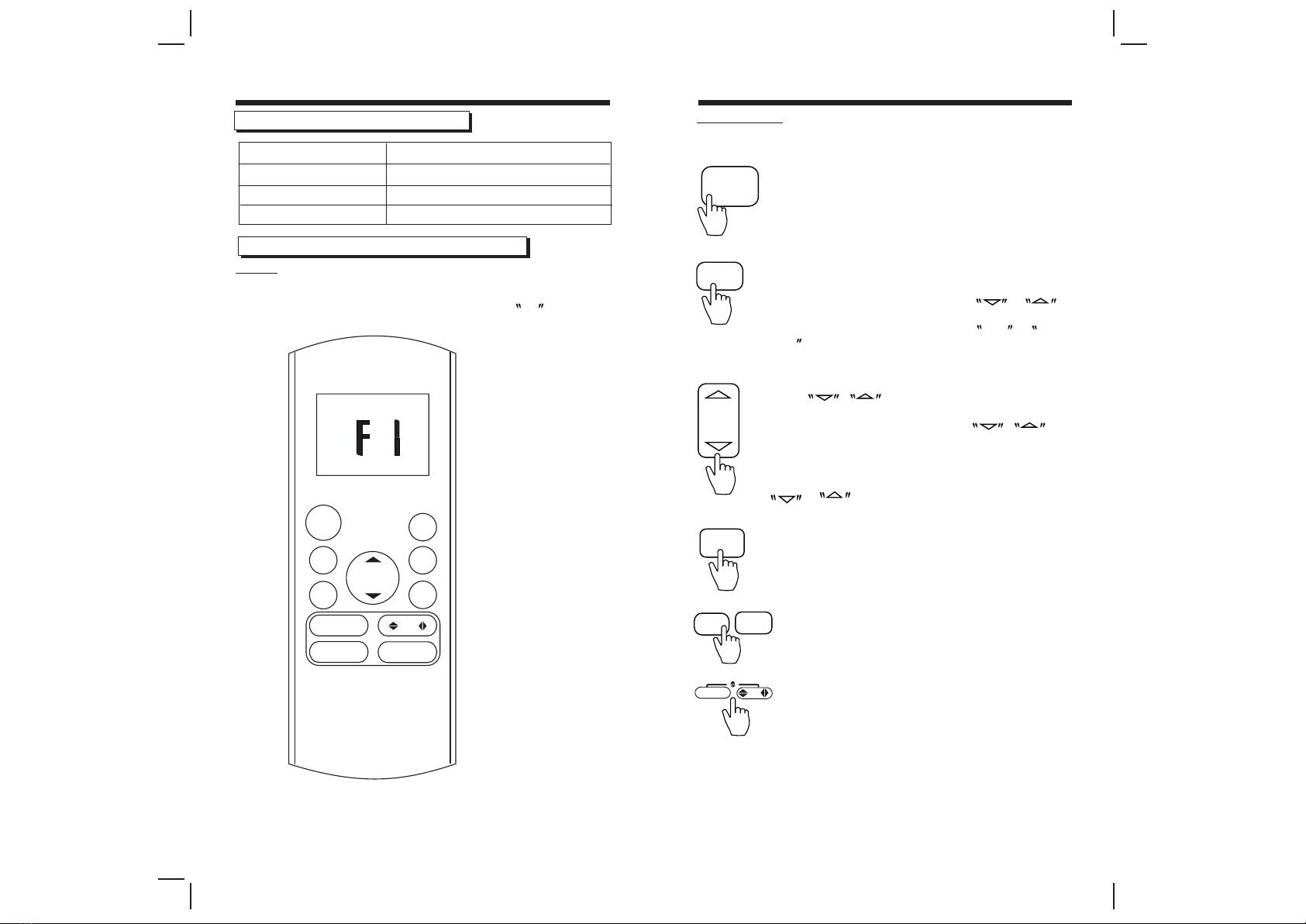

Features of Remote Controller buttons

ON/OFF

MODE

TEMP

TIMER ON

TIMER OFF

POWER OFF button: Press this button to turn off

the unit

TIMER ON button:Press this button to confirm the

setting parameter and transmit the singal to the

machine.

FAN & TIMER OFF button: On parameter setting

interface, pressing FAN & TIMER OFF button to

select parameter to be modified.

TEMP & button: Used to choose

functions or adjust parameters. On parameter

unadjustable interface, press the &

button to select the specified function in a

range of F1 ~ F9 and E1~E9. Then pressing the

MODE button to enter the parameter modifying

interface, the relevant parameter flashes, pressing

& button to adjust the paramter.

MODE button: Used to modify the selected

function. Press this button to enter the parameter

setting interface, and the parameter to be modified

will be kept flashing. Using TEMP &

button to modify the parameter or choosing the

other parameter in conjuction with FAN & TIMER

OFF button.

LOCK button: Hold and press this two buttons for

2 seconds, all current settings of indoor unit are locked

in and the remote controller does not accept any

operation except that of the LOCK.

NOTE: After installing the batteries,

period, please holding down the MODE, FAN and TIME ON

buttons together for 5 seconds, the remote controller will enter

function reset state, and LCD window displays F1 .

during the first 30 seconds

IMPORTANT: The remote controller is only enabled within10

minutes after the indoor unit is powered on, and the indoor unit

must be switched off.

MODE

FAN

TEMP

SLEEP FRESH

LED FOLLOW ME

TURBO SELF CLEAN

ON/OFF

SHORT

CUT

TIMER

ON

TIMER

OFF

4

5

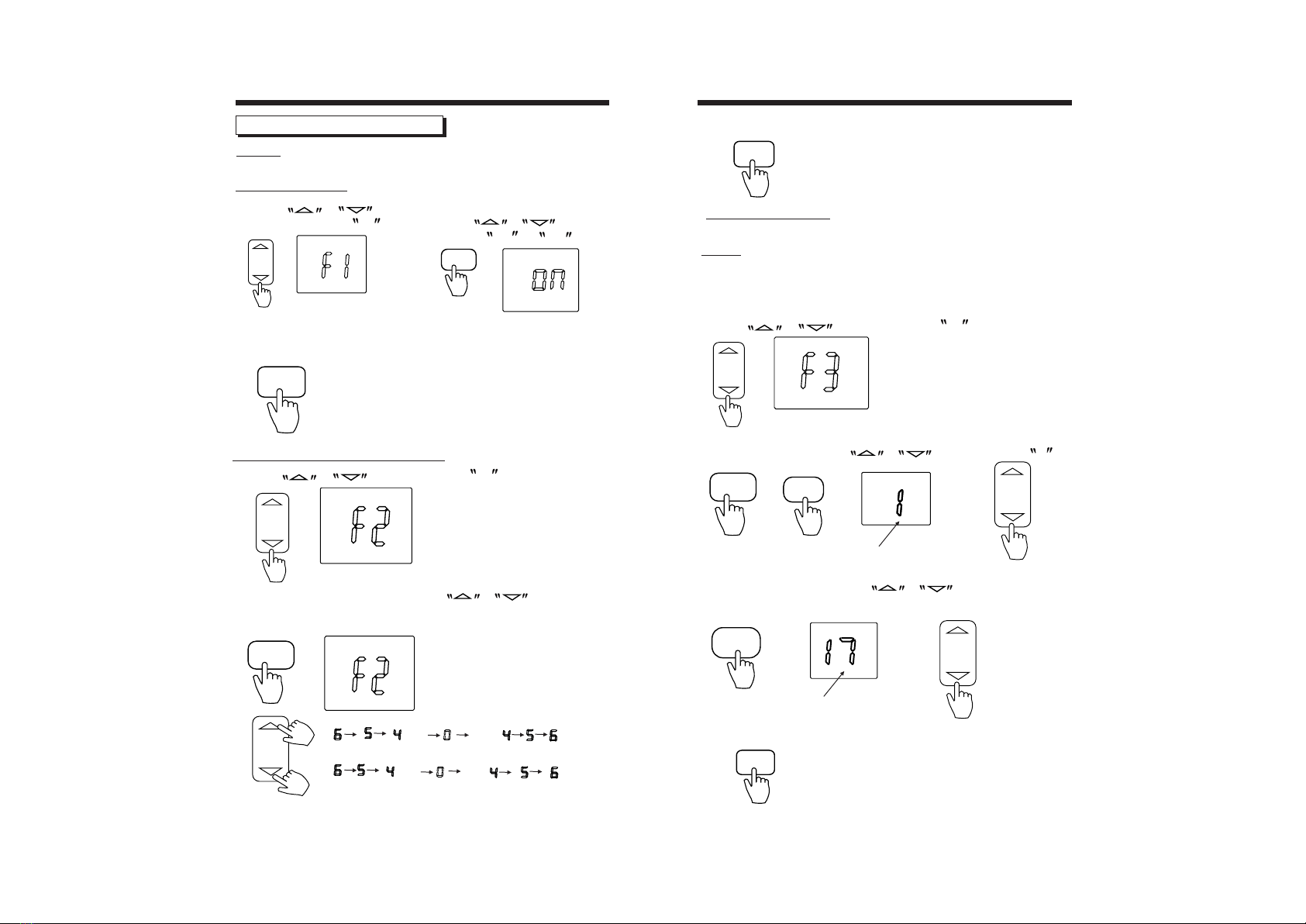

Auto-start function

Heating temperature compensation

1. Press & button to choose F2.

1. Press &

button to choose F1.

2. Press MODE button. Then

press & button to

choose On or Off .

2. Press MODE button. Then press & button to

choose the parameter. The parameters can be adjusted

O O

within a range of -6 C~6 C.

How to set up the functions

TEMP

ADJUST

MODE

3. Press TIMER ON button, and the Auto-start function on/off

setting has finished.

3. Press TIMER ON button.

TIMER ON

NOTE: The indoor unit will beep for 2 seconds indicating the

function being set up successfully.

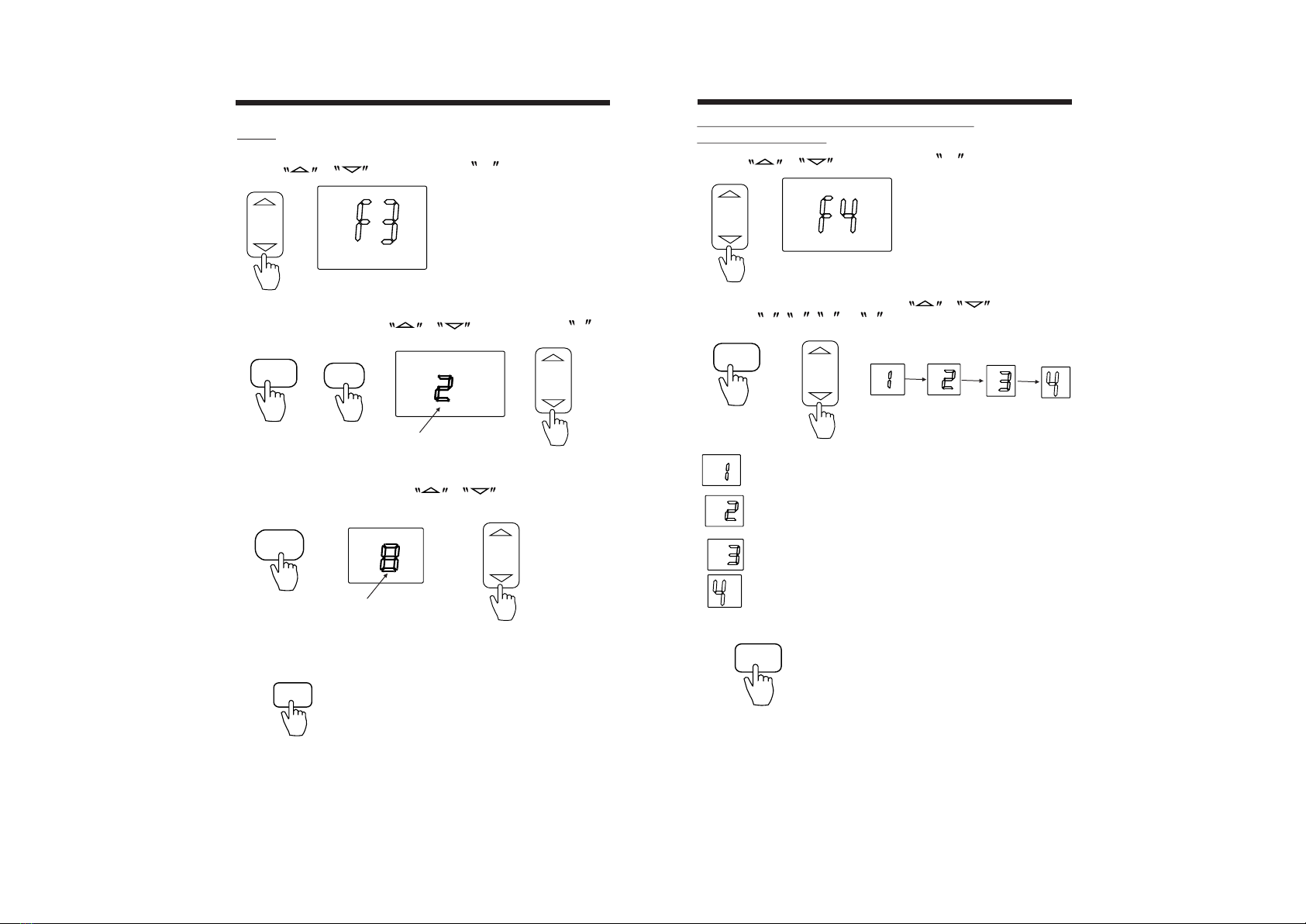

Anti-cold air function

Intelligent anti-cold air function setting:

1. Press & button to choose F3.

TEMP

NOTE: The parameter of intelligent anti-cold air is changed with the

room temperature. After the room temperature raised, the temperature

of anti-cold air would raise too, which can make you feel more comfortable.

After the room temperature decreased, the anti-cold air temperature

would decrease too, which can improve the fan speed and bring fast

heating operation.

-

---

--.... ....

....

Flashing

3.Press TIMER OFF button to adjust the parameter. The parameter

keeps flashing. Then press & button to adjust the

O O

parameter in the range of 17 C~21 C.

2. Press MODE button. Press FAN button to to choose

parameter . Then press & button to select 1 .

MODE

TIMER OFF

FAN

4. Press TIMER ON button to confirm.

TIMER ON

TEMP

6

7

Flashing

3.Press TIMER OFF button to adjust the parameter. The parameter

keeps flashing. Then press & button to adjust the

O O

parameter in the range of 8 C~28 C.

1. Press & button to choose F3.

TEMP

2. Press MODE button. Press FAN button to to choose

parameter . Then press & button to select 2 .

MODE

TIMER OFF

FAN

4. Press TIMER ON button to confirm.

TIMER ON

General Anti-cold air function setting:

NOTE: The parameter of general anti-cold air is fixed regardless

of room temperature.

Speed control of indoor fan motor after the set

temperature reached

1. Press & button to choose F4.

TEMP

2. Press MODE button. Then press & button to

select 1 , 2 , 3 or 4 .

MODE

Indicates stopping fan motor

Indicates operating at lowest fan speed

Indicates operating at setting fan speed

Indicates Termal function

3. Press TIMER ON button.

TIMER ON

8

9

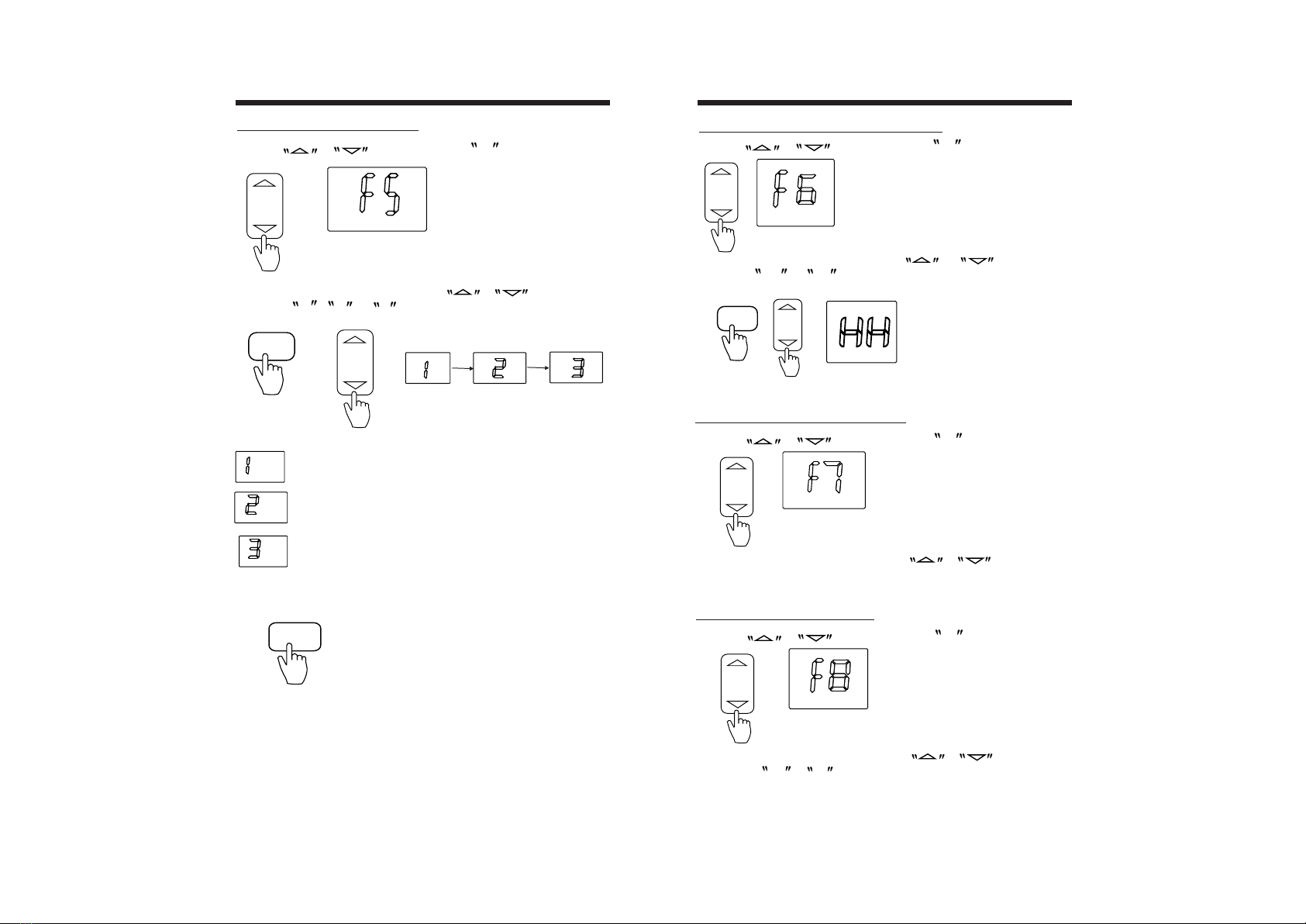

1. Press & button to choose F6.

1. Press & button to choose F5.

TEMP

2. Press MODE button. Then press & button to

select HH or CH. (HH: Heating only, CH: Cooling

& Heating)

2. Press MODE button. Then press & button to

select 1 , 2 or 3 .

MODE

Indicates cancelling memory function.

Indicates the louver angle memory function is enabled

under switching off or power failure.

Indicates the louver angle memory function is enabled

under switching off, disabled under power failure.

3. Press TIMER ON button to confirm.

TIMER ON

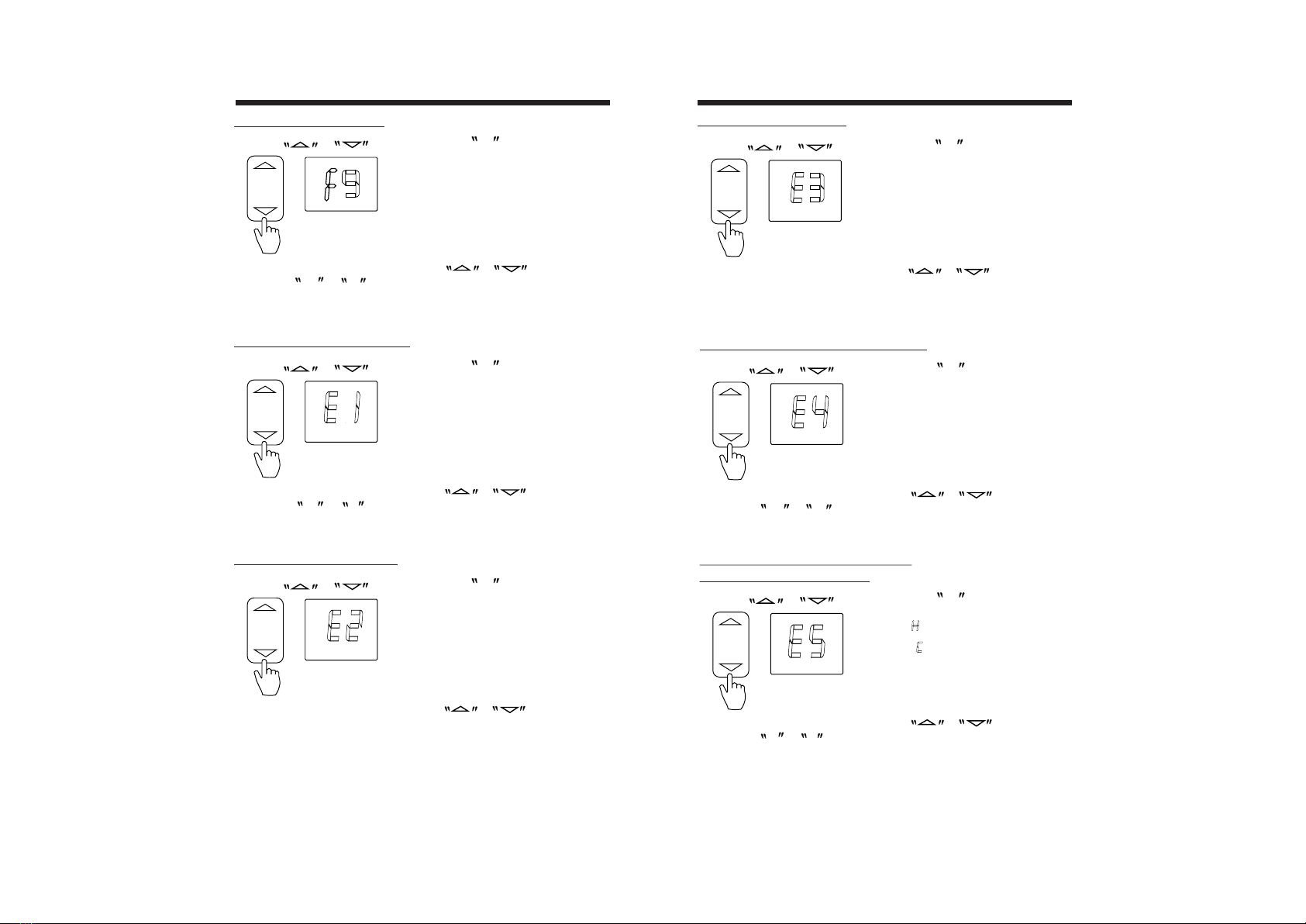

Heating only or Cooling & heating setting

Louver angle memory function

Cooling temperature compensation

Refrigerant leakage detection

1. Press & button to choose F7.

1. Press & button to choose F8.

2. Press MODE button. Then press & button to

O O

choose the parameter in a range of -2 C~2 C.

2. Press MODE button. Then press & button to

choose on or of .

TEMP

MODE

10

11

Cleaning Filter Reminder

Filter Replacement Reminder

Lowest temperature setting

High temperature setting

1. Press & button to choose F9.

1. Press & button to choose E1. 1. Press & button to choose E4.

1. Press & button to choose E5.

1. Press & button to choose E2.

1. Press & button to choose E3.

TEMP

TEMP TEMP

TEMP

3. Press TIMER ON button to confirm.

3. Press TIMER ON button to confirm. 3. Press TIMER ON button to confirm.

3. Press TIMER ON button to confirm.

2. Press MODE button. Then press & button to

choose on or of .

2. Press MODE button. Then press & button to

choose on or of . 2. Press MODE button. Then press & button to

choose on or of .

2. Press MODE button. Then press & button to

choose H or C.

2. Press MODE button. Then press & button to

O O

set the temperature in a range of 17 C to 24 C.

2. Press MODE button. Then press & button to

O O

set the temperature in a range of 25 C to 30 C.

Special Anti-cold air function setting:

Priority setting of heating or cooling

(applicable for multi models)

: Heating mode first

: cooling mode first

12

13

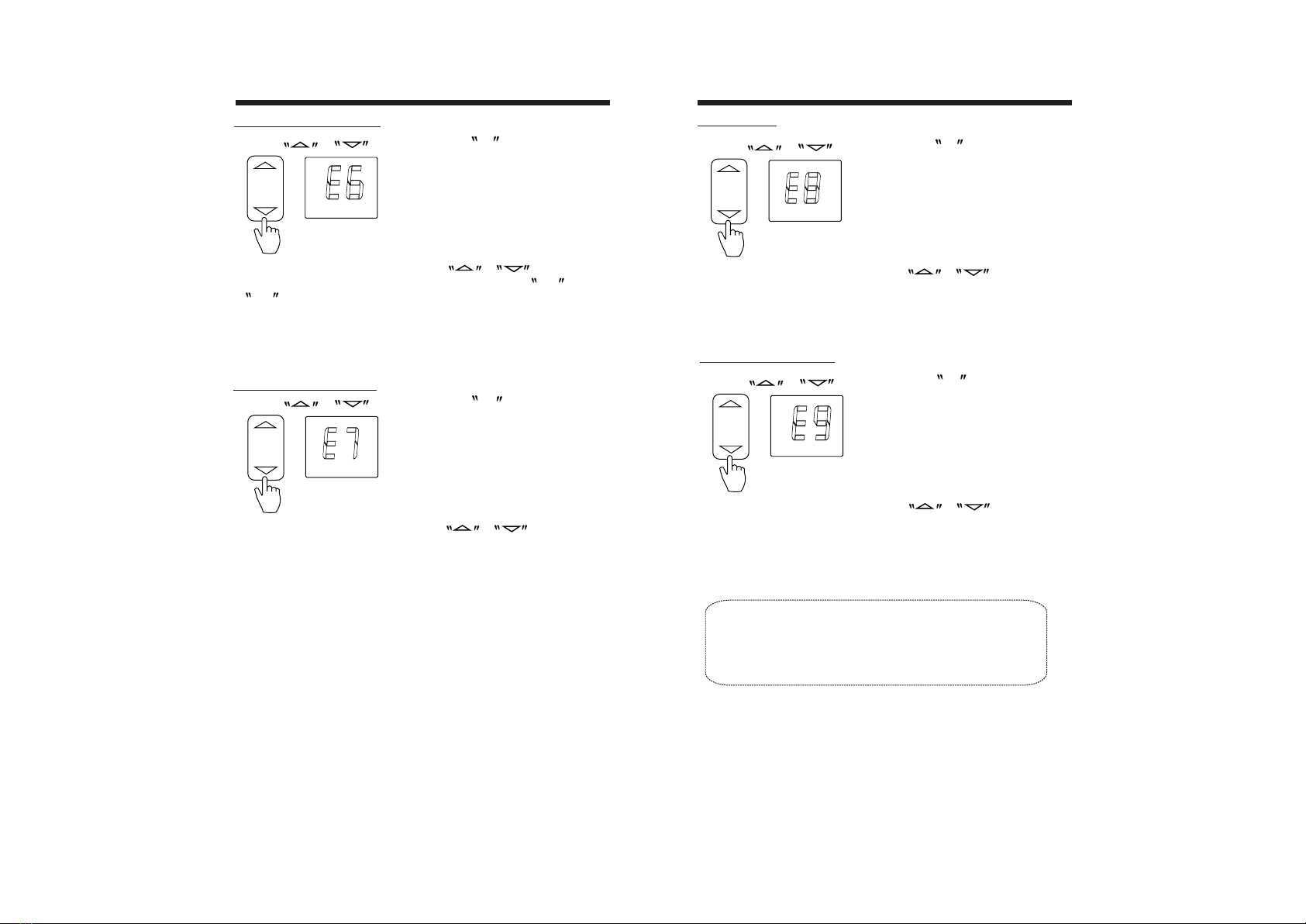

Network Address setting

Capacity code selection

Twins setting

1. Press & button to choose E6.

1. Press & button to choose E7.

1. Press & button to choose E9.

1. Press & button to choose E8.

TEMP

3. Press TIMER ON button to confirm.

Some functions of the remote controller will not

be available when the unit does not support them!

3. Press TIMER ON button to confirm.

2. Press MODE button. Then press & button to

choose the network address between 0 to 63 or .

Indicates cancelling the the adress modified by remote

controller (determined by code switch) .

2. Press MODE button. Then press & button to

choose the capacity code between 0~11.

(0~3: Reserved number), 4: 18K model, 5: 24K model,

7: 30K model, 8: 35K model, 9: 48K model, 10: 54K model

11: 60K model.

3. Press TIMER ON button to confirm.

2. Press MODE button. Then press & button to

choose the value between 0 and 4.

2. Press MODE button. Then press & button to

choose 0(no twins), 1(main unit) or 2(subsidiary unit)

Static pressure setting

--

NOTES

14

15

Point check function

Enquiry information

Enquiry

information

Display

value Meaning Remark

Displaying code Meaning

T1 T1 T1 temp.

T2 T2 T2 temp.

T3 T3 T3 temp.

T4

T2B T2B temp.

Tb

TP TP temp.

TP

TH

Targeted Frequency Targeted Frequency

Actual Frequency Actual Frequency

Indoor fan speed Indoor fan speed

Outdoor fan speed Outdoor fan speed

EXV opening angle EXV opening angle

Compressor continuous

running time

Compressor continuous

running time

Causes of compressor stop

Reserve

Causes of compressor stop

TH temp.

TH

FT

Fr

IF

OF

LA

CT

ST

A0

A1

b1

b0

b2

b3

b4

b5

b6

dL

Ac

Uo

Td

T4 T4 temp.

Press the LED DISPLAY button( Mute button for some

remote controllers) of remote controller three times and then

press AIR DIRECTION button ( Swing button for some

remote controllers) three times within 10 seconds, the buzzer

ring last 2 seconds,the air conditioner will enter the information

enquiry status. After that, press the LED DISPLAY button to

enquiry the next one information and press the AIR

DIRECTION button to enquiry the last one information. When

the air conditioner enter the information enquiry status, it will

display the code name in 2 seconds, the details are as follows:

When the air condtioner enter the information enquiry

status, it will display the code value in the next 25s after

display name is displayed, the details are as follows,

T1,T2,T3,

T4,T2B,TP,

TH,

Targeted

Frequency,

Actual

Frequency

-1F,-1E,

-1d,-1c,

-1b,-1A

-25,-24,-23,-22,

-21,-20

-19-99

0

1,2,3,4

14-FF

0-FF

0-99

OFF

-19-99

A0,A1...A9 100,101......109

b0,b1...b9

c0,c1....c9

d0,d1...d9

E0,E1...E9

F0,F1...F9

110,111....119

120,121....129

130,131....139

140,141....149

150,151....159

1. All the displaying

temperature is actual

value.

O

2. All the temperature is C

no matter what kind of

remote controller is used.

3. T1,T2,T3,T4,T2B display

range:-25~70, TP display

range:-20~130.

4. Frequency display range:

0~159HZ.

5. If the actual value

exceeds the range, it will

display the maximum

value or minimum value.

Indoor fan

speed/

Outdoor

fan speed

Low speed,

Medium speed,

High speed,

Turbo

For some big capacity

motors.

Actual fan speed

=Display value

turns to decimal

value and then

multiply 10. The

unit is RPM.

For some small capacity

motors, display value is

from 14-FF(hexadecimal),

the corresponding fan

speed range is from

200-2550RPM.

EXV

opening

angle

Actual EXV

opening value=

Display value

turns to decimal

value and then

multiply 2.

Compressor

continuous

running

time

0-255 minutes If the actual value exceeds

the range, it will display the

maximum value or minimum

value.

Causes of

compressor

stop.

For the detailed

meaning, please

consult with

engineer

Decimal display

Direct Air RG57A3/BGEF Manuel utilisateur

Manuels Télécommande populaires d'autres marques
