Quick Start Guide

C60U Series IP Phone

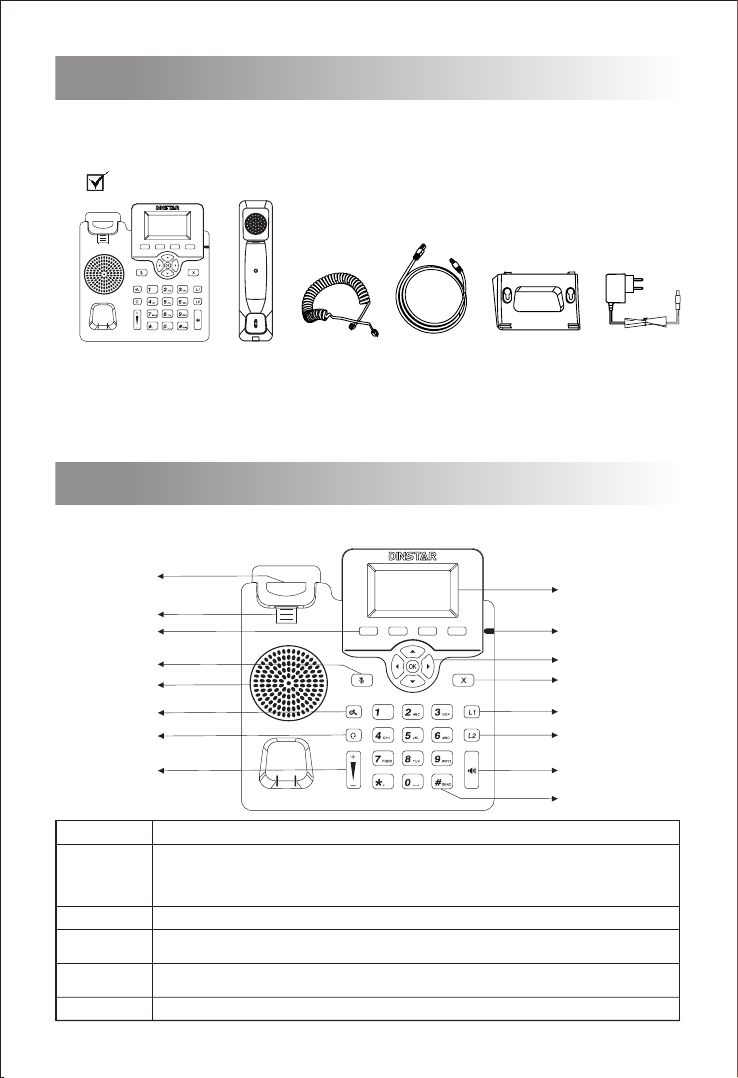

Packaging Contents

Hardware Component Instructions

C60U Series IP Phone

Displays the call, default account, message, soft key, time, date and other related information.

Indicates the power connection status and other characteristic status of the telephone;

When receiving a call, the indicator light ﬂashes quickly;

When there are missed calls or received voice messages / short messages, the indicator light

ﬂashes slowly.

It is used to activate SIP accounts and conﬁgure various functions.

The LCD interface of the phone displays the function names corresponding to the four soft keys,

and the user can press the corresponding soft keys to complete the operation.

Pick up the handle from the handle frame, spring up the fork spring and connect the lines;

LC D Screen

Power Indicator

Line Keys

Soft Keys

Hookswitch

Keypad Provides input for numbers, uppercase and lowercase letters, and other special characters.

Put the handle back into the handle holder and disconnect.

The following items are included in your package. If you find anything missing,

please contact our supporting and customer center.

Note: C60U series IP Phone include C60U, C60UP, C60U-T, C60UP-T, C60U-W,C60UP-W. If

the IP Phone supports PoE, then the package does not include the power adapter.

The main hardware components of the C60U Series IP Phone are the LCD screen

and the keypad.

LC D Screen

Power Indicator

Line Key 1

Speakerphone Key

Line Key 2

Keypad

Cancel/Reject Key

Hookswitch

Hookswitch Tab

Soft Keys

Speaker

Mute Key

Headset Key

Volume Key

Hold Key

IP Phone Handset Handset

Cord

Ethernet

Cable

Stand Power Adapter

(Optional)

Navigation Key

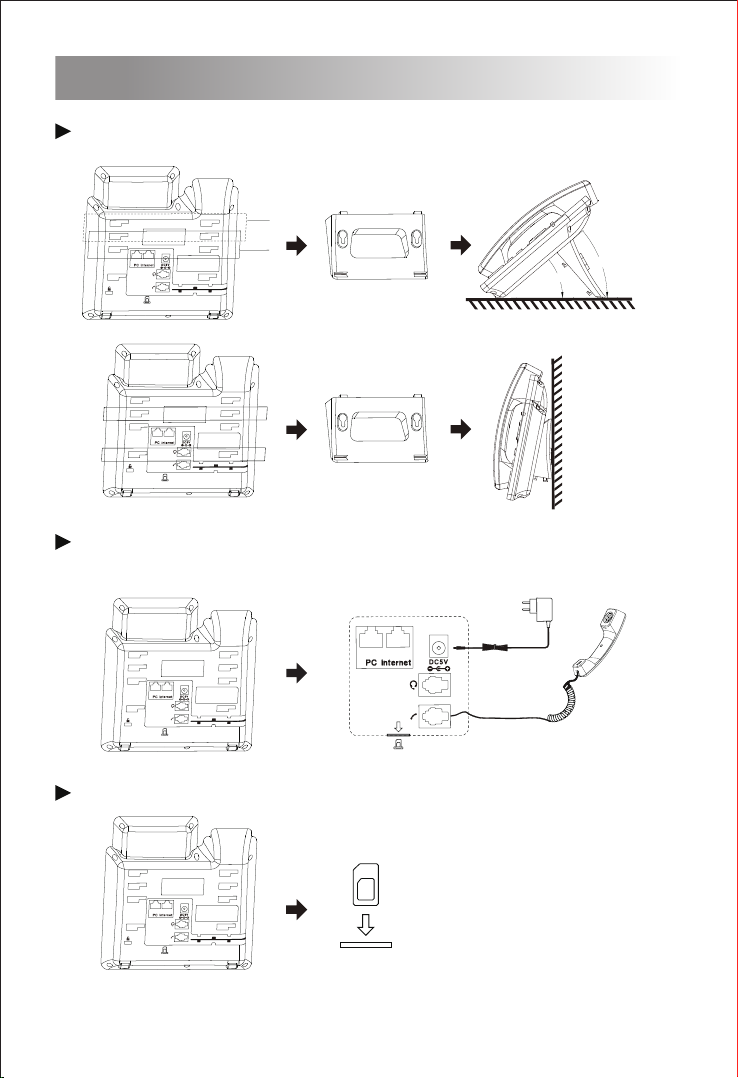

Assembling the IP Phone

Attach the stand to the IP Phone, as shown below:

Connect the handle, headset, PC and power supply as shown in

the ﬁgure below:

Insert SIM card to SIM slot

Note：The installation diagram shown above are all based on the C60UP-T. PC connection

and headset connection are optional.

SIM Card

Startup

After the IP Phone is powered on and connected to network, it will start up

automatically. And then the IP Phone is ready for use. You can conﬁgure the

phone via the phone’s user interface or the web user interface.

Press the Menu soft key when the phone is idle, select Settings Advanced

Setting, input the default password ‘admin’, and then select Network LAN

Port IPv4 , press .

· Conﬁgure via the user interface on the IP Phone

· Conﬁgure via the web interface on your PC

There are two ways to customize the conﬁgurations of the IP Phone.

Conﬁgure the IP Phone

Conﬁgure via the user interface on the IP Phone

Network Setting

Account Setting

Active: Press or to select Enable/Disable to enable or disable the account.

Label: It is shown on the LCD screen to identify the account.

Display Name: It is shown as caller ID when you place a call.

User Name: It is provided by ITSP for registration (required).

The LCD screen and the keypad on the IP Phone allows you to execute all call

operation tasks and basic conﬁguration changes directly on the phone.

By default, the phone attempts to contact a DHCP server in your network to

obtain its valid network settings, e.g., IP address, subnet mask and gateway

address .

If your phone cannot contact a DHCP server, you need to conﬁgure network

settings manually.

(1) Press the ‘Menu’ soft key when the phone is idle, and then select Settings

(1)

Select IPv4 Static or PPPoE. If you select ct IPv4 Static, you need to enter

the IP address, subnet mask and gateway address. If you select P PPoE,

you need to enter the user name and password of the PPPoE account.

Press the Save soft key to accept the change. Then the network settings is

completed.

(2)

(3)

Advanced Setting, input the default password ‘admin’, and then select Account,

press .

Select an account to conﬁgure account information. The following is the

explanation of relevant parameters:

(2)

Note: If the device only uses 4G network to access the Internet, you need to access the web

interface through NMS network management system.

Conﬁgure via the Web interface on your PC

Accessing the web interface

(1) Press the key when the phone is idle to obtain the IP address of the phone.

Open a web browser on your P C, enter the I P address into the address

bar(e.g., http://192.168.11.110'), and then press Enter.

(2)

Password: It is provided by ITSP for registration (required).

SIP Server: It is provided by ITSP for registration (required).

SIP Port:It is provided by ITSP for registration (required).

For more information about account parameters, please refer to the user manual of the IP Phone.

Enter the username (default: admin) and password (default: admin) in to

the login page and then click Login .

(3)

Click Network Basic to configure the LAN port and the PC port.

If there is a need, click Network to configure the VLAN, VPN, SNMP, TR069,

LLDP, local RTP, QoS and 802.1x.

If users cannot access web interface through LAN port and need to access

the web interface through 4G network.

Access the Web interface through the network management system

Network Setting

Users can access the web interface through two ways:

Access the Web interface through the LAN port

Access the Web interface through the NMS network management system when it is not

available through the LAN port

Access the Web interface through the LAN port

First, users need to access the Dinstar NMS network management system

and add 4G IP Phones to the NMS.

(1)

And then users can login phone interface and configure the parameters

through the NMS.

(2)

Note: If users want to get more details, please refer to the 4G IP Phone related configuration

guide or contact technical support.

Click Account Basic to configure the basic information of an account. For the

explanation of the account parameters, please refer to Configure via the user

interface on the Phone.

If there is a need, click Account to configure the codec, DTMF, call-related

information and etc. for the account.

Account Setting

Basic Call Features

Place a call

Using the handset

(1) Pick up the handset.

(2) Enter the number and then press the Send soft key.

Using the speakerphone

(1) With the handset on-hook, press .

(2) Enter the number and then press the Send soft key.

Using the Headset

(1) With the headset connected, press to activate the headset mode.

(2) Enter the number and then press the Send soft key.

Answer a call

Using the handset

Pick up the handset.

Using the speakerphone

(1) Press .

Note: During a call, you can alternate between the headset, hands-free speakerphone

and the handset mode by pressing the corresponding key or by picking up the handset.

(2) Press .

Note: You can reject an incoming call by pressing the Reject soft key.

Using the headset

End a call

Using the handset

Hand up the handset or press the End soft key .

Using the speakerphone

Press or the End soft key.

Using the Headset

Press the End soft key.

Redial

Press the History soft key,then press or to select the desired entry,

and then press the Dial soft key.

Call Mute and Un-mute

Press to mute the microphone during a call.

Press again to un-mute the call.

Press the Menu soft key when the phone is idle, and then select Features

Programmable Keys Line Keys.

Call Hold and Resume

Place a call on hold

If there is only one call on hold, press or the Resume soft key .

To resume a call

Press or the Hold soft key during an active call.

Call Transfer

(1) Press the Trans soft key during an active call. The call is placed on hold.

(2)Enter the number you want to transfer to.

(3) Press .

Call Forward

If there is more than one call on hold, press or to select the desired call, and

then press or the Resume soft key .

(1) Press the Menu soft key when the phone is idle and then select Features Call Forward.

(2) Select the desired forward type:

Always Forward: Incoming calls are forwarded unconditionally.

Busy Forward: Incoming calls are forwarded when the phone is busy.

No Answer Forward: Incoming calls are forwarded if not answered after a period of

time.

(4) Press the Save soft key to accept the change.

Speed Dial

To conﬁgure a speed dial key:

Enter the number you want the call to be forwarded to. For No Answer Forward, set a

value in the Timeout field for determining the duration of the ringing time before

thecall is forwarded.

(3)

Press the speed dial key to dial out the preset number.

To use the speed dial key:

Press the Save soft key to accept the change.

Select the desired line key, and then press the Enter soft key.

Press the Switch soft key to select Speed Dial from the Type field, and then enter the

number for speed dial in the Value field.

(3)

Press the Menu soft key when the phone is idle, select Settings Advanced Setting,

input the default password ’admin’, and then select Account.

Hotline

To conﬁgure a hotline number

(1)

(2)

(3)

Press the Switch soft key to select Enable for the Hotline Active field, and then enter the

desired hotline number in the Hotline Number field.

Enter the hotline delay time in the Hotline Timeout field. The valid values range from 0 to

5 and default value is 4.

(1)

(2)

(4)

To use the hotline

Pick up the handset or press , and the call to the preset hotline will be dialed out

automatically.

Press the Save soft key to accept the change.

(4)

Press the Book soft key when the phone is idle, and then select Local Phonebook

All Contacts.

DND

To enable DND:

Press the DND soft key when the phone is idle, or press the Menu soft key and then select

Features DND to enable DND and complete relevant conﬁgurations.

Customize the IP Phone

Press the Dial soft key to place a call to this entry;

Press the Delete soft key to delete the entry from the list.

If you press the Option soft key, you can also do the following:

Call History

(1) Press the History soft key when the phone is idle, press or to scroll

(2) Select an entry from the list, and you can do the following:

through the call list.

Select Detail to view detailed information about the entry;

Select Add to Contacts to add the entry to the local phonebook;

Select Add to Blacklist to add the entry to the blacklist;

Select Delete All to delete all entries from the history call list.

To add a contact to the local phonebook

Phonebook

Press the Add soft key to add a contact to the phonebook.

Enter the contact’s information in corresponding fields and press the Save soft key.

(3)

(1)

(2)

Press the Book soft key when the phone is idle, and then select Local Phonebook

All Contacts.

Ring Tones

Volume Adjustment

To delete a contact:

Press during a call to adjust receiver volume of the handset/speakphone/

headset, Press the same key when the phone is idle or ringing to adjust the ring

You can also press the Menu soft key and select Settings Basic Setting

Volume Setting to adjust the talk volume, tone volume, ring volume,

Mic(handset/headset/handfree) volume as well as key volume.

Press or to select the desired contact, press the Option soft key and then

select Delete from the prompt list.

Press the OK soft key when the LCD screen displays ‘Delete selected item?’.

(1)

(2)

(3)

volume.

Press the Menu soft key when the phone is idle, and then select Settings Basic

Setting Ring Tones.

(1)

Press or to select the desired ring tone, and then press the Save soft key.

(2)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dinstar Téléphone IP

Dinstar

Dinstar C60S Manuel utilisateur

Dinstar

Dinstar C62G Manuel utilisateur

Dinstar

Dinstar C66G Manuel utilisateur

Dinstar

Dinstar C61S Manuel utilisateur

Dinstar

Dinstar C63G Manuel utilisateur

Dinstar

Dinstar C62U Manuel utilisateur

Manuels Téléphone IP populaires d'autres marques

Alcatel

Alcatel 4028 Manuel utilisateur

Polycom

Polycom Polycom VVX 600 Manuel utilisateur

Polycom

Polycom SoundPoint IP 450 Manuel utilisateur

Cisco

Cisco SPA-500 Series Manuel utilisateur

Polycom

Polycom SoundPoint IP 650 Manuel utilisateur

Proximus

Proximus Maestro 3016 IP Manuel utilisateur

Fanvil

Fanvil X4 Manuel utilisateur

Cisco

Cisco 7962 Manuel utilisateur

Snom

Snom 320 Manuel utilisateur

Yealink

Yealink Yealink SIP-T46G Manuel utilisateur

Avaya

Avaya 4625SW Manuel utilisateur

Yealink

Yealink SIP-T52S Manuel utilisateur

Nortel

Nortel 1140E Manuel utilisateur

Nexotek

Nexotek NT-P500 Manuel utilisateur

Avaya

Avaya Integral 5 R3.0 Manuel utilisateur

GE 28320EE2 - Dect 6.0 InfoLink 2 Manuel utilisateur

Avaya

Avaya 4600 Series Manuel de service

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manuel utilisateur
