PERISTALTIC PUMP VARIOUS HEADS

Model D-25VXi

Codes 1.9733.05/9738.00/1.9738.01/3734.05/1.9739.00/1.9739.01

MANUAL

June 2023

c/ Encarnació , 123 -125. Tel. +34 93 284 69 62. Fax +34 93 210 43 07

e-mail: dinter@dinko.es www.dinko.es 08024-Barcelona

INDEX

Page

1- GENERAL INTRODUCTION …………………………………………………………………………. 3

2- PACKING LIST ……………………..………………………………………………………….............3

3- RECEPTION ……………………….…………………………………………………………………… 4

4- DESCRIPTION …………..…………………………………………………………………………...... 5

5- START UP ..……………………………………………………………………………….................... 5

6- CHANGING THE TUBES ..………………………………..…………………………………….….… 6

7- ORDERING INFORMATION .…………..……………………………………………………............. 7

8- MAINTENANCE – SPARE PARTS ..……………………………………………………………........7

9- COMPLEMENTS …….…………………………………………..……………………………………. 8

10- TROUBLESHOOTING ……………………………………………………………………….............10

11- CHANGING FUSES…………………………………………..……………………………………..... 10

12- FLOW CHART ………………………………………………………………………………............. 11

13- WARRANTY ………………………………………………………………………………………........11

14- EC DECLARATION OF CONFORMITY …………………………..………………………………...12

15- OTHER DINKO APPLIANCES……………………………………………………………………......13

1- GENERAL INTRODUCTION

The following considerations are intended to guarantee correct reception and use of the device, as well as

the safety of the user. To this end, we recommend reading this manual in detail before proceeding to unpack

the device and subsequent use.

-This manual must be permanently kept within the equipment user's reach.

-Carefully unpack the appliance, checking that the contents match the packing list.

Immediately notify any eventuality.

-For the correct conservation of the appliance it is necessary to avoid its installation in areas with

atmospheric

corrosive or exposed to liquid splashes.

-Avoid using the appliance when there is the possibility of generating explosive gas mixtures and

flammable.

-According to the European regulations of use 89/655/CEE, the lack of adequate maintenance

and the alteration or change of any component, exempts the manufacturer from any responsibility for the

damage that could occur.

-The devices that are sent to the technical services of DINKO Instruments must be perfectly

clean and disinfected . Otherwise, they will be rejected and returned with postage paid by the

owner.

2- PACKING LIST

Description Code Quantity

Peristaltic Pump D-25VXi 1.9733.05/9738.00/1.9738.01/3734.05/1.9739.00/1.9739.01 1

Set of connections 1

Power cord 1

Warranty 1

Instruction Manual 1

3- RECEPTION

To ensure correct reception, use of the device, and user safety, we recommend reading this manual in

detail before proceeding to unpack the device and subsequent use, and especially the following points:

3.1- THE MANUAL

This manual must be permanently kept within the equipment user's reach.

3.2- UNPACKING

Unpack the appliance, checking that the contents match the packing list.

Immediately notify any eventuality.

3.3- EXPLOSIVE MIXTURES

Avoid using the device when there is the possibility of generating explosive gas mixtures and

flammable. The ATEX Directive is not covered.

3.4- RESPONSIBILITY

According to European regulation 89/655/CEE, the lack of adequate maintenance and the alteration of

component, exempts the manufacturer from any responsibility for any damage that may occur.

3.5- REPAIRS

Devices to be sent to DINKO technical services must be clean and disinfected.

Otherwise, they will be rejected and returned with postage paid by the owner.

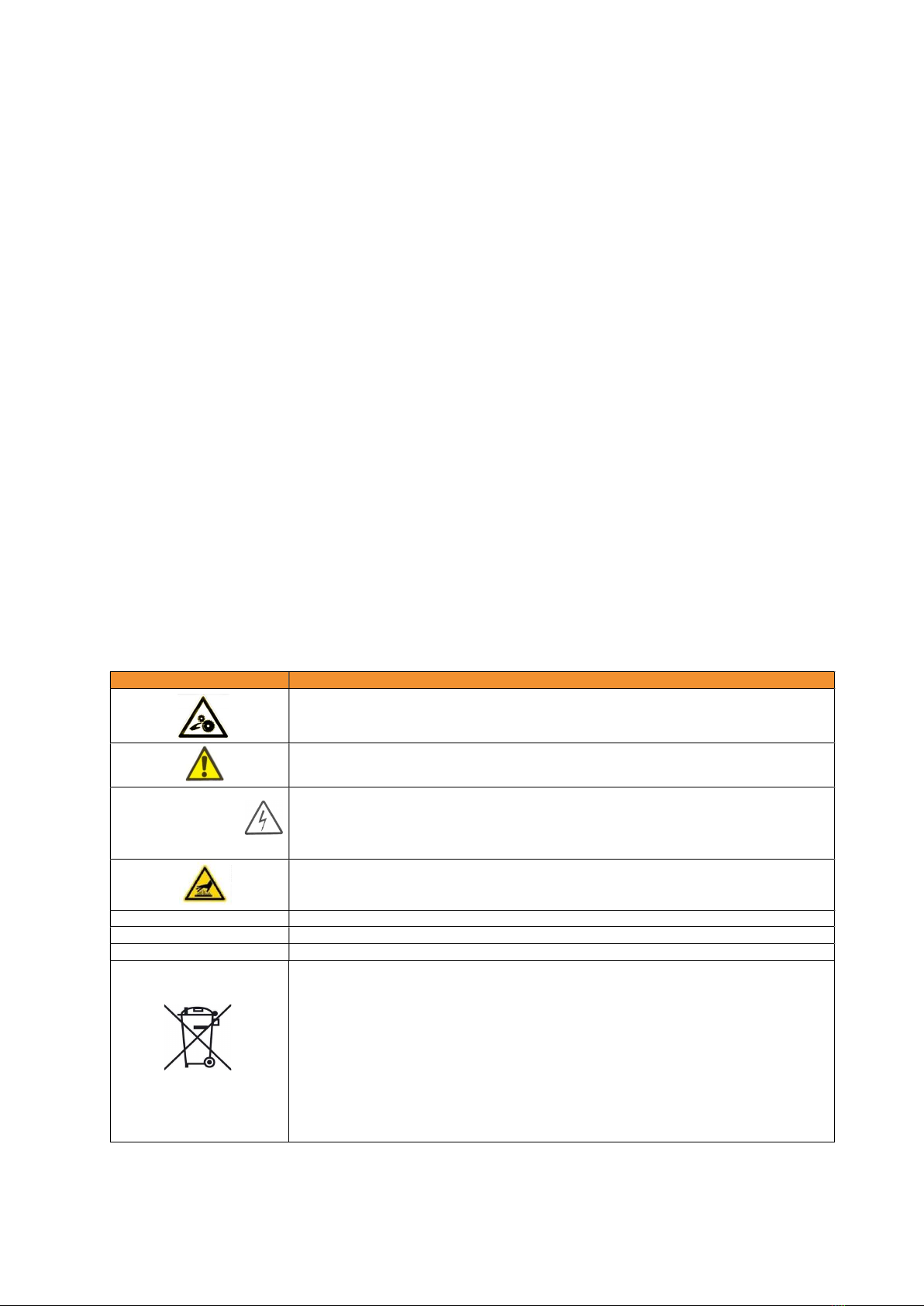

3.6- SIGNS AND SYMBOLS

Pay attention at all times to the danger warning signs and symbols that will appear in this manual or on

labels attached to the body of the Pump such as those shown below.

SIGN/ SYMBOL

INTERPRETATION

MEANING

Avoid finger contact with moving parts

Danger-Risk-Caution

Before opening

DISCONNECT

the network cable

Before remove cover

PULL OUT plug

Before accessing the interior of the Pump, disconnect the power cable from the network

Possible overheating - Do not touch

110-230V AC 50/60Hz AC power supply voltage

110V AC 60Hz AC power supply voltage

12V DC or 24V DC DC power supply voltage

Disposal of waste electrical and electronic equipment by users within the European

Union.

It is not disposable as household waste.

Deliver to the agency for recycling of electronic equipment.

Contact your local office, the store where you purchased the equipment, or your

household waste disposal service.

Recycling helps conserve natural resources.

Make sure it is recycled protecting human health and the environment.

4- DESCRIPTION

The D-25VXi peristaltic pump is provided with 50-2r heads that allow access to the tube for extraction when

it must be replaced due to wear or for sterilization. It will suffice to remove the cover by removing the three

fastening screws.

They admit different tube sizes that, combined with the electronic speed regulation, give a great variety of

flows, as can be seen in the table of indicative flows in the manual.

On the back they incorporate a connector for pedal (foot switch) and remote-control operation, power socket

with fuse box and general ON/OFF switch.

On the front there are switches to change the direction of flow and stop as well as potentiometers for

percentage speed regulation, per channel.

Pumps are manufactured with the number of heads requested or with other heads with higher performance.

HEAD 50

back base

Screws Connectors

Rotor shaft (rotor not shown)

Tube Tap to

FRONT 4

1-Drive pilot light. 2- Pump heads. 3- Potentiometers 10 turns speed control %

4-flow direction and stop switches

5- START UP

Assemble the chosen tube in each head. See “Changing tubes”.

Make sure that the mains voltage is between 100 and 230 V.

Connect the power cable to the rear plug and to the network.

In facilities for processes or assemblies that include a DINKO Pump, they must not enter into service

before checking that the safety standards of the European Machinery Directive 2006/42/EC are met.

Press the ON switch.

The speed regulation knob is a potentiometer with a numerical counter of turns from 1 to 10.

The dial is numbered from 1 to 10 for each turn, so the regulation is from 0 -100%, in increments of 1% and

repeatability of 100%.

Each head has its speed regulator and flow direction change and stop switch.

If you want a spindle not to work, act on the individual stop and flow direction switch instead of placing the

regulator at 0% to avoid any small rotation of the motor due to residual currents.

6- CHANGE OF TUBES

Press the OFF switch. Extract the tube according to the indications described in the “Description” and

“Heads” section.

When removing the tube from the heads, do it together with its fixing terminals.

When the new tube is installed, it should be centered over the rollers to prevent the rotor from pinching it.

Take advantage of the slow rotation of the rotor to insert the new tube. This avoids forcing the axis when

trying to place the tube with the rotor stopped.

Be careful not to pinch your fingers. Put the lid back on.

In general, new tubes can stretch during the first 30 minutes of operation. If this happens, they must be

tightened again to avoid unexpected breakage. To detect elongation or insufficient fixation of the tube to

the head, it is useful to properly mark the tube with a marker.

A tube set is supplied with each pump.

The pump supply and discharge tubes can have any wall thickness, but not the tube that is installed in the

head, whose wall must be 1,6mm

The supplied silicone tubes are medical / food grade according to FDA and USP standards, sterilizable by

autoclave at 120ºC, with a peristaltic range of use up to 80ºC and medium duration.

AVAILABLE MATERIALS

The most mechanically resistant tubes are PHARMA, TYGON A-60, TYGON A-60-G and SILICONE with

medium duration, but the durability also depends to a large extent on the chemical nature of the pumped

liquid, the pressure, existing temperature and naturally of engine revolutions.

Proper choice of tubing ID prevents higher RPM demand from the peristaltic pump motor with small

diameter tubing and decreased tubing life.

PHARMA Autoclavable multiple times.

ETO and Gamma sterilizable .

Medical-food grade, class VI USP, 21CFR 177.2600 and FDA. Not hemolytic.

Excellent resistance to chemicals.

ISO 10993. Low permeability and good resistance to abrasion.

Long duration.

Use temperature, -51ºC to 132ºC .

Beige.

SILICONE Autoclavable.

The most versatile tube. Platinum Cure quality silicone.

Average duration.

Medical/Food Grade. Excellent biocompatibility.

Maximum temperature. 140ºC.

Translucent.

TYGON A-60-C ® Autoclavable multiple times.

food grade

Long duration.

Resistant to acids, alkalis, oxidizing agents.

Use temperature: -59ºC to 135ºC.

Beige.

TYGON A-60-G ® Autoclavable

Compatible with ozone, UV light and disinfectants.

Great resistance to fatigue and abrasion.

Resistant to acids, alkalis and alcohols.

Use temperature -59ºC to 135ºC.

black colour.

VITON ® Autoclavable

Suitable for acids and non- acetone solvents.

Maximum temperature 300ºC.

Black color

7- ORDERING INFORMATION

Code ▼ Model heads Flow

ml/min

Engine

rpm

1.9733.05

D25V2i 2x50-2r 0.1-100 30

1.9738.00

D25V2i 2x50-2r 0.4-300 80

1.9738.01

D25V2i 2x50-2r 1-700 240

1.9734.05

D25V4i 4x50-2r 0.1-100 30

1.9739.00

D25V4i 4x50-2r 0.4-300 80

1.9739.01

D25V4i 4x50-2r 1-700 240

Dimensions: with 2 heads, 32x26x14cm. Weight: 5. With 4 heads, 26x34x27cm. Weight: 6Kg

8- MAINTENANCE-SPARE PARTS

Before proceeding with any examination or repair of the device, disconnect the power supply.

Any initiative must be carried out by qualified personnel to avoid greater evils.

Entrust your device to a technical service authorized by DINKO Instruments.

LUBRICATED

The engine and its block do not require greasing, so they are maintenance-free.

The rotor bearings are self-lubricating, but it is advisable to lightly lubricate them together with the rollers

with silicone grease ref. 8.0030.03 or similar from time to time, especially if they have been washed.

PIPES

The head tube must be replaced periodically in a systematic way to avoid the inconvenience of its

breaking during full operation of the pump.

WASHED

At the end of the use of the pump, it is advisable to purge the contents of the tubes to avoid possible

solidifications that could obstruct their interior, especially in tubes with a small internal diameter, and

preferably pump some inert and compatible liquid to complete the washing. Pay attention to avoid

possible splashes.

SPARE PARTS

Head base 50. Code 1.0077.04 Main control circuit. Code 1.0060.03

Flow direction and stop switch. Code 1.0015.05 Dial for 10-turn potentiometer. Code 1.0062.07

Power supply, head 50. Code 1.8093.16 Foot switch. Code 1.9740.01

Flow direction switch control. Code 1.0025.01 Motor 50, 12V DC 240rpm. Code 1.0077.28

Engine 50, 24V 240rpm. Code 1.0077.01 Pedal for D25V.Code 1.9740.01

Potentiometer 10 turns. Code 1.0062.06 Switch button. Code 1.0015.09

Rotor 50-2r. Code 1.0077.11 Rotor 50-3r. Code 1.0077.02

Front cover head 50. Code 1.0077.03 Fan. Code 1.0042.01

1.6mm wall calibrated tube codes, 1 meter

Internal Ø tube ►

▼

0,5mm 0,8mm 1,6mm 3,2mm 4,0mm 4,8mm 6,4mm

PHARMA

1.8801.08 1.8801.16 1.8801.32 1.8801.48 1.8801.64

Tygon A

C ®

1.8740.16 1.8740.32

Tygon A

G ®

1.8750.16 1.8750.48 1.8750.64

Silicone

1.8760.05 1.8760.08 1.8760.16 1.8760.32 1.8760.40

1.8760.48 1.8760.64

Viton ®

1.8790.08 1.8790.16 1.8790.32 1.8790.48 1.8790.64

Codes for 2 connectors with 15cm tube for 50-3r head. Pack with 5 games

Note: 0.5 and 0.8 tube packs contain 3 sets

Figure no. 2 shows from left to right the head cover 50 with tube

installed, a connection /tube that represents all tubes from 1.6 to 6.4

mm in diameter and a connection/tube corresponding to the 0.5 and 0.8 mm

tubes provided with charge/discharge capillaries in stainless steel.

Figure nº2

9- ACCESSORIES

9.1 Balance for flow and dosage calibration.

Reproducibility 0.1 g. 600g capacity. Code 1.9812.02

To measure the quantity dosed in the Calibration process of peristaltic

pumps, it is very effective to use a precision balance with digital reading.

If the liquid to be pumped has density "1" there will be no difference between grams and millilitre’s.

Otherwise, calculate the density by weighing a quantity of the liquid with the help of a 25ml test tube, for

example, previously taring the test tube on the scale.

Divide the weight indicated on the digital readout of the scale in grams by the millilitre’s contained in the

test tube to obtain the density according to the relationship,

D= M / V.

There is always the option to Calibrate the pump directly based on weight instead of volume.

Characteristics:

♦ Single digital reading platter, with highly visible backlit LCD screen.

♦ Simple use of great robustness with ABS casing and hermetic anti-humidity membrane keyboard

♦ Stainless steel pan, 157x128mm ♦ External self-calibration ♦ Units of measure: grams,

pounds and ounces

♦ Continuous tare up to 600 g ♦ Power supply 230V 50/60Hz ♦ Non-slip rubber feet

♦ Working temperature: from +5ºC to +40ºC. Maximum use humidity, 85% RH

9.2 Graduated cylinder, 25 ml. Code 1.9808.20

9.3 Silicone grease, 50g. Lubrication of peristaltic tubes. Code 8.0030.03

9.4 Standing support. Code 1.8003.08

Useful as a support for the tube/dispensing tip. Foot: 150 x 70cm. Bar, height 70cm.

Sliding support for dosing tip.

Internal Ø tube ►

▼

0,5mm 0,8mm 1,6mm 3,2mm 4,0mm 4,8mm 6,4mm

PHARMA

1.8717.08

1.8717.16

1.8717.32

1.8717.48 1.8717.64

Tygon A

C ®

1.8745.16

1.8745.32

1.8745.48 1.8745.64

Tygon A

G ®

1.8755.16

1.8755.32

1.8755.48 1.8755.64

Silicone

1.8765.05

1.8765.08 1.8765.16

1.8765.32

1.8765.40

1.8765.48 1.8765.64

Viton ®

1.8795.16

1.8795.32

1.8795.48

CONNECTORS FOR PERISTALTIC TUBES

9.5 Reducing Connectors - Splice / Same Ends, Polypropylene

For 1,6/3,2mm internal Ø tubes. Code1.0080.15

For 3,2/4,8mm internal Ø tubes. Code 1.0080.18

For 4,8/6,4mm internal Ø tubes. Code 1.0080.05

For 6,4/8mm internal Ø tubes. Code 1.0080.14

For 8/12,7mm internal Ø tubes. Code 1.0080.20

9.6 Straight connector for fitting/reducer, polypropylene

Straight connector / reducer Ø 4-5-8 to 7-10-12mm. Light 1,6/4,6mm. Code 1.0120.31

9.7 Form Y connectors, polypropylene

Y shape connector, 6mm. either. Code 1.0120.26

Y shape connector, 8mm. either. Code 1.0120.48

Y shape connector, 10mm. either. Code 1.0120.32

Y-shaped connector, 12mm. either. Code 1.0120.33

9.8 Connectors-316 stainless steel tube - Connection and dosage

Straight connection 40mm length

Tube for peristaltic tubes 0,5 and 0,8mm Ø, 25 Units Code 8.0056.14

Tube for peristaltic tubes 1,6mm Ø, 25 Units Code 8.0056.06

Tube for peristaltic tubes 3,2mm Ø, 25 Units Code 8.0056.08

Tube for peristaltic tubes 4,8mm Ø, 25 Units Code 8.0056.10

Tube for peristaltic tubes 6,4mm Ø, 25 Units Code 8.0056.12

Dosage 130mm length with a bevel

Dosing tube for peristaltic tubes 0,5 and 0,8mm Ø, 10 Units. Code 8.0056.15

Dosing tube for peristaltic tubes 1,6mm Ø, 10 Units Code 8.0056.07

Dosing tube for peristaltic tubes 3,2mm Ø, 10 Units. Code 8.0056.09

Dosing tube for peristaltic tubes 4,8mm Ø, 10 Units. Code 8.0056.11

Dosing tube for peristaltic tubes 6,4mm Ø, 10 Units. Code 8.0056.13

Length 38mm

Micro-tube 0,8 mm OD, 10 Units. Code 1.0077.23

Micro-tube 0,9 mm OD, 10 Units. Code 1.0077.26

Clamping flange P. Code 1.0120.01

Clamping flange G. Code 1.0120.12

9.9 304 stainless steel anti-floaters for suction tubes

For peristaltic tubes with 1,6 and 3,2mm ID. Code 1.0303.10

For 4,8mm ID peristaltic tubing. Code 1.0303.11

For 6,4mm ID peristaltic tubing. Code 1.0303.12

For 8,0mm ID peristaltic tubing. Code 1.0303.13

For 9,6mm ID peristaltic tubing. Code 1.0303.14

For 12,7mm ID peristaltic tubing. Code 1.0303.15

9.10: Stainless steel dosing tubes with non-return valve

For 3,2 and 4,8mm ID tubes, stainless steel tip 4mm OD wall 1mm. Code 1.0302.10

For 4,8 and 6,4mm ID tubes, stainless steel tip 6mm OD wall 1mm. Code 1.0302.11

For 6,4 and 8mm ID tubes, stainless steel tip 8mm OD wall 1mm. Code 1.0302.12

For 8 and 9,6mm ID tubes, stainless steel tip 10mm OD wall 1mm. Code 1.0302.13

10-TROUBLESHOOTING

The following table of faults, their causes and possible solutions, is not intended to cover all possibilities.

However, inconveniences to the user can be avoided which actually have easily avoidable causes.

PROBLEM

CAUSE

SOLUTION

It does not start and the pilot lights do not light

lack of food

blown fuse

unknown

Check cable and plugs

change fuse

Request Technical

Service

The head rotor does not turn, but the pilots

shine

Broken tube that prevents

faulty engine

change tube

Request Technical

Service

The rotor turns, the tube is not broken, but it

does not pump

exhausted, worn tube

Insufficient tube wall

empty feed tank

Tube Chemical

Incompatibility

change tube

Install suitable tube

charge the deposit

choose suitable tube

Flow below theoretical

high viscosity

excessive pump circuit

Internal obstruction in the

tube

Insufficient tube wall

High discharge back

pressure

Tube Chemical

Incompatibility

Use a larger tube Ø

short circuit

Clean

Install suitable pipe

lower back pressure

choose suitable tube

The head tube moves small tube diameter

Faulty tube installation

Choosing a suitable

tube

Check the fixings

11- CHANGE OF FUSES

The fuse box is part of the power base located at the rear of the pump. See Figure.

main switch

Fuse box

power base

Pry with a screwdriver between the central part of the fuse holder box and the upper part of the power

supply base to remove the fuse holder box.

The box remains attached without being fully extracted. There are two fuses.

Press the box in to restore its original position.

Autres manuels pour D-25VXi

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DINKO Instruments Pompe à eau

DINKO Instruments

DINKO Instruments D-25Vplus 1.9747.00 Manuel utilisateur

DINKO Instruments

DINKO Instruments D-25VT Manuel utilisateur

DINKO Instruments

DINKO Instruments A-60-F Manuel utilisateur

DINKO Instruments

DINKO Instruments D-25VXi Manuel utilisateur

DINKO Instruments

DINKO Instruments D-25Vplus 1.9747.00 Manuel utilisateur

DINKO Instruments

DINKO Instruments D-25Vplus 1.9747.00 Manuel utilisateur

Manuels Pompe à eau populaires d'autres marques

Neptun

Neptun NPHW 5500 Manuel utilisateur

Sensidyne

Sensidyne Gilian BDX-II Instructions d'installation et d'utilisation

Draper

Draper 47808 Manuel utilisateur

Trolla

Trolla 12820 Manuel utilisateur

Sunfab

Sunfab SVH Series Manuel utilisateur

WilTec

WilTec 50740 Manuel utilisateur

Fieldmann

Fieldmann FVC 5015 EK Manuel utilisateur

Everbilt

Everbilt EFSUB5-122HD Manuel utilisateur

Graco

Graco Husky 3300e Manuel utilisateur

esotec

esotec 101018 Manuel utilisateur

moyno

moyno 2000 CC Manuel utilisateur

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuel utilisateur

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guide de dépannage

DUROMAX

DUROMAX XP WX Series Manuel utilisateur

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuel utilisateur

Franklin Electric

Franklin Electric IPS Manuel utilisateur

Xylem

Xylem e-1532 Series Manuel utilisateur

Milton Roy

Milton Roy PRIMEROYAL Manuel utilisateur
