DINDAN 70ACU/005 Manuel utilisateur
Enclosure cooling unit
Model
70ACU/005
User's guide
ภาษาไทย
English
Contents Page
1. Over view 3-5
2. Specification 6-7
3. Notification 8
4. Technical information 9-10
5. Installation 11-19
6. Maintenance 20
7. Fault indication 21
8. Assembly and parts number 22
1
Introduction
Cooling unit for control cabinet is used for diminishing internal heat by
providing cool air to the control cabinet that can protect sensitive equipment It is
specially designed to resist surrounding temperature as high as 40-50 oC and can
function well in any factories including those with intensive dust, particles and oil mist
or with high acidity.
2

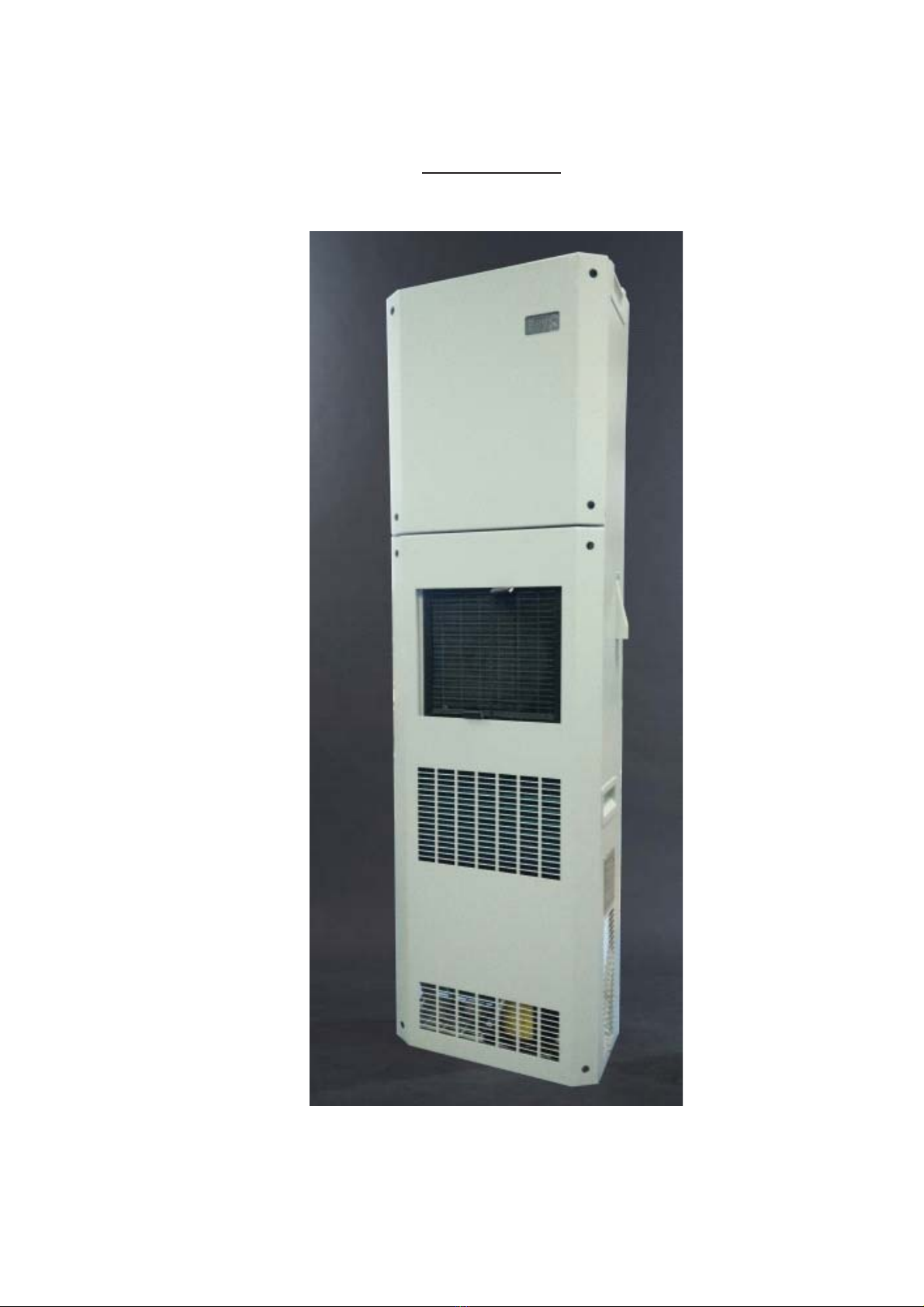

1. Over view
70ACU/005
3

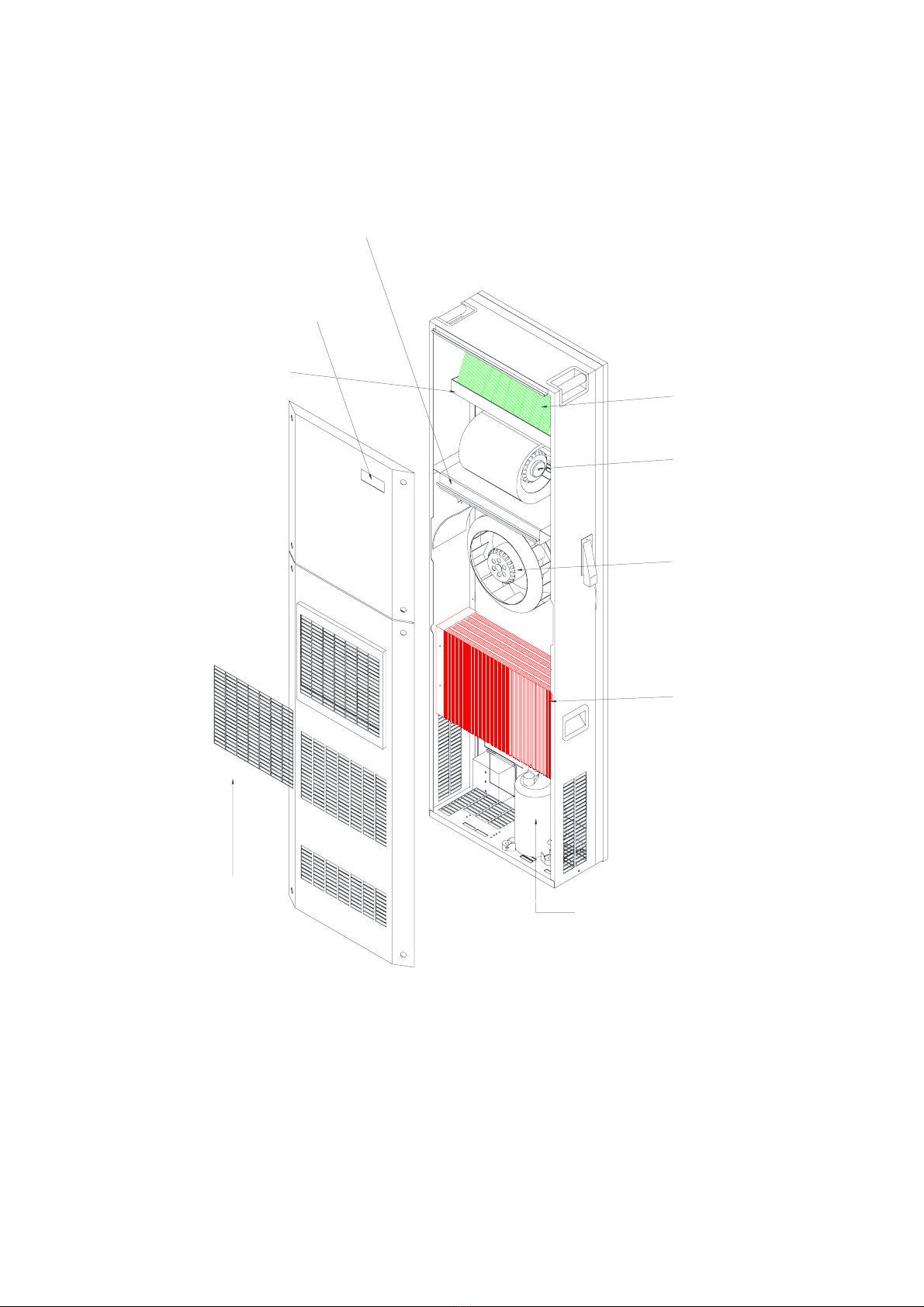

คอมเพรสเซอร์
(Compressor)
แผงระบายความร้อน
(Condensor coil)
พัดลมระบายความร้อน
(Condensor fan)
ถาดน้ำทิ้ง
(Drain pan)
จอแสดงอุณหภูมิ
(Temperature display)
แผงทำความเย็น
(Evaporator coil)
พัดลมส่งความเย็น
(Evaporator fan)
แผ่นกรองฝุ่น
(Filter)
แผงควบคุมอุณหภูมิ
(Temperature control board)
4
5

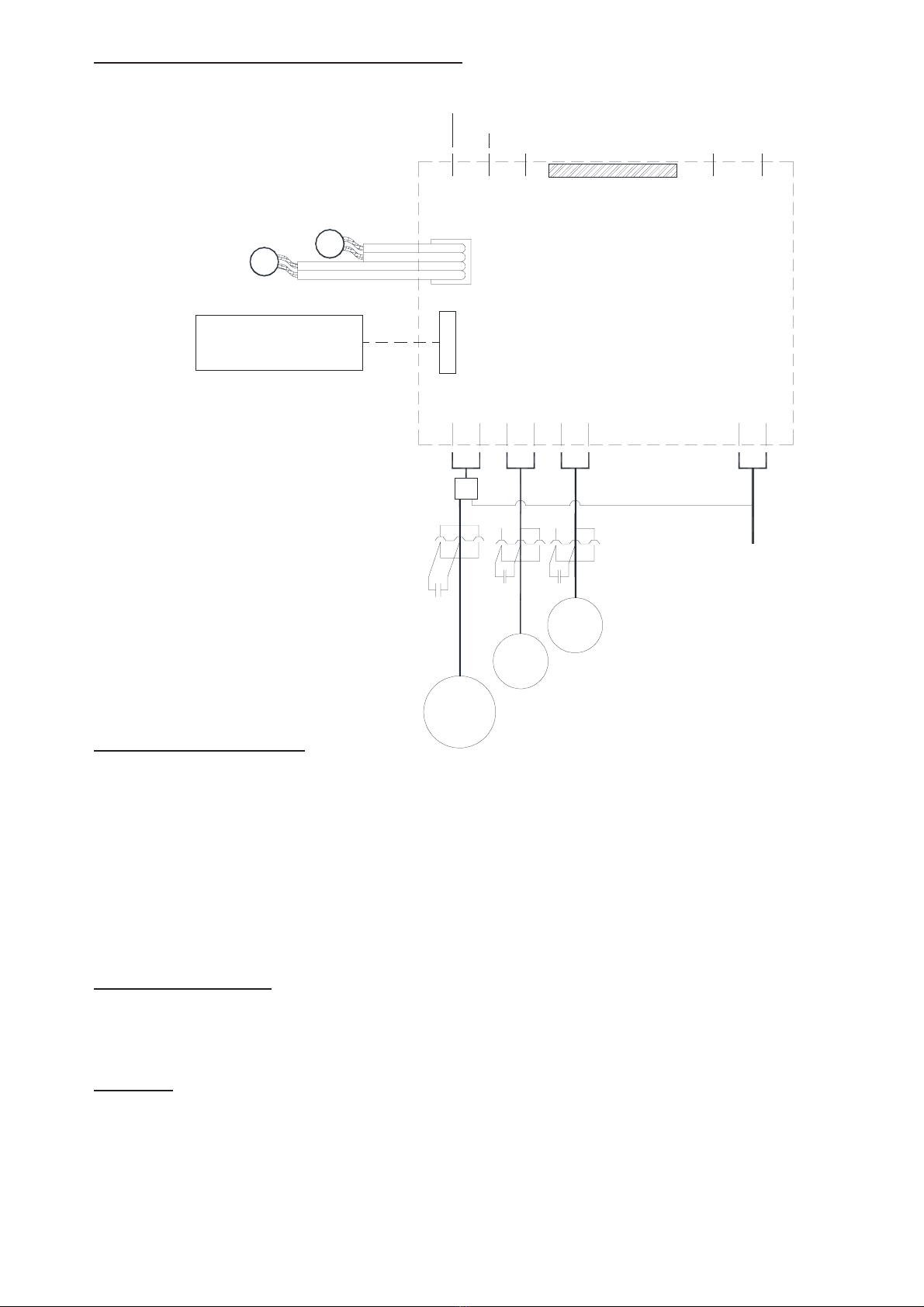

HIPROSENT CONTROL (EHE015-5)
Control and Monitor
A1 = Main controller
SW1, SW2 = Temperature adjustment
D1 = Temperature display
LED1 = Condensing temp. over heat
LED2 = Unit is working
LED3 = Power on
Cable and signal
S1 = Cooling space temp. sensor
S2 = Condensing temp. sensor
220VAC
C1 = Capacitor
M1 = Compressor
M2 = Condenser Fan
M3 = Evaporator Fan
SR1 = Solid State Relay
1234
5
6
78
M3
1Ph
M2
1Ph
M1
1Ph
220V 50/60Hz
Main connection
from 10A BREAKER
supply by Customer
S1
S2
C1
A1
LED2LED1LED3 SW1
SW2
D1
SR1
Hi-Lo Voltage Control
Characteristics (under normal operating condition at ambient temp. +35 oC)
Model 70ACU/005
Capacity
Watt
2400
Installation type panel
Input single-phase (V.) 220V+20% / -15%
frequency (Hz.) 50/60
current (A.) 6
Compressor hermetic type rotary
refrigerant type r407c
System operate Direct expand yes
Hi-prosent ctrl1. thermostat yes
condensor thermal detector yes
anti-freeze detector none
compressor overheat detector none
water detector none
Protection over drain protect system yes
Display thermometer (red 7 segment 19 mm.) yes
system status (2 colour LED) yes
Electrical equip. safety device 7A. slow-blow fuse
Evaporator coil face area x rows 96 sq.inch x 3
blower fan(r.p.m.) 1440
number of blower fan x cfm 1 x 360
Condenser coil face area x rows 172.5 sq.inch x 5
centrifugal fan (r.p.m.) 2480
number of centrifugal fan x cfm 1 x 710
Physical data approx.weight (kgs.) 75.3
dimension (mm.) W:465 D:210 H:1600
condensate drain OD. 1/2 inch
internal casing electro-galvanize
Air filter width x lenth (mm.) 305 x 285
2. Specifications
6
RETURN AIR TO
AIR CONDITIONER
COLD AIR OUT

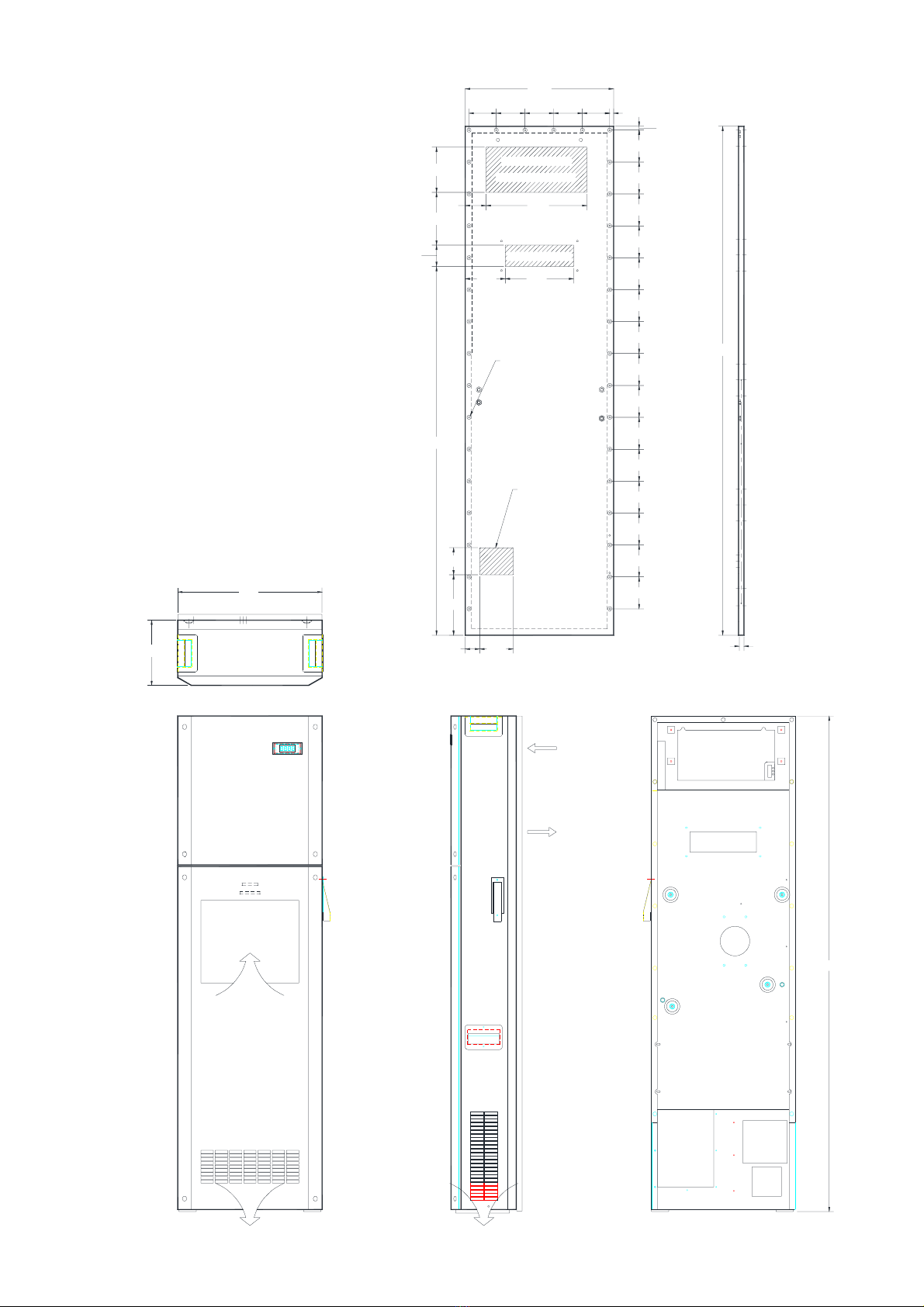

Cutting & Drilling Templet
This dimension is viewed
from outside Cabinet
Drill 3.2 mm.
Cut for SocketPlug
DIMENSION in mm.
45 105
100
190
85 100
100
100
100
100
100
100
100
100
100
100
100
100
100
12
12
465
85.590909085.5
316
142
165
1155
67
66
130 214
15
1595
Installation Plate & Templet for cutting Area
View From Outside of Cabinet
REAR VIEW
Warm Air Out
Ambient Air In
Air Filter Pocket
TOP VIEW
FRONT VIEW
465
1600
210
Warm Air Out
Cold Air Out
Return Air In
SIDE VIEW
7
3. Notification
Before, drilling, and cut. should use clean dry cloth, or the inventory doesn’t
lead the electricity, covers the equipment for protects iron dust touches the
electrical equipment while installing. (In case of machine still operate.)
Cooling unit should be installed in the good circuration area
Check vertical and horizontal level of which their error shall be allowable
within +/- 2 oin order to facililate efficient drainage
Should always install gasket between Installation plate and Cooling Unit
before hang the cooling unit on the installation plate
Installing of drain tube (Page 17)
In order to minimize water condensation, cabinet doors should be tightly closed
during operation
Circulation fan should be installed in cabinet if various equipment is densely
installed inside
In order to obtain highest performance and durablility, repair and alteration of
cooling unit should be under care of distributor
Should not adjust temperature difference more than 10oC betwee
enviromental temperature and cooling space, to prevent moisture build up on
some part in the cooling area when you open the cabinet panel
If it is necessary to set temperature lower than 25oC, it is recommended to
use precision cooling unit or contact your Professional Maker.
The equipments that are locate in the cooling air stream have to be
obstructed by the insulator to prevent water condensation
8

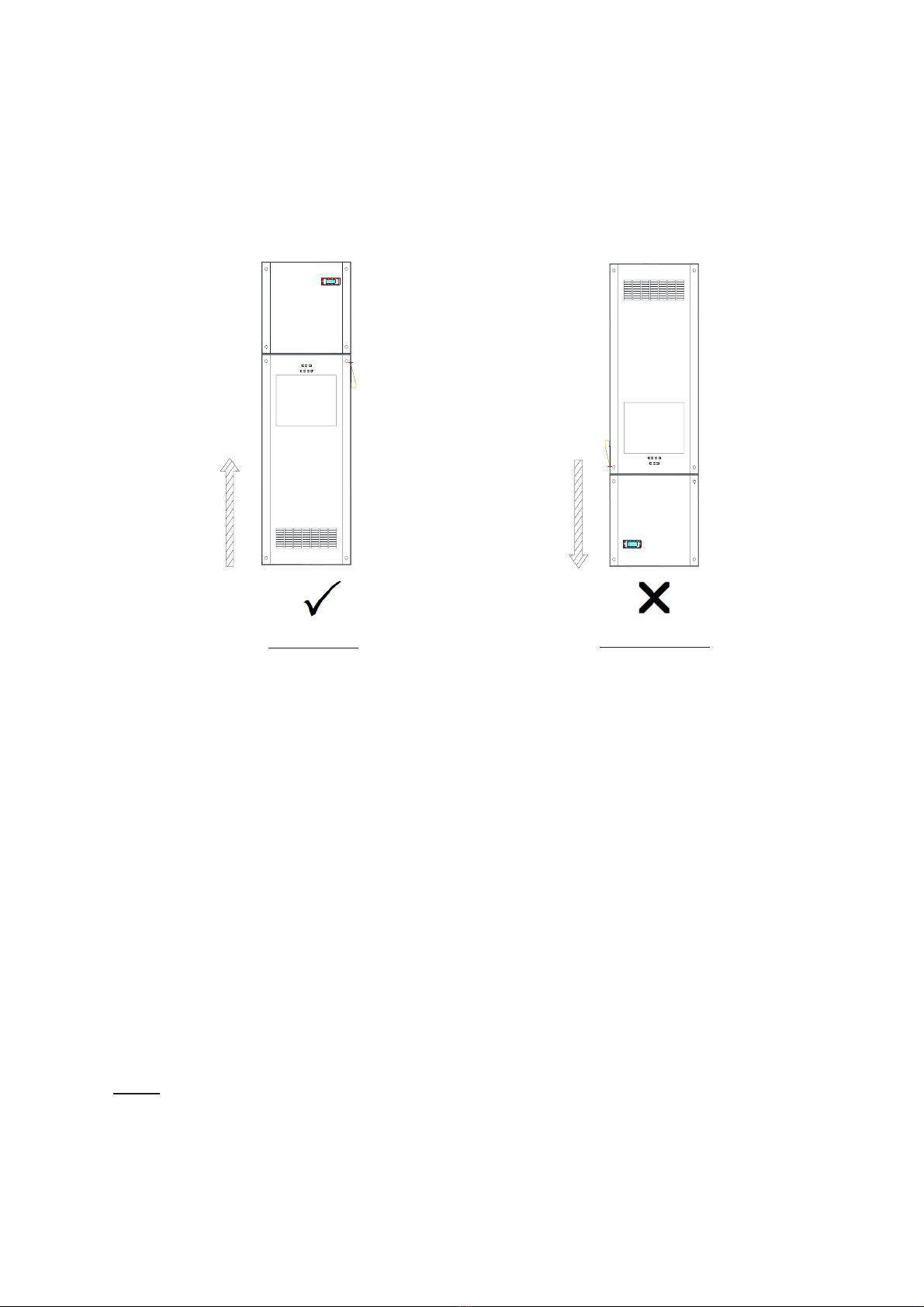

CORRECT INCORRECT
General Condition
Storage: Cooling unit should be stored at temp not exceeding 70 oC
Transportation: This type of cooling unit can't be laid down horizontally.
Installation: It shall be installed in vertical direction only
(please see figure below)
Disposal of damaged Cooling Unit
As its refrigeration system contain Refrigerant and lubricating oil for
compressor, in order to protect environment, these substances should be
disposed of properly or other under direction given by distributor.
4. Technical information
Protective equipment
Refrigeration system has been tested with high pressure device at 350 PSI.
This series of cooling unit also contains electronic circuit and sensors are
installed at significant points to monitor any defect of refrigeration cycle in order
to reduce burden of the user and to prolong use life of cooling unit at more
costeffective practice.
Note
- LED light will display green colour (continuously) to indicate condition.
- Under any abnormal condition, please see pages 21.
9
