Dimplex WRCPF-KIT Manuel utilisateur

Owner’s Manual

Model

WRCPF-KIT

7209110100R05

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this device. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

!NOTE: Procedures and

techniques that are considered

important enough to

emphasize.

CAUTION: Procedures

and techniques which, if not

carefully followed, will result in

damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations ..................3

Product Overview ...........................4

Receiver Installation (BF units only).............5

Wall Control Installation ......................7

Initialization ..............................13

Operation ................................14

Warranty.................................18

Welcome & Congratulations

Thank you and congratulations for purchasing a Wall Switch Remote

Control Kit from Dimplex.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

In order to better serve you, please have your model and serial number

ready or register your product online before calling (See above)

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in

a possible electric shock, re hazard and will void the warranty.

4 www.dimplex.com

Product Overview

The Wall Switch Remote Control

Kit is designed to work with

the following Dimplex electric

replaces:

• BF33STP

• BF33DXP

• BF39STP

• BF39DXP

• BF45DXP

• BFSL33

• BLF34

• BLF50

• BLF74

For the BF units, mentioned

above, follow the Remote

Receiver control installation

instructions starting on page 5.

For replace models BFSL33,

BLF34, BLF50 and BLF74, the

pre-installed remote receiver in

these models is compatible with

the Wall Switch Remote Control.

The Remote Receiver and

bracket contained in this kit will

not be required, proceed directly

to the Wall Control Installation

on page 7.

!NOTE: This equipment has been

tested and found to comply with

the limits for Class B digital device,

pursuant to part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses and

can radiate radio frequency energy

and, if not installed and used in

accordance with the instructions, may

cause harmful interference to radio

or television reception, which can be

determined by turning the equipment

off and on, the user is encouraged to

try to correct the interference by one or

more of the following measures:

· Reorient or relocate the receiving

antenna.

· Increase the separation between the

equipment and the receiver.

· Connect the equipment into an outlet

on a circuit different from that to which

the receiver is connected.

· Consult the dealer or an experienced

radio/TV technician for help.

Operation is subject to the following

two conditions: (1) this device may not

cause interference and; (2) this device

must accept any interference, including

interference that may cause undesired

operation of the device.

Receiver Installation (BF units only)

1. Open steel curtain (remove

glass doors if applicable).

2. Remove two (2) screws on log

grate and remove log grate

(Figure 1).

5. Locate and depress the

mounting tabs on the plug con-

nector and remove the manual

control bracket from replace

(Figure 3).

6. Locate the plastic 9-pin plug

in the bottom corner of the

replace where the manual

controls were plugged in to.

Figure 1

Manual Controls

Screws

3. Pull front edge of plastic em-

ber bed grate up and forward

until rear tab releases from the

ledge located at the bottom

of the partially reective glass

(Figure 2).

!NOTE: Log set ts tightly into

rebox, some force may be

necessary to remove.

4. Locate and remove the two (2)

screws on the manual control

bracket (Figure 3). Remove

the bracket.

Figure 2

Back

ledge

Log

ember

bed

Rear

tab Front

edge

Side section

Figure 3

Mounting

tabs

Plug

connector

Manual controls

Screw locations

6 www.dimplex.com

7. Insert the plug connector from

the remote control bracket

(Figure 4) into plastic plug

inside the replace.

8. Run black antenna wire under

remote bracket and ensure

all wiring is placed such that

it does not interfere with re-

assembly.

9. Install the two (2) screws

removed in step 4 into the

remote control bracket and

attach it to the replace.

10.Replace the log set by insert-

ing front edge and pushing the

back down until rear tab snaps

under back ledge (Figure

2) and the logs are resting

against the partially reective

glass.

11.Replace log grate using two

(2) screws previously removed

in step 2.

Figure 4

Remote Control

Plug

Connector

Antenna

Receiver Installation (BF units only)

Wall Control Installation

!NOTE: All electrical wiring

must comply with all national

and local electrical codes and

regulations. Always use a

qualied and licensed electri-

cian should you have any

questions or concerns for all

wiring work.

!NOTE: The Wall Switch

Remote Control is made to

t standard Decora style

faceplates. Due to material

inconsistencies of individual

faceplates, it may be neces-

sary to remove the faceplate

for operations such as chang-

ing batteries.

Site Selection for Installation

Although this Wall Switch Remote

Control can operate on battery

power or by hard wire installa-

tion, a convenient and accessible

location should be chosen. The

range of the Wall Switch Remote

Control is approximately 50 feet

(15 m).

Installation requires the use of a

standard device box and should

the hard wire installation method

be chosen, a location near an

available 24V~ power source

should be considered.

WARNING: Electrocution or

other bodily harm and property

damage can occur if a live wire

is touched or damaged during

installation. Always consult

electrical schematics for the

installation location of all wir-

ing or consult a qualied and

licensed electrician before you

begin.

Installation

Required Tools and Hardware:

• Flat head screwdriver

• Wire cutters / strippers

• Two (2) wire nuts for 22 AWG

wire

• Standard wall device box with

minimum depth of 2.5 inches

(6.35 cm)

• 24V~ Power supply (for hard

wired power installation if

applicable)

Battery Powered Installation

1. Remove the Wall Switch Re-

mote Control and installation

hardware from its package.

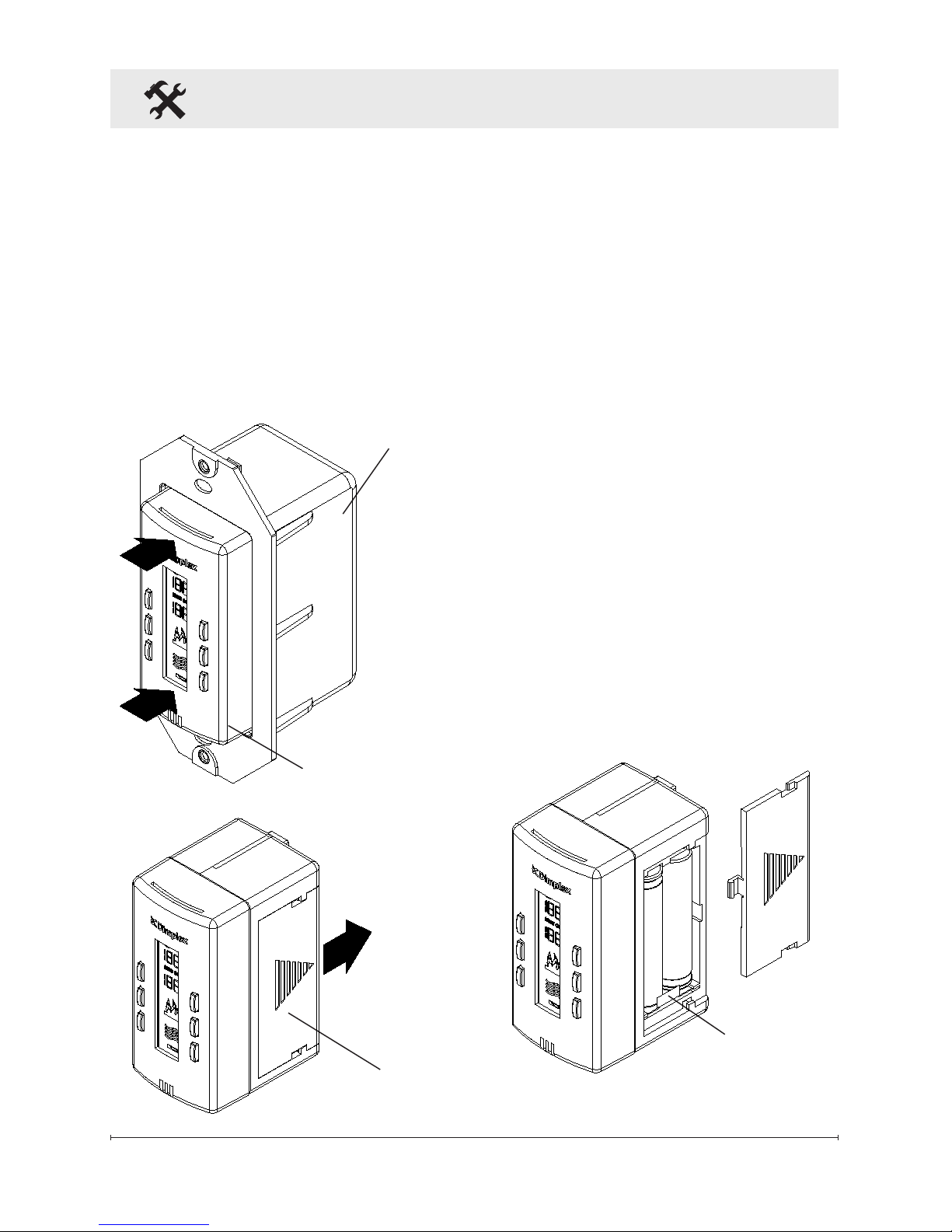

2. Release the Controller from

its Outer Housing by pushing

the front face into the Outer

Housing until you hear a click.

This will release the push-lock

latches and allow the Control-

8 www.dimplex.com

Figure 5 Outer

Housing

Controller

ler to be removed from the

Outer Housing (Figure 5).

3. Open the Battery Compart-

ment as shown in Figure 6 and

remove the Insulating Strip as

shown in Figure 7.

4. Replace the battery compart-

ment cover.

Wall Control Installation

5. Reinsert the Controller back

into the Outer Housing by

realigning the tracks on the top

and bottom of the unit with

the guides inside the Outer

Housing. Push the Controller

in until you hear the push-

lock latches click (Figure 8).

6. Slide the Controller and Outer

Housing assembly into a stan-

dard device box and fasten

with the two (2) at head

screws (supplied) as shown in

Figure 9.

7. Attach your choice of Decora

style faceplate (not supplied)

to complete the installation

and to blend the installation in

with your choice of decor.

Figure 6

Battery

Compartment

Figure 7

Insulating

Strip

Wall Control Installation

Hard Wired Power Supplied

Installation

Before starting this installation,

it is helpful to initialize the Wall

Switch Remote Control with your

rebox (see Initialization section).

You should have the following

items ready and prepared:

• Installed standard wall device

box with a minimum depth of

2.5 inch (6.35 cm).

• A 24V~ power source leading

to the device box. Possible

sources could be a 24V~ door-

bell circuit or a Class 2 24V~

transformer.

• The 24V~ wire leads coming

into the device box should have

between 4 and 6 inches (10-15

cm) of slack left inside the box

to allow for ease of installation

and/or servicing.

• You may also leave the sup-

plied AAA batteries in the

Controller. There is an internal

electronic bypass that will draw

on the hard wired power source

before the batteries.

1. Unpack the Wall Switch Re-

mote Control and all hardware

from its package.

2. Release the Controller from

Figure 8

Outer

Housing

Controller

Guides

Tracks

Figure 9

Controller

Flat head screws

(supplied)

Wall Box

Outer Housing

10 www.dimplex.com

Wall Control Installation

its Outer Housing by pushing

the front face into the Outer

Housing until you hear a click.

This will release the push-lock

latches and allow the Control-

ler to be removed from the

Outer Housing (Figure 5).

3. Push the wire lead storage

compartment cover on the

back of the Control towards

the right (as shown), and re-

move (Figure 10).

4. Uncoil the two wire leads and

feed each of them through one

of the two holes located on the

wire lead storage compartment

cover (make sure orientation is

as shown as in Figure 11).

5. Replace the wire lead storage

Figure 10

Figure 11

compartment cover on the

Controller with wire leads fed

through and exposed.

6. Feed the two wire leads from

the Controller through the two

holes in the back of the Outer

Housing as shown in Figure 12.

7. Gently pull the wire leads

through while pushing the

Controller into the Outer Hous-

ing until you hear the push

lock latches click, locking the

Controller in place (Figure 13).

Locking Screw Option (Figure 14)

To prevent tampering, dam-

age, and theft, it is suggested to

install the locking screws. Once

installed, the locking screws will

prevent the Controller from being

released from the Outer Housing

Autres manuels pour WRCPF-KIT

Table des matières

Autres manuels Dimplex Télécommande

Dimplex

Dimplex Multi-function Remote Control Manuel utilisateur

Dimplex

Dimplex DPCRWS Series Manuel utilisateur

Dimplex

Dimplex BFRC-KIT Manuel utilisateur

Dimplex

Dimplex DPCRWS Series Manuel utilisateur

Dimplex

Dimplex MULTIFIRE DF3215 Manuel utilisateur

Dimplex

Dimplex RC3215 Manuel utilisateur

Dimplex

Dimplex DPCRWS Series Manuel utilisateur

Dimplex

Dimplex WRCPF-KIT Manuel utilisateur

Dimplex

Dimplex 7206620100R02 Manuel utilisateur

Dimplex

Dimplex CX-MPC Manuel utilisateur

Dimplex

Dimplex Integrated On/Off Remote Manuel utilisateur

Dimplex

Dimplex Midline Remote Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
