Dimplex DWOP20R Manuel utilisateur

Owner’s Manual

Model

DWOP20R

7212770100R01

IMPORTANT SAFETY INFORMATION: Always read this manual

rst before attempting to install or use the wall mount engine. For

your safety, always comply with all warnings and safety instructions

contained in this manual to prevent personal injury or property

damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this engine.

!NOTE: Procedures and

techniques that are considered

important enough to

emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result in

damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations ....................3

IMPORTANT INSTRUCTIONS ..................4

Installation ..................................6

Assembly ...................................9

Operation ..................................11

Maintenance ...............................14

Warranty .................................16

Replacement Parts ..........................18

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an Optimyst®

wall mount engine from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label of your wall mount engine.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

Model Number

Serial Number

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

① Read all instructions before

using the engine.

②

The heater is hot when in use.

To avoid burns, do not let bare skin

touch hot surfaces. The trim around

the heater outlet becomes hot

during heater operation.

DANGER:

High temperatures

may be generated under certain

abnormal conditions. Do not

partially of fully cover the front of

this heater.

③

Extreme caution is necessary

when any heater is used by or near

children or invalids and whenever

the unit is left operating and

unattended.

④ Always unplug the engine

when not in use.

⑤ Do not operate any unit with

a damaged cord or plug, or if

the engine has been dropped or

damaged in any manner. Contact

Dimplex Technical Service at

1-888-346-7539.

⑥ Do not use outdoors.

⑦ The engine is not intended for

use in bathrooms, laundry areas

IMPORTANT INSTRUCTIONS

and similar indoor locations.

Never locate unit where it may

fall into a bathtub or other water

container.

⑧ Do not run the cord under

carpeting. Do not cover cord with

throw rugs, runners, or the like.

Arrange cord away from trafc

area and where it will not be

tripped over.

⑨ To disconnect the unit, turn the

controls off, then remove the plug

from the outlet.

⑩ Always use properly grounded,

fused and polarized outlets.

⑪

Do not insert or allow foreign

objects to enter any ventilation or

exhaust opening as this may cause

an electric shock or re, or damage

to the heater.

⑫

To prevent a possible re, do

not block air intake or exhaust

in any manner. Do not use on

soft surfaces, like a bed, where

openings may become blocked.

⑬

All electrical heaters have hot

and arching or sparking parts inside.

Do not use in areas where gasoline,

paint, or ammable liquids are used

or stored or where the unit will be

exposed to ammable vapors.

⑭ Do not modify the engine.

Use it only as described in

SAVE THESE INSTRUCTIONS

this manual. Any other use

not recommended by the

manufacturer may cause re,

electric shock or injury to persons.

⑮

To reduce the risk of electric

shock, this appliance must be

grounded. Avoid the use of an

extension cord. Extension cords

may overheat and cause a risk of

re. Always plug heaters directly

into a wall outlet/receptacle. Never

use with an extension cord or

relocatable power tap (outlet/power

strip).

⑯ Do not burn wood or other

materials in the engine.

⑰ Always use a certied

electrician should new circuits or

outlets be required.

⑱ Disconnect the power supply

before performing any cleaning,

maintenance or relocation of the

unit.

⑲

When transporting or storing

the unit and cord, keep in a

dry place, free from excessive

vibration and store so as to avoid

damage.

⑳ The wall mount engine must

not be located directly below a

socket outlet.

㉑ The wall mount engine must

be positioned so that the plug is

accessible.

WARNING: Remote control

contains small batteries.

Keep away from children. If

swallowed, seek medical attention

immediately.

WARNING: Do not install

battery backwards, charge, put

in re or mix with used or other

battery types - may explode or

leak causing injury.

!NOTE: Changes or

modications not expressly

approved by the party responsible

for compliance could void

user's authority to operate the

equipment.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com

Installation

WARNING: Ensure the power

cord is not installed so that it is

pinched or against a sharp edge

and ensure that the power cord is

stored or secured to avoid tripping

or snagging to reduce the risk

of re, electric shock or injury to

persons.

WARNING: Construction

and electrical outlet wiring must

comply with local building codes

and other applicable regulations

to reduce the risk of re, electric

shock and injury to persons.

WARNING: Do not attempt

to wire your own new outlets or

circuits. To reduce the risk of re,

electric shock or injury to persons,

always use a licensed electrician.

WARNING: To reduce the risk

of re, do not store or use gaso-

line or other ammable vapors or

liquids in the vicinity of the heater.

!NOTE: A 15 Amp, 120 Volt

circuit is required. A dedicated

circuit is preferred but not

essential in all cases. A dedicated

circuit will be required if, after

installation, the circuit breaker

trips or the fuse blows on a

regular basis when the heater is

operating. Additional appliances

on the same circuit may exceed

the current rating of the circuit

breaker.

Wall Hanging Instructions

WARNING: The supplied

mounting components are

designed for use with Dimplex

wall mounted engines only.

Improper use, or use for

purposes other than intended,

may cause damage or injury.

WARNING: Failure to install

the replace as instructed

below may result in damage

to the equipment and or may

expose the user to the risk of

re, serious injury, illness or

death.

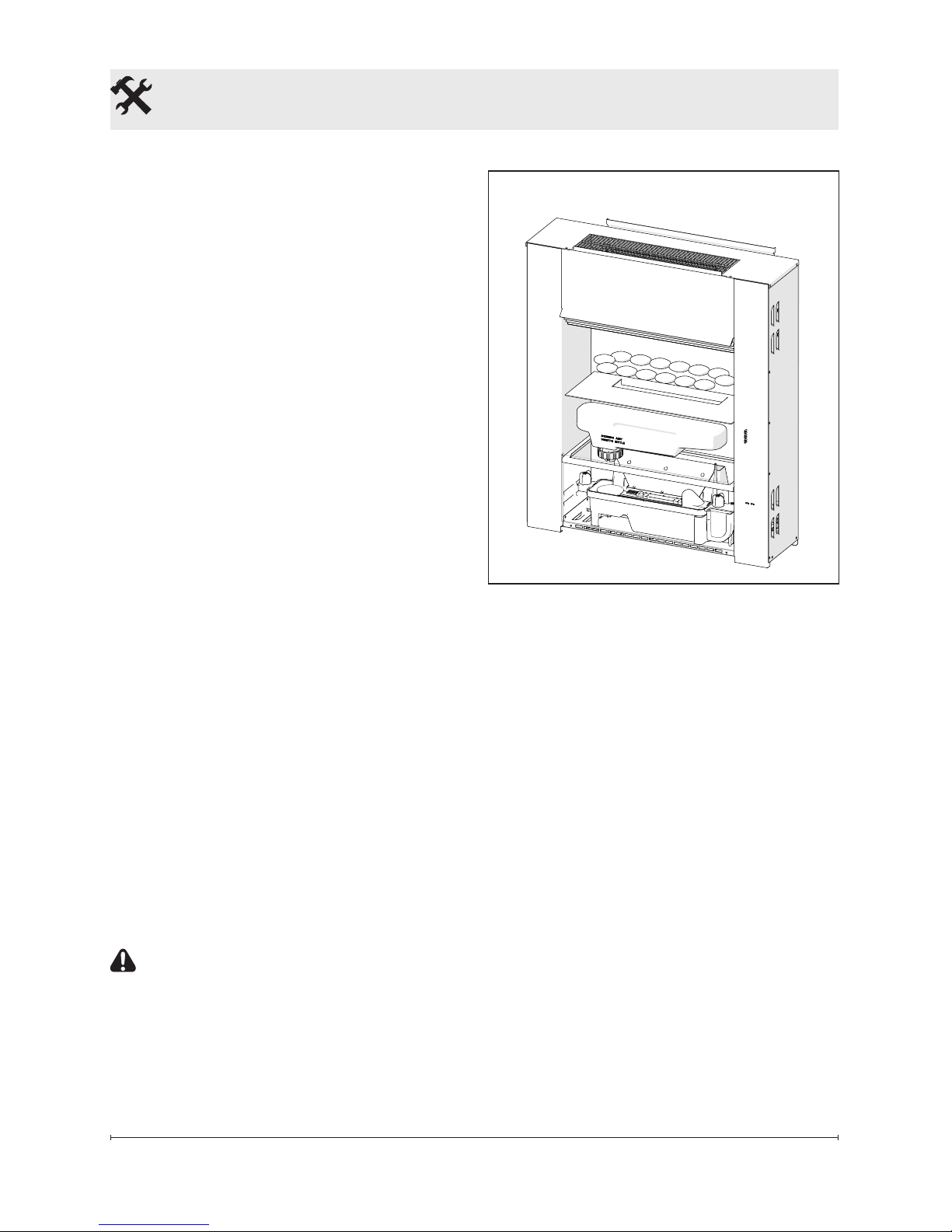

1. Remove the two screws that

secure the hanging bracket

to the back of the rebox.

(Figure 1)

WARNING: The replace

requires the wall hanging

bracket screws to be installed

into a minimum of one wall

stud.

2. Select an appropriate location

to mount the unit on a wall,

above an electrical outlet.

Access to the electrical outlet

must be maintained. Ensure

the installation meets the

Installation

Figure 1

national and state/provincial

electrical codes.

!NOTE: It is recommended

that the bottom of the unit

not be mounted higher than

1020mm (40") from the

Fireplace Installation ground

to maintain an optimized

viewing angle of the ame.

(Figure 2)

!NOTE: Wall anchors must

be installed in the appropriate

wall locations to fasten the wall

bracket to drywall. (Figure 3)

3. Hold the wall hanging

bracket on the wall and mark

the location of ONE of the

securing holes.

4. Place the bubble level onto

the top of the wall hanging

bracket.

5. Adjust the wall hanging

bracket so the bubble on the

40 in (1020 mm)

RECOMMENDED

Figure 2

level is centered between the

two black lines.

6. Mark the two (2) screw

locations, on the wall,

ensuring that the wall bracket

stays level.

7. Install the supplied wall

anchors on the drywall

marked locations by placing

a #2 Phillips screwdriver into

the recess of the anchor.

8. Press the anchor into the wall

8 www.dimplex.com

in the desired marked position

while turning the anchor

clockwise until it is ush with

the wall.

9. Insert the wall anchor screws

through the wall bracket and

thread into the wall anchors.

Tighten the screw.

10. Install the remaining screw

through the bracket and into

the wall stud.

!NOTE: At least one of the

screws must be installed into a

wall stud.

11. Rotate the securing bracket

at bottom of the engine at

the back so that it is pointing

down. (Figure 3)

12. Mount the unit on the wall,

so that the tab on the engine

bracket has been inserted

into the hook on the wall

bracket. (Figure 4)

Installation

13. Secure the bottom of the wall

mounted engine to the wall

using the securing bracket

and the provided screw.

Figure 4

Figure 3

Wiring

Transducer

Rock

Media

Removable

Rell

Container

Light

Bulbs

Media Tray

Assembly

Figure 5

1. Carefully unpack all of the

components from the box.

(Figure 5)

2. Remove top cover by turning

the retaining tabs on both

ends of the water reservoir.

(Figure 6)

3. Install the light bulbs by

aligning the pins on the bulbs

and the xture and pressing

down until they are fully

inserted. (Figure 7)

4. Install the transducer so that

it is sitting level in the circular

Figure 6

holding area in the reservoir.

5. Orient transducer wire so that

it does not sit directly above

the emitter and the wire

passes through the slot in the

side of the tank. (Figure 7)

Top

Cover

Figure 7

Transducer

Emitter

Wire Slot

Remote

Control

10 www.dimplex.com

Assembly

6. Reinstall the top cover and

ensure both retaining tabs

have been turned so that they

are pointing inwards.

7. Fill and install the Rell

Container.

!NOTE: Normal tap water can

be used in the Optimyst® as long

as the tap water is not considered

to be hard water. In the event

your tap water is hard, you may

use softened water or distilled

water with 1/8 tsp of salt (0.5

mL) added to the water reservoir.

(The addition of additional salt

should only be used when you

notice that the unit is not produc-

ing mist as expected.)

!NOTE: During initial

installation, the Rell Container

should be relled after the

Reservoir has lled to ensure the

maximum operating time.

8. Install the media tray and

arrange the rock media on

top, so that the opening is not

blocked.

CAUTION: Do not arrange the

rock media while the unit is run-

ning, since the rocks may be hot.

9. Make sure the On/Off switch

is switched to Off (refer to

Operating Instruction section).

Figure 8

10. Plug the unit into a 15 Amp/

120 volt outlet.

Autres manuels pour DWOP20R

Table des matières

Langues :

Autres manuels Dimplex Cheminée intérieure

Dimplex

Dimplex RITZ20W Manuel utilisateur

Dimplex

Dimplex BFSL33 Manuel utilisateur

Dimplex

Dimplex SNG20 Manuel utilisateur

Dimplex

Dimplex Revillusion RBF24DLX Manuel utilisateur

Dimplex

Dimplex RILEY RLY20-AU Manuel utilisateur

Dimplex

Dimplex BFSL33 Manuel utilisateur

Dimplex

Dimplex SP16 Manuel utilisateur

Dimplex

Dimplex MULTIFIRE DF3015 Manuel utilisateur

Dimplex

Dimplex DF2603 Manuel utilisateur

Dimplex

Dimplex DF2690 Manuel utilisateur

Dimplex

Dimplex VVT75 Mode d’emploi

Dimplex

Dimplex BF33ST/DX Manuel utilisateur

Dimplex

Dimplex CAS500R Manuel utilisateur

Dimplex

Dimplex Revillusion Haydn Manuel utilisateur

Dimplex

Dimplex DF2600CG Manuel utilisateur

Dimplex

Dimplex MULTIFIRE DF3215 Manuel utilisateur

Dimplex

Dimplex Revillusion RBF30C-AU Manuel utilisateur

Dimplex

Dimplex EWMC-CC-SS Manuel utilisateur

Dimplex

Dimplex SILVERTON Manuel utilisateur

Dimplex

Dimplex BEETHOVEN Manuel utilisateur

Dimplex

Dimplex Ignite 50 Manuel utilisateur

Dimplex

Dimplex BF5000NT Guide de démarrage rapide

Dimplex

Dimplex DF2608 Manuel utilisateur

Dimplex

Dimplex PRISM BLF3451-AU Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
