Dimplex BOF4056 Manuel utilisateur

Owner’s Manual

Model

BOF4056

BOF4068

BOF6056

7213470100R01

IMPORTANT SAFETY INFORMATION: Always read this manual

rst before attempting to install or use the wall mount engine. For

your safety, always comply with all warnings and safety instructions

contained in this manual to prevent personal injury or property

damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this engine.

!NOTE: Procedures and

techniques that are considered

important enough to

emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result in

damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations ....................3

IMPORTANT INSTRUCTIONS ..................4

Installation ..................................6

Assembly ..................................10

Operation ..................................12

Maintenance ...............................15

Warranty .................................17

Replacement Parts ..........................19

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an Optimyst®

Pro engine from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

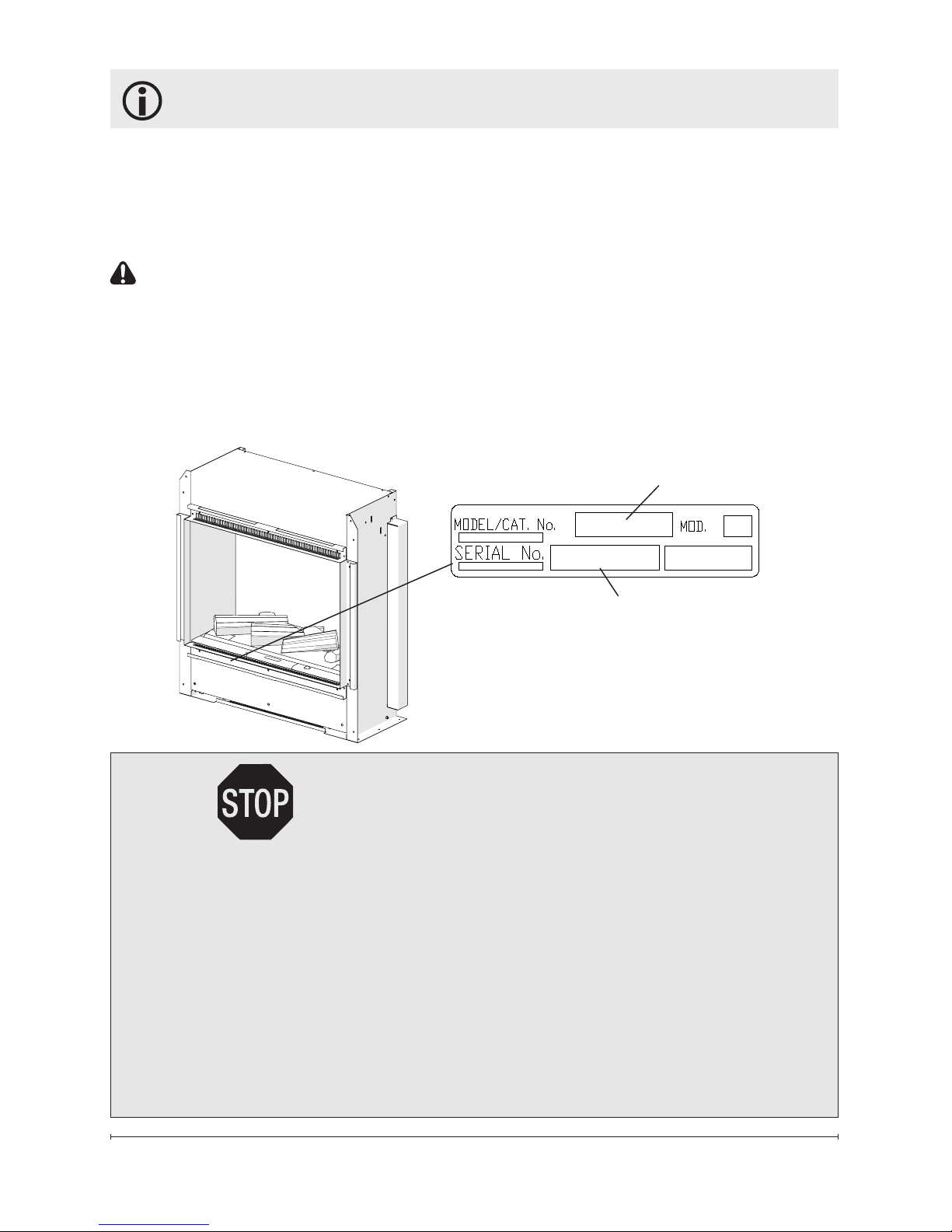

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label of your wall mount engine.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

Model Number

Serial Number

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

① Read all instructions before

using the engine.

②

The heater is hot when in use.

To avoid burns, do not let bare skin

touch hot surfaces. The trim around

the heater outlet becomes hot dur-

ing heater operation.

DANGER:

High temperatures

may be generated under certain ab-

normal conditions. Do not partially

of fully cover the front of this heater.

③

Extreme caution is necessary

when any heater is used by or near

children or invalids and whenever

the unit is left operating and unat-

tended.

④ Always unplug the engine

when not in use.

⑤ Do not operate any unit with

a damaged cord or plug, or if

the engine has been dropped or

damaged in any manner. Contact

Dimplex Technical Service at

1-888-346-7539.

⑥ Do not use outdoors.

IMPORTANT INSTRUCTIONS

⑦ Never locate unit where it may

fall into a bathtub or other water

container.

⑧ To disconnect the unit, turn

the controls off, then remove the

plug from the outlet or disconnect

power at the service panel.

⑨ Always use properly grounded,

fused and polarized outlets.

⑩

Do not insert or allow foreign

objects to enter any ventilation or

exhaust opening as this may cause

an electric shock or re, or damage

to the heater.

⑪

To prevent a possible re, do not

block air intake or exhaust in any

manner. Do not use on soft surfac-

es, like a bed, where openings may

become blocked.

⑫

All electrical heaters have hot

and arching or sparking parts inside.

Do not use in areas where gasoline,

paint, or ammable liquids are used

or stored or where the unit will be

exposed to ammable vapors.

⑬ Do not modify the engine.

Use it only as described in this

manual. Any other use not recom-

mended by the manufacturer may

cause re, electric shock or injury

to persons.

SAVE THESE INSTRUCTIONS

⑭

To reduce the risk of electric

shock, this appliance must be

grounded. Avoid the use of an ex-

tension cord. Extension cords may

overheat and cause a risk of re.

Always plug heaters directly into a

wall outlet/receptacle. Never use

with an extension cord or relocat-

able power tap (outlet/power strip).

⑮ Do not burn wood or other

materials in the engine.

⑯ Always use a certied electri-

cian should new circuits or outlets

be required.

⑰ Disconnect the power supply

before performing any cleaning,

maintenance or relocation of the

unit.

⑱ When transporting or stor-

ing the unit and cord, keep in a

dry place, free from excessive

vibration and store so as to avoid

damage.

⑲

The wall mount engine must

not be located directly below a

socket outlet.

⑳ The wall mount engine must

be positioned so that the plug is

accessible.

WARNING: Remote control

contains small batteries. Keep

away from children. If swallowed,

seek medical attention immedi-

ately.

WARNING: Do not install bat-

tery backwards, charge, put in re

or mix with used or other battery

types - may explode or leak caus-

ing injury.

!NOTE: Changes or modica-

tions not expressly approved by

the party responsible for compli-

ance could void user's authority to

operate the equipment.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com

Installation

The Optimyst Pro is supplied

in an assembled state and is

designed to be permanently in-

stalled. The unit comes ready for

hardwire installation.

WARNING: Construction and

electrical outlet wiring must

comply with local building

codes and other applicable

regulations to reduce the risk

of re, electric shock and injury

to persons.

WARNING: To reduce the

risk of re, do not store or use

gasoline or other ammable

vapors or liquids in the vicinity

of the heater.

!NOTE: A 15 Amp, 120 Volt cir-

cuit is required. A dedicated circuit

is preferred but not essential in all

cases. A dedicated circuit will be

required if, after installation, the

circuit breaker trips or the fuse

blows on a regular basis when the

heater is operating. Additional ap-

pliances on the same circuit may

exceed the current rating of the

circuit breaker.

WARNING: Failure to install

the replace as instructed

below may result in damage

to the equipment and or may

expose the user to the risk of

re, serious injury, illness or

death.

WARNING: Do not attempt to

wire your own new outlets or

circuits. To reduce the risk of

re, electric shock or injury to

persons, always use a li-

censed electrician.

WARNING: Ensure that the

On/Off switch is set to the Off

position (refer to Operation

section) and that the circuit

on which the replace is to be

installed has the power cut off

at the service panel until instal-

lation is complete.

!NOTE: Please read all instruc-

tions before installing.

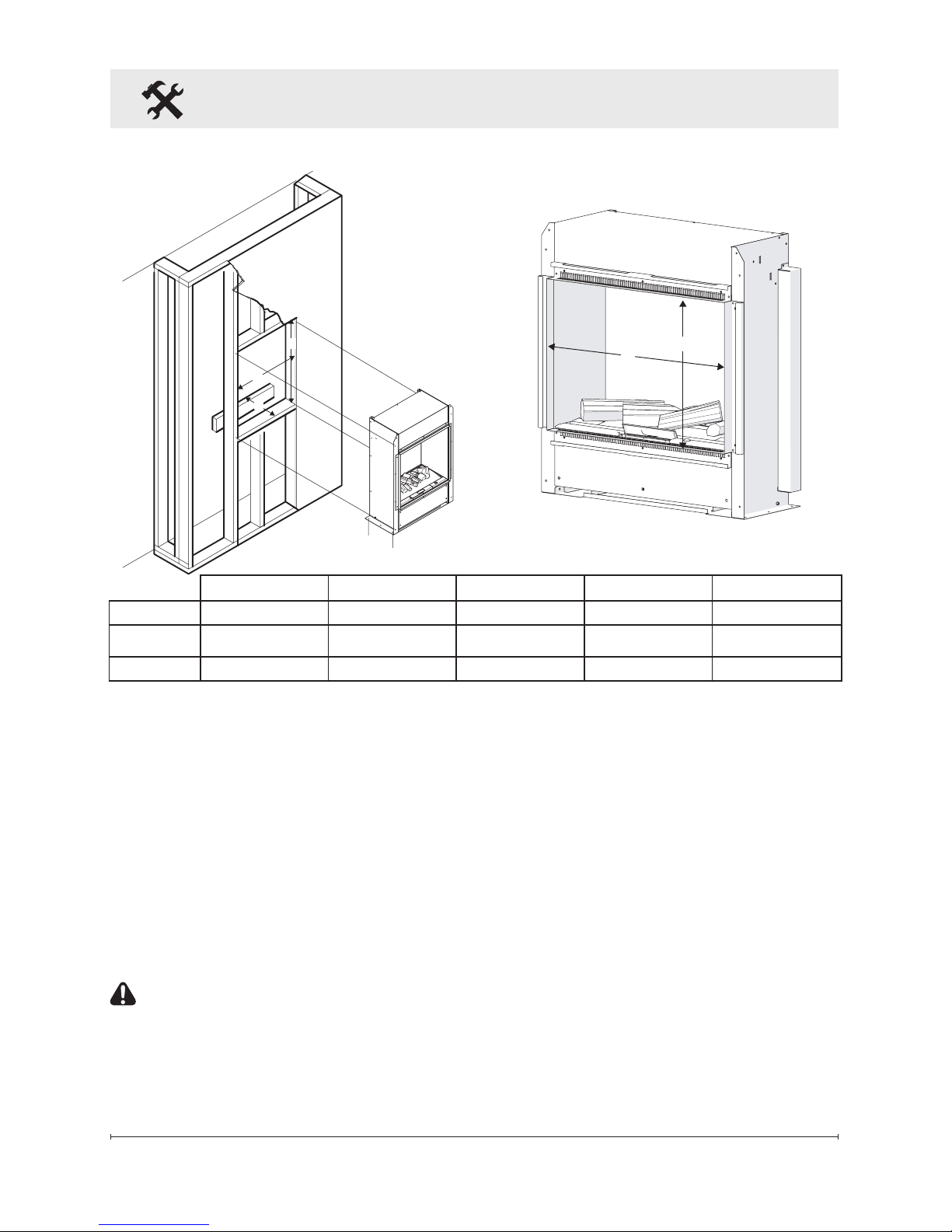

1. For rough in framing, the

opening should follow the

recommended dimensions

located in Figure 1.

!NOTE: Dimensions provided

are minimum clearances and will

vary depending on type of support

framing and nishing options.

!NOTE: It is recommended

that the bottom of the unit not be

mounted higher than 40 in. (1020

mm) from the ground to maintain

an optimized viewing angle of the

ame (Figure 2).

Installation

Figure 1

!NOTE: If installation in a cus-

tom mantel is desired, a power

cord accessory is available (BOF-

PLUGKIT) to plug the unit directly

into a wall outlet.

2. Allow up to 4 ft. (121.9 cm)

of service cable for connect-

ing a power supply wire to the

cable clamp on replace when

installing before nishing wall.

CAUTION: Use two conduc-

tor, non-metallic sheath cable

with ground wire (3 wires total)

for the incoming power supply on

replace inserts. Use appropriate

wire to meet local and national

electrical codes for rated power.

!NOTE: It is recommended that

all drywall installation and nish-

ing be completed after unit is fully

installed.

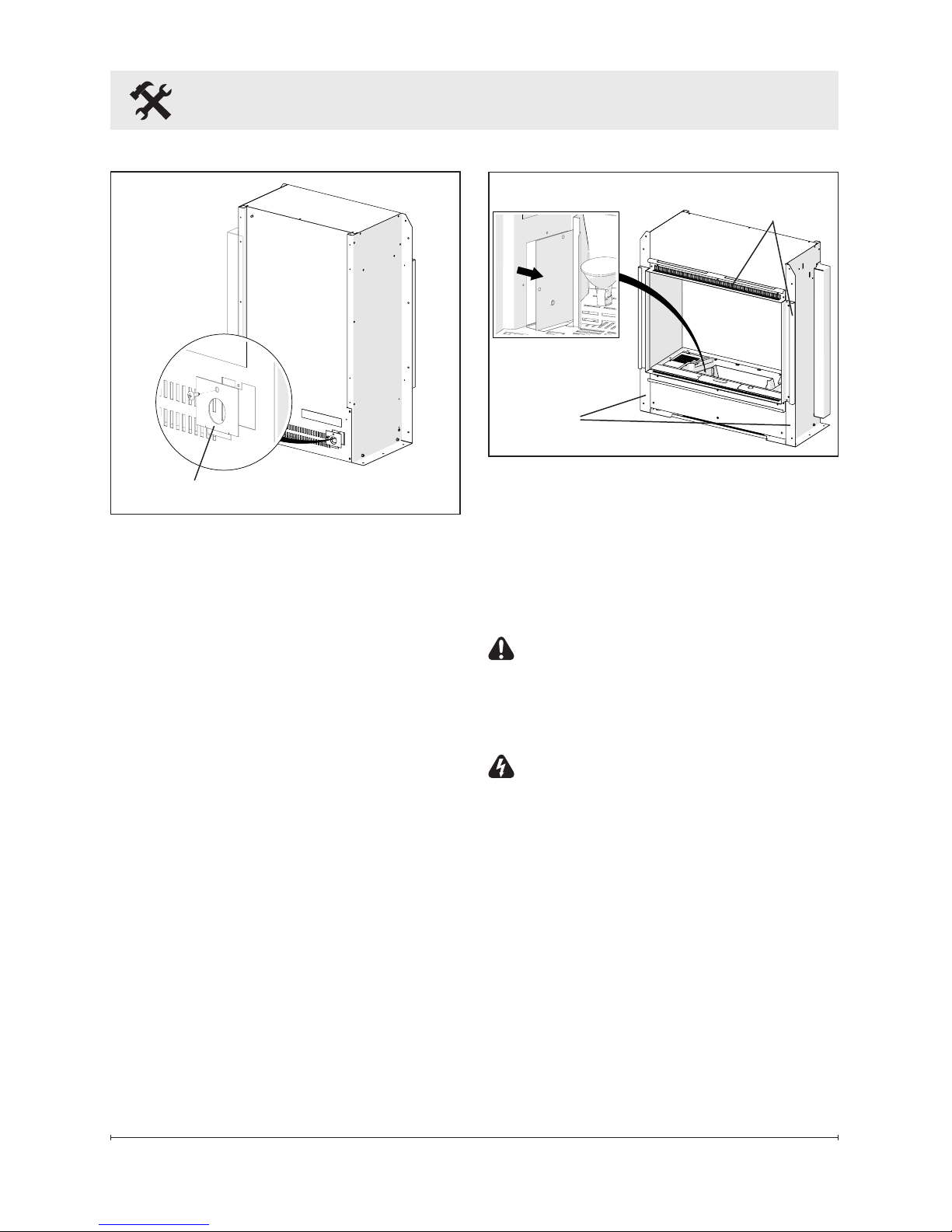

3. On the back of the unit remove

the cable clamp, by removing

the screw at the top (Figure 2).

4. Install a 3/8 in. (10 mm) or

1/2 in. (13 mm) cable connec-

tor, not included, suitable for

mounting in a 7/8 in. (22 mm)

hole, to the cable plate and

A B C D E

BOF4056 17.8in (451mm) 27.6in. (701mm) 10.0in. (255mm) 16.3in (413mm) 15.6in. (395mm)

BOF4068 17.8in (451mm) 32.4in. (823mm) 10.0in. (255mm) 16.3in (413mm) 20.4in. (517mm)

BOF6056 23.9in. (607mm) 27.6in. (701mm) 10.0in. (255mm) 22.4in (569mm) 15.6in. (395mm)

8 www.dimplex.com

Installation

feed the supply cable through

the connector and secure.

5. Remove the 3 wires from

within the unit.

6. Connect the black wire (live)

from the unit to the black wire

from power supply.

7. Connect the white wire (neu-

tral) from the unit to the white

wire from power supply.

8. Connect the green wire

(ground) from the unit to the

green wire from power supply.

9. Place all connectors inside

the unit and secure the cable

clamp to unit. Ensure that the

cable clamp grips only the

jacket of service cable.

!NOTE: Once the unit has been

fully installed there is an access

Figure 3

panel in the water reservoir cavity

where the wiring can be accessed

from the front following installation

(Figure 3).

10. Install the unit into the roughed

in framing.

CAUTION: When inserting

the unit take care not to damage

or pinch any of the power cables

that are concealed in the wall.

WARNING: Ensure the power

wiring is not installed so that it

is pinched or against a sharp

edge and ensure that the pow-

er wiring is stored or secured

to avoid tripping or snagging to

reduce the risk of re, electric

shock or injury to persons.

11. Secure the unit to the framing

through the side anges with

the provided 8 screws (Figure

3).

Side

Flanges

Trim

Figure 2

Cable Plate

>88cm2

>14 in2

(>88 cm2)

>14 in2

(>88 cm2)

>14 in2

(>88 cm2)

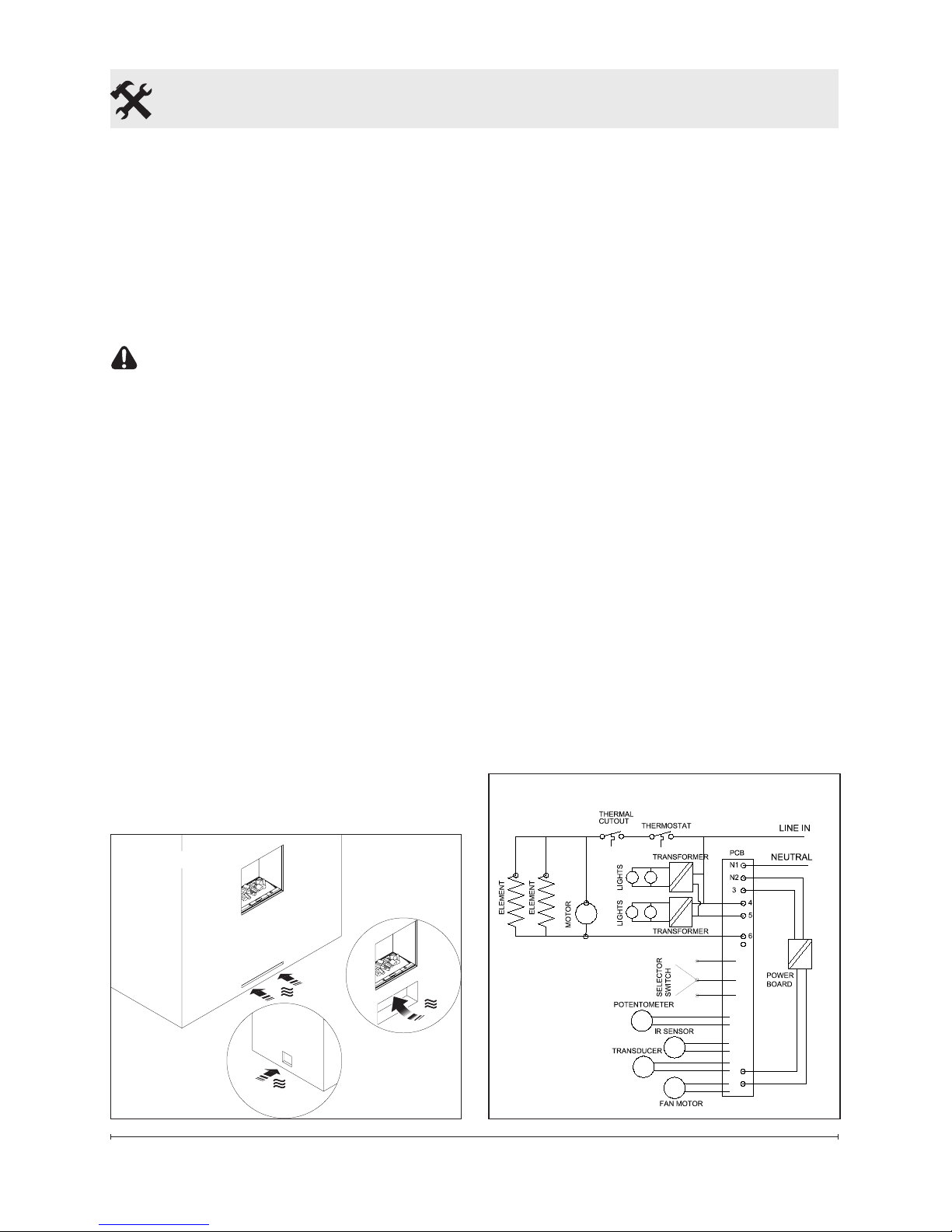

Wiring

Figure 4

Installation

12. Reinstall the dust panel that

came installed in the rebox

opening.

13. Finish surrounding wall. There

are 3 different options for n-

ishing the wall:

CAUTION: Do not remove the

trim around the opening of the

unit (Figure 3).

• Permanent- install drywall

right up to the ange that sur-

rounds the opening (Figure 4).

!NOTE: An air inlet that is a

minimum of 14 in2 (88 cm2) is

required for optimum mist produc-

tion, for minimum dimensions

(Figure 4).

• SemiPermanent- nish

around edge using ashing

material (not included).

• Flexible- create opening big

enough to access mounting

anges and a false front that

can be removed.

Bathroom Installation

This rebox must be protected

by a GFI circuit. If a receptacle

is used it must be readily acces-

sible.

To prevent electrical shock this

unit is an electrical appliance

that is not watertight and must be

installed as to prevent water from

entering the unit. This unit must

be installed away from showers,

tubs, etc. Never locate replace

where it may fall into a bathtub or

other water containers. Keep tow-

els and other combustible materi-

als 3 feet (0.9 m) away from the

front of the unit.

10 www.dimplex.com

Log

Media

Removable Rell

Container

Light

Bulbs

Assembly

Figure 5

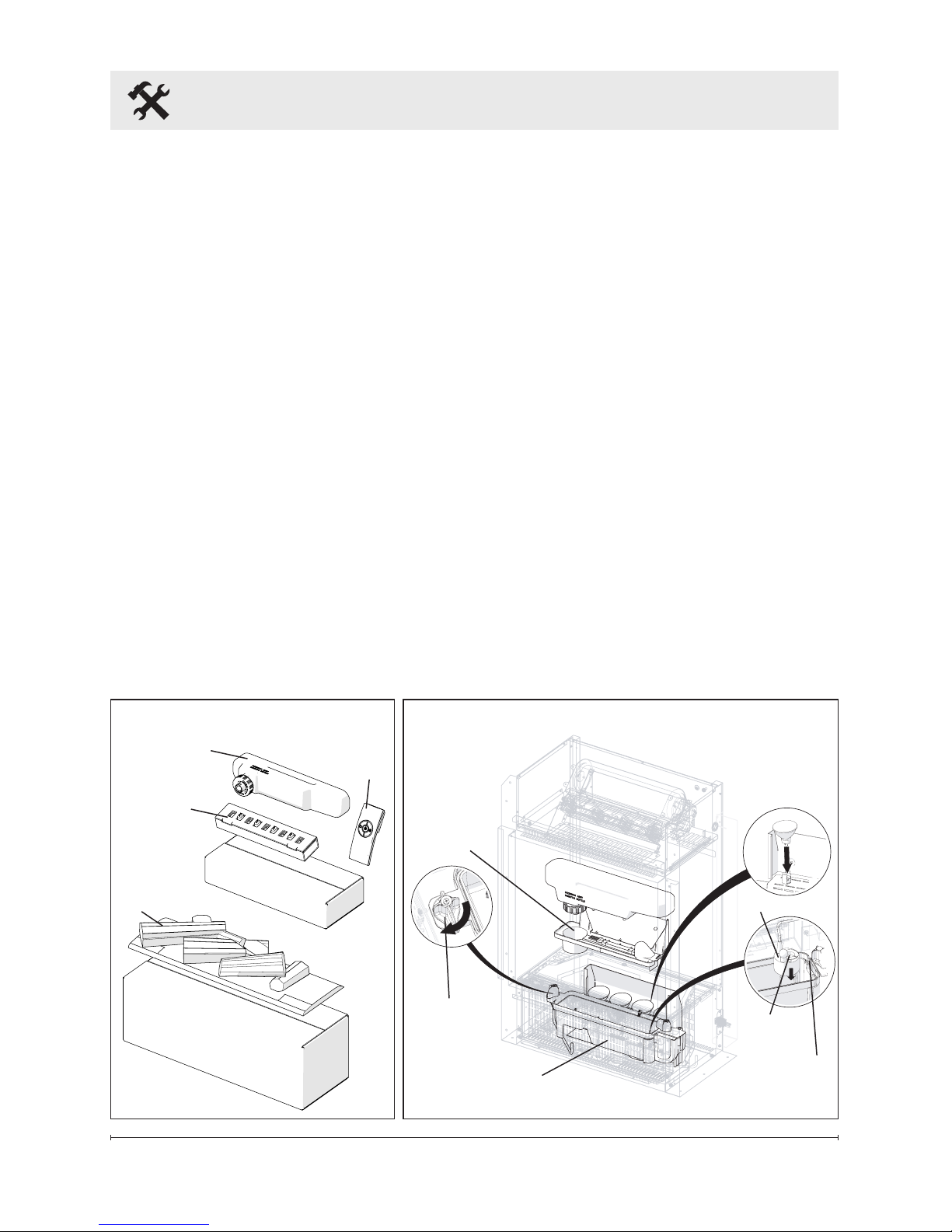

1. Carefully unpack all of the

components from the box.

(Figure 5)

2. Remove top cover by turning

the retaining tabs on both

ends of the water reservoir.

(Figure 6)

3. Install the light bulbs by

aligning the pins on the bulbs

and the xture and pressing

down until they are fully

inserted. (Figure 7)

4. Install the transducer so that

it is sitting level in the circular

holding area in the reservoir.

!NOTE: The transducer is

packed in the water reservoir and

wrapped to protect it during ship-

ping.

5. Orient transducer wire so that

it does not sit directly above

the emitter and the wire

passes through the slot in the

side of the tank. (Figure 6)

6. Reinstall the top cover and

ensure both retaining tabs

have been turned so that they

are pointing inwards.

7. Fill and install the Rell

Container.

!NOTE: Normal tap water can

be used in the Optimyst® as long

as the tap water is not considered

to be hard water. In the event

Top

Cover

Figure 6

Transducer

Emitter

Wire Slot

Remote

Control

Retaining

Tabs

Water

Reservoir

Autres manuels pour BOF4056

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dimplex Cheminée intérieure

Dimplex

Dimplex Purifire BF series Manuel utilisateur

Dimplex

Dimplex Opti-V Manuel utilisateur

Dimplex

Dimplex SP120 Manuel utilisateur

Dimplex

Dimplex IN-STUD V1525BT Manuel utilisateur

Dimplex

Dimplex CASSIDY Manuel utilisateur

Dimplex

Dimplex ENGDL20 S E Manuel utilisateur

Dimplex

Dimplex VF2927L Manuel utilisateur

Dimplex

Dimplex BLF74 Manuel utilisateur

Dimplex

Dimplex Navara Nav15 Log Manuel utilisateur

Dimplex

Dimplex RANA LED Manuel utilisateur

Dimplex

Dimplex Revillusion RBF30C-AU Manuel utilisateur

Dimplex

Dimplex 5011139048455 Manuel utilisateur

Dimplex

Dimplex DF2010-EU Manuel utilisateur

Dimplex

Dimplex Wynford WYN20BR Manuel utilisateur

Dimplex

Dimplex SF3202 Manuel utilisateur

Dimplex

Dimplex BF33STP Manuel utilisateur

Dimplex

Dimplex TIMRA TMR15 Guide d'installation

Dimplex

Dimplex DFOP25 Manuel utilisateur

Dimplex

Dimplex PRISM BLF3451-AU Manuel utilisateur

Dimplex

Dimplex BLF34 Manuel utilisateur

Dimplex

Dimplex CAS400LNH-INT Manuel utilisateur

Dimplex

Dimplex THWG XLF50 Manuel utilisateur

Dimplex

Dimplex XHD23 Manuel utilisateur

Dimplex

Dimplex Xpression SP220 Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
