PARTS AND SERVICE INSTRUCTIONS

FOR THE

ELECTRIC FIREPLACE

MODEL NUMBERS:

BF33STP/DXP

BF39STP/DXP

Valued Customer,

We are pleased that you have chosen to purchase an electric fireplace

manufactured by Dimplex North America Ltd.

Over the years, valuable memories will occur around the warmth and

comfort of your hearth. Thank you for allowing our product to be the backdrop

for those special moments.

70000000REV01

TABLE OF CONTENTS

OPERATION PAGE3

PARTS DRAWING PAGE 6

PARTSLIST PAGE7

WIRING DIAGRAM PAGE 8

MAIN ON/OFF SWITCH REPLACEMENT PAGE 9

PURIFIRE SWITCH REPLACEMENT PAGE 10

HEATER ON/OFF SWITCH REPLACEMENT PAGE 11

FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 12

VOLTAGE SELECTOR SWITCH REPLACEMENT PAGE 14

HEATER ELEMENT REPLACEMENT PAGE 17

BLOWER MOTOR REPLACEMENT PAGE 19

TEMPERATURE LIMIT SWITCH REPLACEMENT PAGE 23

REMOTE CONTROL KIT PAGE 27

OPERATION

MANUAL CONTROLS

(WITHOUT REMOTE OPTION)

The fireplace can be controlled by the manual

switches located on the fireplace (FIGURE 1).

Main Power Switch

Main ON/OFF switch, activates the flame effect.

Heater Control Switch

Heater ON/OFF switch, activates heater to the high

level.

MANUAL CONTROLS

(WITH REMOTE OPTION)

The fireplace can also be controlled in a similar

manner to the remote control with the manual

switches located on the fireplace (FIGURE 2).

(refer to initialization instructions on page 2)

Main Power Switch

Main ON/OFF switch supplies power to the circuit

board. When the Main ON/OFF switch is switched to

the ON position the Level 1 indicator light will flash.

On Switch

1. Pressing once on the remote control board “ON

SWITCH” activates the Level 1 function.

Level 1: The flame effect is turned on and the first

red indicator light is activated.

2. Pressing twice on the remote control board “ON

SWITCH” activates the Level 2 function.

Level 2: The flame effect remains on, the Purifire

is activated if Purifire switch is in the “-“ position.

Heater remains off.

3. Pressing three times on the remote control board

“ON SWITCH” activates the Level 3 function.

Level 3: The flame effect remains on, the Purifire

is activated if Purifire switch is in the “-“ position.

the heater is set to the high heat setting.

Off Switch

Pressing this button ONCE will turn the unit OFF.

OFF

SWITCH

LEVEL 1

INDICATOR

LEVEL 2

INDICATOR

LEVEL 3

INDICATOR

FIGURE 2

HEATER CONTROL

SWITCH

FIGURE 1

MAIN POWER

SWITCH

MAIN POWER

SWITCH

BFRC

KIT

PURIFIRE

SWITCH

PURIFIRE

SWITCH

Main Power

Switch

BF33STP, BF33DXP, BF39STP, BF39DXP

REMOTE CONTROL

The remote control has a range of approximately 50ft. (15.25m). It

does not have to be pointed at the fireplace and can pass through

most obstacles (including walls). It is supplied with one of 243

independent frequencies to prevent interference with other units.

The frequency designation is indicated on the back of the

transmitter (FIGURE 3).

Remote Control Initialization

This procedure is required every time there is a loss of power to the

remote control in the fireplace (i.e. power failure, breaker tripped,

main power switch is turned off)

1. Ensure that power is supplied through main service panel.

2. Access the manual controls, (remove glass doors if applicable)

pull the right hand steel curtain to the side of the unit.

(FIGURE 4)

3. Locate manual controls refer to FIGURE 5.

4. Activate main power switch, (“ ” position is “ON”, “ ” position

is “OFF”) red Level 1 indicator light will flash.

5. Press and hold the ON switch marked “ ” for five seconds.

The red Level 2 indicator light will flash.

6. Press the ON button located on the remote control transmitter

(FIGURE 3). This will synchronize the remote control

transmitter and receiver.

Remote Control Usage

The remote control operates the fireplace levels sequentially. The level is increased

every time the ON button on the transmitter is pressed. The fireplace can be turned off

at any point by pressing the OFF button on the remote control transmitter.

Level 1: The flame effect is turned on and the first red indicator light is activated.

Level 2: The flame effect remains on, the Purifire is activated if Purifire switch is in the

“-“ position. Heater remains off.

Level 3: The flame effect remains on, the Purifire is activated if Purifire switch is in the

“-“ position. the heater is set to the high heat setting.

FIGURE 3

MANUAL

CONTROLS

Level 1 Indicator

Level 2 Indicator

Level 3 Indicator

On Switch

Off Switch

FIGURE 4

Frequency

Code

FIGURE 5

OVERHEAT

INDICATOR

BF33STP, BF33DXP, BF39STP, BF39DXP

RESETTING THE TEMPERTURE CUTOUT SWITCH

The heater on this fireplace is protected with a safety device to prevent overheating.

Should the heater overheat, a red light (Fig. 4) will be activated and an automatic cut

out will turn the heater off. The heater will re-activate once the heater has cooled. The

overheat cutout will be triggered if the filter is dirty.

WALL MOUNTED CONTROLS

The fireplace can be installed with wall mounted controls. These controls include wall

switches and thermostats. (see installation guide for details)

A. Wall Mounted Switches

This model may be installed such that a wall mounted switch activates the flame effect

and a wall mounted heater switch activates the heater. A wall mounted switch can also

be installed to operate the heater independent of the flame.

B. Wall Mounted Thermostat

This unit may be installed such that a wall mounted thermostat can adjust the heat

temperature to your individual requirements. Turn the thermostat control clockwise all

the way to turn on the heater. When the room reaches the desired temperature, turn

the thermostat knob counter clockwise until you hear a click. Leave in this position to

maintain the room temperature at this setting. For additional heat, turn the thermostat

clockwise until you hear the click again and the heater will turn on. To turn the heater

off, turn the thermostat counter clockwise all the way, and/or turn the manual heater

switch on the unit to the OFF position.

VOLTAGE SELECTOR SWITCH LOCATION

IMPORTANT:

Ensure that the incoming power supply voltage

matches the setting of the voltage selector

switch.

NOTE:

The voltage selector switch is located

inside the exhaust panel on the top

right hand corner (FIGURE 6).

CAUTION:

When changing the voltage selector

switch from 240 volts to 120 volts

ensure that the power supply is turned

off.

NOTE:

Carefully insert a flat headed screwdriver inside the exhaust panel to change the switch

from 240 volts (230 position) to 120 volts (115 position).

FIGURE 6

BF33STP, BF33DXP, BF39STP, BF39DXP

REPLACEMENT PARTS

DIMPLEX BUILT IN FIREPLACE

REPLACEMENT PART BF33ST BF33DX

1. LOG SET 0438200300RP 0439230100RP

2. REFLECTOR ROD 5900081000RP 5900081000RP

3. GROMMET 8500000400RP 8500000400RP

4. FLICKER ASSEMBLY 6901811200RP 6901811200RP

5. BLOWER ASSEMBLY 5300110300RP 5300110300RP

6. BLOWER MOTOR 5300110400RP 5300110400RP

7. HEATER ELEMENT 2200510100RP 2200510100RP

8. CUTOUT 2300260300RP 2300260300RP

9. VOLTAGE SELECTOR 2500320200RP 2500320200RP

10.MAIN ON/OFF SWITCH 2800070400RP 2800070400RP

11.HEATER SWITCH 2800070700RP 2800070700RP

12.MIRROR SEMI-SILVERED 5900161000RP 5900161100RP

13.EXTRUSION 0438650200RP 0438650200RP

14.STEEL CURTAIN 8800240403RP 8800240403RP

15.STEEL CURTAIN ROD 8800250300RP 8800250300RP

16.LOWER LIGHT HARNESS 2500370200RP 2500370200RP

17.FILTER, PURIFIRE 0439060100RP 0439060100RP

REPLACEMENT PART BF39ST BF39DX

1. LOG SET 0438550200RP 0439070100RP

2. REFLECTOR ROD 5900080900RP 5900080900RP

3. GROMMET 8500000400RP 8500000400RP

4. FLICKER ASSEMBLY 6901811200RP 6901811200RP

5. BLOWER ASSEMBLY 5300110300RP 5300110300RP

6. BLOWER MOTOR 5300110400RP 5300110400RP

7. HEATER ELEMENT 2200510100RP 2200510100RP

8. CUTOUT 2300260200RP 2300260200RP

9. VOLTAGE SELECTOR 2500320200RP 2500320200RP

10.MAIN ON/OFF SWITCH 2800070400RP 2800070400RP

11.HEATER SWITCH 2800070700RP 2800070700RP

12.MIRROR SEMI-SILVERED 5900160600RP 5900160700RP

13.EXTRUSION 0438650100RP 0438650100RP

14.STEEL CURTAIN 8800240103RP 8800240103RP

15.STEEL CURTAIN ROD 8800250100RP 8800250100RP

16.LOWER LIGHT HARNESS 2500370200RP 2500370200RP

17.FILTER, PURIFIRE 0439060100RP 0439060100RP

OPTIONAL ACCESSORIES

18. REMOTE CONTROL KIT BFRC-KIT

19. WALL THERMOSTAT TS521W

BF33STP, BF33DXP, BF39STP, BF39DXP

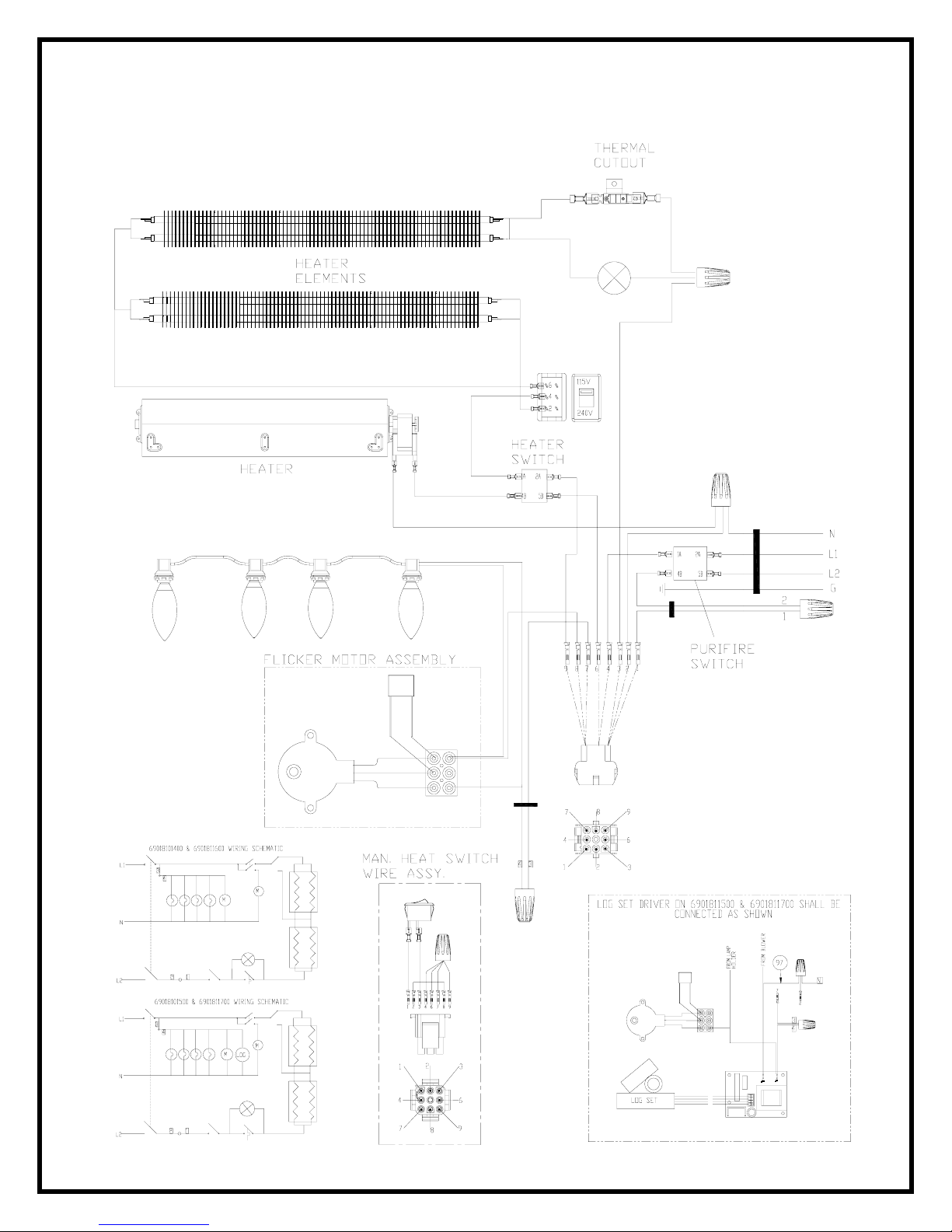

WIRING DIAGRAM

BF33STP, BF33DXP, BF39STP, BF39DXP

If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs

and heating elements to cool off to avoid accidental burning of skin.

Disconnect circuit power before attempting any maintenance or cleaning to reduce the

risk of electric shock or damage to persons.

TO REPLACE MAIN ON/OFF SWITCH

1. Open the steel curtains (remove glass doors if applicable).

2. Remove the log grate retaining screws and remove the log grate.

3. Pull the rear edge of the log set forward by grasping the ember bed by the sides

(handle the log set only by the ember bed and not the logs) and pulling firmly

until the rear tab pops out from under the back ledge, then lift out.

4. Disconnect the log set LED wire harness from unit. (DX MODELS ONLY)

5. Remove the light bulb closest to the main on/off switch for easier access.

6. Locate the switch cover plate and remove the mounting screws.

7. Remove the switch cover plate by releasing assembly from the quick connect

connection.

8. Reach hand into the opening and locate the main on/off switch.

9. Depress the retainer clips on the rear of the switch and push the switch out of the

bottom cover.

10.Disconnect the wiring connections noting their original locations.

11.Properly orientate the new switch and connect all of the wiring connections.

12.Reassemble in the reverse order as above.

NOTE: To replace the log set re-connect the logset LED wire harness to the unit,

insert the front edge, pushing back down until the rear tab snaps under the back

ledge and the logs are resting against the mirror.

BF33STP, BF33DXP, BF39STP, BF39DXP

If the fireplace was operating prior to servicing allow at least 10 minutes for light bulbs

and heating elements to cool off to avoid accidental burning of skin.

Disconnect circuit power before attempting any maintenance or cleaning to reduce the

risk of electric shock or damage to persons.

TO REPLACE PURIFIRE SWITCH
