Operating and Installation Instructions

FX 20 V Downflow Fan Heater 453321.66.70gb 09/03/A

1. Warnings

You are requested to read carefully all the information in

these instructions. Keep these instructions carefully and if

applicable pass them on to the final owner.

− The appliance is only to be used for the heating of

dwellings or similar spaces. It is only suitable for domestic

use or similar purposes within enclosed spaces.

− Repairs to the appliance are only to be carried out by a

competent electrician.

− In the event of a fault disconnect the electricity supply to

the appliance (turn off or remove the fuse).

− By covering the heater could cause a heat build up and

possibly lead to material igniting. You must observe the

minimum clearances.

− The surfaces, especially the air-outlet grille, become hot

during operation. For this reason ensure that small

children cannot touch these surfaces.

− No objects should be inserted through the openings of

the appliance.

− It is particularly important that the appropriate safety

− regulations for bathrooms, showers, swimming pools

etc. are fulfilled.

− The heater is to be installed in such a way that it cannot

be touched from a person in the bath or shower and that

the switch cannot be operated.

− The fixed installation must be provided with a switching

device having a contact separation of 3 mm in all poles

(e.g. overload release).

− No materials can be used in the room where the

appliance is installed whose fumes or the material itself

could give rise to ignition, explosion or thermal

decomposition due to the high temperatures.

2. Description

Heating capacity : 2 kW, 1 kW (depending on pre-setting)

Supply voltage : 1/N/~230V, 50 Hz

Construction class II: double insulated

System of protection: IP 22

Dimensions (W x H x D) : 229 x 109 x 242 mm

Weight : 1.4 kg

3. Minimum clearances, installation

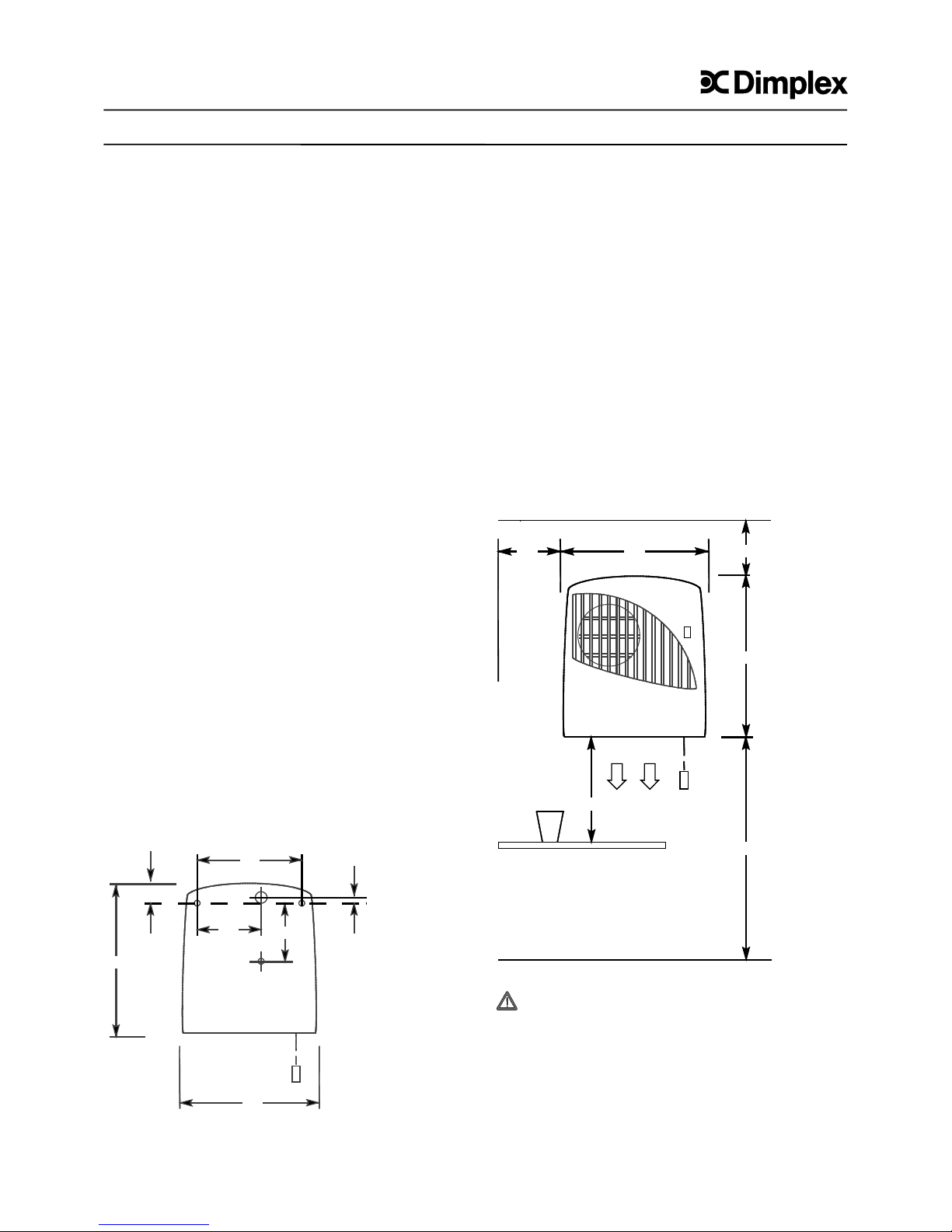

The sketch below shows the drilling dimensions and the

dimensions for the cable entry.

229

188

116 100

242

• The minimum clearances given in the mounting sketch

are to be observed.

• The heater must not be located immediately below a

fixed socket outlet.

• Do not place easily combustible objects, such as

curtains or heat sensitive plastics, in the direct airflow

from the unit.

• The fan heater should only be mounted on a vertical

wall as shown in the sketch below.

• Furthermore there must be a clearance of at least 350

mm from the front of the heater.

To fix the heater, remove the two screws securing the top

cover and remove the cover from the heater.

− Mark the position of the keyhole slots on the wall, drill

and plug for the two suitable screws (see sketch for

position).

− Partially insert the two screws, then hang the appliance

on these screws and mark the position of the lower

positioned screw.

− Remove the appliance, drill and plug the third screw.

− Remount the appliance on the wall and insert the supply

cable. Ensure that the appliance is horizontal and fix in

position by tightening the three screws.

1800

300

250

600

242

229

4. Electrical connection

Take care! The appliance must be installed by a

competent electrician.

The appliance may be connected directly to a fixed wiring or

to a flexible supply cable H05VV-F 2 x 1.0 mm² from a wall

connecting box.

The heater must not be located immediately above the wall

connecting box.

5. Presetting

Take care! The settings must be carried out by a

competent electrician. Ensure that the appliance is

disconnected from the mains.

5.1 Selecting the heating capacity

The wall mounted fan heater is provided with an internal

selector switch with which the output can be set during

installation to 1 kW or 2 kW corresponding to the size of the

room to be heated.

In rooms of less than 11 m3in volume, the 1 kW output

should be selected as otherwise nuisance tripping of the

thermal cut-out may occur.

In case of selecting the 2 kW position, the thermostat is in

operation and will switch automatically to 1 kW when the

preselected temperature is achieved.

Note: the heater is preset to 2 kW.

5.2 Selecting the temperature

Note: the thermostat will only function when 2KW is

selected.

The heater is fitted with an adjustable thermostat, which has

three different settings : 1. - Low, 2. - Medium, 3 - High.

This gives you an approximate room temperature range of

18°C - 32°C depending on room size. The temperature

switches to half heat when the room warms up. Full heat will

be switched on automatically when the room temperature

falls.

The thermostat has been factory set on ‘2’ (Medium).

6. Heater operation

The pull cord operates the ON/OFF switch. The pilot lamp

will illuminate when the heater is switched on.

7. Faults

If the heater is not heating, check whether the heater is

switched on (pilot lamp must illuminate). Check that it is

switched on at the distribution board and that the fuse is

intact.

Further directions are explained in section "9. Thermal

safety cut-out".

In the event of malfunctions in your heater, please contact

your local electrician or the nearest customer service point.

The E-Number and the FD code are required before

servicing can be carried out. You will find them on the rating

plate.

8. Cleaning the appliance

Switch off the heater before cleaning and allow to cool.

If dust accumulates, the heater should be cleaned from the

outside using a vacuum cleaner.

The outside can be cleaned by wiping it over with a soft

damp cloth and then dried. Do not use abrasive cleaning

powders or furniture polish, as this can damage the surface

finish.

9. Thermal safety cut-out

For your safety the heater is fitted with a thermal cut-out.

If the air circulation is restricted (e.g. hanging something

over or blocking the grille) the heater switches off

automatically. In order to bring the heater back into

operation remove the cause of the overheating. Switch off

the heater for a few minutes by pulling the cord and allow to

cool down after which normal operation may be resumed.

In addition the appliance is fitted with a thermal fuse link.

If there is abnormal overheating within the appliance, it

operates and opens the circuit.

10. Guarantee

The guarantee terms issued by our representatives in the

country of purchase are applicable for this appliance. The

dealer from whom the appliance was purchased will provide

details at any time on request. Presentation of a receipt is

essential for the implementation of the guarantee terms.
