Dimplex ECR15 Manuel utilisateur

For domestic household use only.

INSTRUCTION MANUAL

Oil Free Column Heaters

Models: ECR15, ECR15FA, ECR15TIF, ECR24,

ECR24FA & ECR24TIF

08/54526/0 ISSUE: 2

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR

FUTURE REFERENCE. Note also the information presented on the appliance

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/

OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY

Please read the operating instructions carefully before using your product for the rst

time and keep them in a safe place.

• When using electrical appliances, basic precautions should always be followed to

reduce the risk of re, electrical shock and injury to persons, including the following:

• If the appliance is damaged, check with the supplier before installation and operation.

- Do not use outdoors.

- Do not use in the immediate surroundings of a bath, shower or a

swimming pool.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heater on a horizontal and stable surface, or x it to the wall, as

applicable.

• Do not locate the appliance immediately below a xed socket outlet or connection

box.

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by

a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not use this appliance in series with a thermal control, a program controller, a

timer or any other device that switches on the heat automatically, since a re risk

exists when the appliance is accidentally covered or dis-placed.

• In the event of a fault, unplug the appliance.

• Unplug the appliance when not required for long periods.

• This product is only intended for INDOOR RESIDENTIAL applications only.

• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.

• DO NOT route cord under furniture or appliances. Take care to position the cord

away from trac areas and where it will not be a tripping hazard.

• This appliance must not be used in a bathroom.

• Although this appliance complies with safety standards, we do not recommend its

use on deep pile carpets or on long hair type of rugs

• The appliance must be positioned so that the plug is accessible.

• If the supply cord is damaged it must be replaced by the manufacturer or service

agent or a similarly qualied person in order to avoid a hazard.

• Keep the supply cord away from the front of the appliance.

• Do not use this heater in small rooms when they are occupied by persons not

capable of leaving the room on their own, unless constant supervision is provided.

• To reduce the risk of re, keep textiles, curtains and or ammable material a minimum

distance of 1m from the air outlet.

• In order to avoid overheating, DO NOT COVER the appliance. Do not place material

or garments on the appliance, or obstruct the air circulation around the appliance,

for instance by curtains or furniture, as this could cause overheating and a re risk.

• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this

appliance must not be supplied through an external switching device, such as a

timer, or connected to a circuit that is regularly switched on and o by the utility.

• Some parts of this product can become very hot and cause burns. Particular attention

has to be given where children and vulnerable people are present.

IMPORTANT

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR

FUTURE REFERENCE. Note also the information presented on the appliance

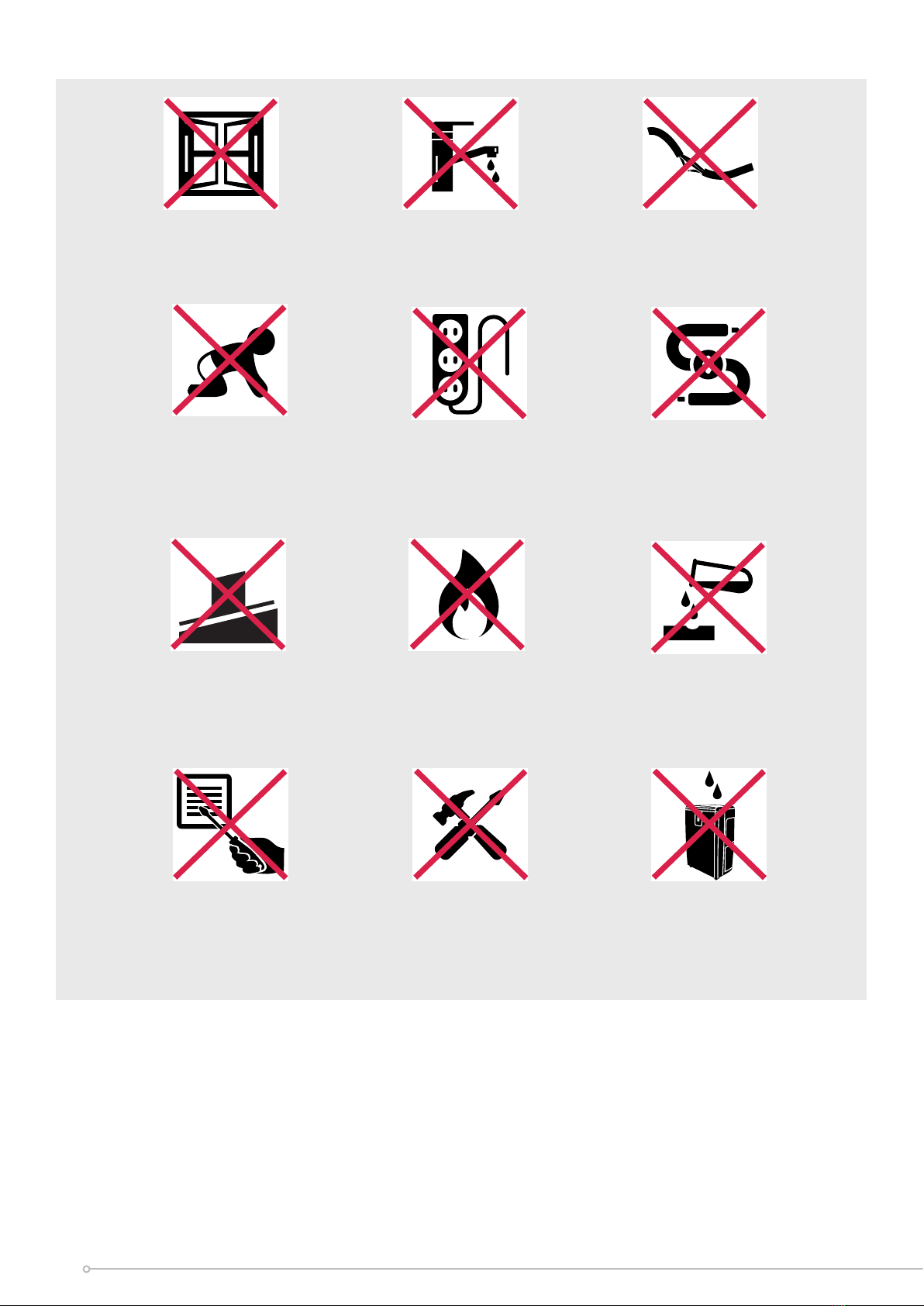

Exposed to the

weather outdoors

Near water If the power cable

wires are frayed or cut

Where small children

may be left unattended

If an extension

lead may become

overloaded

Where there is risk

of re or close to

a naked ame

Where the power

cable may be

damaged

On a slope or

uneven surface

Where it may be

damaged by

chemicals

If there is a risk

of water falling on

the unit

Where there is a risk

of interference by

foreign objects

This product is not

made for DIY repair

Model no. ECR15 ECR15FA ECR15TIF ECR24 ECR24FA ECR24TIF

Power supply

220-240V~, 50Hz

Rated power

1500W

2400W

Heat settings

3 3 3 3

3 3

Thermostat Y Y Y Y Y Y

Timer N N Y N N Y

Turbo Fan N Y Y N Y Y

Weight (net)

8.1 kg 7.1 kg 7.2 kg 11.8 kg 10.7 kg 10.8 kg

Dimensions (w x d x h)

415x280x635mm 320x280x635mm 320x280x635mm 585x280x635mm 505x280x635mm 505x280x635mm

Specications

For greater precision, please always refer to the rating label placed on the product.

WARNING THIS APPLIANCE MUST BE EARTHED

Fitting The Castors

WARNING The radiator must only be operated with the wheels and castors tted

and in an upright position. The castors must be tted to the control panel and on the

bracket between the last and second last n on the opposite end, as shown in Fig.1.

1. To t the castors, turn the radiator upside down on a carpet or other soft surface

to avoid damage Warning: The radiator is heavy – ensure that it is supported to

prevent it from toppling. Ask a second person to help with this if necessary.

2. To t the castors, position the castor plates (A) in position and secure using the

wing bolts provided (B). There are guides to ensure the correct positioning and

orientation of the caster plate.

3. Return the radiator to the correct orientation so it rests on the castors. The

product is now ready for use.

Fig. 1

Positioning

Select the position for the heater ensuring there is clearance from any furniture and

ttings of at least 300mm above the heater and 150mm each side and 300mm from

the control and end panel. We recommend maximising the clearance where possible.

NOTE: The radiator is designed for operation on an AC electricity supply, and is only

suitable for domestic use and similar indoor locations.

Tips

• The radiator is tted with castors and a handle for ease of movement.

• A rotary selector switch provides the ability to choose an available heat output

and an adjustable thermostat enables the room temperature to be controlled

accordingly.

• Once the castors have been correctly tted, no other assembly is required, just

plug and play!

Safety Features

This appliance incorporates a number of safety devices. In addition to the ‘Important

Safety Advice’ section your attention is drawn to the following;

Tilt Switch

The tilt switch will prevent the heater from working if it is accidentally tipped over on

its side.

If the radiator is tipped over while it is hot, disconnect the power and allow it to cool,

then stand the radiator back upright. Reconnect the power - normal operation should

be resumed.

Overheat Protection

The heater is tted with a temperature limiter which will reduce the output of the heater

should it overheat for any reason. The product will return to normal operation after the

cause of the over heating has been rectied.

Thermostat

O/Heat selection

switch

Neon Indicator

Timer

Cable Wrap

Turbo

Switch

Operation

IMPORTANT - OBJECTS OR CLOTHING MUST NOT BE PLACED ON THIS HEATER.

Before using the heater ensure that all warnings and instructions have been read

carefully. To activate the heater simply plug it in. Neon indicator lights located at

the control area will illuminate when the appliance is plugged into the mains. This

indicates the appliance is energised and ready to use.

Please note – The element has been coated with a protective lm which will burn o

during the rst few minutes of use, this may cause a small amount of fuming. This is

quite normal – the fumes are non-toxic and will quickly disappear.

We recommend that you open a window to ventilate the room when using the

heater for the rst time.

CONTROLS

Fig. 2

Fig. 3

Operation

Thermostat

The Thermostat, see Fig.2 controls the heat output according to the room

temperature. This ensures that the heater will not produce heat unnecessarily when

the room is warm.

1. To set the temperature you require, turn the thermostat knob clockwise until the

required setting is reached. Alternatively to heat a cold room quickly, turn the

thermostat knob up fully.

2. When the room has reached the desired temperature, turn the thermostat

knob anti-clockwise until the thermostat just clicks o. The heater will now

automatically operate at this temperature.

3. The thermostat also has a frost protection setting marked '*' This setting is useful

in areas such as garages, to prevent frost damage. If the thermostat is set to its

minimum setting '*' the heater will cycle on and o to maintain a temperature of

approximately 5° to help protect against frost.

Note – Should the heater fail to come on when the thermostat is at a low setting,

this may be due to the room temperature being higher than the thermostat setting.

Heat Selector Switches (see Fig.3)

Heat selection is provided via a rotary switch oering four settings. The heat output

can be altered to suit the application, conditions and for improve the economy of

operation.

Available output options are as follows:

Switch setting With

Turbo

Only

Turbo

Model O I II III

ECR15

O 500W 1000W 1500W N/A N/A

ECR15FA

O 400W 800W 1200W 1500W 300W

ECR15TIF

O 400W 800W 1200W 1500W 300W

ECR24

O 800W 1600W 2400W N/A N/A

ECR24FA

O 700W 1400W 2100W 2400W 2400W

ECR24TIF

O 700W 1400W 2100W 2400W 2400W

Timer model

ELECTROMECHANICAL TIMER (Ti models)

Setting the time of day

To set the time of day, rotate the timer dial clockwise (indicated by the arrow) until the

correct time of day is opposite the reference mark

see

Fig.4. The 24-hour clock is

used; e.g. time shown for 4pm is '16' (16:00hrs).

Operation Modes

Set the operation mode using the slide switch on the timer - see Fig.5:

Position I - Manual operation

This setting allows power to the heater uninterrupted by the timer settings. The

heat selector switch and thermostat will control the output (see 'Controls').

Position - 'Auto' operation

This setting allows the heater to be switched ON and OFF according to a set 24

hour program period.

DO NOT disconnect this heater from the mains supply unless it is being taken out of

use (e.g. in summer or for storage), otherwise the timer clock will stop.

Fig. 4

Fig. 5
