Dimplex GDDEYS40A Manuel utilisateur

– 1 –

40L DEHUMIDIFIER

AND AIR PURIFIER

INSTRUCTION MANUAL

GDDEYS40A

Dehumidiﬁes a large home and puriﬁes air

– 2 –

CONTENTS

Safety and usage notices 5

Components 9

Control panel 10

Display screen 11

Setting Timer 12

Dehumiﬁcation instructions 13

Automatic dehumiﬁcation 13

Continuous dehumiﬁcation 13

Clothes drying 13

Emptying the tank and drainage 14

Air puriﬁcation and ﬁlters 16

Ventilation 16

Air puriﬁcation function 16

Inserting a ﬁlter 17

Filter information 18

Maintenance 19

Self-cleaning mode 20

Troubleshooting 21

Technical speciﬁcations 22

– 4 –

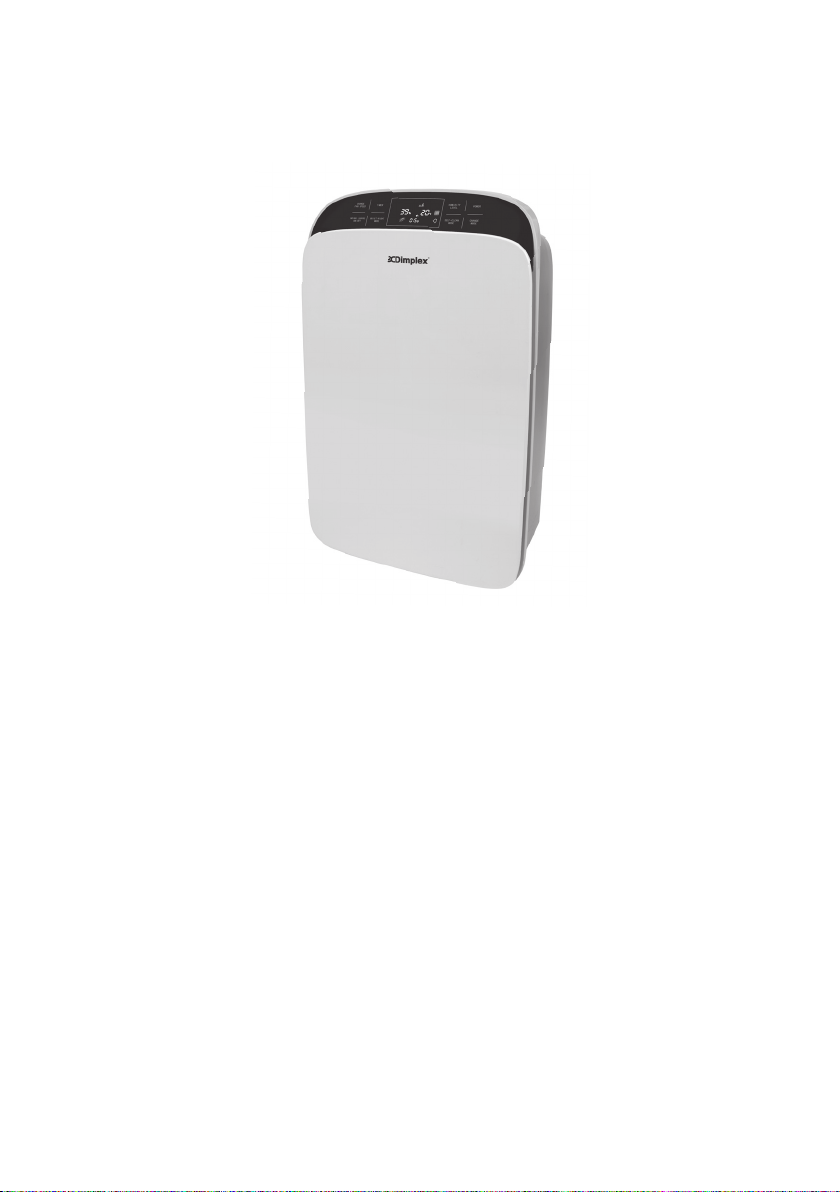

Before operating this appliance, please read this instruction manual

carefully. Please also keep for future reference.

– 5 –

SAFETY AND USAGE NOTICES

The power supply for this appliance is 220-

240V~ If the voltage is 10% higher or lower

than the normal voltage, the appliance will

not operate. It is suggested that a voltage

stabilizer be equipped.

The working range of this appliance

is between 5-32oC, outside of these

temperatures the appliance will not operate

normally. However the optimum working

temperature is between 16-32oC. The unit

will dehumidiﬁy between 30%-85% relative

humidity.

Technical Speciﬁcations

Please position the appliance on a ﬂat and

stable surface to reduce vibration and noise.

Please do not position your appliance near

ﬂames or heating appliances.

Please do not use the appliance if plug or

electrical cord is damaged.

Multi-socket plug adapters are not

recommended for use with this appliance.

Usage

Please do not immerse the appliance in

water.

– 6 –

SAFETY AND USAGE NOTICES

The appliance is designed for domestic use

only, not for commercial purposes.

Please do not use aerosols or other

ﬂammable substances near the appliance.

Please do not place anything on top of the

appliance.

Please do not tilt the appliance when in use.

Please do not use sharp objects on the

appliance to prevent scratching.

Usage

Please do not knot, or fold the power cord,

also ensure the power cord is free from

tangle and nothing is place on top of it while

in operation.

Please do not hang anything over the air

outlet, by doing this you will reduce the

dehumidiﬁcation capacity and increase

the noise.

Please do not put the automatic drainage

pipe directly in the cold outdoors.

– 7 –

When operating the appliance, please

keep a clearance of 50cm above and

over 30cm surrounding. Please refer to

the following figure.

Please keep windows closed when

appliance is in use.

Please clean the mesh filter regularly to

prevent clogging and maintain optimal

performance (see page 19 for

instructions).

Please do not direct your appliance

towards plants or pets for long periods of

time.

Please do not operate in direct sunlight,

this will influence the dehumidification

capacity.

SAFETY AND USAGE NOTICES

Usage

– 8 –

SAFETY AND USAGE NOTICES

If the unit is faulty (e.g., burning smells, smoke

detected), please turn off the appliance and

unplug it, then contact a qualiﬁed service

agent for maintenance.

If the appliance is not to be used, or is to be

stored for a period of time, please activate

the self-cleaning function, which will dry the

internal components of the appliance and

prevent mildew growth.

If the power cord is damaged, it must be

replaced by a qualiﬁed electrician, service

agent or similarly qualiﬁed persons in order

to avoid malfunction.

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities,

unless they have are supervised or given

instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised at all times. Please do not hose down the appliance.

Maintenance and Storage

Repairs are to be done by a qualiﬁed

electrician or service agent.

Please unplug the appliance when not in use

for long periods of time.

Please do not use chemical solvents (e.g.,

benzene, gasoline, alcohol,etc.) to clean the

appliance. Instead, use warm soapy water.

– 9 –

COMPONENTS

Front side

Rear side

Front panel

Tank lid

Full tank

ﬂoat device

Water level

window

Tank

Control panel

Air puriﬁcation

ﬁlters (HEPA

or activated

carbon ﬁlter)

Inlet grid

Lifting handle

Swing lourve

Continuous

drainage outlet

Mesh ﬁlter

(for large partcles)

– 10 –

CONTROL PANEL

CHANGE

FAN SPEED TIMER HUMIDITY

LEVEL

SELF-CLEAN

MODE

CHANGE

MODE

POWER

QUIET/NIGHT

MODE

SWING LOUVRE

ON/OFF

POWER: turn on or turn off the appliance.

CHANGE MODE: cycles between different modes: automatic dehumidification,

continuous dehumidification, clothes drying, air purification or ventilation. You can also

press this button for 3 seconds to activate child lock mode.

QUIET/NIGHT MODE: minimises fan noise and dehumidification rate.

SELF CLEAN MODE: dries the internal components of the appliance. Press for 3

seconds to activate seconds.

SWING LOUVRE ON/OFF: activate oscillation of the wind vent louvres for wider air

movement.

TIMER: set the number of hours until the appliance turns on or off.

HUMIDITY LEVEL: Set desired humidity level for “automatic dehumidification” mode;

CHANGE FAN SPEED: changes speed of fan and air that is emitted from the

appliance.

Press this button and the “TIMER” button together to toggle between oC and oF

temperature displays.
