IMPORTANT

Please read this owner’s manual carefully and thoroughly

before installing and operating your room air conditioner.

Please retain this owner’s manual for future reference after

reading it thoroughly.

MODEL:DCB09(2.6kW Cooling / 2.4kW Heating)

DCB14(4.1kW Cooling / 3.6kW Heating)

DCB05C(1.6kW Cooling)

DCBB07C(2.2kW Cooling)

Table of Contents

Page

- 1 -

Introduction

Electrical Specifications

Care and Maintenance

Operating Instructions

Trouble Shooting Guide

Installation Instructions

Introduction

Front Cover

Air inlet grille

(Indoor)

Cabinet

Air outlet grille

(Indoor)

Air inlet grille

(Outdoor)

Control Panel

Air filter

Vent Lever

Control Panel Remote Control

- 2 -

Fig.1-1

SLEEP FAN

TIMER SWING

ON/OFF

MODE

MID

SWING

AUTO

DRY

FAN

COOL

FEEL

SLEEP

TIMER ON

HIGH

LOW

TMIER OFF

- 3 -

Operating Instructions

Control Panel

Remote Control

Indication symbols of LED control panel

Above LED lights on when the relevant mode is in used.

For remote control model

You can easily operate this air conditioner by pressing the relevant buttonson the

control panel as well as the remote controller.

SLEEP FAN

TIMER SWING

ON/OFF

MODE

MID

SWING

AUTO

DRY

FAN

COOL

FEEL

SLEEP

TIMER ON

HIGH

LOW

TMIER OFF

Used to adjust airflow direction.

Used to set or cancel timer operation.

When the unit is in operation, you can set OFF TIMER. When

the unit is off, you can set ON TIMER. Timer setting range is

0 to 24 hours.

If the OFF TIMER is set, the timer LED displays the remaining

time to turn off the unit for only 10 seconds, then LED shifts

to display set temperature.

If you press TIMER button within the 10 seconds, OFF TIMER

will be cancelled.

If the ON TIMER is set, the timer LED displays the remaining

time to turn on the unit. If you want to cancel ON TIMER, press

TIMER button.

Every time you press this button, the air conditioner will turn

on or will be stopped when it is in operation.

Every time you press this button, the operation mode is

changed in sequence:COOLING > FAN ONLY > COOLING

Used to select fan speed in sequence auto, high, mid and low.

This button used to set room temperature in COOLING mode

or used to set time in TIMER mode. If the two keys are

pressed at the same time for more than three seconds, the

temperature LED display will alternate between C and. F

NOTE: Temperature setting range is from 16 to 31 degrees

Celsius

To activate the "SLEEP" function

No.

Button Function

No. Button Function

Mid fan speed

High fan speed

Low fan speed

Auto fan speed

Cooling

Fan only(only Cooling Unit)

Display set temp./Display set timer

Timer

Sleep

Operating Instructions

- 4 -

Remote control

The display and some functionsof the remote control may vary according to the

model.

The shape and position of buttons and indicators may vary according to the model,

but the functions are the same.

The unit confirms the correct reception of each press button with a beep.

To select the mode of operation

To activate or deactivate of the movement of the¡°DEFLECTORS¡±.

To activate the function ¡°SLEEP¡±

Decrease the temperature or time by 1 degree

Increase the temperature or time by 1 degree

To switch the conditioner on and off.

To set automatic switching-on/off

To select the fan speed of auto/low/mid/high

No.

MODE

SWING

SLEEP

(TEMP DN)

(TEMP UP)

ON/OFF

FAN

TIMER

Button Function

DCB05C/DCB07C

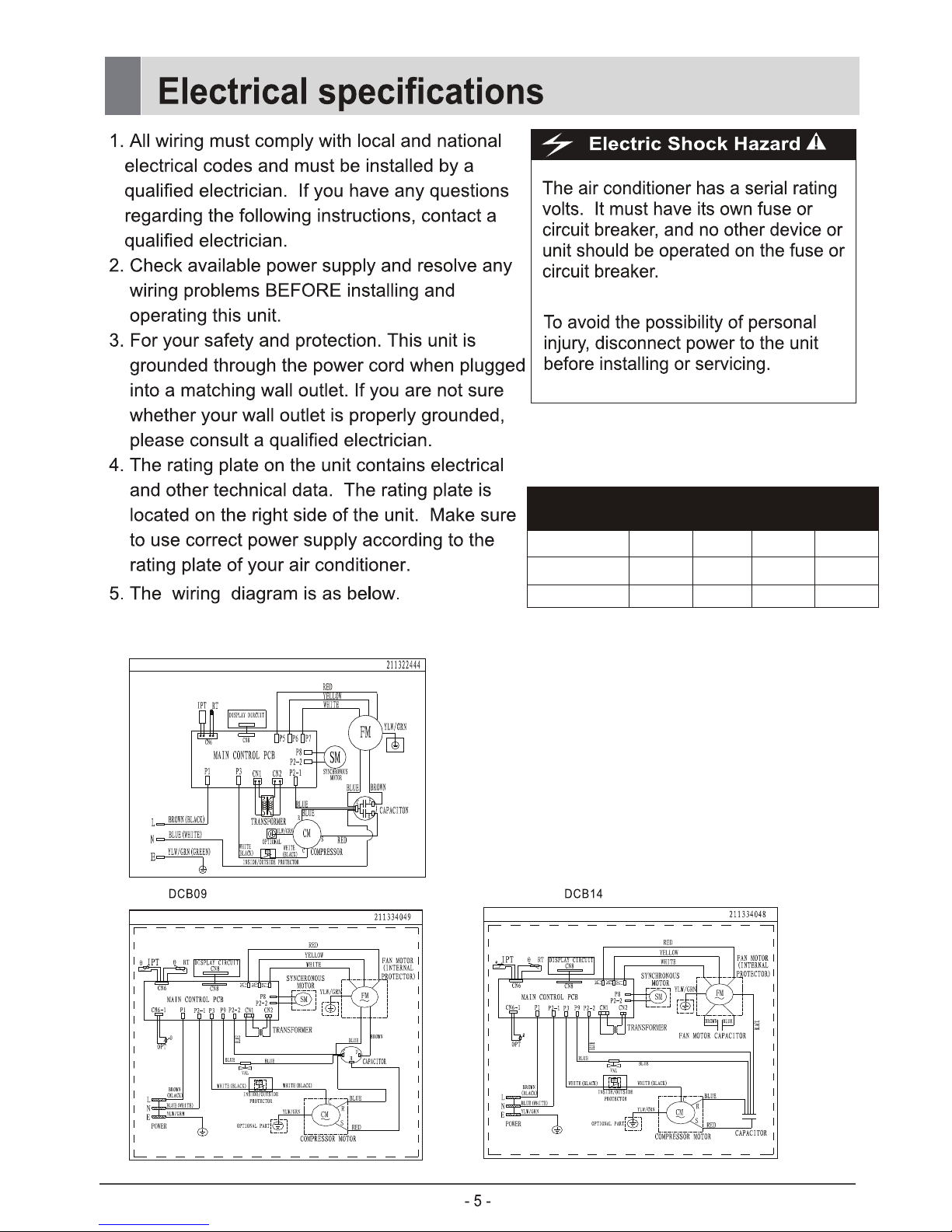

RATED VOLTS

AMPS

RECEPTACLE AND FUSE TYPES

DCB09 DCB14

250V 250V

7.1A 8.5A

DCB05C DCB07C

250V 250V

7.1A 7.1A

REMOVE ALL THE SHIPPING PARTS BEFORE INSTALLATION

LOCATION

Select a location that can support the weight of the air conditioner and one that will not

cause increased operation noise and vibration.

Direct sunlight is unfavorable for efficient cooling.

Select a place where there is no obstacles near the air inlet and outlet.

wall thickness is less than 210

lf the wall thickness is more than 210 scrape the wall as

shown above.

Make rear side lower so that waterwill drain out smoothy.

Less than 210

More than 55 Scrape

Less

than

210

5-10mm

than 400

than 500

less

than 210

Installation instructions

- 6 -

Check the capacity of wiring and power outlet. The power outlet should be used

exclusively for the air conditioner. Do not use it with other appliances.

Ground the air conditioner to prevent danger of electric shock.

Connect the air conditioner with power source securely.

Use a fuse as below.

OPERATION

Installation instructions

- 7 -

CAUTION

Before installation,turn off the operation switch and disconnect the power cord.

This appliance isnot intended foruse by persons(including children) with

reduced physical, sensory or mental capabilities,or lack of experience and

knowledge, unless they have been given supervision or instruction concern-

ing use of the appliance by a person responsible for their safety. Children

should be supervisedto ensure thatthey do not play with the appliance.

The appliance isfitted with means for disconnection from the supply mains

having a contact separation in all poles that provide full disconnection

under over voltage category IIIconditions, and thesemeans must be

incorporatedin the fixedwiring in accordance with the wiring rules.

Do not install air conditioner in the place where flammable gas leaks are a

possibility.

The minimum clearance from the appliance to combustible surfaces is 100mm;

(Only for electric heating)

The range of external static pressures at which the appliance was tested is 0-5Pa

CAUTION

Installation instructions

- 8 -

1) Remove the front panel. (Fig.5)

Remove the air filter. (Fig.6)

Remove screw at the botton of the front panel. (Fig.7)

Open the panel cover.

2) Remove the screws fix the chassis-fixing board and cabinet.

some Models have two more screws on the back of the

cabinet. (Fig.8)

Grasp the handle on the front of the chassis and carefully

slide the air conditioner unit out of the cabinet. (Fig.9)

lnstall the drain tube connection into the hole provided

at the rear of the air conditioner chassis.(Fig.11)

To meet different requirementsof different type of air

conditioner, there are two kinds of methods for your choice

to treat the condensed water. You can choose back

drainage or bottom drainage.

Bottom drainage way: the drain tray is fixed in position

through four pcs of screws and use the flare nut to block

the back drainage hole.(Fig.15)

Back drainage way using the flare nut to block the bottom

drainage hole and use water outlet pipe to connect the

back drainage hole pay attention to increase the sealing

ring to prevent water leakage.(Fig.16)

lnstall the air conditioner cabinet on the installation shelf

(not included) with screws.(Fig.10)

6) Carefully slide the unit back into the cabinet.(Fig .12)

7) Reinstall the retaining bracket,front panel and mounting

screws.(Fig.8,7,13)

8) Reinstall the air filter.(Fig.14)

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Wall

Cabinet

Screw

Installation shelf

Fig.10

Fig.11 Fig.12 Fig.13

Fig.14

drain tray

screw

falre nut

Fig.15

falre nut sealing ring

water outlet pipe

Fig.16

The front cover will accumulate dirt and dust.

To clean it, wipe it with a soft dry cloth. When

it is excessively dirty, wipe it with a soft cloth

dampened with warm water or mild soap, then

wipe it again thoroughly with a soft dry cloth.

AIR FILTER

The air filter should be washed at least once a month. lf the air filter remains

full of dust, the air flow will decrease and the cooling capacity will be reduced.

The filter is behind the cover and to be pulled out from right hand side.

Wash the air filter with water anddetergent.

Rinse with clean water and dry completely before reinstalling.

AIR CLEANING FILTER

FRONT COVER,ETC

The air cleaning filter is attached to the air filter.

Wash the air cleaning filter as well when wash air

filter.

Hot Water

Benzine,acid,etc.

- 9 -

Care and Maintenance

Fig.15 Fig.16

CAUTION

Do not use hot water above 40 C for washing the air filter.

Let the filter dry thoroughly in the shade before reinstalling. Do not expose

it directly on the sun.

Do not operate the air conditioner with the filter removed.

T3 : The ambient temperature for cooling: 25~52 ;condition

The ambient temperature for heating: -5~20 .

T1 condition: The ambient temperature for cooling: 18~43 ;

The ambient temperature for heating: -5~20 .
