m-Dimension Element Manuel utilisateur
Wiring Diagram
Woofer Size
Woofer V.C. Diameter
Tweeter V.C. Diameter
System Impedance
Power Handling (RMS)
Power Handling (Max)
Frequency Response
Sensitivity
Crossover Frequency
165mm
25mm
25mm
4ohms
70W
150W
60-22k Hz
90dB (1W/m)
4500Hz
EL COMP 6
OWNER'S MANUAL
130mm
25mm
25mm
4ohms
50W
120W
80-22k Hz
89dB (1W/m)
4500Hz
EL COMP 5
manufactured for
Europe
A Division of CHPW
Friedrich-Ebert-Str. 42
D-92637 Weiden / Germany
www.u-dimension.eu
Acoustic Research
6.8 Ohm / 5W
TW -3dB
OPTIONAL

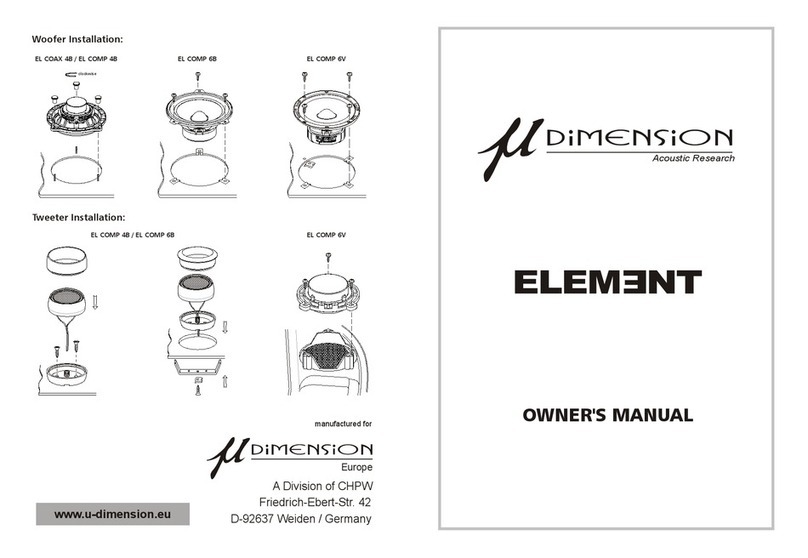

Woofer Installation
Tweeter Installation
Models:
Introduction
Pre-Installation Instructions
EL COMP 5 / EL COMP 6
Congratulations on your purchase of Dimension ELEMENT
μ
series Automotive Loudspeakers! They have been built to meet
rigorous standards of construction and performance
established our renowned home and
This manual has been designed to make ELEMENT
Loudspeaker installation and ownership as trouble
-tree Please read through this manual completely
before installation steps and familiarize
yourself with your new speaker system.
You will need your purchase receipt as proof of purchase for
all warranty repairs and for insurance purposes.
owner's manual, and packing materials in
a safe future use.
the same
that have long
professional speaker systems.
Automotive
as possible.
attempting any
any and
Keep your receipt,
location for possible
It is recommended that you have your new ELEMENT
Autom Loudspeakers professionally installed by your
authorized ELEMENTdealer. This will ensure the use of proper
techniques and materials, and will save much
If you choose to you own
instructions will give you ELEMENT direction
following
Failure to the
ersonal injury
or vehicle.
A. Always make sure the speaker will easily t into the
intended mounting location and that there is adequate cavity
depth to the magnet structure.
otive
installation time
and effort. perform installation, the
following toward
making your purchase complete. Read the
information and precautions carefully. follow
stated precautions may result in p and/or
damage the audio system
accept
B. Check for adequate clearance between speaker and
window, window crank, power window mechanism, seat,
glove box, rear deck torsion bars, and other items which may
interfere with the speaker's mounting. This is especially
important if any hole cutting is required. Complete speaker,
mounting size and depth requirements can be found at the
end of this manual. A good way to conrm speaker place
meet on a door or body panel is to place the speaker's die
cast mounting ring onto the surface. Check for a at
mounting surface, free from all obstruction.
C. The method of installation chosen and level of
execution will effect the overall performance of the
speaker system. Treat each installation step with a high
degree of attention.
D. Do not mount the speaker where water may splash
the woofer cone. A plastic cup or some heavy gauge
plastic sheeting may be needed in some locations that
are exposed to moisture from behind the body panel.
E. Care must be taken to prevent low frequency cance-
llation caused by air leakage between the front and rear
of the speaker (such as when mounted on a curved or
uneven surface, or when mounted in an oversized hole).
F. Mounting panel reinforcement may be necessary in
somecases in order to prevent surface ex. This can be
achieved by mounting the speaker on a metal or
wooden sub-bafe behind the body or door panel.
Consult an installation specialist for further direction.
G. Unless you are replacing existing speakers of same
size, mounting locations will have to be cut into the
doors, bodypanels, or rear deck. In some cases speaker
mounting holes will be precut in the doors, body panels,
or rear deck steel. Due to their structural integrity and
accessibility. These precutmounting holes should be
used whenever possible.
IMPORTANT: Never cut any metal that is an
integral part of an automobile's safety or structural
support system.
NOTE. ELEMENT Strongly recommends that you operate
the complete audio system at low volume before nal
installation of your ELEMENT Automotive Loudspeakers.
This will allow a trial listening test before securing the
loudspeakers into their mounting locations.
CAUTION: Make sure that all speaker wiring is fully
protected from cutting or wear. Any short circuits
developing as a result could severely damage the radio
/cassete unit or amplier. Make sure that all speaker
wires easily reach the speaker terminals with stress on
the wire or connectors.
ELEMENT Speaker Installation
Surface Mount Flush Mount
BASE VIEW
