DimasTech EasyXL
Version 1.0
ASSEMBLY MANUAL
CONTENTS OF THE KIT
ASSEMBLY DimasTec EasyXL V.1.0 - FLEX-FAN
- Align VC058 (10) to BT2501
(9) and fasten wit No.1 screw
VC047_M4x10 (22), as s own
in Figure 1
- Align FAN 120 (item not
included) to BT2501 (9) on
vertical oles and fasten wit
No.2 screws VC050_M2,5x25
(23) plus No.2 knurled nuts
VC034_M2,5 (24), as s own in
figure 2
- DimasTec EasyXL V.1.0 as t e
possibility of mounting No.2 FLEX-FAN
in any of t e 6 oles wit M4 t readed
inserts at your disposal according to t e
mot erboard you ave purc ased or t e
preferred c oice, as s own in t e figure
beside. T e image as t e sole purpose
of illustrating t e possible positions of
t e parts.
Note: T e number indicated in t e brackets indicates t e corresponding
identification in t e table on t e page No.2
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-1
- Assemble No.4 VC067_rubber-
feet_M4 (11) into t e dedicated
M4 t readed inserts, located at
t e base of t e
DIMAS_200_C_RF-RB_V.1.0 (1)
body, as s own in t e figure
beside
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-2
- Unscrew t e No.4 screws
VC048_M3x10 oused in t e
front part of t e DimasTec
EasyXL V.1.0 and extract t e
two preassembled components
BT148 (3) and BT149 (4), as
s own in t e figure beside.
Note: T e number indicated in t e brackets indicates t e corresponding
identification in t e table on t e page No.2
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-3
- Unscrew t e No.4 screws
VC048_M3x10 oused in t e
back part of t e DimasTec
EasyXL V.1.0 and extract t e
two preassembled components
BT051-2013 (5) and BT151 (6),
as s own in t e figure beside.
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-4
- T e component BT148 (3) as
t e possibility to ouse inside
No.3 optical readers (items not
included), t e image as t e sole
purpose of illustrating t e possible
positions of t e parts.
- Align t e side oles of t e optical
reader wit t e slots of t e
component BT148 (3) and fasten
wit No.4 screws VC049_M3x6
(21) for eac optical reader, as
s own in t e figure beside.
Note: T e number indicated in t e brackets indicates t e corresponding
identification in t e table on t e page No.2
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-5
- T e component BT149 (4) as
t e possibility to ouse inside No.4
ard-disks (items not included),
t e image as t e sole purpose of
illustrating t e possible positions
of t e parts.
- Insert No.16 VC019 (17) into t e
appropriate s aped slots
- Align t e side oles of t e ard
disk wit t e oles of VC019 (17)
and fasten wit No.4 screws
VC014_6-32 (18) for eac ard
disk, as s own in t e figure beside.
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-6
- T e component BT051-2013 (5)
as t e possibility to ouse inside
No.1 power supply (item not
included), t e image as t e sole
purpose of illustrating t e
possibility positions of t e parts.
- Align t e oles in t e power
supply to t e components of t e
BT051-2013 component (5) and
fasten wit No.4 screws VC066_6-
32 (20), s own in t e figure
beside.
Note: T e number indicated in t e brackets indicates t e corresponding
identification in t e table on t e page No.2
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-7
- Insert t e components BT148
(3), BT149 (4) wit t e respective
ardware installed, inside t e
DimasTec EasyXL V.1.0 and
fasten wit t e No.4 screws
VC048_M3x10 previously
extracted, as s own in t e figure
beside.
T e image as t e sole purpose of
illustrating t e possible positions
of t e parts.
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-8
- Insert t e components BT051-
2013 (5), BT152 (6) wit t e
respective ardware installed,
inside t e DimasTec EasyXL
V.1.0 and fasten wit t e No.4
screws VC048_M3x10 previously
extracted, as s own in t e figure
beside.
T e image as t e sole purpose of
illustrating t e possible positions
of t e parts.
Note: T e number indicated in t e brackets indicates t e corresponding
identification in t e table on t e page No.2
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-9
- Align t e slots at t e base of
t e BT062-2013 component (7)
wit t e slots at t e back of t e
DimasTec EasyXL V.1.0 and
fasten wit No.2 screws
VC047_M4x10 (22) plus No.2
knurled nuts VC024_M4 (19), as
s own in t e figure beside.
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-10
- Align t e M3_ inserts of t e
component BT153 (8) wit t e
oles in t e back part of t e
DimasTec EasyXL V.1.0 and
fasten wit No.2 screws
VC049_M3x6 (21), as s own in
t e figure beside.
Note: T e number indicated in t e brackets indicates t e corresponding
identification in t e table on t e page No.2
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-11
- T e DimasTec EasyXL V.1.0 as t e
possibility to mount No.9 spacers
VC015_M3_25mm_M-F (16) in any of
t e No.22 M3 t readed oles
available to you according to t e type
of mot erboard you ave purc ased
or to t e arrangement to You
preferred, t e image as t e sole
purpose of illustrating t e possible
positions of t e parts.
- Align t e spacers
VC015_M3_25mm_M-F (16) to t e
corresponding t readed oles M3 of
t e DimasTec EasyXL V.1.0 and
fasten, as s own in t e figure beside.
ASSEMBLY DimasTec EasyXL V.1.0 – STEP-12
- Align t e oles in t e mot erboard
(item not included) wit t e spacers
VC015_M3_25mm_M-F (16), and
fasten wit screws VC049_M3x6 (21),
as s own in t e figure beside.
T e number of screws to be used will
be t e same as t e spacers mounted
according to t e mot erboard, t e
image as t e sole purpose of
illustrating t e possible positions of
t e parts.
Note: T e number indicated in t e brackets indicates t e corresponding
identification in t e table on t e page No.2

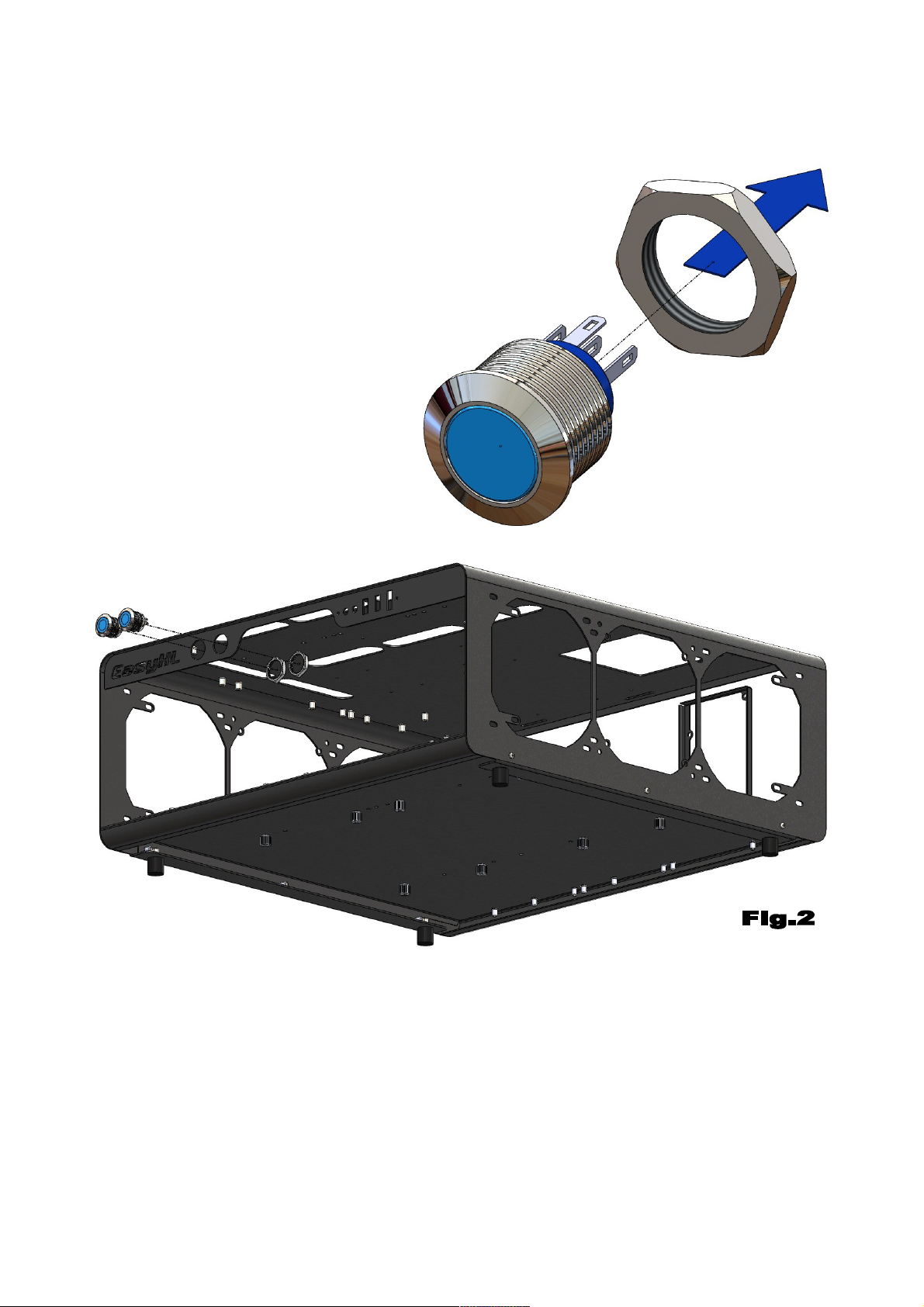

ASSEMBLY DimasTec EasyXL V.1.0 –
PD019_19mm
– Unscrew t e exagon nut of t e
pus button PD019_19mm (12), as
s own in Figure 1
- Before proceeding wit t e
assembly of t e ardware parts, it
is necessary to extract t e BT148
(3) and BT149 components (4) as
s own in STEP-2 and STEP-7.
- Align No.2 PD019_19mm (12) to t e No.2 orizontal oles in t e front of t e
body DIMAS_200_C_RF-RB_V.1.0 (1) and fasten wit t e previously unscrewed
exagon nuts, as s own in Figure 2
Note: T e number indicated in t e brackets indicates t e corresponding
identification in t e table on t e page No.2
