Digitus DN-16054 Manuel utilisateur
OUTDOOR IR
NETWORK CAMERA Series
INSTALLATION GUIDE
Please read instructions thoroughly before operation and retain it for future reference.
1
1. OVERVIEW
1.1 Package Content
□Network camera □Installation Sticker
□Installation Guide □RJ45 cable extender adapter
□Ground Wire
□CD-ROM disc (including user manuals & CMS software “Video Viewer”)
1.2 Dimensions
246.87
282.4
236.03
212.63
117.89
1.2 Cable Overview
CABLE DESCRIPTION
RJ45 network cable Connect it to the supplied RJ45 cable extender adapter for cable extension, and
prepare another RJ45 network cable with suitable length for your connection.
Reset wires Remove the insulating coating of these two wires, and twist them together to reset
default. This will reset all parameters, including the IP address to factory default settings.
Note: Disconnect power before twisting these two wires together, and connect to power
again for reset default. When the reset is done, disconnect these two wires.
Power wires Connect to AC power supply. For details, please refer to “2.2 Connect to power” at page
3.
2
2. INSTALLATION & CONNECTION
2.1 Install the Camera
Note: The illustration below is for installation only, and the actual product may look
different from the illustration below.
3
2.2 Connect to power
Get a power cord and cut off its female connector side. Then, remove the insulating coating
to reveal positive, negative and ground wires.
Find the two wires labeled “AC+” (red) & “AC-” (black) on your camera, and remove a small
piece of their insulating coating to reveal the naked wires.
4
Twist the camera’s and power cord’s wires together according to the corresponding
electrodes (positive to positive, negative to negative, disregarding the ground wire). Then,
use the insulation tape to cover the connected wires.
5
3. ETHERNET CONNECTION
Before using this network camera, please follow the instructions below to finish the
network connection settings based on your installation environment:
To configure the network settings, you must connect the camera to your PC by LAN.
For details, please refer to “3.1 Network Connection via LAN” at page 5.
To configure the network settings via Wizard, please refer to “3.2 Network
Configurations via Wizard” at page 9.
To configure the network settings via our supplied CMS software, Video Viewer,
please refer to “3.3 Network Configurations via Video Viewer” at page 13.
3.1 Network Connection via LAN
Step1:Connect this network camera and your PC via a RJ45 network cable, and make
sure the camera is powered on.
Step2:Set the PC’s IP address as “192.168.1.XXX” (1~255, except 10).

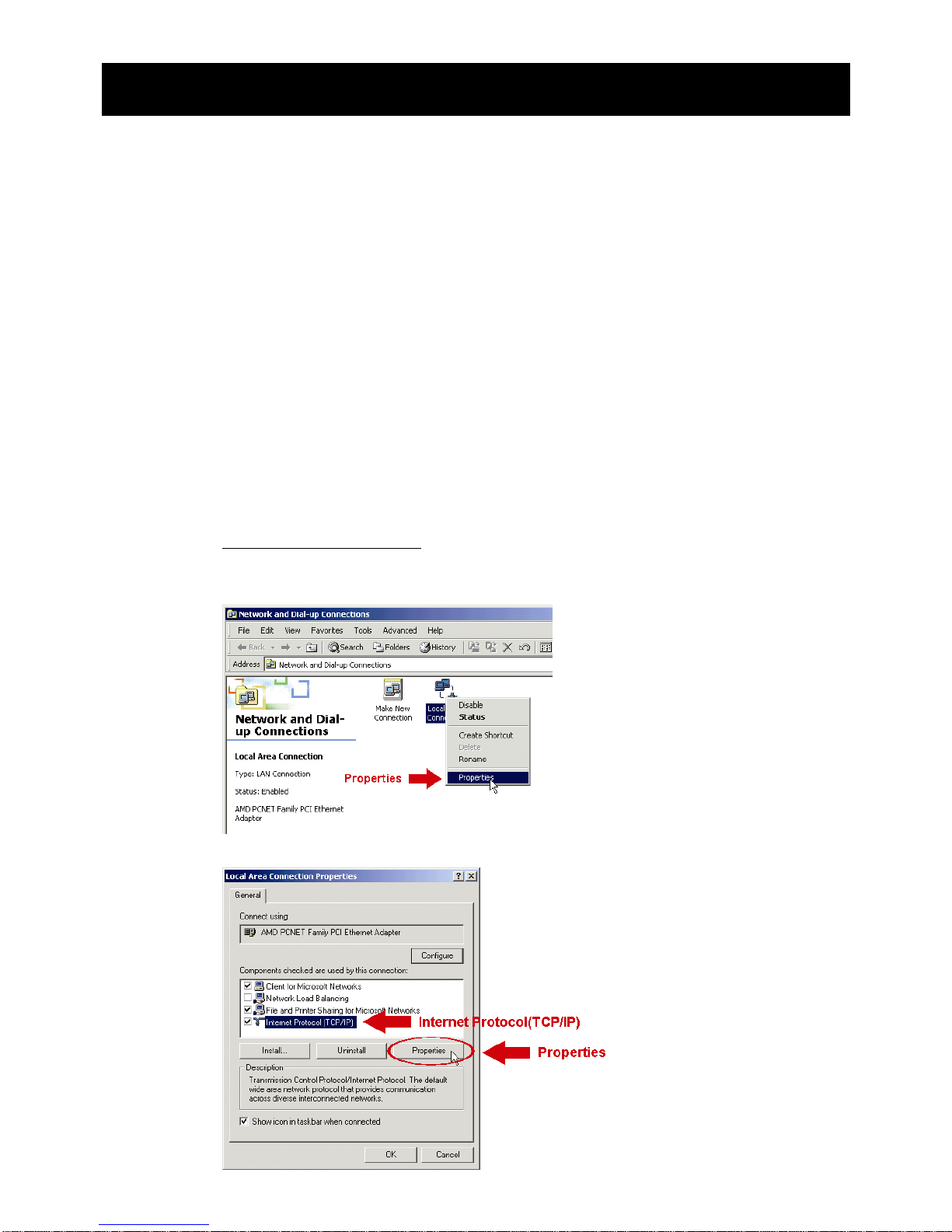

For Windows 2000 users:
a) Select “Start” “Settings” “Network and Dial-up Connections”.
b) Right-click on “Local Area Connection”, and select “Properties”.
c) In the “General” tab, select “Internet Protocol (TCP/IP)”, and select “Properties”.
6
d) In the “General” tab, select “Use the following IP address”, and set the IP address as
described below.
Note: It’s recommended to note down the current settings first and then change
as instructed. It’s helpful when you need to restore the PC network settings
for connecting to Internet later.
e) Click “OK” to close the “Internet Protocol (TCP/IP) Properties” dialog box. Then, click “Close”
to close the “Local Area Connection Properties” dialog box.
For Windows XP users:
a) Select “start” “All Programs” “Control Panel” “Network and Internet Connections”
“Network Connections” (If you’re in “Category View”).
7
b) In “LAN or High-Speed Internet”, right-click on “Local Area Connection”, and select
“Properties”.
c) In the “General” tab, select “Internet Protocol (TCP/IP)”, and select “Properties”.
d) In the “General” tab, select “Use the following IP address”, and set the IP address to
“192.168.1.XXX” (XXX can be any value from 1~255 except 10).
Note: It’s recommended to note down the current settings first and then change
as instructed. It’s helpful when you need to restore the PC network settings
for connecting to Internet later.
e) Click “OK” to close the “Internet Protocol (TCP/IP) Properties” dialog box. Then, click “Close”
to close the “Local Area Connection Properties” dialog box.
For Windows Vista users:
a) Select “ ” (start) “Control Panel” “Network and Internet” to enter the “Network and
Sharing Center”. Then, click “Manage network connections” (If you’re in “Category View”).
b) Right-click on “Local Area Connection”, and select “Properties”.
c) In the “General” tab, select “Internet Protocol Version 4 (TCP/IPv4)”, and select “Properties”.
8
d) In the “General” tab, select “Use the following IP address”, and set the IP address as
described below.
Note: It’s recommended to note down the current settings first and then change
as instructed. It’s helpful when you need to restore the PC network settings
for connecting to Internet later.
e) Click “OK” to close the “Internet Protocol Version 4 (TCP/IPv4) Properties” dialog box. Then,
click “Close” to close the “Local Area Connection Properties” dialog box.
9
3.2 Network Configurations via Wizard
A quick installation wizard is available via your web browser for password change, date &
time settings, and network configurations.
For details about the wizard, please refer to “3.2.1 Setting in Wizard” at page 9.
For details about DDNS setting for PPPoE and DHCP, please refer to “3.2.2 DDNS
Setting” at page 11.
Note: You can also change the settings in the system configuration page via your
web browser later. For details, please refer to “5. ACCESSING THE CAMERA
VIA WEB BROWSER” in the user manual.
3.2.1 Setting in Wizard
Step1:Open your web browser, for example, Microsoft Internet Explorer, and enter
“http://192.168.1.10” in the URL address box.
Step2:In the login page, key in the default user name (admin) and password (admin),
and enter the security code from the image below. Then, click “LOGIN”.
Step3:The wizard is then starting analyzing your network environment, and shows your
network environment. Select “Next” to continue.
Step4:In “Account”, change the access password if needed.
If not, leave all the columns blank, and select “Next”.
