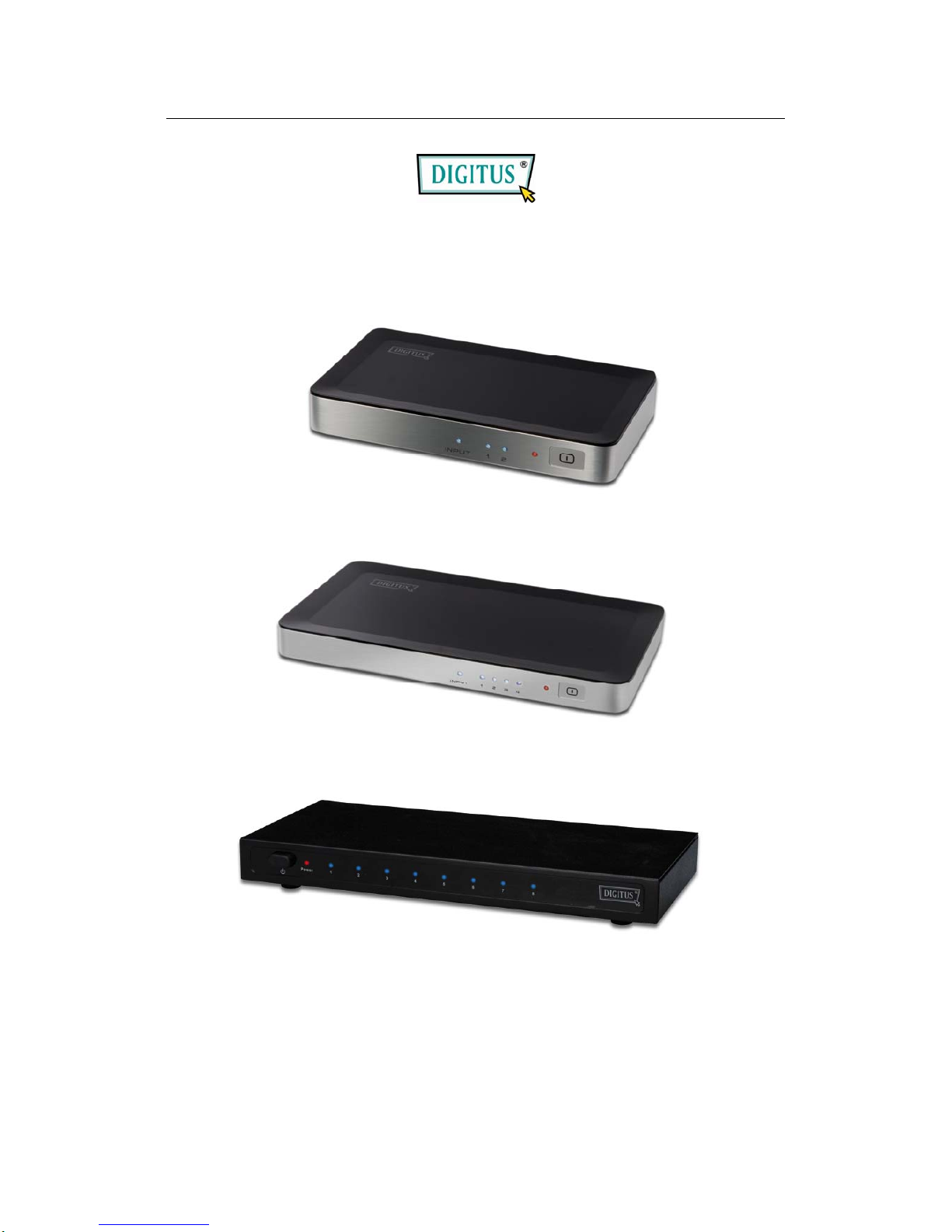

Digitus DS-41300 Manuel utilisateur

HDMI Amplifier Splitter

１

HDMI Video Splitter

MANUAL

DS-41300

DS-42300

DS-43300

HDMI Amplifier Splitter

２

Table of Contents

1.0 Introduction..........................................................................3

2.0 Specifications.......................................................................4

3.0 Package Contents................................................................4

4.0 Panel Descriptions...............................................................5

5.0 Connection and Operation..................................................6

HDMI Amplifier Splitter

３

DIGITUSHDMI SPLITTER

Dear Customer

Thank you for purchasing this product. For optimum performance and safety,

please read these instructions carefully before connecting, operating or adjusting

this product. Please keep this manual for future reference.

1.0 INTRODUCTION

The HDMI Amplifier Splitter are splitter with two, four or eight outputs. They

distribute a HDMI input signal into identical outputs simultaneously. Thereby they

have the ability of buffering and amplifying. Each output can achieve long distance

transmission of HDMI signal of more than 15 meters. But please note, this

depends also on the quality of the cable! The recommended max. length is 15

meter. When two or more products are cascaded, they can create a larger

distribution and longer length. The splitter support HDCP and the real HDMI High

Speed (1.3b). The video amplifier bandwidth can be up to 2.25 Gpbs/225MHz.

The HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB,

DVD and Projector factory, noise, space and security concerns, data center

control, information distribution, conference room presentation, school and

corporate training environments.

1.1 FEATURES

This HDMI Splitter has many features that enable it to perform in a superior

manner. Among those features you will find:

Easy to Use: Install in seconds, no need of setting.

Cascaded: Large distribution achieved by cascading the HDMI Amplifier

Splitter. (only for 2- and 4-port recommended)

Supports highest video resolution 1080p.

Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.

Supports 12bit per channel (36bit all channel) deep color.

Supports HDCP.

Supports uncompressed audio such as LPCM

Supports compressed audio such as DTS Digital, Dolby Digital（including

DTS-HD and Dolby True HD）

Support 3D all format, including [email protected]/24Hz,

[email protected]/60Hz/50Hz, bandwidth up to 225MHz.

HDMI Amplifier Splitter

４

2.0 SPECIFICATIONS (DS-41300 / DS-42300 / DS-43300)

Signal Inputs/Output

Input DDC Signal 5 volts p-p (TTL)

Maximum Single Link Range 1920X1080p

Output Video HDMI + HDCP1.0/1.1

Operating Frequency

Vertical Frequency Range 50/60Hz

Video Amplifier Bandwidth 2.25Gbps/225MHz

Resolutions(HDTV)

Interlaced(50&60Hz) 480i,576i,1080i

Progressive(50&60Hz) 480p,576p,720p,1080p

Mechanical

Size(L-W-H) 155x70x23mm - DS-41300

155x70x25mm - DS-42300

260x115x27mm - DS-43300

Weight(Net) 260g / 285g / 740G

Warranty

Limited Warranty 2 Year Parts and Labor

Environmental

Operating Temperature 0℃to +70℃

Operating Humidity 10% to 85 % RH (no condensation)

Storage Temperature -10℃to +80℃

Storage Humidity 5% to 90 % RH (no condensation)

Power Requirement

External Power Supply DC 5V/2A / 5V/3A / 5V4A

Power consumption (Max) 8W / 12W / 20W

Regulatory Approvals

Converter Unit FCC,CE,UL

Power Supply UL,CE,FCC

Accessories Adapter

AC Power Adapter 1

User Manual 1

Note: Specifications are subject to change without notice.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the

following items are contained in the shipping carton:

1) Main unit

2) 5V DC Power Supply.

3) User’s Manual.

HDMI Amplifier Splitter

５

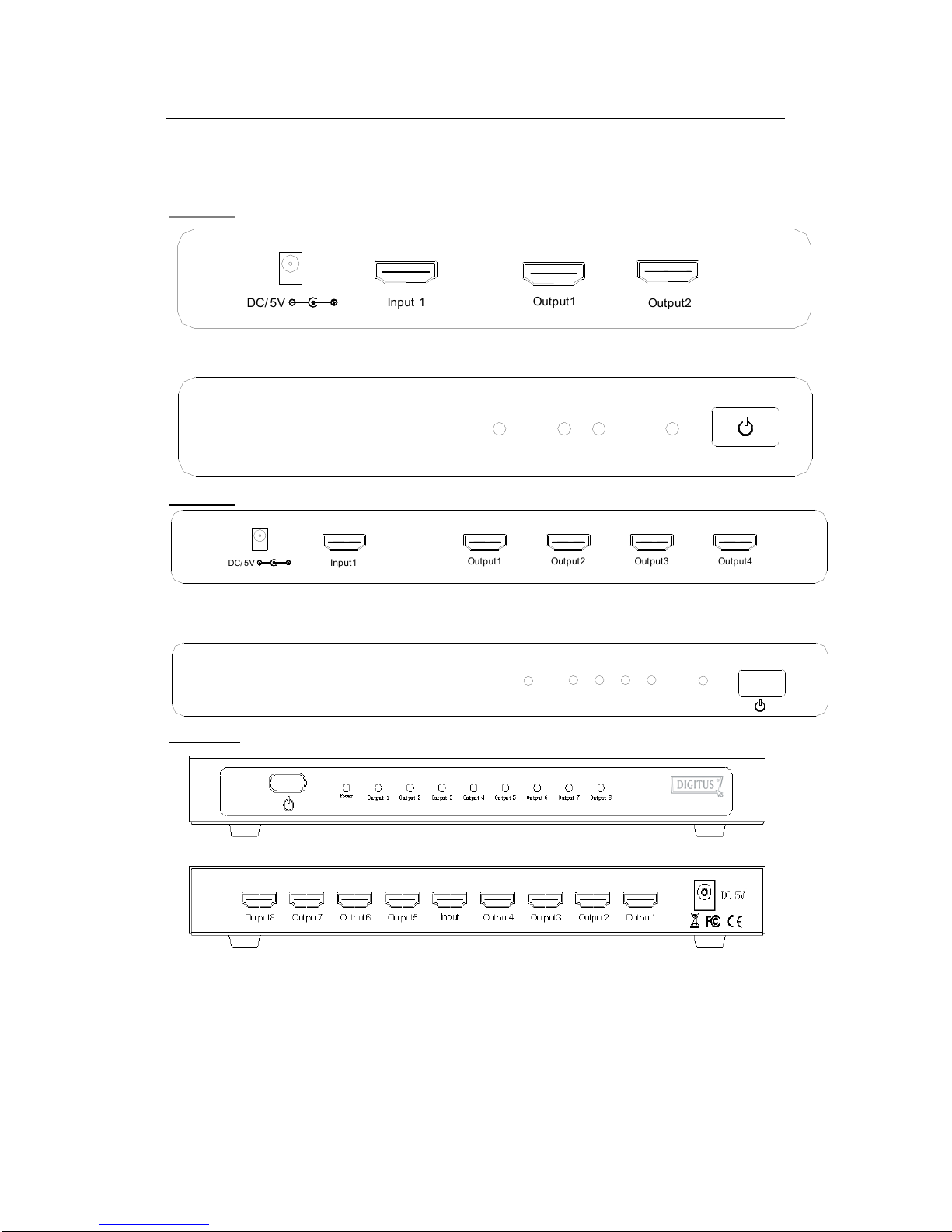

4.0 PANEL DESCRIPTIONS

DS-41300:

Input

Input 1Output1Output2

12 Power

DC/5V

DS-42300:

Output1Output2Output3

432

DC/5V

Input1

Input 1 Power

Output4

DS-43300:

HDMI Amplifier Splitter

６

5.0 CONNECTION AND OPERATION

1) Connect the HDMI input source and output devices into the HDMI Splitter.

(HDMI cables are optional)

*please refer to the connection diagram section.

2) Insert the DC side of 5v power supply into it and then connect the AC side of

the power supply into the wall outlet.

3) Turn on the power.

Attention: Insert / Extract cable gently.

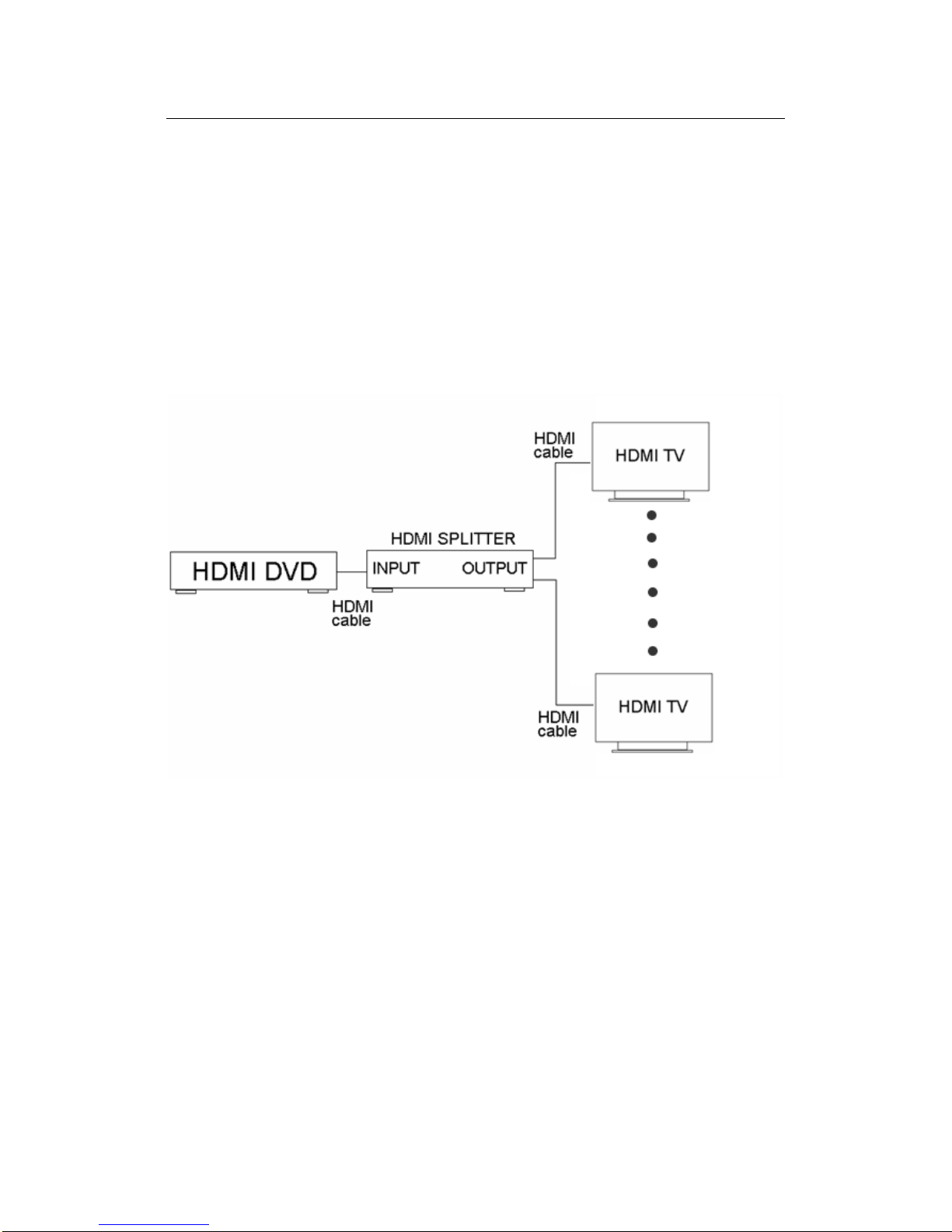

5.1 CONNECTION DIAGRAM
