Introduction

About this Manual

The F2 Plus taximeter is designed to be easy to use while remaining very powerful .

This manual is conceived to be user friendly, more graphical and easy to understand.

In the first section are described the electrical connections, the ways to fix and lead the taximeter, how to assemble the sensor

box. The second section explain the meter’s operative modes, the functions and the programming phase.

The third sections contains the description of all the tariff programming parameters.

The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confidential. Any disclosure, copying, distribution to third party

is strictly prohibited.

Electrical Connections Table

PRINTER

TRANSDUCER

GREY (F)

VIOLET (G)

GREEN (H)

YELLOW (J)

Max. 3 watts

Max. 25 watts

WHITE

Fuse 2 A

PASSENGER TOOL

Warning!

The taximeter is not provided with his own set of

fuses. You must install them by yourself following

the scheme. You will be responsible for every

damage that you can cause for the omission of

these fuses.

Digitax rejects every legal responsibility.

Fuse 2 A

RED

Fuse 2 A

Car Lights Switch

+ 12 V

BROWN

BLACK

Fuse 2 A

PINK

The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confidential. Any disclosure, copying, distribution to third

party is strictly prohibited.

Specifications

Power Supply (Vcc): Operating Range: 9 to 16 V

Range of device constant: k = 500 pulses/km to 99999 pulses/km

Resolution of device constant: 1 pulse/km

Range of time tariff: 0.1 s/unit to 6553.5 s/unit or 0.01 s/unit to 655.35 s/unit

Resolution of time tariff: 0.1 s/unit or 0.01 s/unit

Range of distance tariff: 0.1 m/unit to 6553.5 m/unit or 0.01 m/unit to 655.35 m/unit

Resolution of distance tariff: 0.1 m/unit or 0.01 m/unit

Odometer Transducer Input:

input range: 0 to 16 V

level for LOW voltage: 0 V - 0.3 V

level for HIGH input: 6 V to Vcc

maximum frequency: 7 KHz (with k=99999)

high voltage trigger: high - low transition

Passenger Sensor:

Input range: 0 to 12 V

maximum level for LOW input: 1.4 V

Taxi Light Output:

Maximum Current: 2 A

Output Voltage: Vcc

Lights Outputs:

Maximum Current: 1 A

Output Voltage: Vcc

Printer Power Out:

Maximum Current: direct from Vcc input

Output Voltage: Vcc

RS-232 serial ports: Standard COM1, COM2

The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confidential. Any disclosure, copying, distribution to third party

is strictly prohibited.

Connectors - Pins Out

LEGENDA

POWER SUPPLY - connections:

A INPUT BATTERY + 12 VOLTS

B INPUT PASSENGER DETECT SENSOR

C INPUT +12 VOLTS CAR LIGHTS

D INPUT GROUND ( CAR BODY )

E 12 VOLTS (ROOF TOP LIGHT) Max 3 A

F 12 VOLTS POWER OUTPUT (LIGHT 1 ) Max 1 A *

G 12 VOLTS POWER OUTPUT (LIGHT 2 ) Max 1 A *

H 12 VOLTS POWER OUTPUT (LIGHT 3 ) Max 1 A *

J 12 VOLTS POWER OUTPUT (LIGHT 4 ) Max 1 A *

K INPUT BATTERY +12 VOLTS

PERIPHERICALS - connections:

L GROUND

M TXD 2 RS 232 COM 2 TX

N RXD 2 RS 232 COM 2 RX

O AUX 2 INPUT/OUTPUT

P AUX 1 INPUT/OUTPUT

Q PIO 1 INPUT/OUTPUT

R + 12 VOLTS

S PIO 0INPUT/OUTPUT

T RXD 1 RS 232 COM 1 RX

U TXD 1 RS 232 COM 1 TX

TRANSDUCER - connections:

V INPUT 2

W GROUND

X + 12 VOLTS

Y INPUT 1 ( SENSOR )

*Optional Hardware

LEFT VIEW

TRANSDUCER

CONNECTOR

POWER SUPPLY

CONNECTORS

PERIPHERICAL

CONNETTORS

The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confidential. Any disclosure, copying, distribution to third

party is strictly prohibited.

How to Fix the Taximeter

Fixing Plate

Screw 3MA

7x29,5 mmm

Front View

Fixed the bracket

Locking direction

Dashboard

Screw 4MA

7x26 mmm

Sealed to the

taximeter

BY A DOUBLE SIDE

GLUED TAPE

BY A VELCRO STRAP

The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confidential. Any disclosure, copying, distribution to third party

is strictly prohibited.

UNIVERSAL MECCANICAL TRANDUCER:

How to Assemble

TRANSDUCER

Screws B

Screws A

Screws B

Clamps

Shielding

Speedometer

Cable

1) Take out the internal wire

from the shielding.

2) Shorten the shielding by 36

3) Insert both ends of the

shielding in the clamps and

tight the 4 screws B

4) Loosen the 4 screws (A)

and insert the internal wire.

Do not tight the 4 screws A*.

* Attention: when you insert the

internal wire, the dummy shaft must

come out and be disposed off.

Shaft

A) Re-assemble the transmission cable in the car, connecting

it to both the gear box and the odometer.

B) Drive about 100 m to allow the internal wire to find its

original position.

C) Tight the 4 screws A.

D) Insert the sensor’s probe.

E) Fix the sensor’s cap to end the sensor’s assembling

operation and to have the sensor fully operative.

Electrical Connections

Red Cable = Power Supply

(5 Vcc to 24)

White Cable = Output Signal

(open collector)

Shield = Ground

Screws (A)

Screw B

Clamps

36 mm

Sensor Capsule

The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confidential. Any disclosure, copying, distribution to third

party is strictly prohibited.

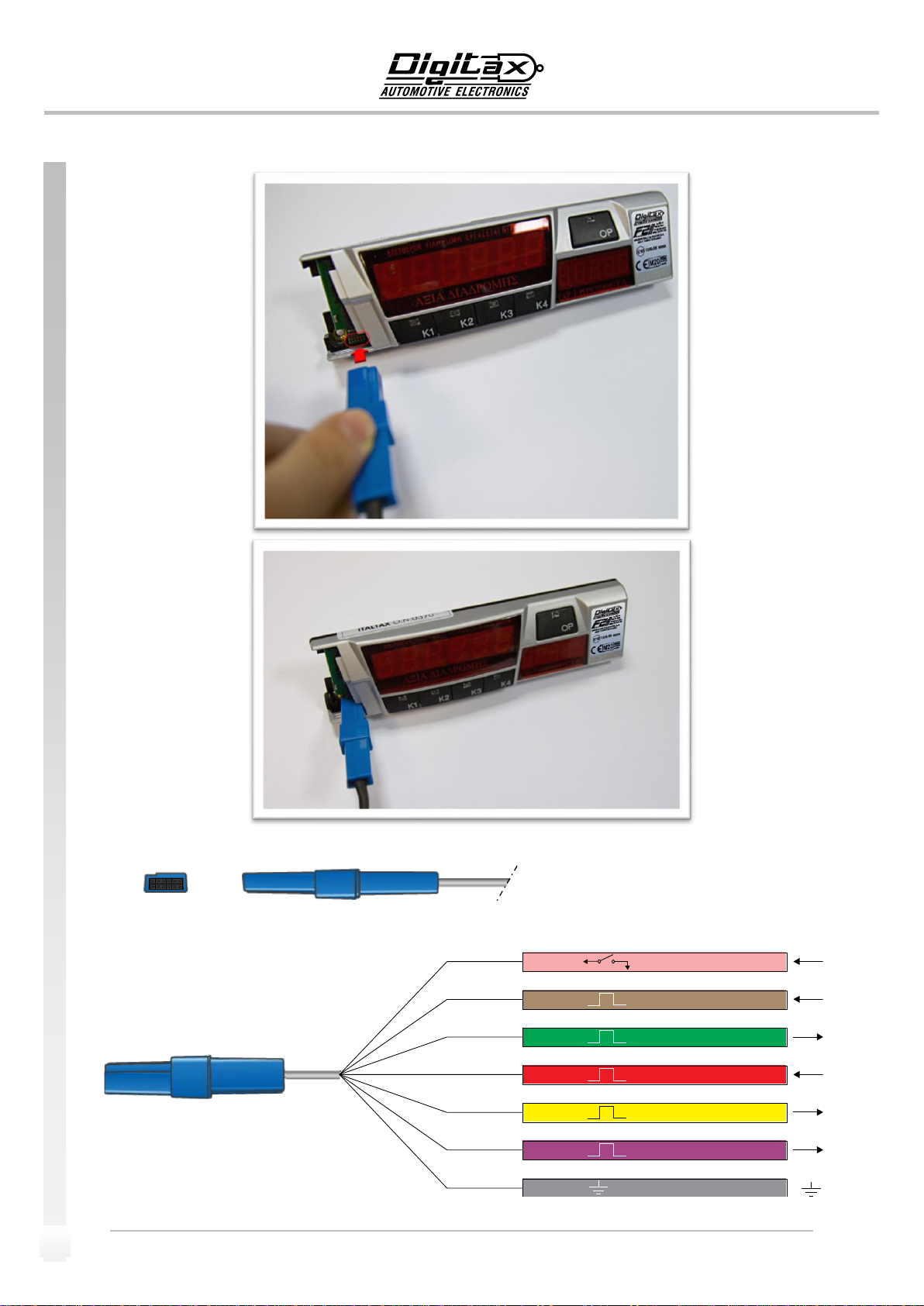

upside view

Side view

Front view

PINK

VIOLET

TIME BLOCK INPUT

FARE INCREMENT PULSE OUTPUT

YELLOW DISTANCE PULSES OUTPUT

RED DISTANCE PULSE INPUT

GREY GROUND

BROWN TIME PULSES INPUT
