Video Flyer 7” User Guide V1.1

(Model: VF-075-OF)

1Introduction

VF-075-OF is a digital media player for non-network digital signage applications. It is ideal for

shelf edge, counter top and gondola type retail displays being both easy to integrate and ideally

suited to product promotions and marketing campaigns.

The player supports a number of media standards such as MPEG video and JPEG still image as

well as WMA and MP3 for audio. Video is stored on removable media such as SD card, CF card

and USB drives.

IMPORTANT USAGE NOTE

This equipment is for use by developers and integrators, the manufacturer accepts no

liability for damage or injury caused by the use of this product. It is the responsibility of

the developer, integrators or other user of this product to:

• Ensure that all necessary and appropriate safety measures are taken.

• Obtain suitable regulatory approvals as may be required.

• Check power settings to all component parts before connection.

DISCLAIMER

There is no implied or expressed warranty regarding this material.

- 2 -

2System Designs

Summary :

1. YPbPr video out

2. Audio out (Stereo Phone jack)

3. USB (for USB flash drive)

4. SD card slot

5. IR

6. DC in (DC 9V)

7. CF card slot

- 3 -

3Instruction

CAUTION: Never connect or disconnect parts of the system when the system is powered up

as this may cause serious damage.

1) Setting Up

• Remove the protective cover sheet on the LCD display.

• If you have purchased our remote control unit (RCU) , please pull out the battery

isolation sheet in the battery compartment of the remote control unit in the first use.

• Plug your memory card with JPEG, MPEG-1 and MPEG-4 video into the corresponding

slot in the unit.

• Connect the mini plug of the AC-DC adaptor into the DC in (DC 9V) socket at the bottom

of the unit. Then the LCD display should come on after a few seconds after

2) Adjusting image quality

• During playback of picture or video, click the TFT OSD button on RCU to select one of

the brightness, contrast, color and tint adjustments.

• Then use or button to adjust.

50 BRIGHT 50 CONTRAST

50 COLOR 50 TINT

- 4 -

3) Adjusting for 16:9 or 4:3 screen format

• This allows the frame to display the picture or video in the correct aspect ratio. The

aspect ratio will vary depending on the way the picture or video is captured. Most digital

cameras will provide picture in 4:3 format.

• Press the SCALE button on the RCU to toggle between the two formats. The screen size

and aspect ratio will be adjusted accordingly.

4) Using the setup menu

You have to press STOP () button to stop any picture and video playback before entering

the following setup menu.

• Press the SETUP button on your RCU to access the main page of setup menu.

• Use the or buttons to select the menu option that you need.

• Use the or to go back to previous level menu or to enter the next level menu.

• Press ENTER button to confirm selection.

• Press SETUP button to exit setup.

• Press ENTER button again or reboot the unit to resume playback.

16:9 Scaling

4:3 Scaling

GENERAL SETUP

VIDEO SETUP

PREFERENCES

EXIT SETUP

- 5 -

Language setup

• This is under the “GENERAL SETUP” “OSD LANG” menu

OSD LANG

FRENCH

GERMAN

MAIN PAGE

ENGLISH

DUTCH

• The available languages are: English, French, German, Italian and Spanish.

• Select the option you need as described in the section “Using the setup menu”.

Screen format

• This is under the “VIDEO SETUP” “TV TYPE” menu

• The factory setting of the VF-075-OF on this format is 480P.

• You need to reboot the unit to activate the change of new setting.

YPbPr Mode

• This is under the “VIDEO SETUP” “HD MODE” menu

• The factory setting of the VF-075-OF on this mode is ON.

*The 7” panel cannot support this 720p mode and nothing will be displayed on 7” screen.

HD MODE

OFF

MAIN PAGE

TV TYPE

PAL

MAIN PAGE 480P

HD MODE

NTSC

576P

720P

- 6 -

Default settings

• This is under the “PREFERENCES” “DEFAULTS” menu

• The following table list out the major of default settings :

OSD LANG ENGLISH

HD MODE ON

TY TYPE 480P

JPG TIME 10 SEC

BRIGHT 50

CONTRAST 50

COLOR 50

TINT 50

VOL 9*

*Load this default only when the SUBTITLE button is pressed.

5) Playback video and picture

To make easy the access of files and operation, it is recommended to copy the video (MPG,

AVI), picture (JPG) and music files in the root directory on memory card. The filename must

not exceed eight characters and 8+3 format is recommended. (e.g. xxxxxxxx.mpg)

• When a video/picture file playback is finished, the next will be playback. It will repeat all

the files in the memory card.

• When playback picture, adjust the time interval using JPG TIME button on the RCU. Click

the JPG TIME button until the desire time duration is displayed on the screen. (See JPG

TIME on Section 4 – Remote Control Unit)

• Press or button on RCU to playback the previous or next file.

• The file play sequence is followed by alphanumeric order. For example:

DEFAULTS

MAIN PAGE

RESET

- 7 -

4Remote Control Unit

NOTE: Please pull out the battery isolation sheet in the battery compartment of the remote

control unit in the first use.

AUDIO

Press repeatedly during playback to access audio streams recorded on

the video track.

JPG TIME

Press JPG TIME button to select JPG display time intervals. (You have

to press STOP button to stop any video playback before entering this

selection.)

TFT OSD

Press TFT OSD key to toggle and adjust the brightness, contrast, color,

TINT.

Press and to adjust.

SETUP

This is for setting the basic functions of the VF-075-OF. You have to

press STOP button to stop any picture and video playback before

entering the following setup menu.

1. Press the SETUP button on your remote control unit to access the

setup menu.

2. Use the or buttons to select the menu option that you need.

3. Use the and to go back to previous level menu or to enter the

next level menu.

4. Press ENTER button to confirm selection.

5. Press SETUP button to exit setup.

SUBTITLE

Press this button to reset and load default.

MUTE

Audio mute

SCALE

Toggle between 16:9 or 4:3 screen format.

10 SEC 30 SEC 60 SEC 15 MIN 60 MIN

- 8 -

/ / / 

These keys are general purpose keys for navigation to various menus

and for adjustment of parameters. These keys also serve as special

function keys as follow:

 Flip picture Up/Down

Flip picture Left/Right

Rotate JPEG anti-clockwise

Rotate JPEG clockwise

VOL + / VOL -

Adjust the audio volume.

/ 

Play the previous or next program.



Stop play



Play or Pause

- 9 -

5Dimension

Notes:

- Dimensions are in mm.

- Drawing is not to scale.

- 10 -

6Specification

Playback video format 1. MPEG-1 video (Video-CD), MPEG-4 video (DivX,

XviD)

2. MP3 audio, JPEG picture, WMA, RMP4

Video storage CF / SD / USB Flash Drives

LCD display Color TFT

Screen size 7” (Diagonal)

Screen active area 154 (H) x 86.5 (V) mm

Panel resolution 480(W) x 3(RGB) x 234(H)

Brightness 300 cd/m2

Contrast ratio 300:1

Viewing angle 120o(H) 100o(V)

Audio output Stereo phone jack , 16 ohm output impedance

Power input 9V DC 2A typical

Dimensions 188(W) x 28(D) x 103(H) mm

Weight 330g

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels digitalview Lecteur multimédia

digitalview

digitalview VideoFlyer VF-200 Manuel utilisateur

digitalview

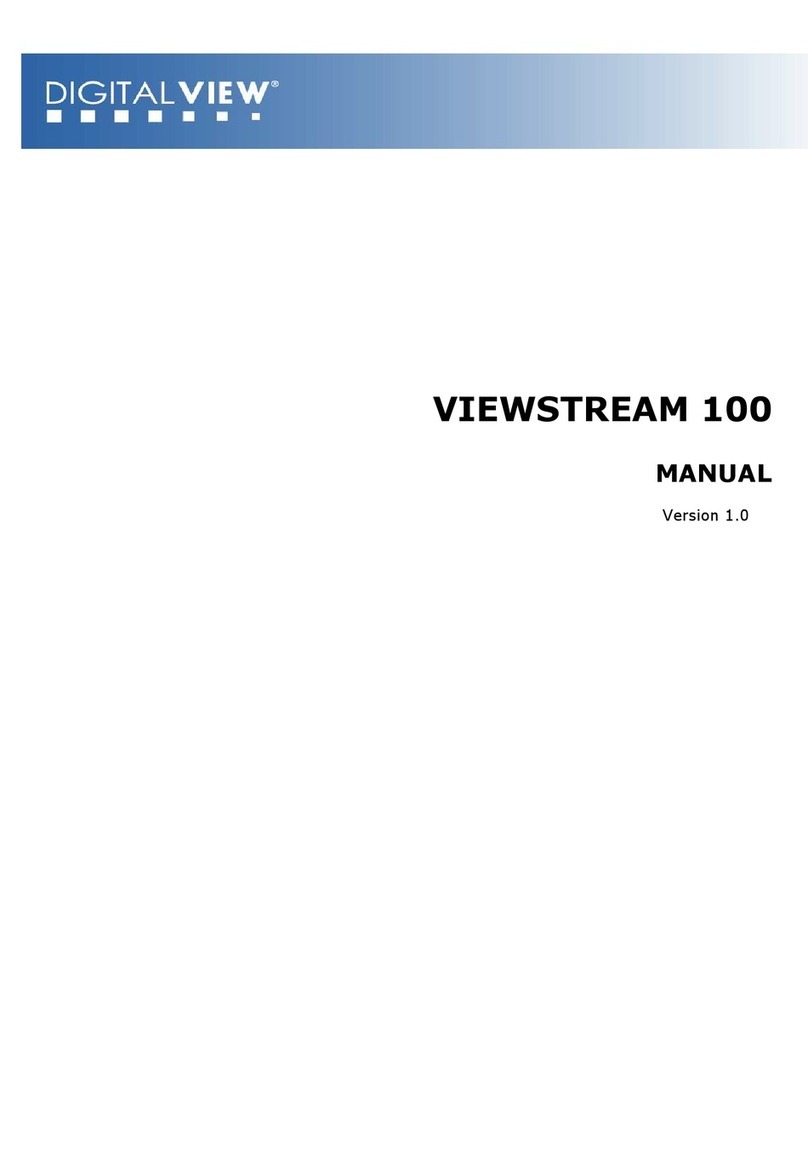

digitalview VIEWSTREAM 100 Manuel utilisateur
