Digitalchina Networks WL8200-I2 Manuel utilisateur

Wireless Access Point

Installation Manual

Manual Version: v1.0

Wireless Access Point

Installation Manual Content

Content

Chapter 1 Device Introduction..............................................1-1

Chapter 2 Preparation for Installation..................................2-1

2.1 Installation Precautions .................................................................2-1

2.2 Installation Environment Requirements .......................................2-2

2.3 Equipment Accessories.................................................................2-2

2.4 Installation Tools ............................................................................2-2

Chapter 3 AP Installation.......................................................3-1

3.1 Installation Process........................................................................3-1

3.2 Checking before Installation..........................................................3-2

3.3 Ensure the Installation Position....................................................3-2

3.4 Install WL8200 Series.....................................................................3-2

3.4.1 Wall Hanging Installation .......................................................................3-2

3.4.2 T-keel Installation....................................................................................3-3

3.5 Connect AP Power..........................................................................3-5

3.5.1 Checking before Power..........................................................................3-5

3.5.2 PoE Power ...............................................................................................3-5

3.5.3 Local Power.............................................................................................3-6

3.5.4 Checking after Power.............................................................................3-6

3.6 Connect AP to Internet...................................................................3-7

Wireless Access Point

Installation Manual Chapter 1 Device Introduction

1-1

Chapter 1Device Introduction

WL8200 Series Wireless AP ( Access Point) is the new 1000Mb wireless AP device

based on 802.11n and 802.11AC standard with high performance from DigitalChina

Networks Limited (DCN). Wireless Access Point can work in the band of 2.4GHz and

5GHz. It can provide higher bandwidth and cover wider range. The uplink of this AP

adopts the 1000Mb Ethernet port which supports PoE power. It expands the bandwidth.

This seriesAP includes two products: WL8200-I2 is the 2X2 AP.

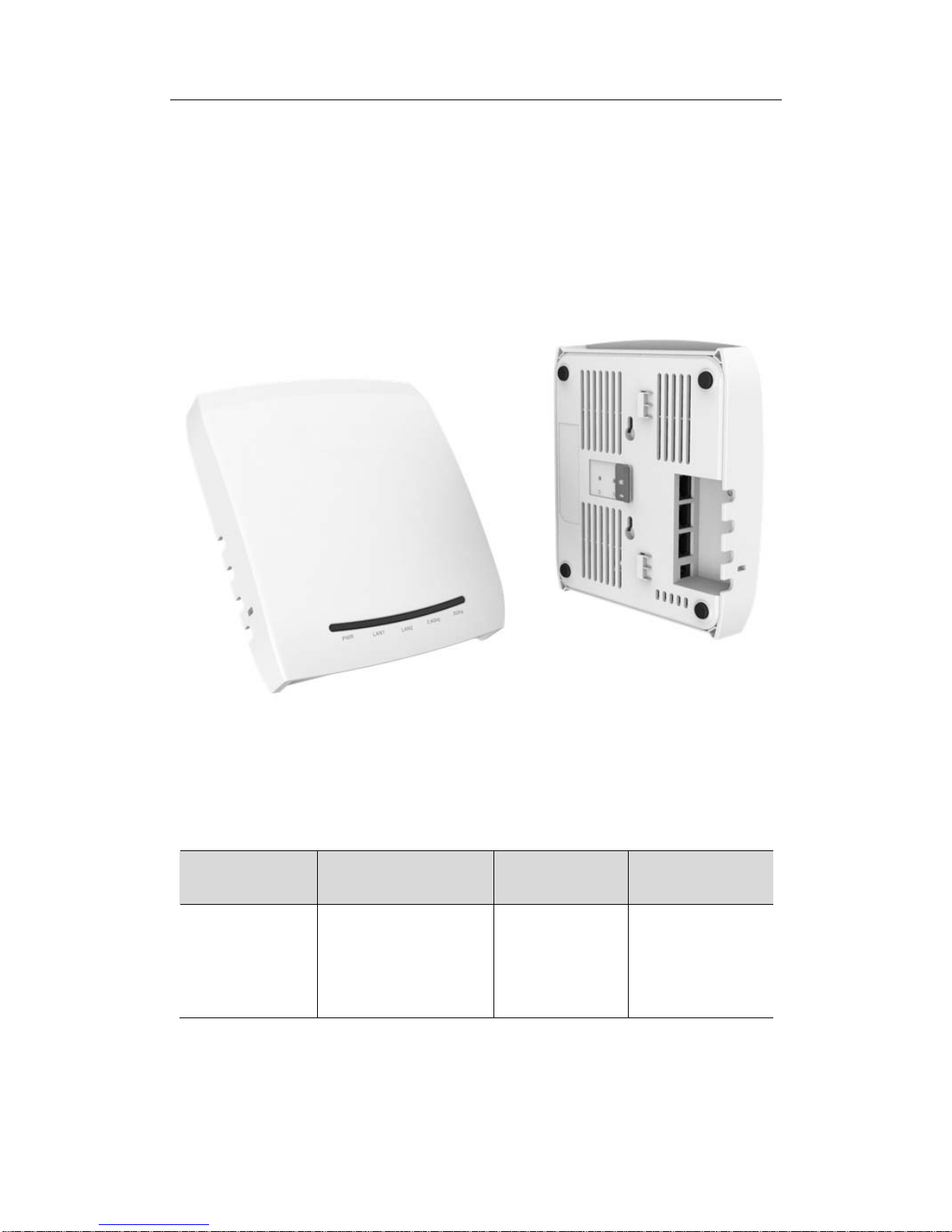

Fig 1-1 WL8200 Series

The basic configuration of WL8200 Series indoor AP is as below:

Table 1-1 basic configuration

Product Model Applicable Protocols

and Features Antenna Maximum Power

Consumption

WL8200-I2 • IEEE802.11a/b/g/n/ac

• Double Radiofrequency Built-in antenna:

•2.4G gain 4.5dBi

•5G gain 4.5dBi

Default: ≤12.92W

Using USB: ≤18W

Wireless Access Point

Installation Manual Chapter 1 Device Introduction

1-2

The shape size and weight of WL8200 series indoorAP is as below:

Table 1-2 the shape size and weight

Product Model

Shape Size

Weight

WL8200 series（W

H）183 x 150 x 42 mm 0.5kg

Wireless Access Point

Installation Manual Chapter 2 Preparation for Installation

2-1

Chapter 2Preparation for Installation

2.1 Installation Precautions

Only allow the professionals installing and disassembling the device and its annex.

Before the installation and configuration, please read the related security introduction

carefully.

Adopt the appropriate security measures to avoid the personal injury and

equipment damage.

Please put the device on the dry and flat place and ensure the anti-skid

measures.

Keep the device clean without dirt.

Do not put the device on the wet place and avoid the device touching the liquid.

Do not put the device and the installation tools in the walking area.

Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found to comply with the limites for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interferenceto

radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

---Reorient or relocate the receiving antenna.

---Increase the separation between the equipment and receiver.

---Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

The product is indoor use only. The distance between user and products should be no less

than 20cm.

Wireless Access Point

Installation Manual Chapter 2 Preparation for Installation

2-2

---Consult the dealer or an experienced radio/TV technician for help.

2.2 Installation Environment Requirements

Before the installation, please check the installation conditions of the device to make

sure that the device is in the good operating environment in a long time. Check this with

the following aspects.

The temperature and humidity environment requirements of the device are as below:

Table 2-1 The temperature and humidity index

Items Range

Standard working environment temperature (indoor) -10℃～55℃

Storage temperature -40℃～70℃

Working humidity (non-condensing) 5%～95%

2.3 Equipment Accessories

Please refer to the packing list.

2.4 Installation Tools

When installing WL8200 series indoor AP, the following tools may be used

(user-owned).

Horizontal

ruler Permanent

marker Knife Wire

stripper Network pliers

Impact drill (1)

and some

supporting drills

Rubber

hammer

Phillips

screwdriver

Ladder

Wireless Access Point

Installation Manual Chapter 3 AP Installation

3-1

Chapter 3AP Installation

Because the installation position of WL8200 series indoor AP is high normally, the

maintenance personal cannot maintain and debug through the console port to login the

device after installation. We suggest user conducting the basic configuration according to

need before installing the AP to the appointed position.

3.1 Installation Process

Fig 3-1 AP installation flow diagram

Wireless Access Point

Installation Manual Chapter 3 AP Installation

3-2

3.2 Checking before Installation

Please check the following items before the AP installation:

Please power to the AP first and connect the AP to the Ethernet, then check the

LED status to make sure the AP can work normally.

Please ensure to complete the wiring in the position of AP installation.

WL8200 series indoor AP supports 802.3af and 802.3at standard PoE (Power

over Ethernet) power. If user wants to get the maximum performance, user can

use the 1000M connection method.

Please record AP’s MAC address and serial number (MAC address and serial

number are on the back of the AP) first for convenient to find and use.

3.3 Ensure the Installation Position

The rules of installation position are as below:

Cut back the obstacles (such as walls) between AP and the user terminal device

as much as possible.

Make the AP’s position far away from the electrical device that can bring the RF

noise (such as the microwave).

The installation position should be hidden as much as possible to prevent

disturbing the inhabitants.

Strictly forbid to install the AP in the environment with hydrocephalus, seepage,

water-clock and condensation. And user should avoid the water flowing into the

device along the cable.

If there is outdoor cable, please checkif installed the networkport SPD beside the AP,

the network port SPD should be provided by user.

3.4 Install WL8200 Series

WL8200 Series can be installed indoor only and there are two methods supported:

Wall hanging installation

T-keelinstallation

3.4.1 Wall Hanging Installation

If install the AP on the wall, use the supporting expansion screw tubes and screws of

the wall mounting. After received the device, the expansion screw tubes and screws as

below in the accessory bag can be found.

Wireless Access Point

Installation Manual Chapter 3 AP Installation

3-3

Fig 3-2 wall mounting screws

When installed with wall hanging method, please connect the Ethernet cable to the

AP first and then install the AP on the wall mounting bracket.

(1) Connect the AP to the wired LAN by using the cable

(2) Mark the positions of two holes on the wall and the distance between them is 65

mm. And then punch two holes with the impact drill;

(3) Insert the expansion bolt into the holes and use the rubber hammer beating it until

the expansion bolt got into the wall completely;

(4) Screw the screws in the two plastic expansion screw tubes. Please do not screw

them in the tubes completely, keep 3-5 mm out of them;

(5) Make the two holes on the back of the AP hang on the two screws;

(6) After hanging the AP, push the AP down and the AP will be locked on the wall. The

installation steps are as below:

Punch and nail on the wall Stuck the AP on the screws Complete the installation

Fig 3-3 steps of wall hanging installation

3.4.2 T-keel Installation

Wireless Access Point

Installation Manual Chapter 3 AP Installation

3-4

1. The width of T-keel is from 12mm to 30mm.

2. This installation method is only applied to the T-keel but not the other kinds of

keels.

The T-keel mounting kit includes two plastic mounting kits and two fixing screws, and

they canbe found in the accessory bag.

Fig 3-4 mounting kit

WL8200 series AP provides two kinds of mounting kits whose width are 15cm and

24cm. The client can choose the right mounting kit according to the actual installation

scenario. The steps are as below:

Step 1: Choose the right mounting kit according to the width of the T-keel and use the

two fixing screws to fix the mounting kit on the AP as below:

Fig 3-5 Fix the mounting kit onAP

Step 2: Close the mounting kit of AP to the T-keel as below:
