Digital Watchdog Power PIX DWC-D3361WTIR Manuel utilisateur

12132013

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Indoor Dome IR Camera

DWC-D3361WTIR

All manuals and user guides at all-guides.com

all-guides.com

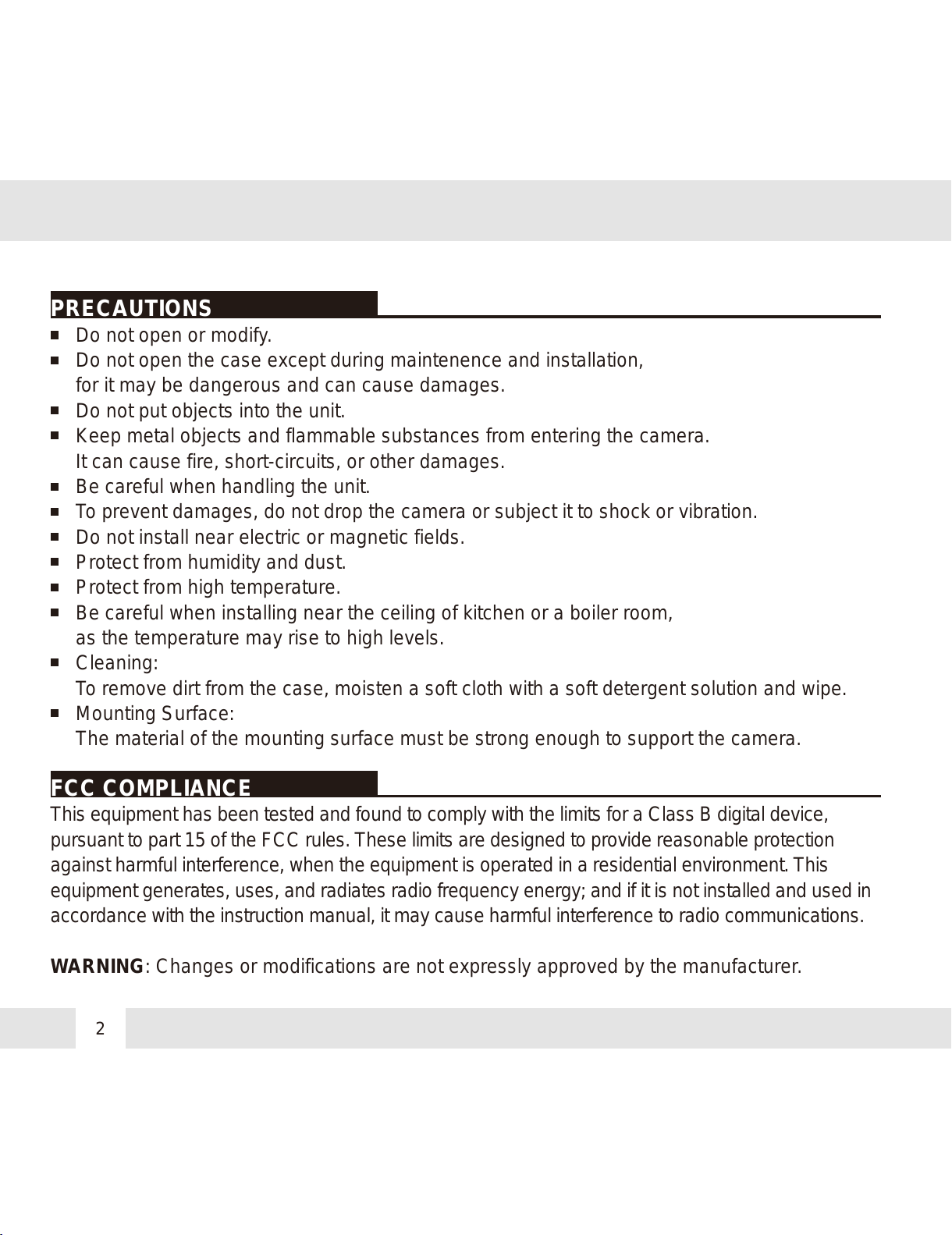

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules.These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

All manuals and user guides at all-guides.com

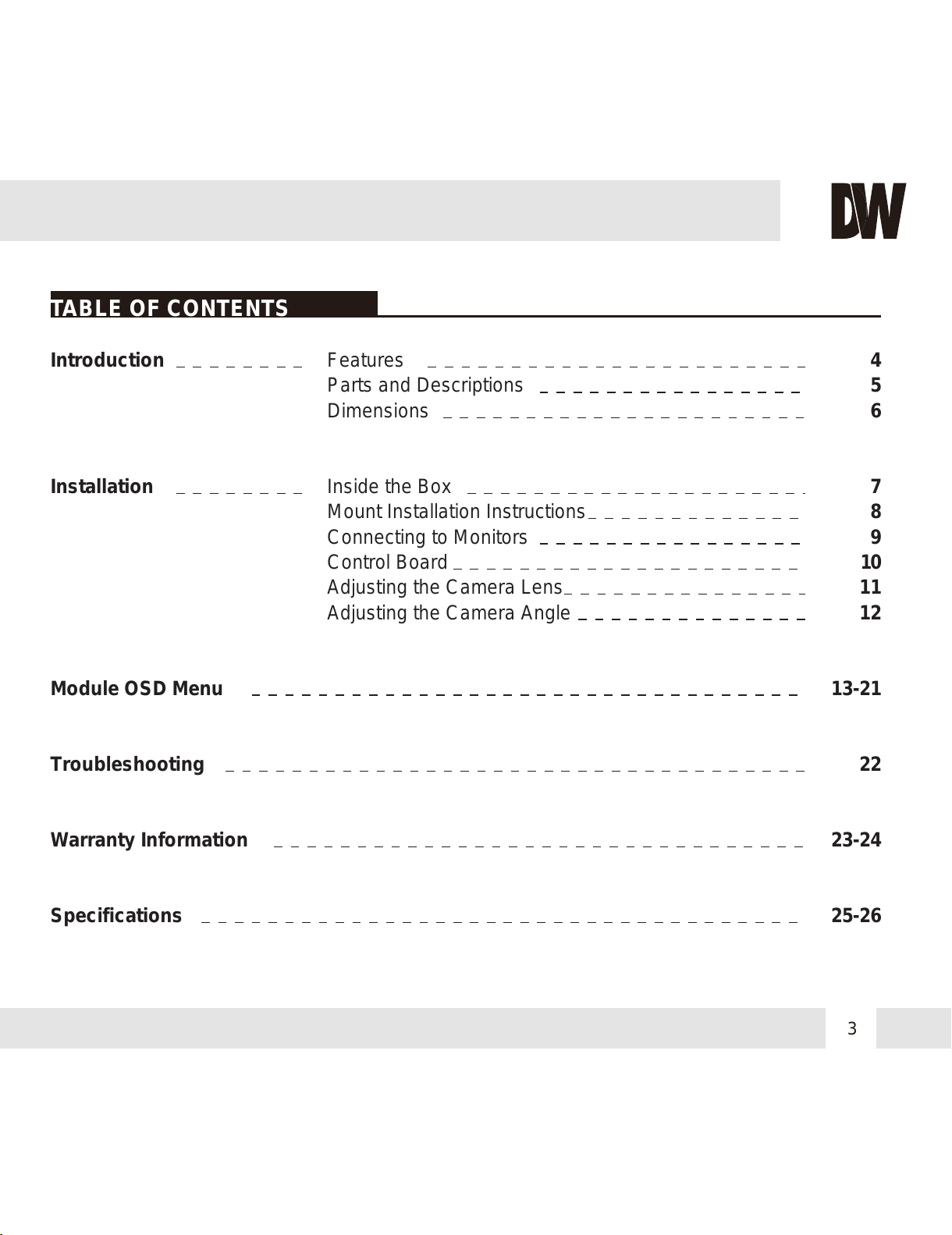

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Connecting to Monitors

Control Board

Adjusting the Camera Lens

13-21

23-24

25-26

Adjusting the Camera Angle 12

All manuals and user guides at all-guides.com

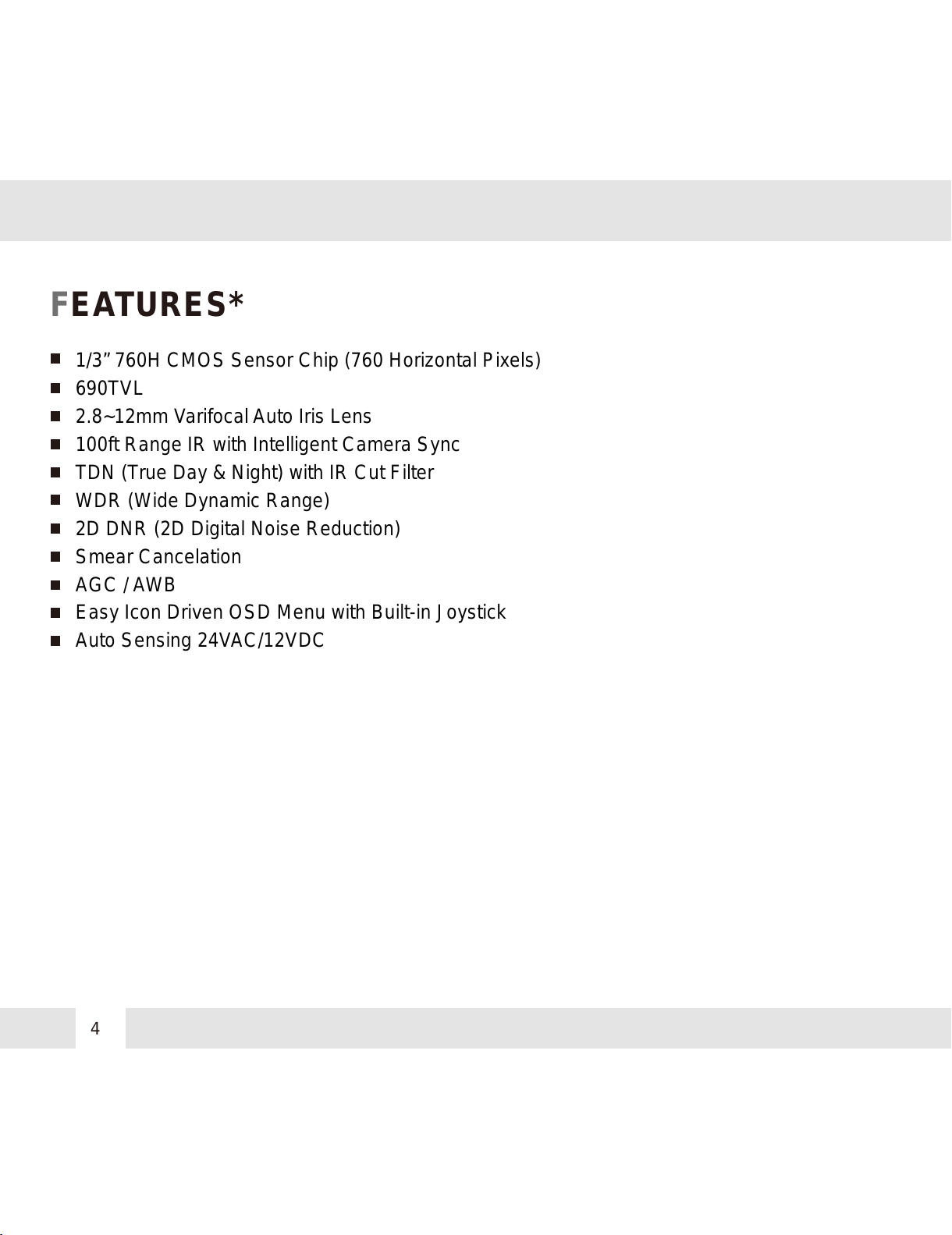

FEATURES*

1/3” 760H CMOS Sensor Chip (760 Horizontal Pixels)

690TVL

2.8~12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync

TDN (True Day & Night) with IR Cut Filter

WDR (Wide Dynamic Range)

2D DNR (2D Digital Noise Reduction)

Smear Cancelation

AGC / AWB

Easy Icon Driven OSD Menu with Built-in Joystick

Auto Sensing 24VAC/12VDC

All manuals and user guides at all-guides.com

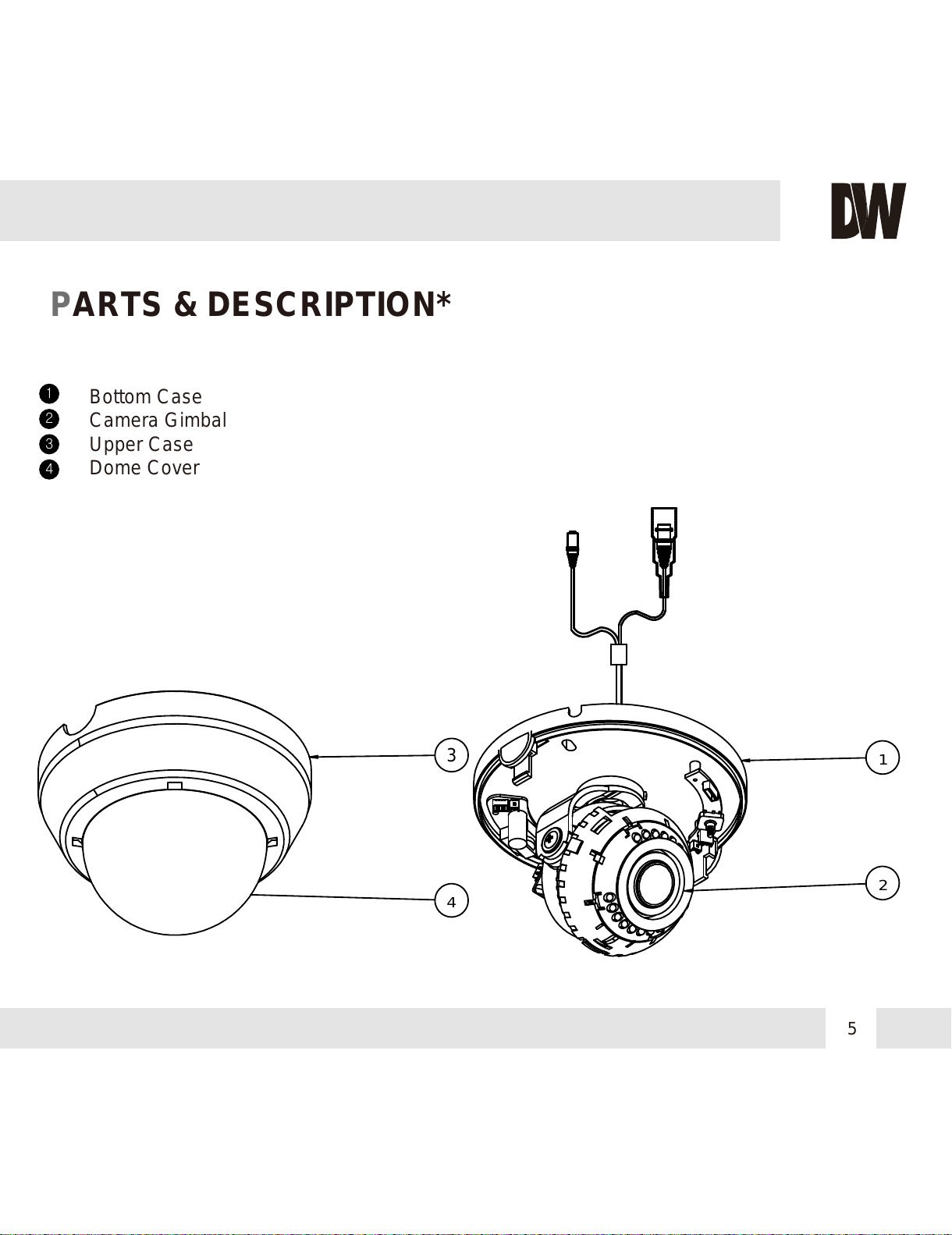

PARTS & DESCRIPTION*

1Bottom Case

Camera Gimbal

Upper Case

Dome Cover

All manuals and user guides at all-guides.com

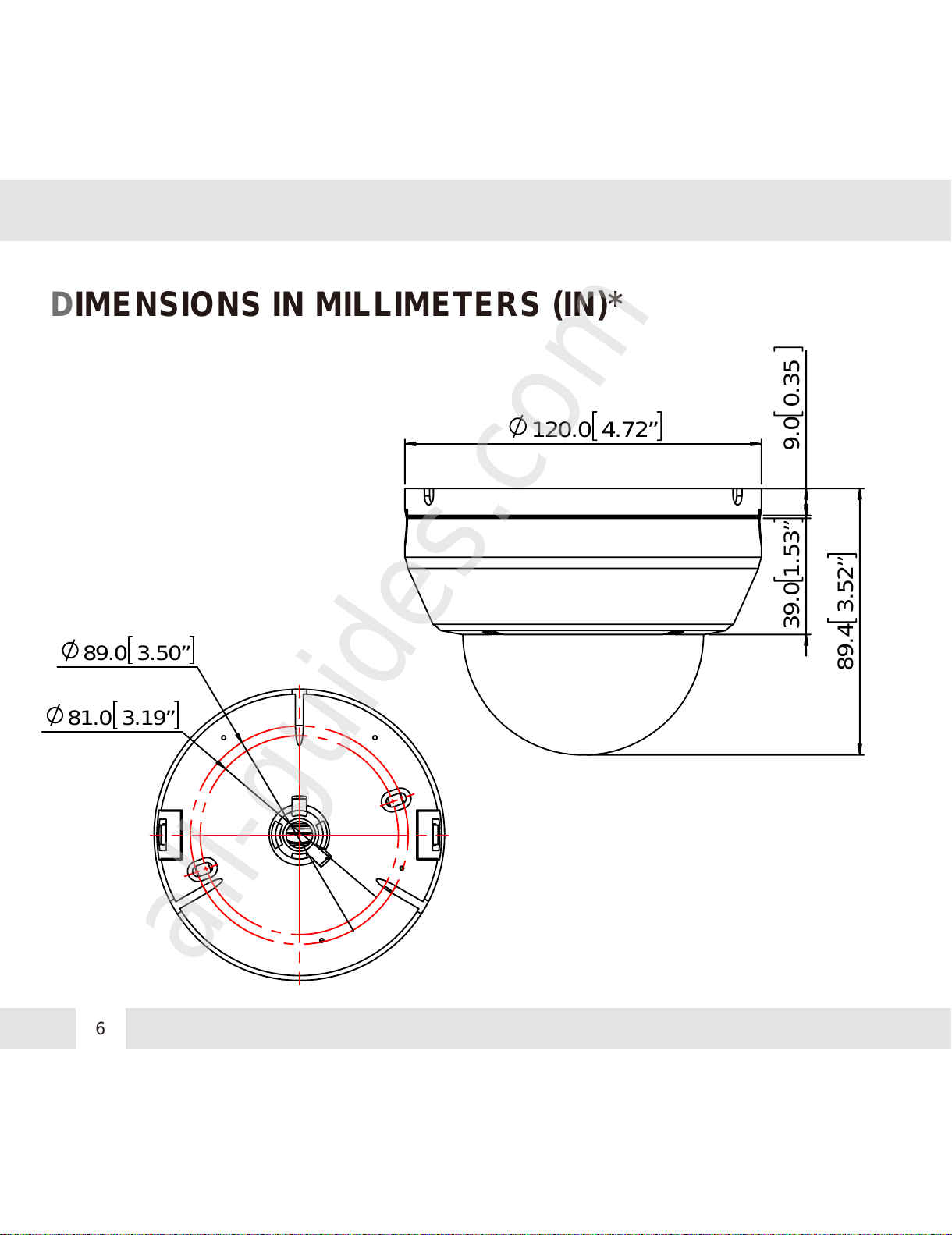

DIMENSIONS IN MILLIMETERS (IN)*

120.0 4.72”

9.0 0.3539.0 1.53”

89.4 3.52”

81.0 3.19”

89.0 3.50”

All manuals and user guides at all-guides.com

all-guides.com

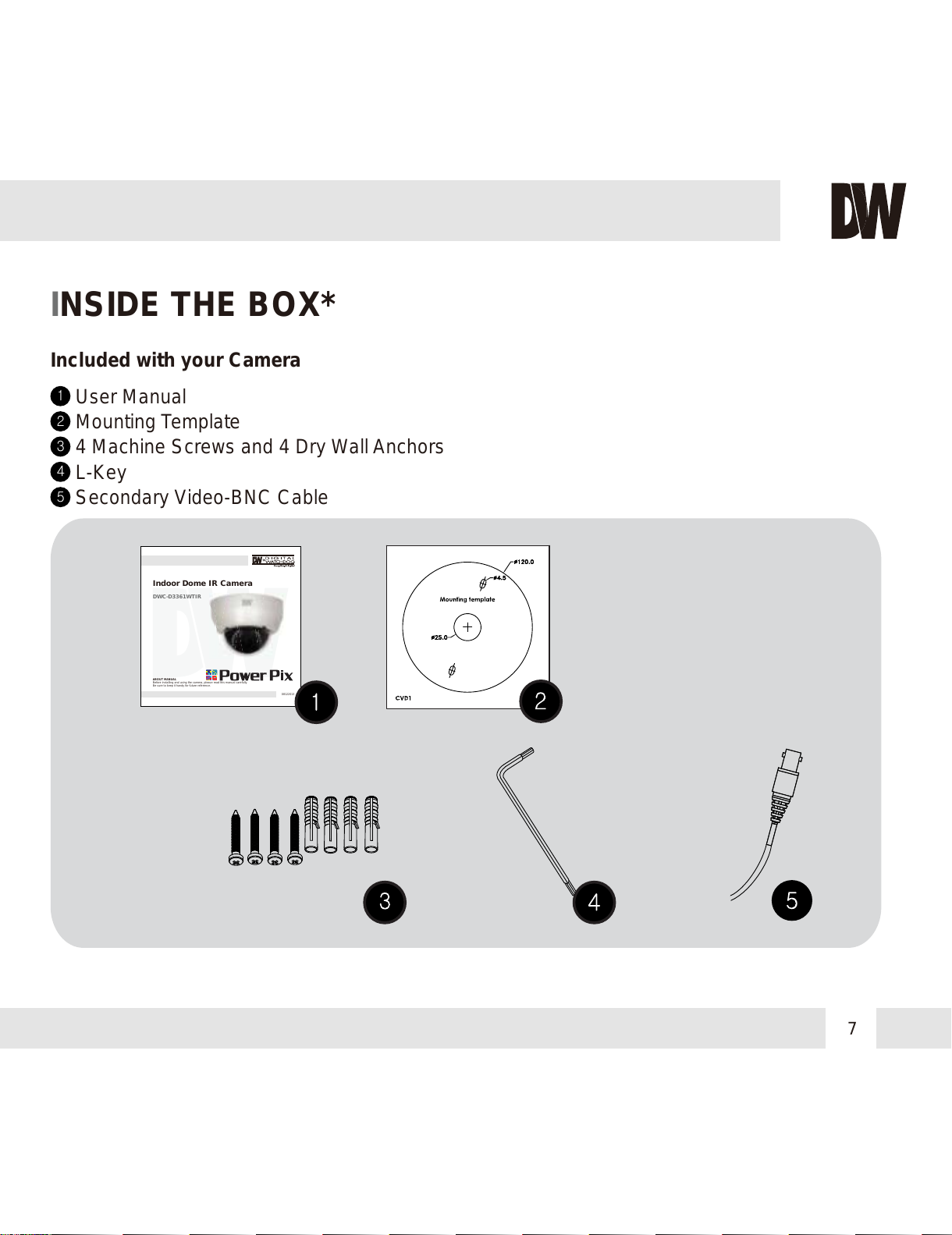

INSIDE THE BOX*

Included with your Camera

User Manual

Mounting Template

4 Machine Screws and 4 Dry Wall Anchors

L-Key

Secondary Video-BNC Cable

08122013

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Indoor Dome IR Camera

DWC-D3361WTIR

All manuals and user guides at all-guides.com

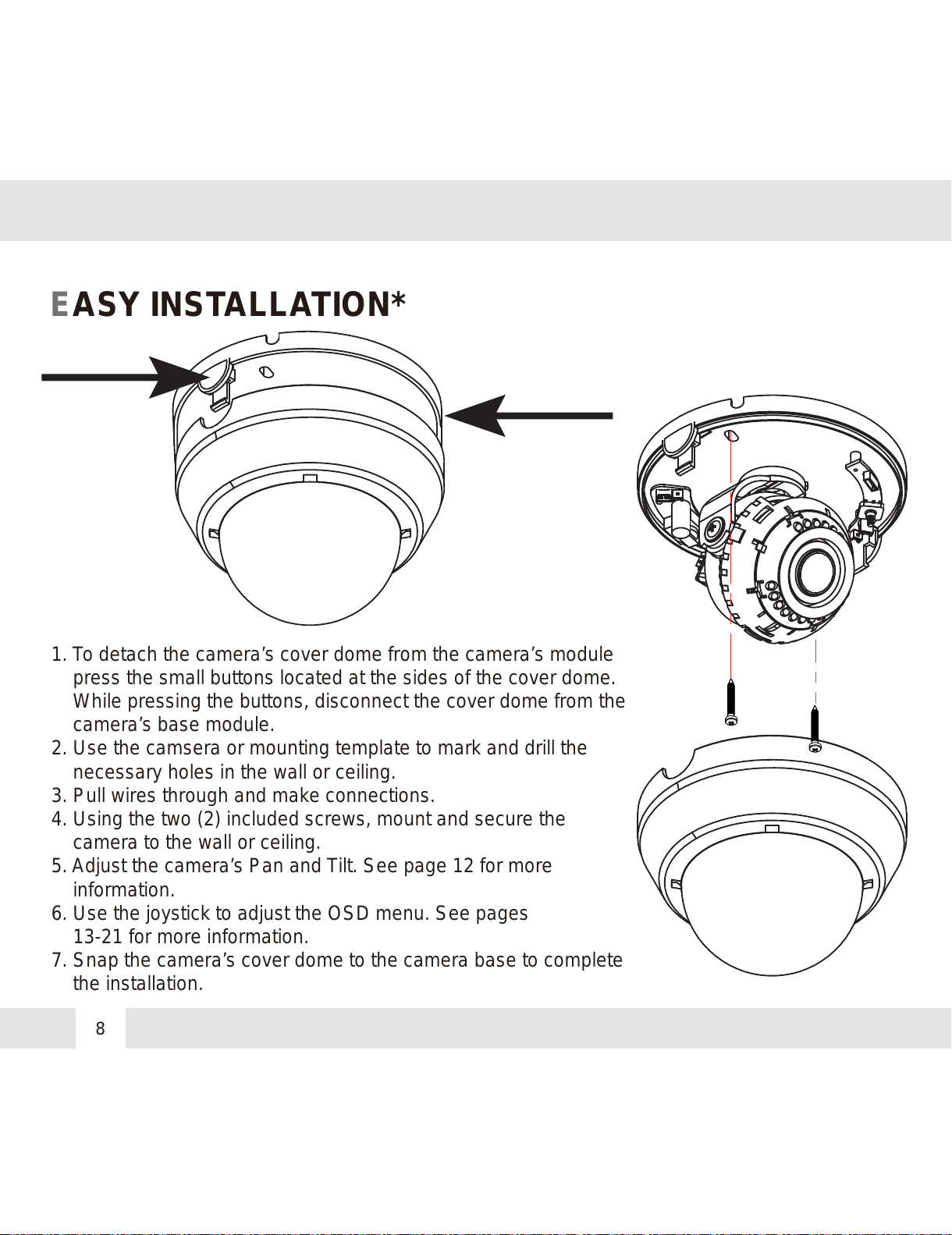

EASY INSTALLATION*

1. To detach the camera’s cover dome from the camera’s module

press the small buttons located at the sides of the cover dome.

While pressing the buttons, disconnect the cover dome from the

camera’s base module.

2. Use the camsera or mounting template to mark and drill the

necessary holes in the wall or ceiling.

3. Pull wires through and make connections.

4. Using the two (2) included screws, mount and secure the

camera to the wall or ceiling.

5. Adjust the camera’s Pan and Tilt. See page 12 for more

information.

6. Use the joystick to adjust the OSD menu. See pages

13-21 for more information.

7. Snap the camera’s cover dome to the camera base to complete

the installation.

All manuals and user guides at all-guides.com

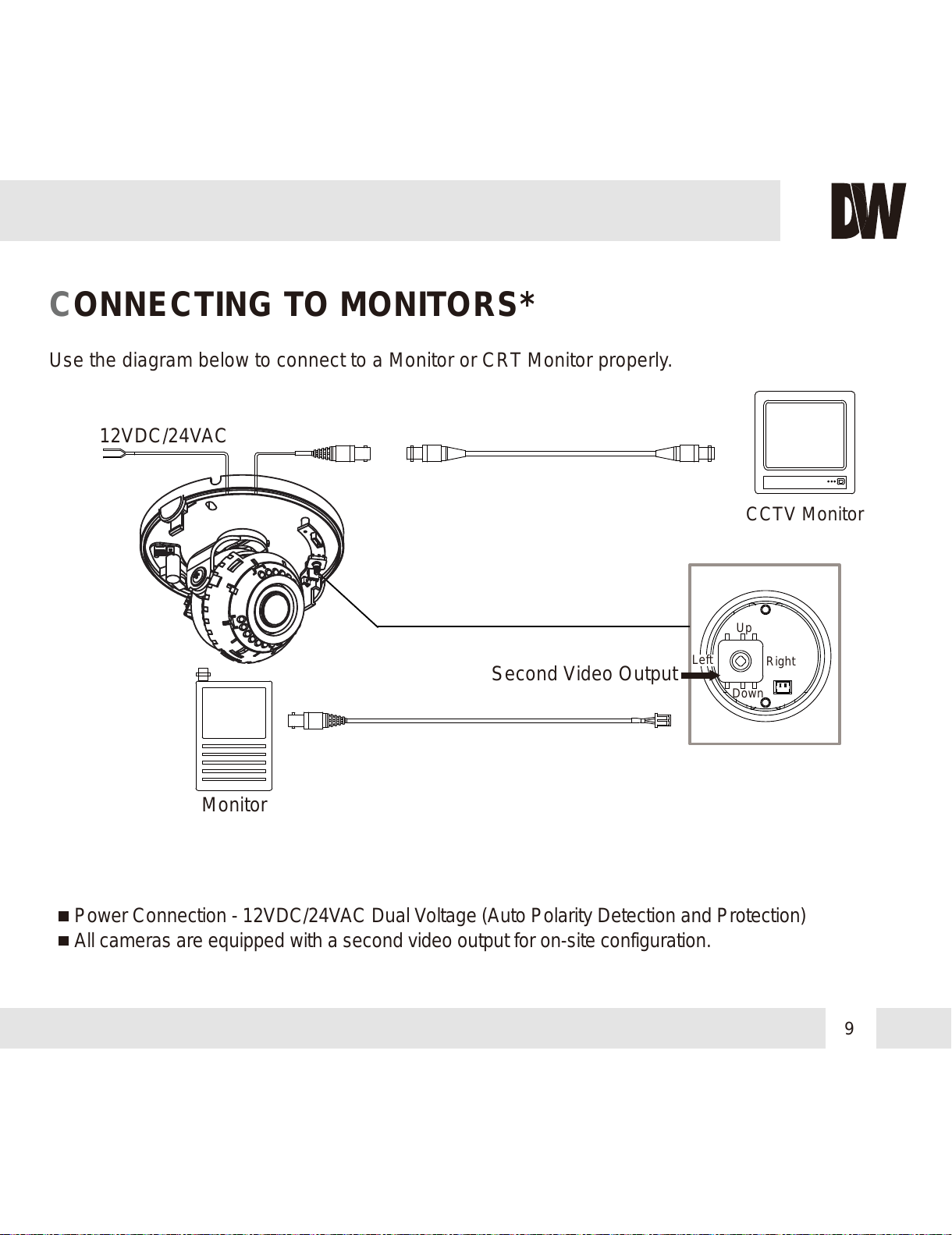

Use the diagram below to connect to a Monitor or CRT Monitor properly.

12VDC/24VAC

Monitor

CCTV Monitor

Second Video Output

Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection)

All cameras are equipped with a second video output for on-site configuration.

CONNECTING TO MONITORS*

Right

Left

Down

All manuals and user guides at all-guides.com

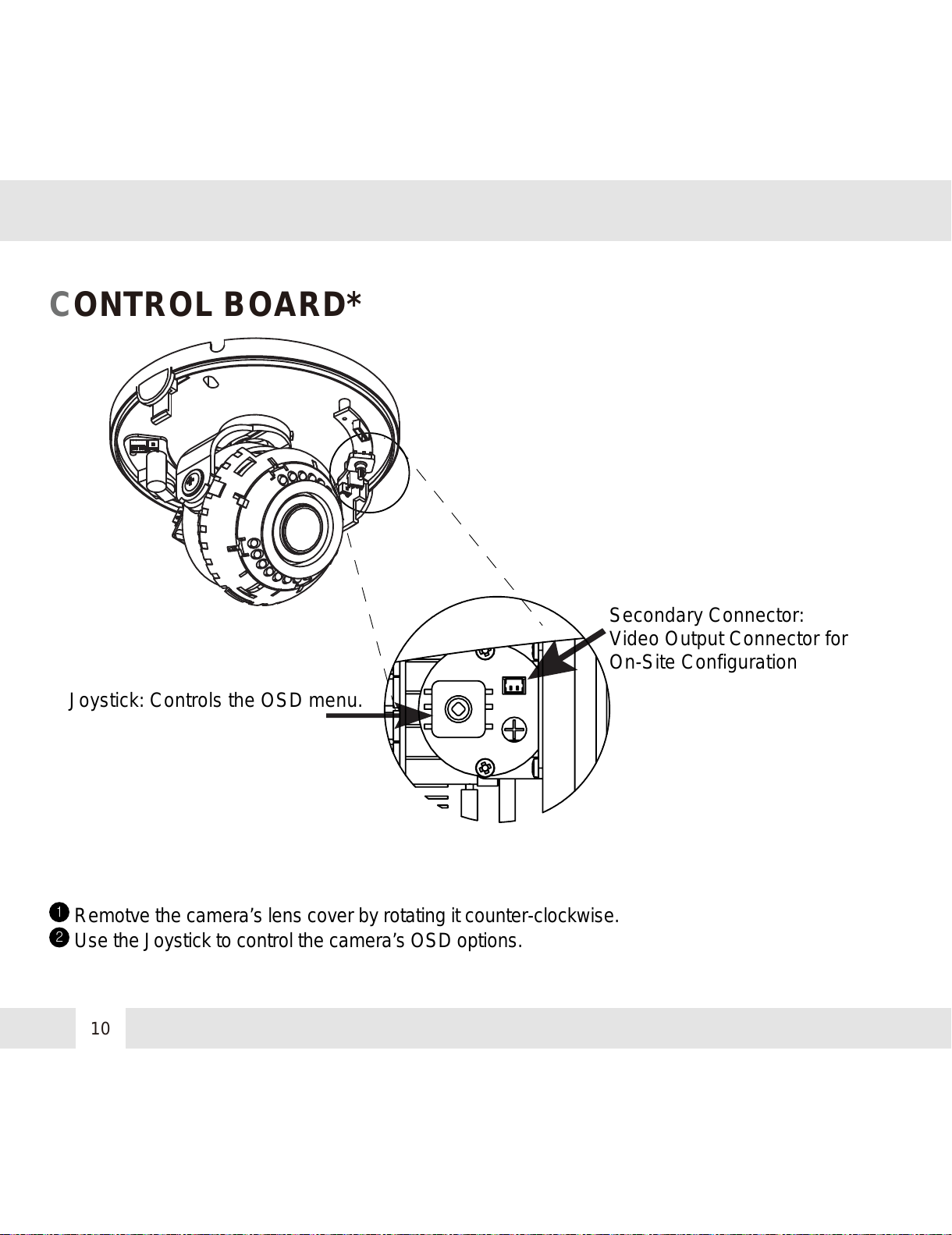

Joystick: Controls the OSD menu.

Secondary Connector:

Video Output Connector for

On-Site Configuration

CONTROL BOARD*

Remotve the camera’s lens cover by rotating it counter-clockwise.

Use the Joystick to control the camera’s OSD options.
