Dickson LoRaWAN Manuel utilisateur

Dickson

LoRaWAN™

enabled

receivers

Firmware version 5.3.x

(starting June 2021)

Introduction

Dickson LoRaWAN Receiver User Guide Page 2

Notices and safety

Disclaimer

and

limitation

of liability

Dickson assumes no liability for any loss or claims by third

parties which may arise through the use of this product.

Users must not use the product in any manner not

specifically indicated by Dickson.

Dickson

shall not be held liable for improper use of this

product.

This document is non-contractual and subject to change

without notice.

Safety

instructions

The latest safety instructions document is available for

download from the Dickson website. Flash this QR code to

access the document:

https://www.oceasoft.com/files/library/oceaview/Dickson_Safety.pdf

Introduction

Dickson LoRaWAN Receiver User Guide Page 3

Certifications and compliance

Caution: Any changes or modifications made to this product not expressly

approved in writing by Dickson could void the user's authority to operate the

equipment.

FCC statement

This device complies with part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1)

This device may not cause harmful

interference.

(2)

This device must accept any interference

received, including interference that may

cause undesired operation: FCC Part 15 §107 -

§109 - §207 - §247 (Ed 2008).

FCC RF Radiation Exposure

Statement

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. End

users must follow the specific operating instructions for

satisfying RF exposure compliance. This transmitter must

not be co-located or operating in conjunction with any

other antenna or transmitter.

IC statement

This device complies with Industry Canada license-

exempt RSS standard(s). Operation is sub

ject to the

following two conditions: (1) this device may not cause

interference, and (2) this device must accept any

interference, including interference that may cause

undesired operation of the device. Under Industry Canada

regulations, this radio transmitter may only operate using

an antenna of a type and maximum (or lesser) gain

approved for the transmitter by Industry Canada. To

reduce potential radio interference to other users, the

antenna type and its gain should be so chosen that the

equivalent is

otropically radiated power (e.i.r.p.) is not

more than that necessary for successful communication.

Introduction

Dickson LoRaWAN Receiver User Guide Page 4

CE - Conformity with European regulations

This device is compliant with the essential requirements

and other relevant requirements of the following

directives.

•2014/53/EU Radio Equipment Directive (RED)

•2014/30/EU EMC Directive

•2014/35/EU Low Voltage Directive

•2011/65/EU Restriction of Hazardous Substances

Directive

WEEE compliance

This device complies with the essential requirements and

other relevant provisions of the Waste Electrical and

Electronic Equipment Directive 2002/96/EC (WEEE

Directive).

Environmental protection

Please respect local regulations concerning disposal of

packaging, unused wireless devices, and their accessories,

and promote their recycling.

RoHS compliance

This device is compliant with the restriction of the use of

certain hazardous substances in electrical and electronic

equipment Directive 2002/95/EC (RoHS Directive). Do

not dispose of this product with household trash. Dickson

recycles this product under certain conditions. Please

Introduction

Dickson LoRaWAN Receiver User Guide Page 5

Europe

North America

Dickson Europe

720 rue Louis Lépine

34000 Montpellier

France

Tel: +33 499 13 67 30

Fax: +33 467 42 84 13

Dickson, Inc.

930 S Westwood Ave

Addison, IL 60101

USA

Tel: 1 (630) 543-3747

Cobalt X1, Cobalt X2, Cobalt L3, and Cobalt ML3 are the exclusive property of Dickson. All

other brands mentioned are the property of their respective owners. This is a non-

contractual document. Features and specifications mentioned here are subject to change.

Document updated for firmware v5.3.3

January 2022 Ref: ING-INS-142-EN Rev. 12

Introduction

Dickson LoRaWAN Receiver User Guide Page 6

Table of Contents

1Introduction................................................................................................. 7

1.1 Overview..........................................................................................................7

1.2 Detailed description.......................................................................................8

Key features .........................................................................................................8

Data management..............................................................................................8

Connectivity ........................................................................................................8

Hardware details (both models).......................................................................8

Hardware details - Advanced model (blue) ...................................................8

Hardware details - Pro model (gray)...............................................................9

Technical highlights ...........................................................................................9

Package contents ...............................................................................................9

1.3 Architecture and technologies ...................................................................10

2Setting up your receiver .......................................................................... 11

2.1 Getting started.............................................................................................. 11

Plug in the LoRaWAN antenna....................................................................... 11

Plug in the power cable .................................................................................. 13

Connect your computer to the configuration interface........................... 15

2.2 Configure the regional frequency ..............................................................18

2.3 Ethernet connection to your network ...................................................... 20

2.4 Wi-Fi connection to your network (Advanced model only)....................22

Workaround for Wi-Fi connection with static IP address........................ 24

Using a pre-shared WPA/WPA2 key..............................................................26

2.5 Cellular data connection (optional) ...........................................................28

Inserting SIM card in Advanced model........................................................ 28

Inserting SIM card in Pro model ....................................................................29

Software set up ................................................................................................ 30

2.6 Configuring “failover” order for network access ......................................32

2.7 LoRaWAN settings ........................................................................................33

3Troubleshooting .......................................................................................35

4Firmware upgrade from version 1.4.17 to 5.x.x ....................................37

Introduction

Dickson LoRaWAN Receiver User Guide Page 7

1Introduction

Congratulations and thank you for choosing the Dickson LoRaWAN™ wireless

monitoring solution. This document describes how to set up and use the Dickson

LoRaWAN-enabled receivers, a key component for collecting data in your

monitoring solution.

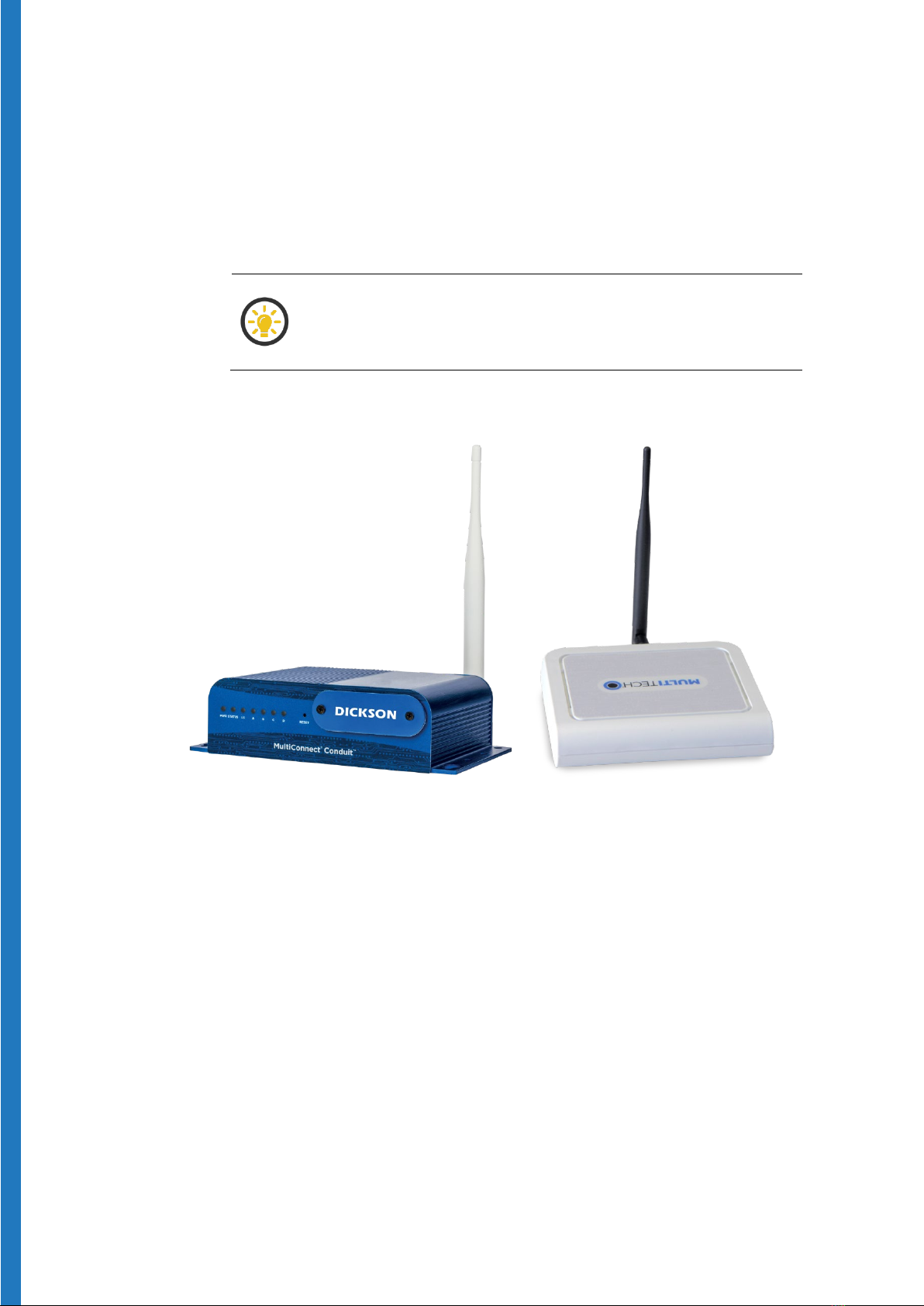

The functionality of the Advanced and Pro models (shown

below) is strictly identical. The two models only vary

somewhat in terms of hardware aspects.

Figure 1 –

Dickson Advanced

LoRaWAN enabled receiver

Figure 2 –

Dickson Pro

LoRaWAN enabled receiver

1.1 Overview

Designed for use with Dickson wireless modules featuring LoRaWAN™

connectivity, the Dickson LoRaWAN™ receiver is a wireless receiver that leverages

new-generation LoRaWAN™ Internet of Things technology to offer exceptionally

long-range wireless communication.

This receiver can be connected to your local network via either a wired Ethernet

or a Wi-Fi connection, or to a cellular data network with the optional cellular data

option.

Introduction

Dickson LoRaWAN Receiver User Guide Page 8

1.2 Detailed description

Key features

•Compatible with Dickson LoRaWAN data loggers

•Low energy technology preserves data logger battery

•LED status indicators

•Software updates via integrated web interface

Data management

•Collects and forwards data from data loggers to Cloud or on-premises

server

Connectivity

•LoRaWAN long-range wireless technology

•Range up to about 15 km/10 miles

•Automatic data logger detection

•LoRaWAN™ channel plans in ISM spectrum (according to model):

EU868, US915, AS923-1, AU915, IN865, KR920

Hardware details (both models)

•Antenna (+3dBi default; +5dBi or +8dBi optional)

•External power supply (110-240V AC adapter)

•ARM9 400MHz; 16 MB DDR RAM; 256 MB Flash

•Storage conditions: -40 °C to +85 °C (-40 °F to +185 °F); 20 to 90% RH

(non-condensing)

•Wall-mount, screw attachment

•LoRaWAN / Wi-Fi / Cellular data: FCC, CE, IC

•ROHS 3, REACH, PROP-65

Hardware details - Advanced model (blue)

•Connectivity options: Ethernet; Wi-Fi (2.4 GHz / 100mW: IEEE 802.11

b/g/n); and/or 4G-LTE cellular

•Operating conditions: -30 °C to +70 °C (-22 °F to +158 °F); 20 to 90% RH

(non-condensing)

•Anodized aluminum, IP30 rating

•Dimensions: 161.3 x 107.4 x 42.8 mm (6.4 x 4.2 x 1.7 in.); weight: 450 g (16

oz.)

Introduction

Dickson LoRaWAN Receiver User Guide Page 9

Hardware details - Pro model (gray)

•Connectivity options : Ethernet or Ethernet/4G-LTE cellular

•Operating conditions: 0 °C to +70 °C (32 °F to +158 °F); 20 to 90% RH (non-

condensing)

•PC-ABS (polycarbonate-ABS), IP30 rating

•Dimensions: 165 x 135 x 36 mm (6.5 x 5.3 x 1.4 in.)

•Weight: 284 g (10 oz.)

Technical highlights

•Wireless range up to about 10 miles (16 km) line-of-sight

•2-way wireless communications

•Available LoRaWAN protocol frequencies: 915 MHz, 868 MHz, 434 MHz

•Wired Ethernet or Wi-Fi network connection

•Optional cellular data module

Package contents

•Dickson LoRaWAN™ enabled receiver

•AC adapter (110-240 v)

•LoRaWAN antenna

•Ethernet cable

Optional and to be ordered separately

•Wi-Fi wireless module

•Cellular data module, antenna, and SIM card

Introduction

Dickson LoRaWAN Receiver User Guide Page 10

1.3 Architecture and technologies

Installed locally at your site, the Dickson LoRaWAN™ enabled receiver collects data

from compatible Dickson modules within wireless range.

The receiver is connected permanently via the Internet to the Dickson Cloud

service, where module data is pushed by the Receiver, and accessed using the

OCEAView™ or legacy CobaltView™ or web application. The diagram below

shows the overall solution organization, with the receiver collecting data from

modules and forwarding it to the OCEACloud platform.

Figure 3 – Receiver connecting Dickson LoRaWAN data loggers to the

Cloud
