VC600 Quick Installation Guidance
Introduction
The VC600 is designed for capturing video from almost any source
such as your Camcorder, VCR and or DVD player (any device that
outputs video through S-Video or composite can be connected to the
VC600).
Features:
Small form factor USB stick
Automatically capture and then burn to DVD with one easy step
Edit and burn your videos to DVD, VCD and SVCD
Use on your desktop or note book
Hand held device allows easy record options using the one touch
button
Supply multi-video and S-video inputs.
System requirement
Intel or AMD CPU 1.4 GHz or higher
256 MB System RAM
Available USB 2.0 port
VGA card supports DirectX9.0
CD-ROM (for installation) DVD reader/Writer for DVD burning
1GB HD space 600MB to 3GB per hour for recording
Microsoft Windows XP with service pack 2, Microsoft Vista
Contents
VC600 capture device
AV cable 3-3
Driver and Application CD
VC600 QIG
- Page 1 -
VC600 V1.0

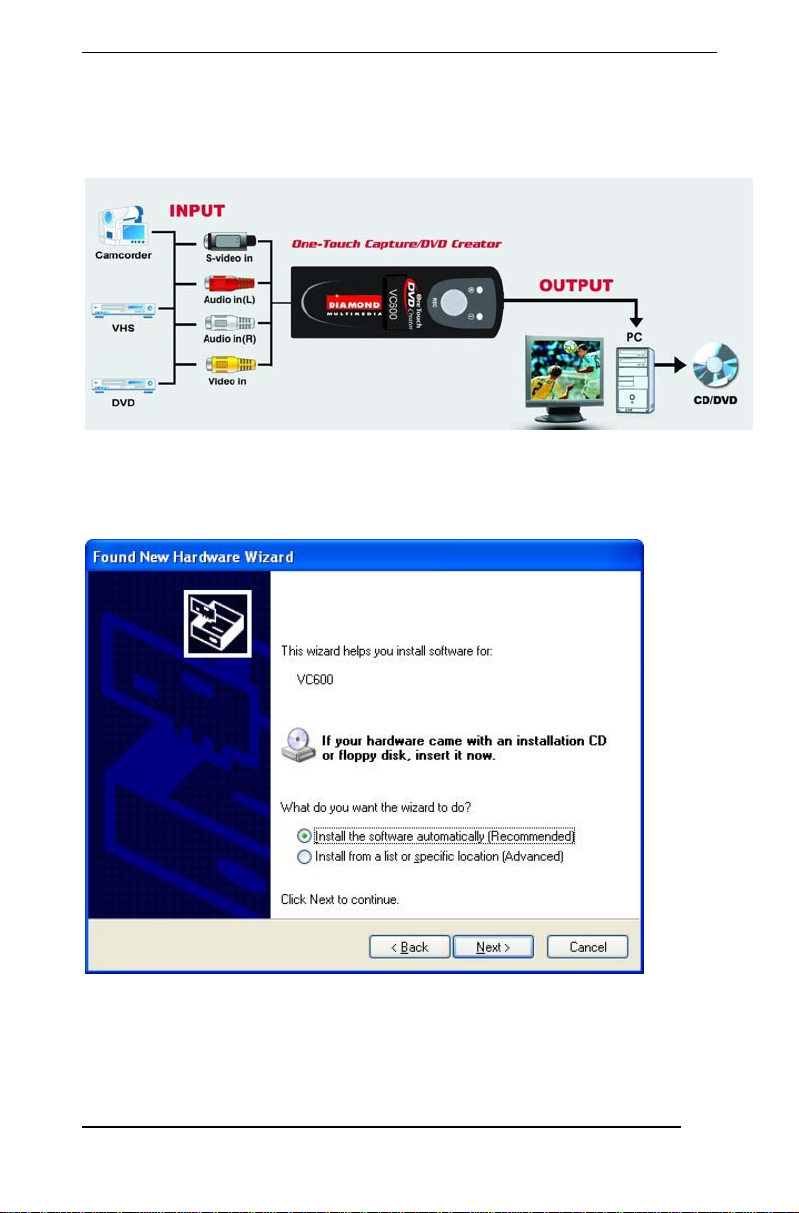

VC600 Connection
Driver and Application Installation
Step1: OS will remind a new hardware-- “New Hardware Device” was
found. Please choose “Cancel”,
- Page 2 -
VC600 V1.0

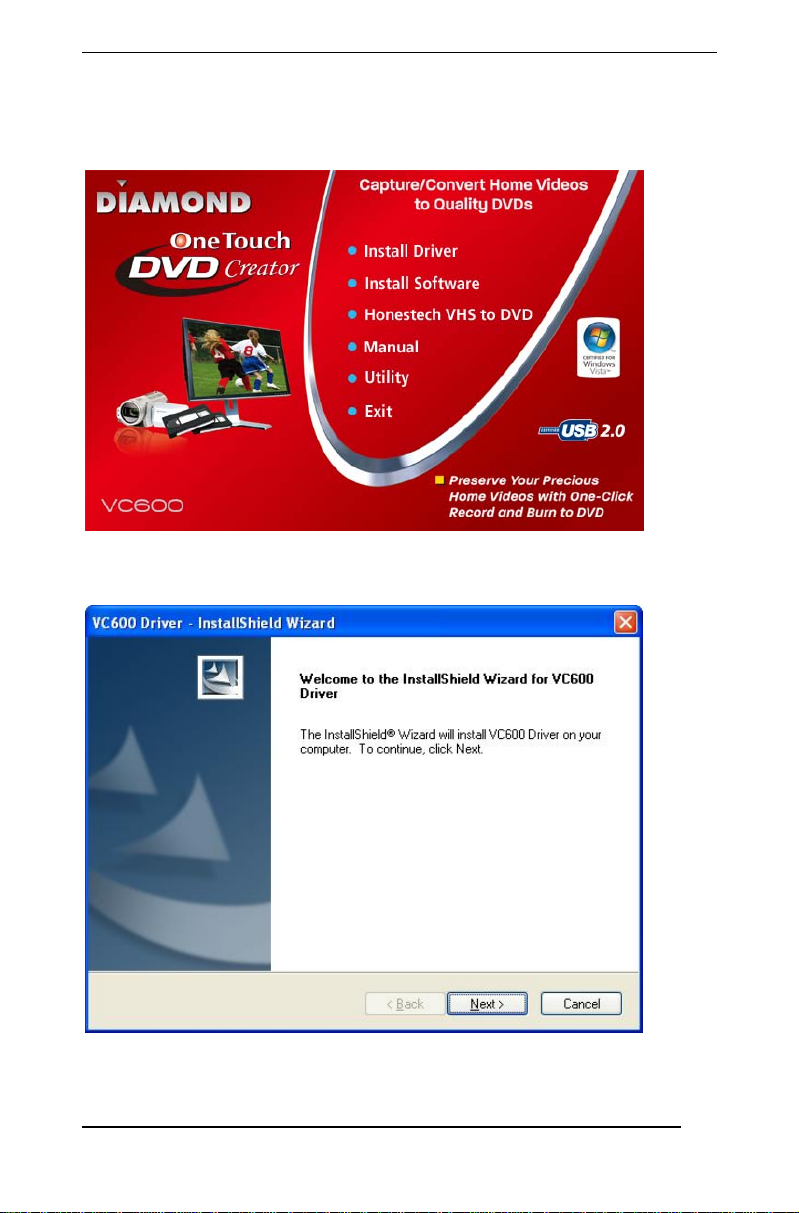

Step2: When CD is inserted, OS will guide you to the setup
automatically. Click “Install Driver” or run Drive\Setup.exe,
Step3: Click Next to begin the installation.
- Page 3 -
VC600 V1.0
Step4:Click “Install” to continue installation driver
Step5: Click “Finish” to completely install the Driver Software
- Page 4 -
VC600 V1.0

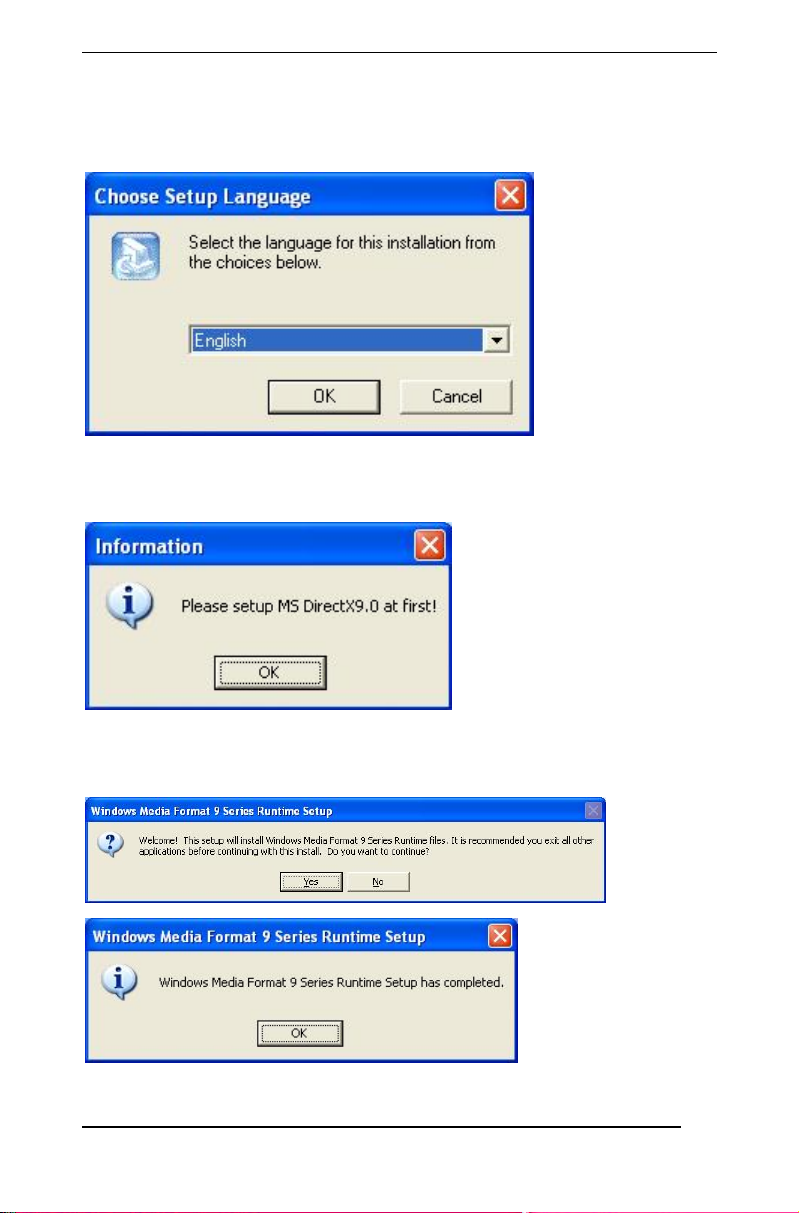

Step 6:Click “Install Software” or run “Soft\Setup.exe” to install
application, Choose your favorite language .
Step7: Please make sure DirextX9.0 installed before application
installation. If not, system will prompt install it automatically
Step8: After install DirextX9.0, Click “yes” to install Window Media
Format9,
- Page 5 -
VC600 V1.0
Step9: After that, click “next”

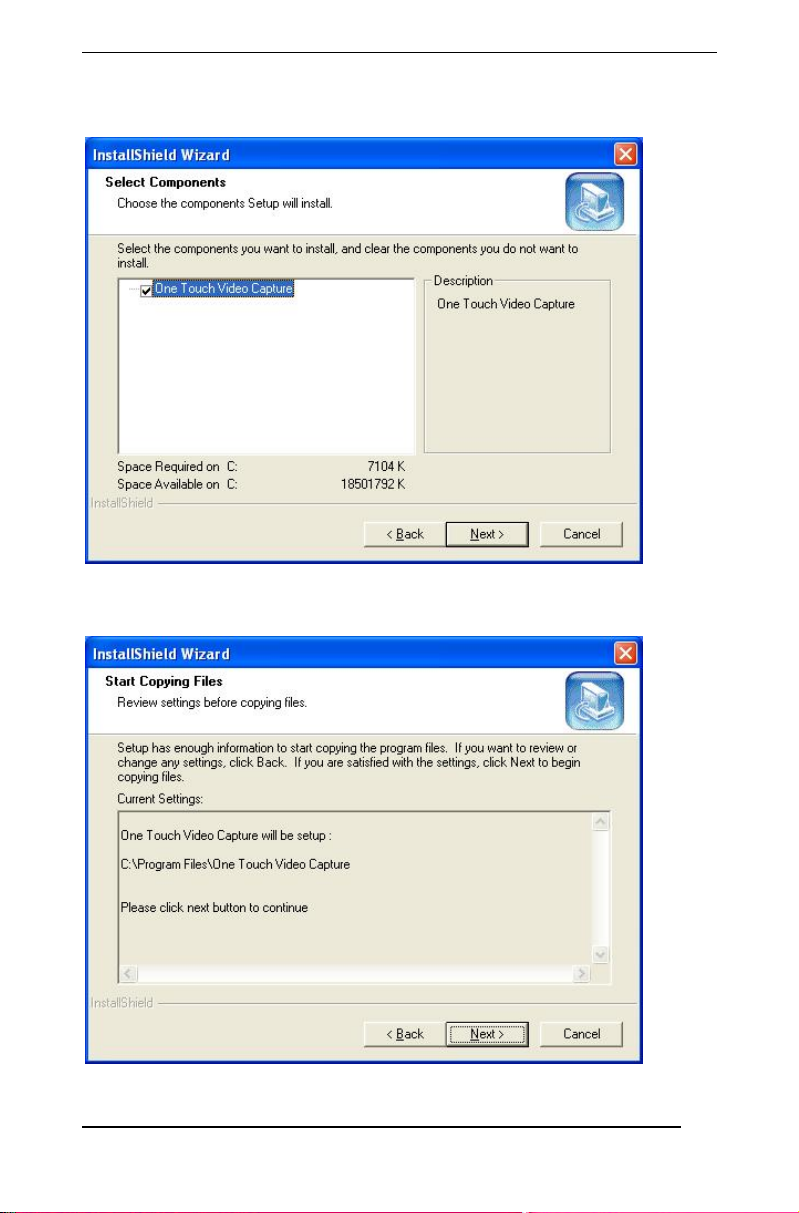

Step10: Choose install the components, and click “Next”.
- Page 6 -
VC600 V1.0
Step11: Prepare to install One Touch Video Capture click “next”
Step12: Installation start to copy files to destination directory.
- Page 7 -
VC600 V1.0
Step13: System will prompt that system will restart, please click
“Finish”.
Install Honestech VHS to DVD Edit Software.
Step 14: Click “Honestech VHS to DVD” or run “VHS2DVD
\Setup.exe” to install edit software, choose your favorite language.
- Page 8 -
VC600 V1.0
Step 15: Click “next” to continue installation
Step 16: Click “Finish” to completely install the Honestech VHS
to DVD edit Software
- Page 9 -
VC600 V1.0

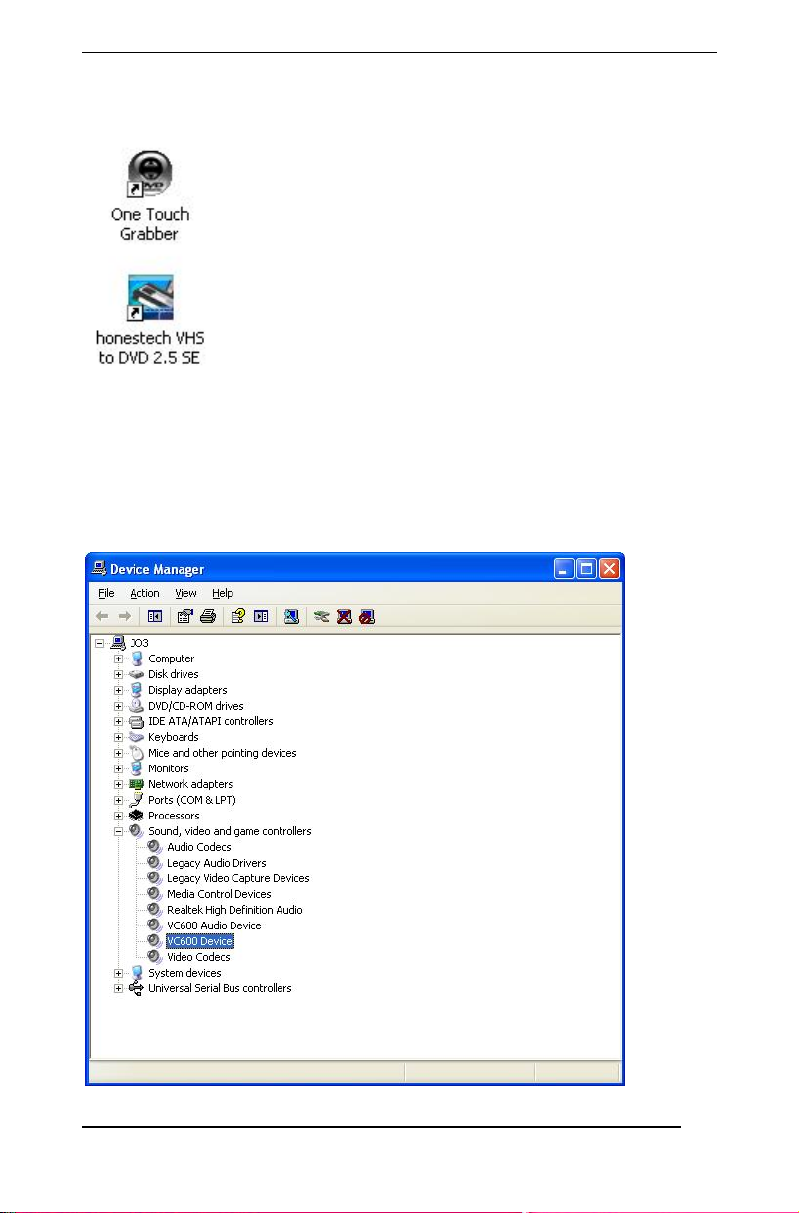

Step17: Icon on your desktop
Step18: When all finished, please check on open the control panel,
select “System”, select ”system properties”, select “Device
Manager”, you can see four new device drivers installed.
VC600 Device
VC600 Audio Device
- Page 10 -
