Diamond DCS9 Manuel utilisateur

Mod: DCS9

Production code: TT820BE

04/2013

ASSEMBLY INSTRUCTIONS

Page 1

TABLE OF CONTENTS

Chapter 1 ASSEMBLING THE

DETERGENT DISPENSER

Chapter 2 ASSEMBLING THE ADDITIONAL RINSING PUMP

Chapter 3 ASSEMBLING THE DRAINING PUMP

Chapter. 4 DISCHARGE PUMP FITTING INSTRUCTIONS ON B 270 AND MODELS

WITHELECTROMECHANICAL CONTROLS

page 2

page 5

page 9

page 12

Page 2

ASSEMBLY INSTRUCTIONS

CHAPTER 1 ASSEMBLING THE DETERGENT DISPENSER

Assembling should be performed by skilled personnel

OPERATIONS:

1. Disconnect the power supply (through the wall

switch) before performing any operation.

2. Remove the machine front panel by removing

the two fastening screws “A” on the frame in the

lower side of the machine.

3. Insert the detergent inlet junction by removing

the rubber plug into the special hole in the tank,

on the left side.

ASSEMBLY INSTRUCTIONS

Page 3

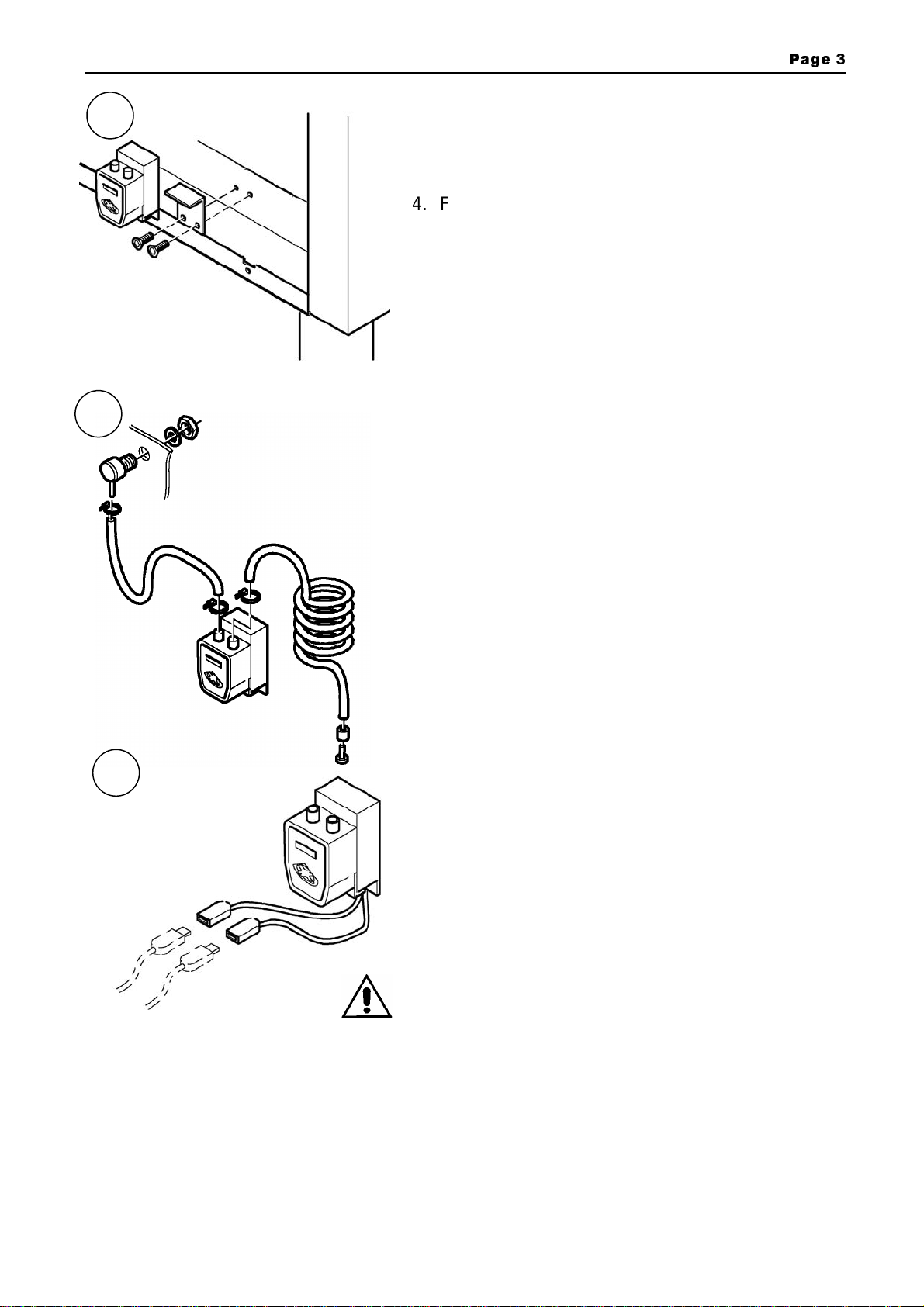

4. Fasten the measuring device on the front frame,

using the special holes and fastening screws.

5. Connect the junction to the measuring device

through the supplied piping using the special

clamps.

6. Connect the measuring device to the supply

mains using the supplied cables close to the

same device. Follow the instructions shown on

the attached wiring diagram.

7. TESTING:

Check that the measuring device starts at the

first tank filling and any time the machine

supplements the water into the boiler, that is, at

any rinsing.

Note: for adjustments, follow the instructions in

the user manual at chapter “Adjustments and

checks”.

Page 4

ASSEMBLY INSTRUCTIONS

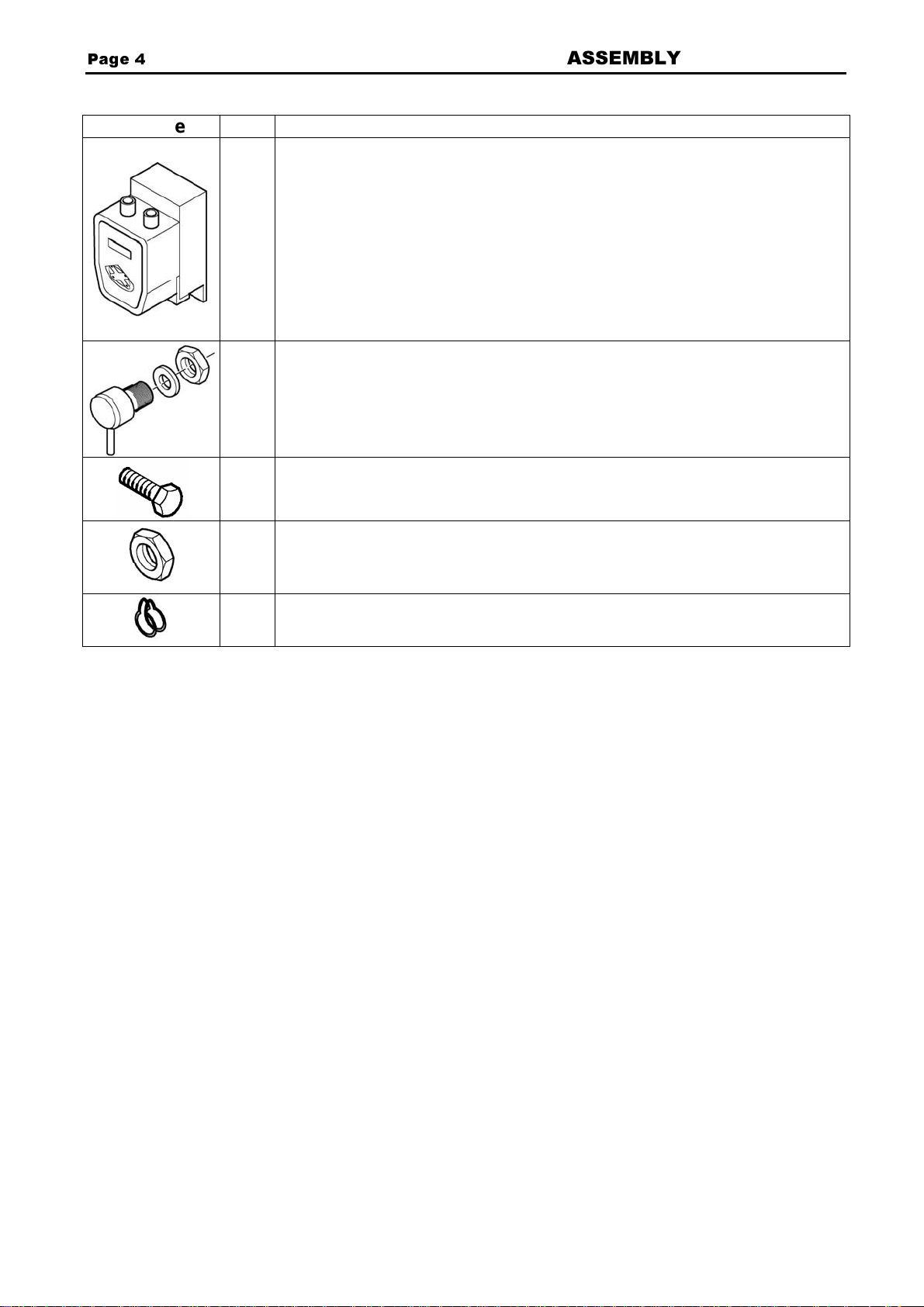

Component Q.ty

Technical features of the kit components

Timed peristaltic batcher device, 230V 50/60 Hz.

Stainless steel union elbow (with nut and washer).

4MAx16 stainless steel screw.

M4 self-locking nut.

Clamp.

ASSEMBLY INSTRUCTIONS

Page 5

CHAPTER 2 ASSEMBLING THE ADDITIONAL RINSING PUMP

Assembling should be performed by skilled personnel

OPERATIONS:

1. Disconnect the power supply (through the wall

switch) before performing any operation

2. Remove the right side panel of the machine by

removing the two fastening screws “A” on the

frame in the lower side of the machine.

3. Fasten the motor pump to the bottom of the

machine using the special holes and fastening

screws.

Page 6

ASSEMBLY INSTRUCTIONS

4. Remove the outlet piping from the solenoid valve

(by removing the check clamp) and attach it in

outlet from the motor pump.

5. Fasten the stub pipe (supplied) between the

solenoid valve and the motor pump inlet by

clamping it with the clamps (supplied) and

perfectly tightening it.

6. Connect the motor pump to the supply mains

using the supplied cables (close to the motor

pump). Follow the instructions shown on the

attached wiring diagram.

Red and Black

EXIT

ENTER

ASSEMBLY INSTRUCTIONS

Page 7

7. Fasten the condenser (by lifting the tab on the

machine bottom side) by inserting the condenser

screw into the special hole, and tighten it with the

supplied nut.

8. Implement the electrical connections between

condenser and motor pump. Note: (The motor pump

connection terminals are designed to prevent

inverting the winding connections).

9. TESTING:

Check that there is no leak in the hydraulic

connections (check to be performed during the motor

pump operation).

The motor pump should start at the machine filling

and any time the machine supplements water into the

boiler (that is, at any rinsing) .

Green & White

Page 8

ASSEMBLY INSTRUCTIONS

Component Q.ty

Technical features of the kit components

Peripheral motor pump, 230V 50Hz. 460w

Rubber pipe, 12x19.5 mm

12-22 band clamp

6Ma x 10 stainless steel screw

6MA self-locking nut

10µF condenser.
