Diamond View DV151 Manuel utilisateur

DIAMOND VIEW

DV151

Colour LCD Monitor

15.1” (38.4 cm) LCD Panel Size

MODV151UG/0900/1

Table of Contents

1Important Safety Instructions .......................................... 3

2Features.............................................................................4

3Unpacking the Monitor .....................................................5

4Hardware Installation........................................................6

Audio Cable Installation.................................................................... 7

5Windows Software Installation ........................................8

Windows 95 ........................................................................................ 8

Windows 98 ........................................................................................ 8

Windows Millennium Edition (Windows Me)................................... 9

Windows 2000 .................................................................................... 9

6Setting the Display Resolution ......................................10

Choosing The Best Resolution....................................................... 10

Supported Graphics Modes and Refresh Rate Selection............ 11

7Adjusting the Monitor..................................................... 13

Picture Optimisation........................................................................ 13

Manual Picture Adjustment............................................................. 13

8Security Lock Installation...............................................16

9Frequently Asked Questions.......................................... 17

10 Specifications.................................................................. 19

11 Service Contacts.............................................................21

Australian Service Contacts ........................................................... 21

New Zealand Service Contacts....................................................... 22

part of this publication may be reproduced, transmitted, transcribed, stored in

a retrieval system or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical,

chemical, manual or otherwise, without the prior written permission.

Disclaimer

Mitsubishi Electric Australia Pty. Ltd. makes no representations or

warranties, either expressed or implied, with respect to the contents hereof

and specifically disclaims any warranties, merchantability or fitness for any

particular purpose. Further, Mitsubishi Electric Australia reserves the right to

revise this publication and to make changes from time to time in the contents

hereof without obligation to notify any person of such revision or changes.

Diamond View is a registered trademark of Mitsubishi Electric Australia Pty. Ltd.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

All other trademarks remain the property of their respective owners.

Reference Information

For future reference, write the following information about your

monitor in the space below. The serial number is on the back of

the product or on the bottom of its stand.

Monitor Information

Product Name: Diamond View DV151

Serial Number:

Date of Purchase:

Dealer Information

Dealer:

Telephone

Number:

Address:

1Important Safety Instructions

Please read the following safety instructions before installing or cleaning

your Diamond View monitor:

1. Unplug the monitor’s power cable from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners. Use a soft cloth to clean the

monitor housing and a tape to stick dust and fingerprints on the screen

panel.

2. Slots and openings on the back or top of the cabinet are provided for

ventilation. They must not be blocked or covered. This product should

never be placed near or over a radiator or other heat source, or in a

built-in installation unless proper ventilation is provided.

3. Never push objects of any kind, or spill liquid of any kind into this

product.

4. Do not attempt to service this product yourself as opening or removing

covers may expose you to dangerous voltages or other risks.

5. If any abnormal operation or accident (such as dropping the unit)

occurs, disconnect the monitor from the wall power outlet and contact

qualified service personnel.

6. Turn the audio volume control of the built-in speakers to minimum (0)

and turn the monitor off before connecting or disconnecting any audio

cable.

2Features

Your Diamond View DV151 Monitor has the following features:

♦XGA (1024 x 768 pixel) Resolution LCD Panel

♦Plug and Play Compatibility

With Microsoft®Windows®95, 98, 2000 and Millennium Edition.

♦Space Saving

The DV151 LCD monitor’s footprint is only 170 mm deep including the

tilt/swivel stand, reducing required desk space.

♦Light Weight - only 5.8 kg

♦Lower Power Consumption - 36 W maximum during operation

with audio.

♦Power Saving

Power management complies with VESA DPMS standard. When the

system is idle (in monitor off mode), the monitor automatically cuts its

power consumption to less than 5 W.

♦On Screen Display

Allows you to adjust all settings simply using on-screen menus.

♦High Quality Ratiometric Expansion

With any resolution within the monitor’s specified range, your Diamond

View DV151 monitor can expand the image to full screen.

♦True Colour Display

With dithering support, Diamond View DV151 monitor enhances the

visual effect and offers you better image quality.

♦Auto Adjustment Function

The auto adjustment key automatically optimises the displayed image.

♦Removable Stand with VESA Standard Mounting

♦Built-in Stereo Amplifier and Speakers

3Unpacking the Monitor

Please check that the following items are included with your monitor. If they

are missing or damaged, please contact your place of purchase immediately.

♦LCD monitor with attached signal cable

♦Power cord

♦User’s manual

♦Audio Cable

♦Utilities and Driver Floppy Diskette

Locate the model name and the serial number label on the back of your

monitor and write the details of the monitor and your place of purchase in the

space on page (ii) of this manual for future reference.

4Hardware Installation

Your monitor is equipped with an automatic power supply with a voltage

range from 100 to 240 Volts AC at a frequency of 50 to 60 Hz. Make sure

that your local power supply is within the supported range. If you are unsure,

please contact your electricity supplier.

To install your Diamond View DV151 monitor:

1. Make sure that the power to the computer and the power to the monitor

are both turned off.

2. Connect the blue connector of the monitor’s VGA cable to the VGA

output of the computer‘s graphics card.

3. Connect the monitor‘s power cord to an AC power socket. Please make

sure, that you have easy access to the power socket so you can

disconnect the unit from the power socket should you need to.

Power Cable

VGA Signal Cable

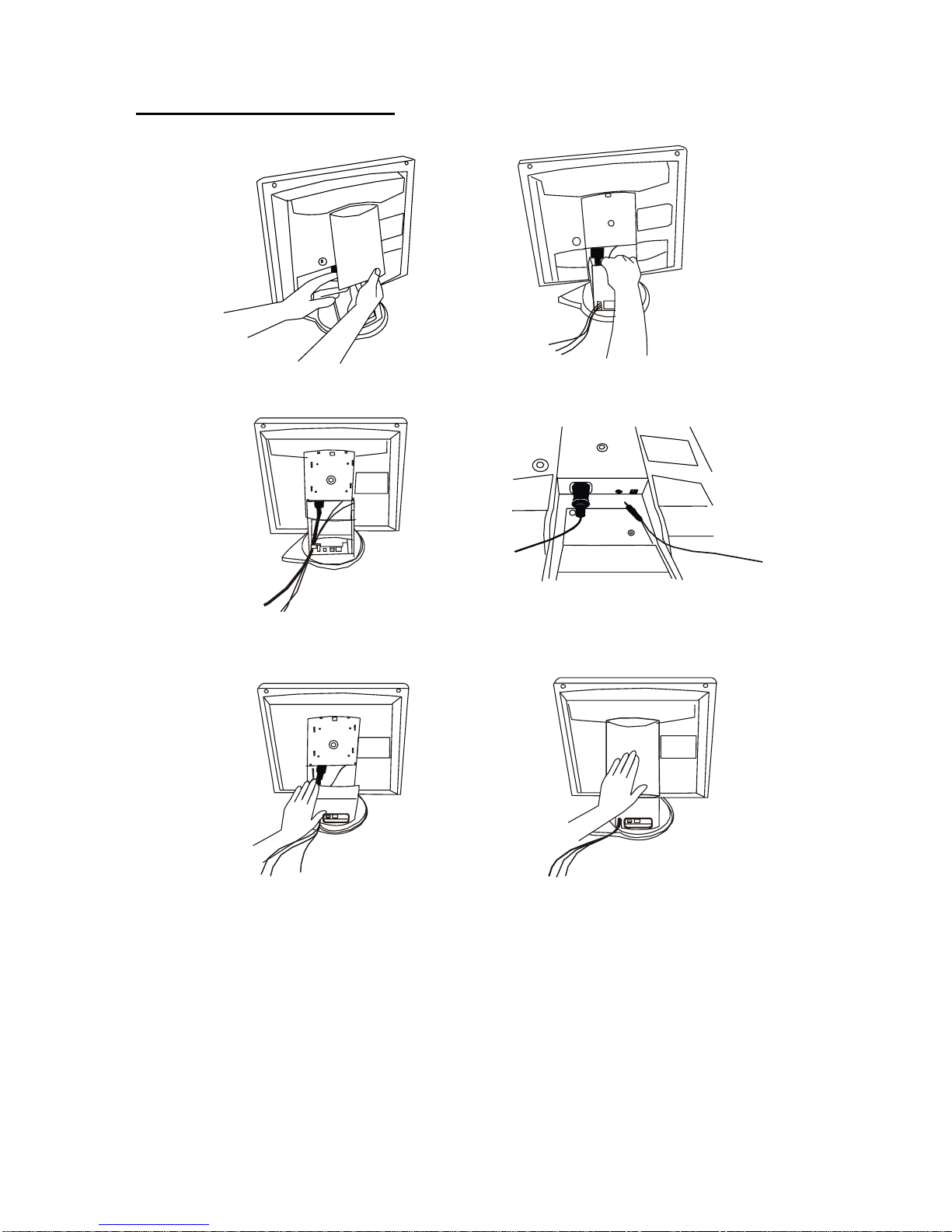

Audio Cable Installation

1. Remove the rear cover and then take the base cover off.

2. Connect the stereo audio cable from the Audio output of your

sound card to the Audio Input of the monitor.

3. Replace the base cover and the rear cover.

5Windows Software Installation

To get best performance with Windows 95, 98, Millennium Edition or 2000

you should set the PC to use the driver supplied with your DV151 monitor.

Windows 95

The first time you start Windows after connecting your new monitor, the

system will detect it and automatically install the driver for Plug and Play

displays. To install the Diamond View DV151 driver and colour profile:

1. Insert the Diamond View LCD Monitor Utilities floppy disk into your

floppy disk drive.

2. Right-click on the Windows desktop and select Properties or open the

Control Panel and double-click Display.

3. From the Display Properties window, select the Settings tab and then

click the Advanced Properties button at the bottom, right corner.

4. Select the Monitor tab and then click the Change button.

5. Click the Have Disk button at the bottom right corner. The Install From

Disk window will appear with the floppy drive A:\ selected. Click OK.

6. Select DV151 from the list and click OK again to install the driver.

7. You will be returned to the Advanced Graphics Properties dialogue.

Close this window by clicking OK and confirm the subsequent messages

by clicking Yes. Click OK and then Yes once more.

8. The installation is now complete, click OK to close Display Properties.

Windows 98

The first time you start Windows with a new monitor, the system will detect it

and automatically start the Add New Hardware wizard.

1. Click the Next button. Select Search for the best driver for your

device (recommended) and click Next.

2. Insert the Diamond View LCD Monitor Utilities floppy disk into your

floppy disk drive. Select the Floppy disk drive check box and click

Next.
