IMPORTANT: If you are staining an unnished mantel (W36TU
only), remove any sawdust, dirt or oils. This will prevent blem-
ishes from appearing under the stain. Stain mantel before
assembling according to manufacturer’s instructions. Apply
sanding sealer.
IMPORTANT: If you are painting an unnished mantel (W36TU
only), assemble mantel before painting. Follow directions
listed on paint for wood products. Apply base coat and top
coat following directions listed on product.
Note: Gather all mantel pieces together before assembling
mantel.
/4
W36TU and W36TO
Mantel and Base
ASSEMBLY AND INSTALLATION INSTRUCTIONS
IMPORTANT:
-
This mantel kit contains the following:
• Mantel pieces - unassembled and numbered as follows:
#1 Base
#2 Right Side Assembly
#3 Left Side Assembly
#4 Header
#5 Top
• Hardware Package
18 - 1 1/4" Wood Screws 114325-01
* Extra hardware may be included
Tools required:
• Power Screwdriver with #2 Phillips Bit
If any wood pieces are missing or damaged, contact the
dealer where you purchased this mantel for replacement. If
hardware is missing or damaged, contact DESA Heating, LLC
at 1-866-672-6040 for referral information. You can also visit
DESA Heating, LLC’s web site at .
Smoky Mountain Fireplace
828-670-1970
www.smfireplace.com
Smoky Mountain Fireplace
828-670-1970
www.smfireplace.com
123679-01B
2www.desatech.com

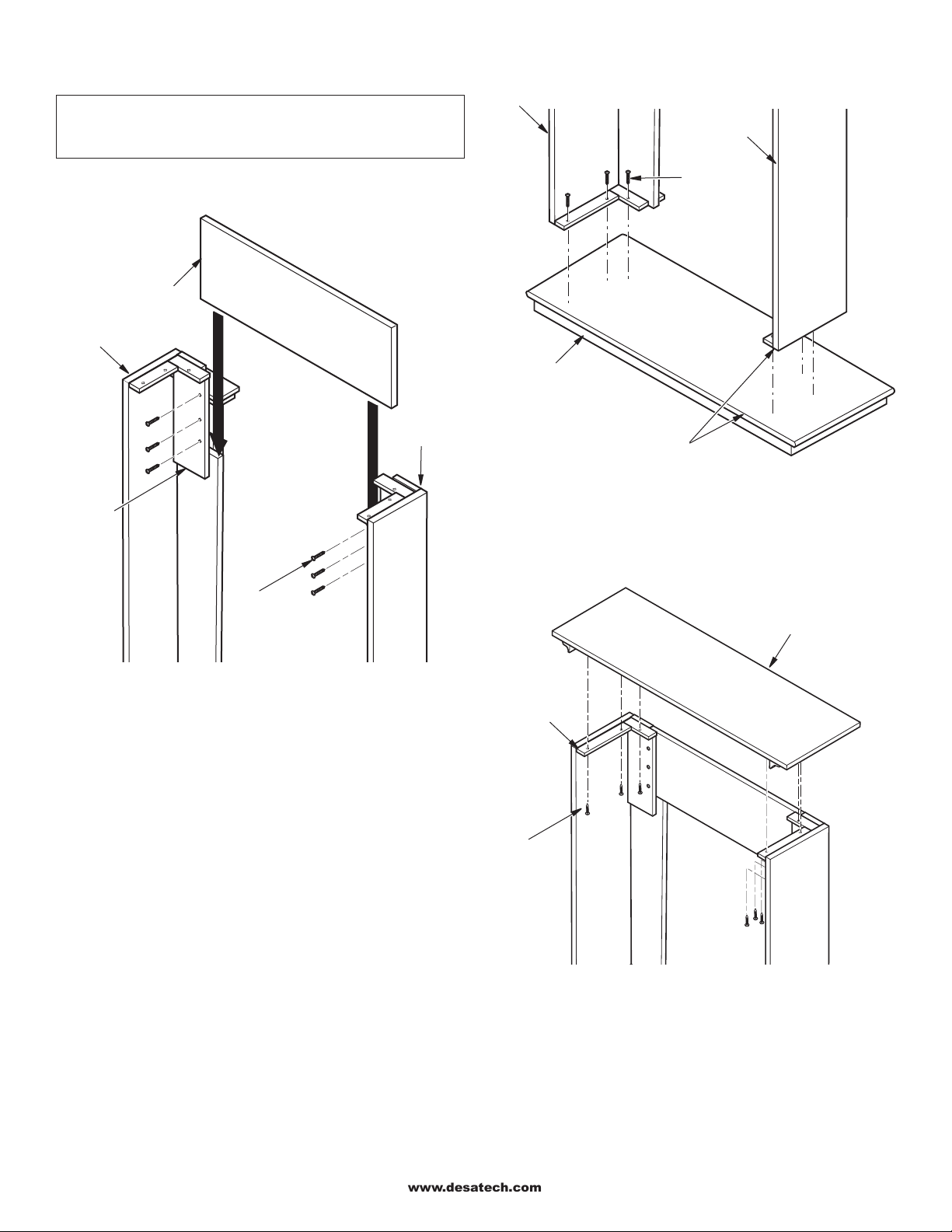

Header #4
Header
Assembly
Block
Figure 1 - Installing Header
11/4"
Screws
Left Leg
Assembly #3
Right Leg
Assembly #2
Figure 2 - Installing Mantel Base
Base #1
11/4"
Screws
IMPORTANT:
Use the following illustrations to assemble mantel. Use only
screws provided.
Figure 3 - Installing Top
11/4"
Screws
Mantel
Top #5
Assembly
Blocks
IMPORTANT: Align mantel top left to right before installing.
Back of mantel leg must be ush with back of mantel top
before installation.
IMPORTANT: Align mantel left to right on base before install-
ing. Mantel legs must be ush with back of mantel base before
installation. Use a tape measure to insure accuracy.
Flush
Right Leg
Assembly #2
Left Leg
Assembly #3
Smoky Mountain Fireplace
828-670-1970
www.smfireplace.com
www.desatech.com
123679-01B 3
Gas Fireplace Installation
1. Fireplace should be fully assembled. See Assembling
Fireplace in replace owner’s manual.
2. Place mantel base close to installation location. See re-
place owner’s manual for installation clearances. Leave
enough room to insert replace from back of mantel.
3. Install gas line. See Connecting to Gas Supply in replace
owner’s manual. Remember to leave access to the gas
shutoff valve somewhere on the base or where it is ac-
cessible to the user.
4. Check for leaks. See Checking Gas Connections in re-
place owner’s manual.
5. Position replace inside mantel (see Figure 4). Care-
fully position gas lines. IMPORTANT: Use caution when
positioning replace on base. Base may scratch easily.
Make sure replace is in proper position within mantel
opening before continuing with installation.
6. Lower bottom louver door.
Use two screws provided in hardware package and attach
replace to wooden base. Close louver door.
Before installing logs or
burner assembly (see owner’s manual) remove screws
securing oor to assembly. Lift oor for access to bot-
tom of replace. Use two screws provided in replace
hardware package and attach replace base to wooden
base. Reinstall oor with screws removed previously.
7. Carefully push mantel and base into position against
wall.
This mantel can be used with DESA Heating, LLC electric
replaces. Electric replaces install from the front of mantel.
To install electric replace see replace instruction manual.

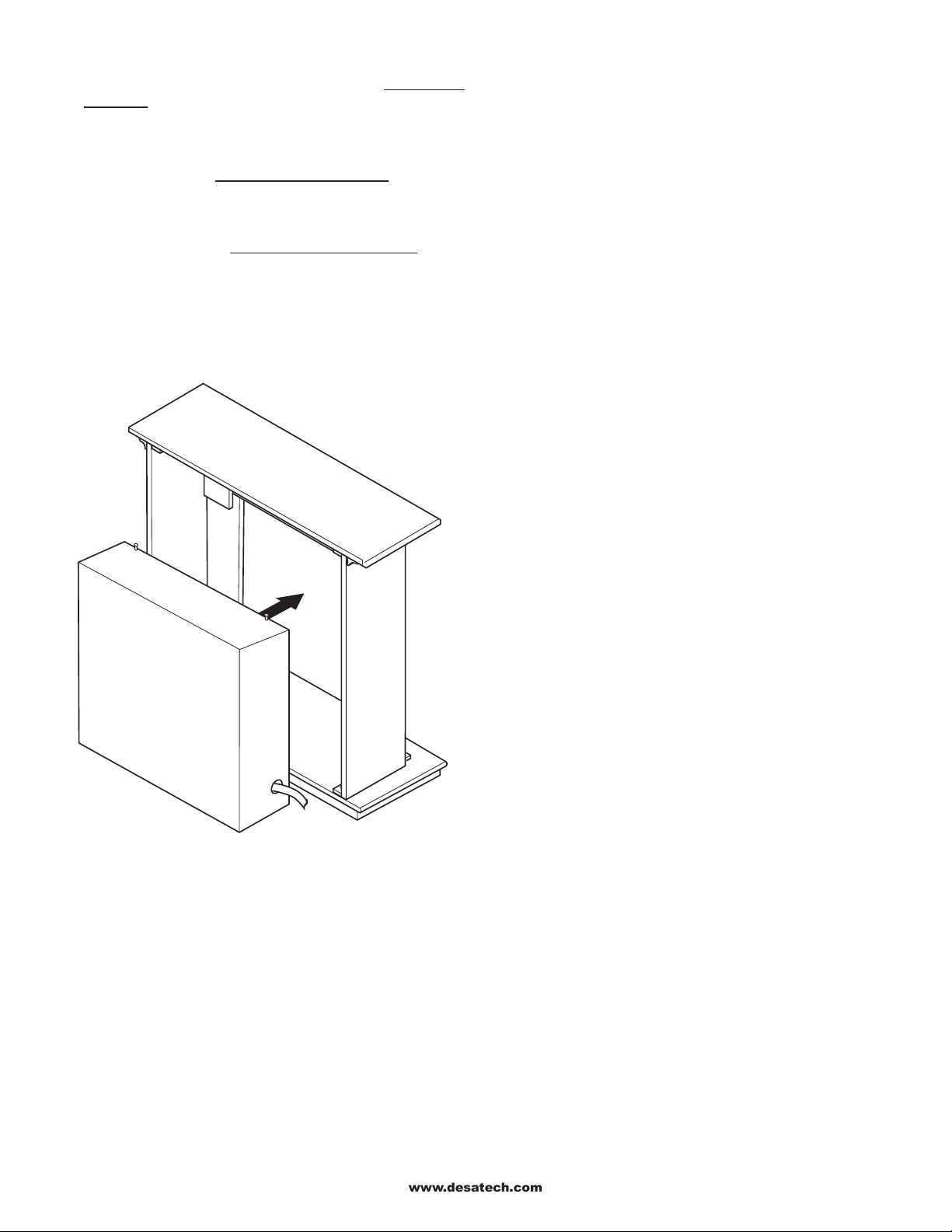

Figure 4 - Installing Gas Fireplace
Smoky Mountain Fireplace
828-670-1970
www.smfireplace.com
123679-01
Rev. B
07/08
NOT A UPC
123679 01

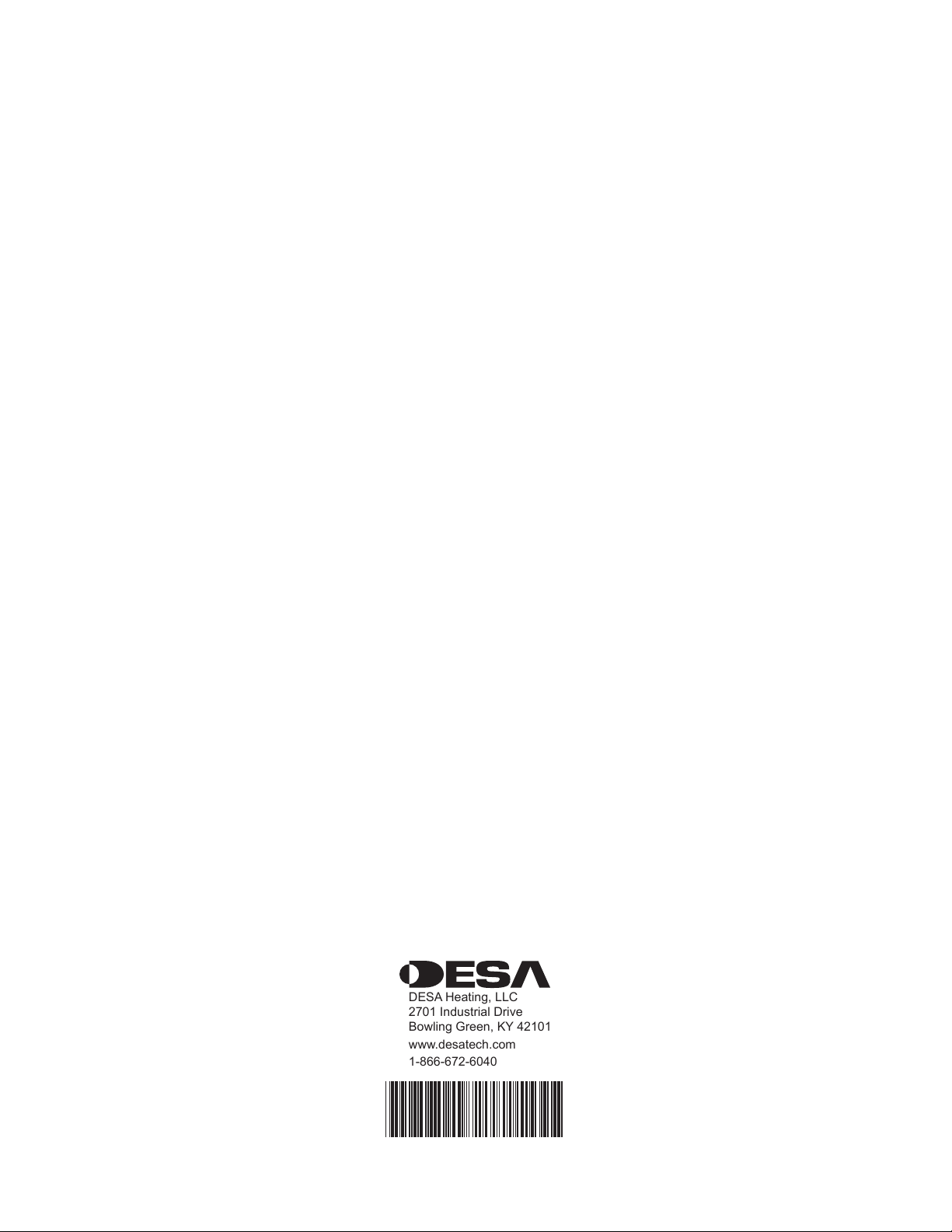

DESA Heating, LLC
2701 Industrial Drive
Bowling Green, KY 42101
www.desatech.com
1-866-672-6040
