Multi-Language User Manual

Industrial Endoscope

DS520

Product Features

• DEPSTECH is a booming technology company, specialized in creating

various endoscopes and committed to make you feel more secure.

• DS520 is a high-performance industrial endoscope, equipped with 5 inch

IPS high-definition display, has the camera and video functions and saves

into TF memory card (Micro-SD card). Such camera uses high-performance

CMOS chip that supports the record-high frame rate to get clear images

with Bluart 3.0 technology, widely used in industrial maintenance, appliance

maintenance, mechanical maintenance and design and other fields.

• This product is a camera of industrial endoscope, not applicable to medical

or physical examination!

• In order to lengthen the battery life, it is recommended that you should

charge the device once every 3 months whether it is used.

• Do not try to replace internal battery by yourself, because unprofessional

operation may lead to risks of personal injury due to battery overheating, etc.

Special Warning and Notice

Safety and Protection

• Probe of camera is an electronic device of high precision, so please do not

hit the probe of camera or pull the cables, which may lead to failure of the

device.

• With IP67 waterproof layer, the probe shall be used with extra care and

protected from scratches!

• Camera probe is made from materials that are not high temperature

resistant, so make sure the internal temperature of any internal

combustion engine or other equipment whose internal temperature is

higher has been cooled when they are examined, otherwise the device will

be directly damaged!

• In case of device damaged, please do not dismantle it by yourself, but

contact the seller or the supplier for more professional maintenance

services.

• Children may not use this device independently without the guidance of

adults.

Operating and Storage Environments

• The device should be operated at an ambient temperature of 32~113℉

(0~45℃).

• The device should be stored in a dry, clean, oil-free and waterless place

without any chemical liquid.

Product Introduction

1• Hold this button for 2s to power on/off the endoscope

• Single press to take a photo or end the video record

• Hold this button for 2s to start a video record

• Click to dim the LED lights of the camera

• Move the cursor up(In the menu)

• Click to rotate the real-time image 180°

• Hold this button for 2s to switch main/side camera

(Only applicable to dual-lens products)

• Click to increase the LED lights brightness of the camera

• Move the cursor down(When in the menu)

• Hold this button for 2s to enter/exit the album

• Click to confirm the selections (When in the menu)

• Click to enter the menu

Front

• Hard wired USB port socket

USB Port

TF Card Slot

• Short click the reset button with the reset pin, the device will be

shut down and reseted.

Reset Button

• Red LED indicator flashes: Charging

• Red LED indicator stays on: Charging finished

Charging Status LED Indicator

9• Support up to 32G TF card

• Please format it on first use

UI Introduction

Photo Shoot/Video Record

TF Card Status

Screen Rotation 180°

12 11

Bottom

Battery Power

Main Lens

Side Lens(B)

Side Lens(C)

Timestamp

Preview

Tips:

Dual Lens: A:Main Lens B:Side Lens

Triple Lens: A:Main Lens B:Side Lens(B) C:Side Lens(C)

Type-C Charging Port

• For charging (Type-C cable connected to the adapter)

• For data transmission (Type-C cable connected to PC client)

1. Take photos by pressing button.

2. Long press to start a video recording, single press

to the end video recording.

1. Click the button to enter menu interface, select Language by

pressing the / arrow button and then press the button,

enter the language setting interface.

2. Click / button to select the language you need, and then

press button to switch the language.

3. Click the button to return the Main Interface.

Default language of the device is English; If other language is

required, please follow the steps below:

Language Setting

Photo/Video

Album

File name

Photography

date

File number

Current playback duration / Total video duration

1. When viewing photos/videos, press to enter the

photo/video detail page.

2. Press / to choose to delete the current file or

all files.

1. Long press in preview mode to enter the photo

album.

2. Press / to view photos, Click to play videos.

3. Long press to exit the photo album.

View Photo/Video

Delete Photo/Video

1920*1080

When the product is turned on, it opens the main lens by

default, long press the button 2s can switch the lens

(Main Lens - Side Lens - Split Screen - Main Lens)

1. On the preview interface, press the button to enter the

menu;

2. Press / to select “Format” options;

3. Press to enter the option interface, Select “OK”;

4. Wait for the formatting to complete.

Lens Switching

TF Card Formatting

(Only available for dual and triple lens products)

OK Cancel

1. Please connect the product to your computer.

2. Press the button to enter the menu.

3. Select “Data transmission”.

4. Press the button to start copying to computer.

Copy Photo And Video Files To Computer

Guide For Accessories Installation

Installation method:

Turn counterclockwise-remove

protect cap

Turn clockwise-tighten

accessories

Charging Instructions

1. Use a TF card reader to copy data directly.

1. Connect the device to the DC 5V adapter for charging;

2. The red indicator light flashes when the device is charging, and is

always on when fully charged.

If the device is not connected with computer, click "Data transmission"

on the setup interface, then USB icon shows up on the display; Please

press the button to exit.

It is normal for "No Signal" to appear on the screen when you press

the button to exit data transmission.

Card Reader

Card

2. Use a Type-C cable to connect to computer for copying

Setting path.

Screen Spec 5” IPS Screen

Specifications

Packing List

Endoscope

(32G TF card inserted)

User Manual

Type-C Charging Cable Accessories

Model

Camera Diameter

Camera View

Video Spec

Charging Time

80°

1080 p / 15-30 fps

2.5-3 H

Dual Camera Triple Camera

7.9 mm (0.31 in)

A: 3-10 cm

(1.18-3.93 in)

B: 2-6 cm

(0.79-2.36 in)

Best Focal Range

Photo Resolution 1920*1080

Battery Life 3-4 H

Charging Voltage

and current DC 5V/2A

A: 3-10 cm

(1.18-3.93 in)

B: 2-6 cm

(0.79-2.36 in)

C: 1.5-2.5 cm

(0.59-0.98 in)

Single Camera

91°

6.5 mm(0.25 in)

3-10 cm

(1.18-3.93 in)

Autres manuels pour DS520

Table des matières

Autres manuels Depstech Instrument analytique

Depstech

Depstech DS550 Manuel utilisateur

Depstech

Depstech DS300 Manuel utilisateur

Depstech

Depstech DS590 Manuel utilisateur

Depstech

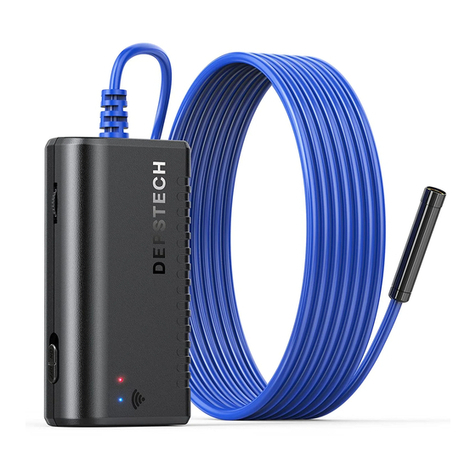

Depstech WF010 Manuel utilisateur
