Denver LED-2459TC Manuel utilisateur

Instruction Manual

Model NO.: LED-2459TC

24” LED TV WITH DVB-T2/DVB-C

www.facebook.com/denverelectronics

Contents

Caution

Safety Information

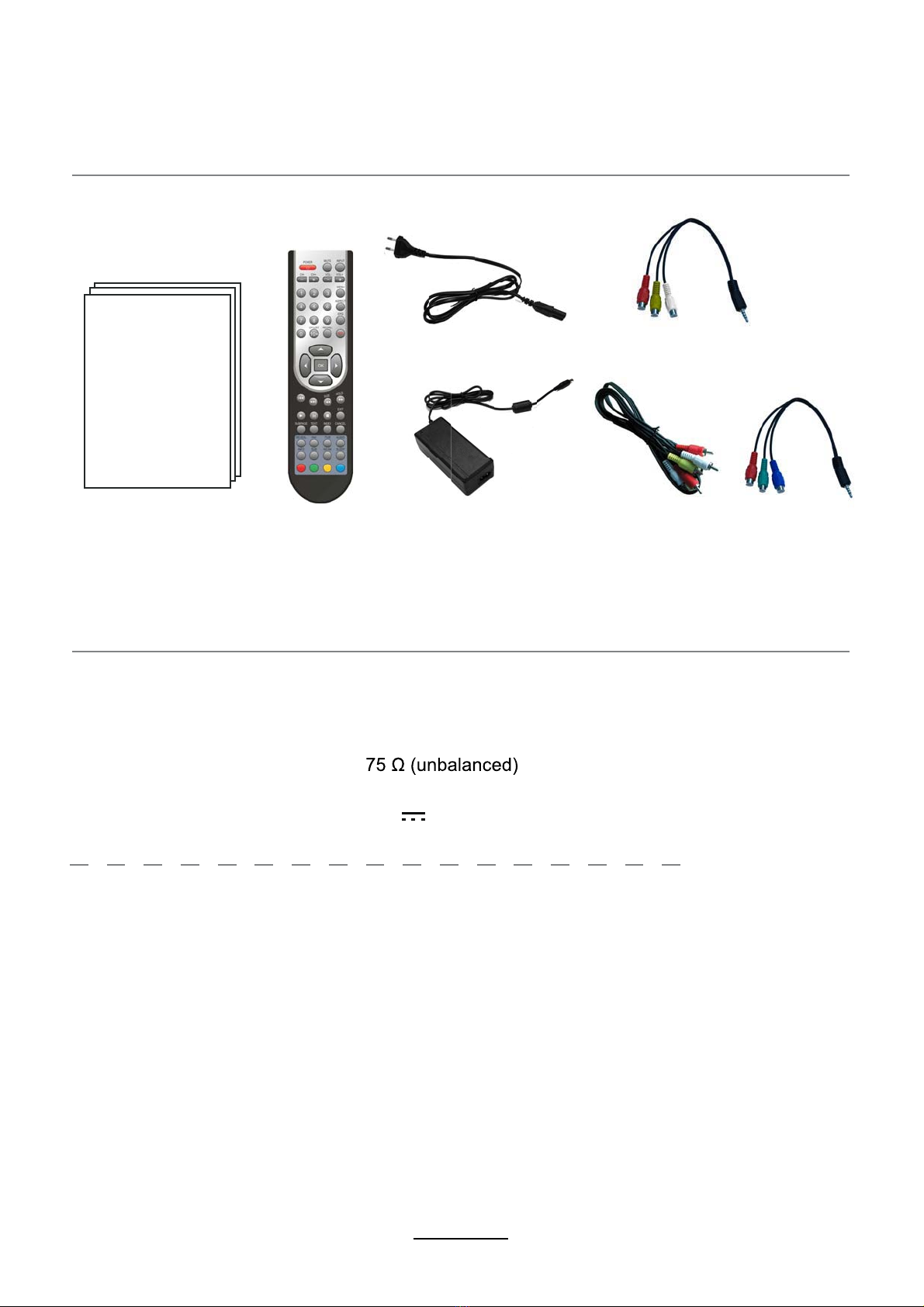

Accessories

Technical Specification

Product Introduction

Front View

OSD Menu

1. INPUT

2. VIDEO

3. AUDIO

4. TV

6. Time Setup

11-27

12-13

15-17

19-20

Connections

6-7

Remote Control

8-10

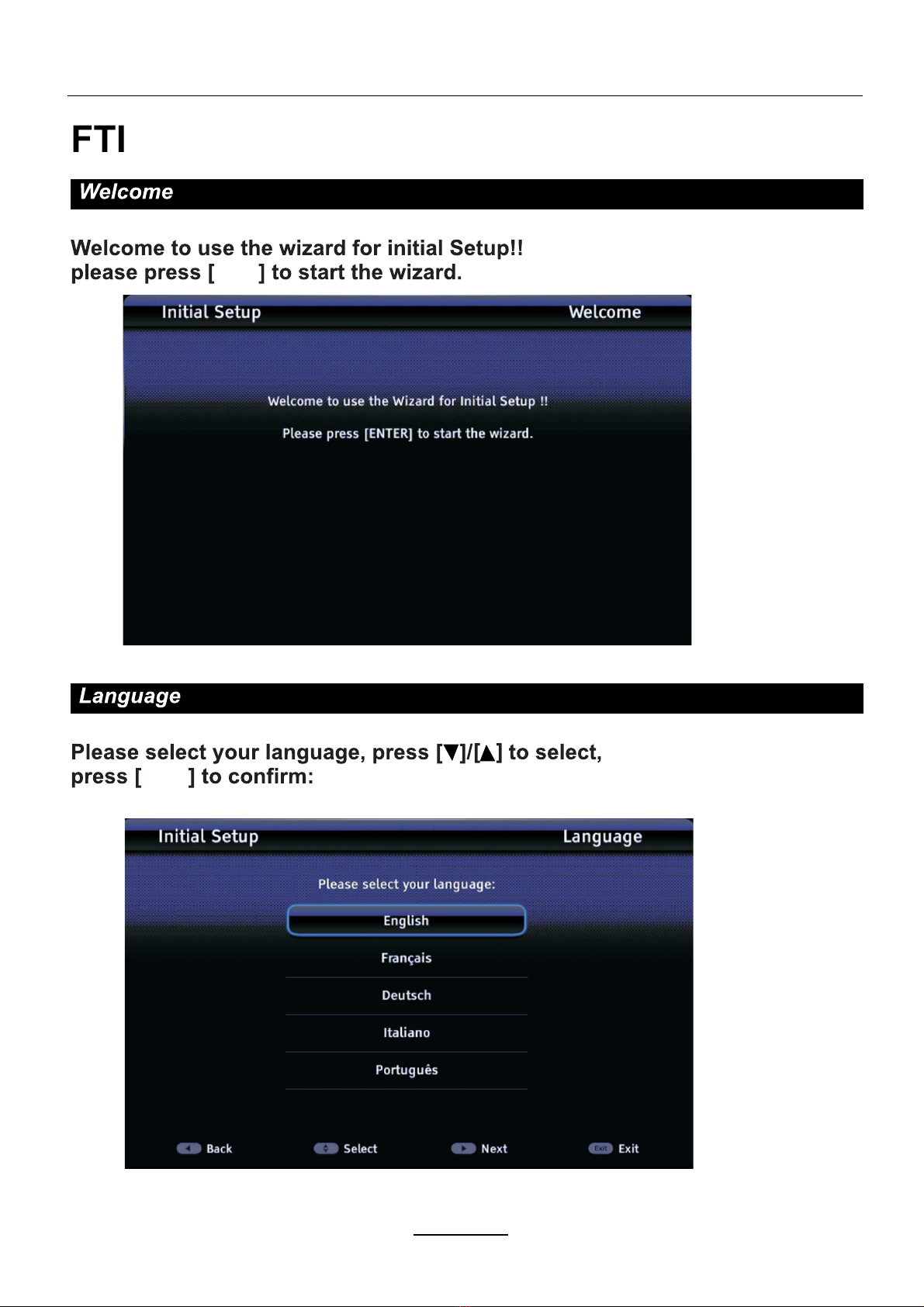

FTI

USB 28

VIDEO 31

gnitoohselbuorTelpmiS

5. SETUP 18

10. VGA 27

PHOTO 29

MUSIC 30

TEXT 32

12kcoL.7

2-232edoMletoH.8

62-42MenuRVP.9

Caution

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-

of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/

recycling center.

In the USA there are separate collection systems for used electrical and

electronic products. Please help us to conserve the environment we live in!

The exclamation point within an equilateral triangle is intend to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle

is intended to alert the user to the presence of un-insulated “dangerous

voltage” within the products enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to the persons.

directives.

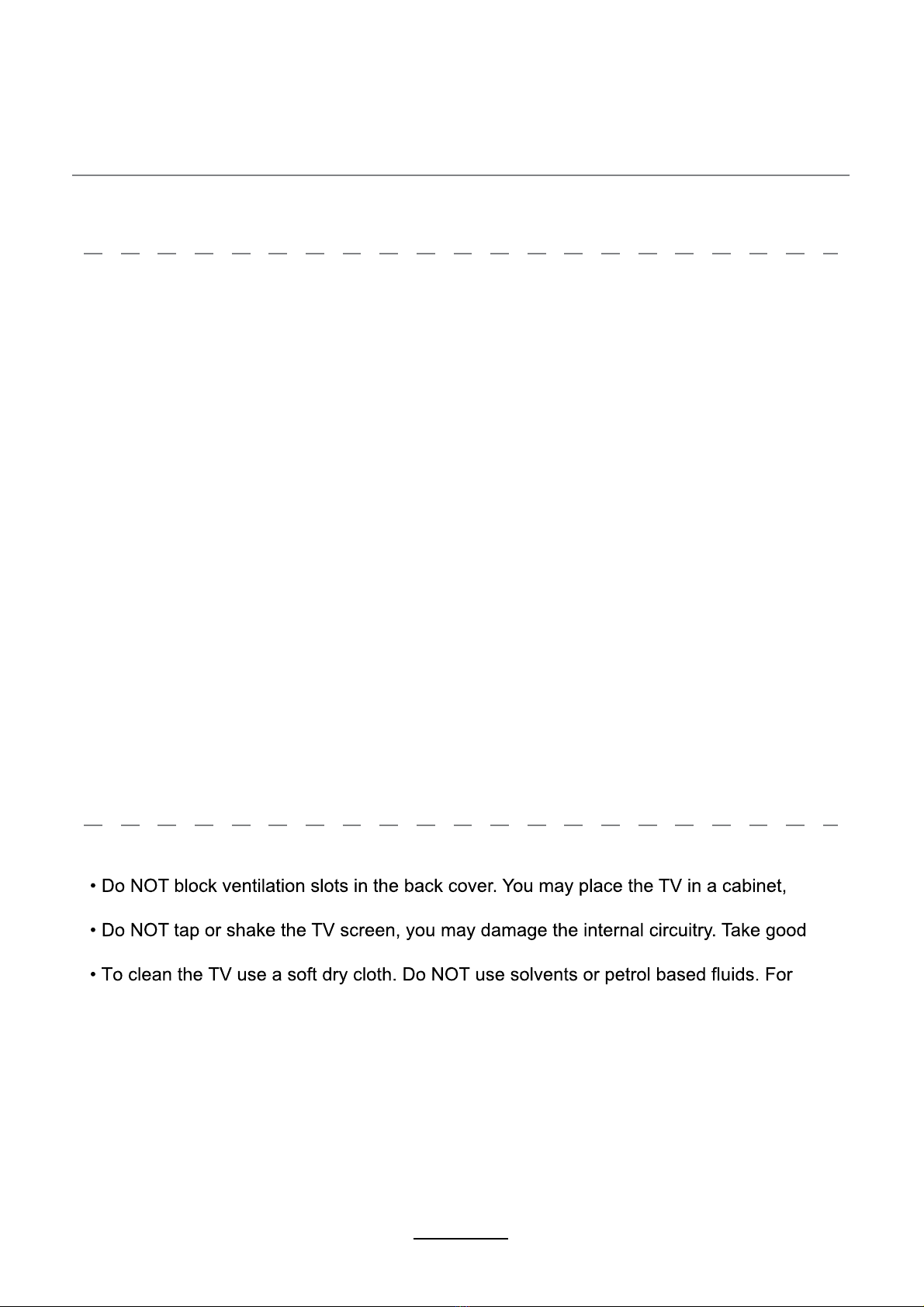

Safety Information

To ensure reliable and safe operation of this equipment, please read carefully all the

instructions in this user guide, especially the safety information below.

Electrical safety

Physical safety

but ensure at least 5cm (2") clearance all around the unit.

care of the remote control, do not drop it or allow it to come into contact with liquids.

stubborn stains, you may use a damp soft cloth with diluted detergent.

 To prevent overload, don't share the same mains supply socket with too many other

items of equipment.

-Do not place any connecting wires where they may be stepped on or tripped over.

-Do not place heavy items on the leads, which may damage them.

-Hold the Mains plug, not the wires, when removing from a socket.

fi(laireaehttcennocsid,sdoirepgnolrofVTehtgnivaelelihwromrotsrednuhtagniruD-

outdoor) and the power supply.

-Do not allow water or moisture to enter the TV . Do NOT use in wet or moist areas such

as Bathrooms, steamy kitchens or near swimming pools.

3XOOWKHSOXJRXWLPPHGLDWHOy, and seek professional help if:

-the mains plug or cable is damaged

-liquid is spilt onto the set, or if it is accidentally exposed to water or moisture

-anything accidentally penetrates the ventilation slots

-the set does not work normally.

-Do NOT remove the safety covers. There are no user serviceable parts inside.

You may invalidate the warranty4XDOL¿HGSHUVRQQHORQO\DUHSHUPLWWHGWRVHUYLFHWKLV

apparatus.

-To avoid battery leakage, remove exhausted batteries from the remote control

handset, or when not using for along period.

-Do NOTEUHDNRSHQRUWKURZH[KDXVWHGEDWWHULHVRQD¿UH

Accessories

Technical Specification

User’s Manual

* Note: The configuration of the components may look different from the following illustration

- TV System

- Screen Size

- Resolution

- Aerial input

Remote Control

Type

Control distance

Control angle

Batteries

PAL BG/DK/I SECAM BG/DK L/L’

1920x1080

infrared

30 (horizontal)

2 x 1.5V, size AAA

- Audio output power

- Power Consumption

2x3W

12V 3.33A 30W

Remote control Converter cableAV Cable

for YPbPr

24 inch(diagonal)

Converter cable

for AV

Mains adaptor

Mains cable

Product Introduction

Introduction

POWER to turn on and off.

The effective receiving range for the signal is 5-8 metres from the front of the remote

control window, and 300to the left or right side and 200above or below the remote control

window.

off Null

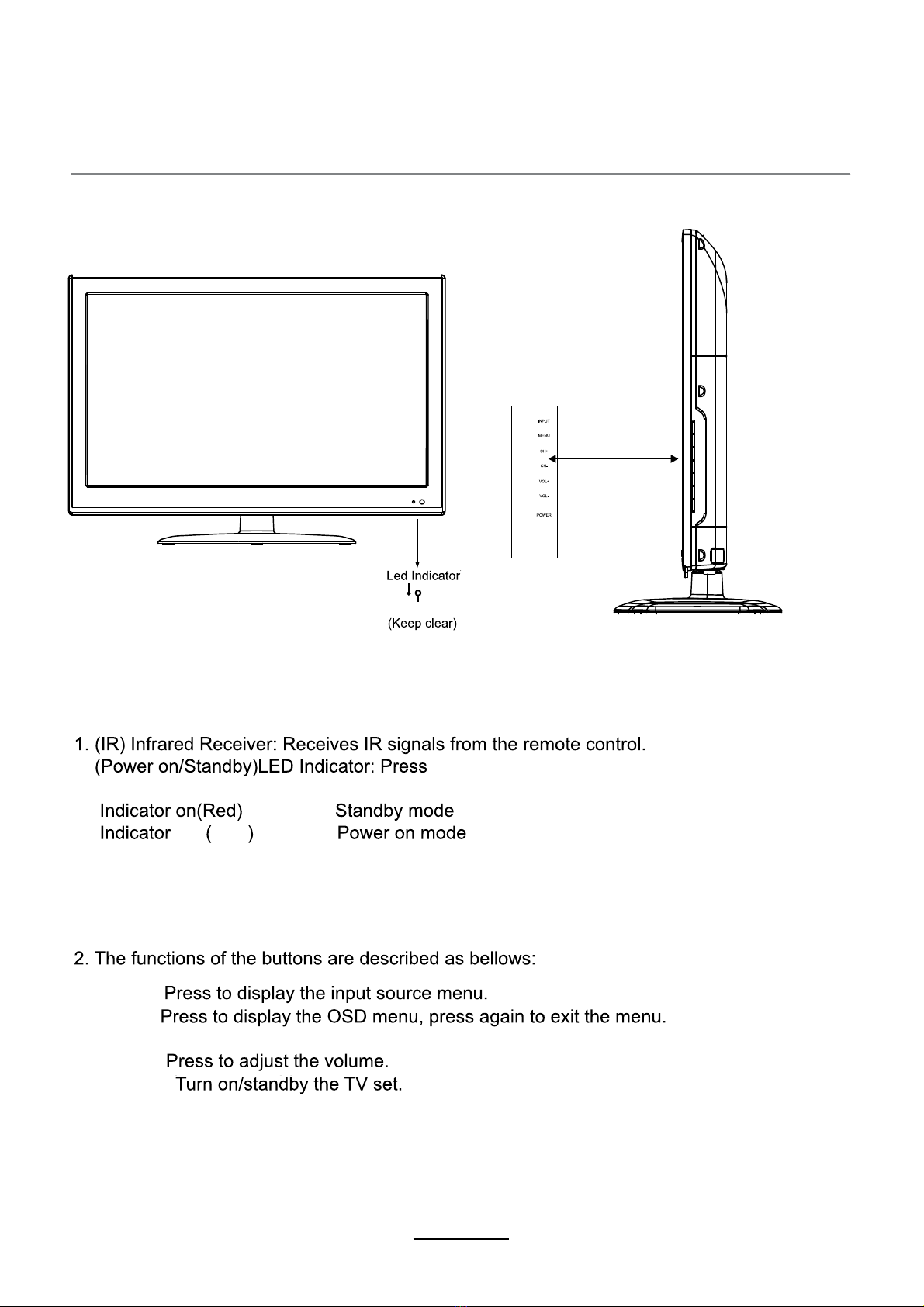

Front View

Remote Control window

INPUT:

MENU:

CH+/-: Press to scan through channels.

VOL+/-:

POWER:

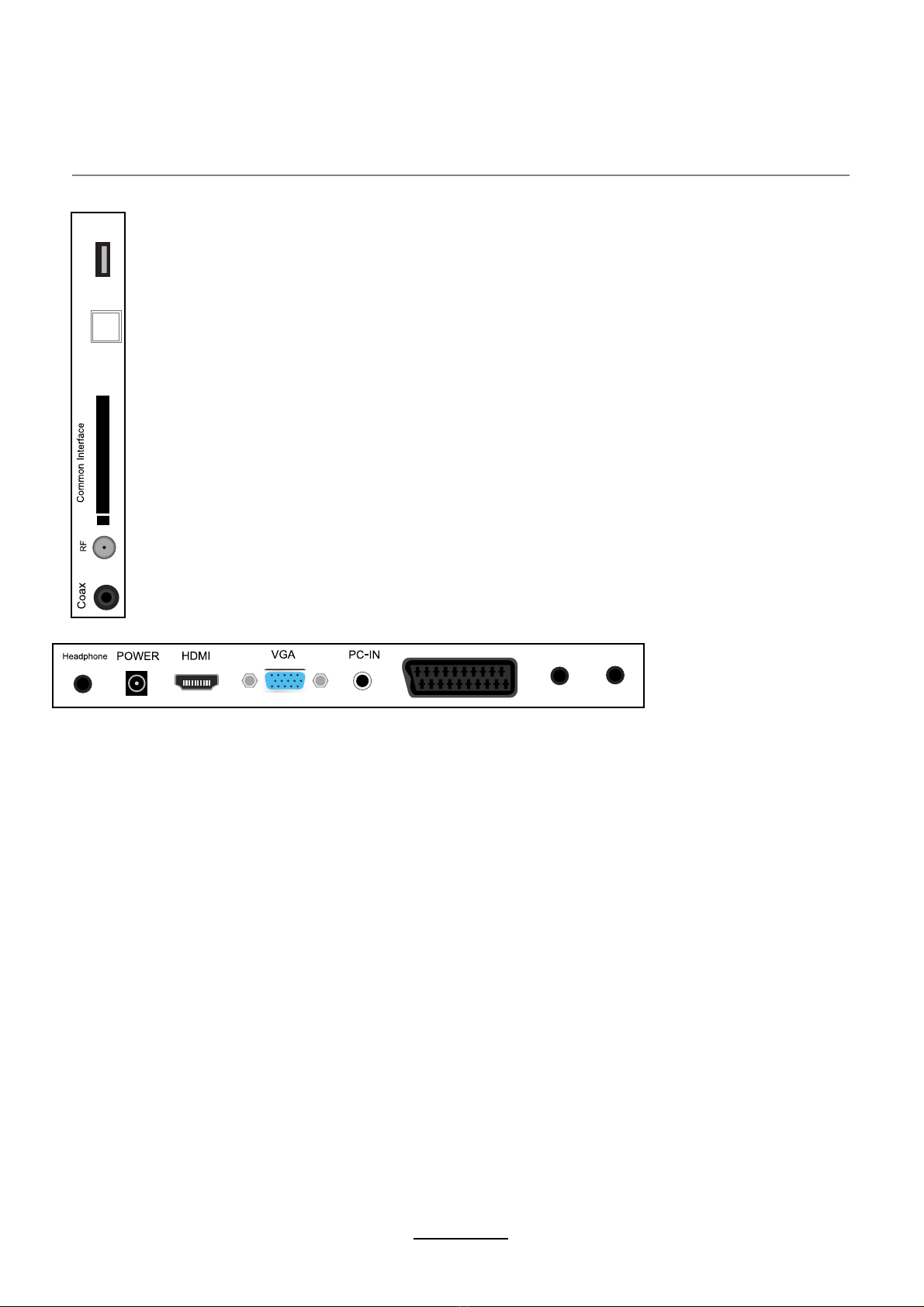

Connections

Common Interface: CI slot.

RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

MINI YPbPr: Connect it to the YPbPr video output terminal of DVD with the Converter cable.

POWER: Connect to the mains adaptor.

USB: USB jack for update, media and PVR.

HDMI: Connect it to the HDMI of DVD or other equipment.

VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.

PC-IN: Connect it to the audio output terminal of PC.

SCART: Connect them to the SCART video output terminal of DVD.(used in component source)

Headphone: Connect it to your headphone or other audio equipment.

Coax: Digital coaxial output.

RJ45

SCART MINI AV MINI YPbPr

USB

MINI AV: Connect it to the audio & video output terminals of DVD with the Converter cable.

(Audio terminals are shared with YPbPr)

For automatic upgrades for MHEG5(Digital Text interactive

services) and HD services.

RJ45:

Remote Control

The remote control is using Infrared(IR). Point it towards the front of the LED TV. The remote

control may not work correctly if it is operated out of range or out of angle.

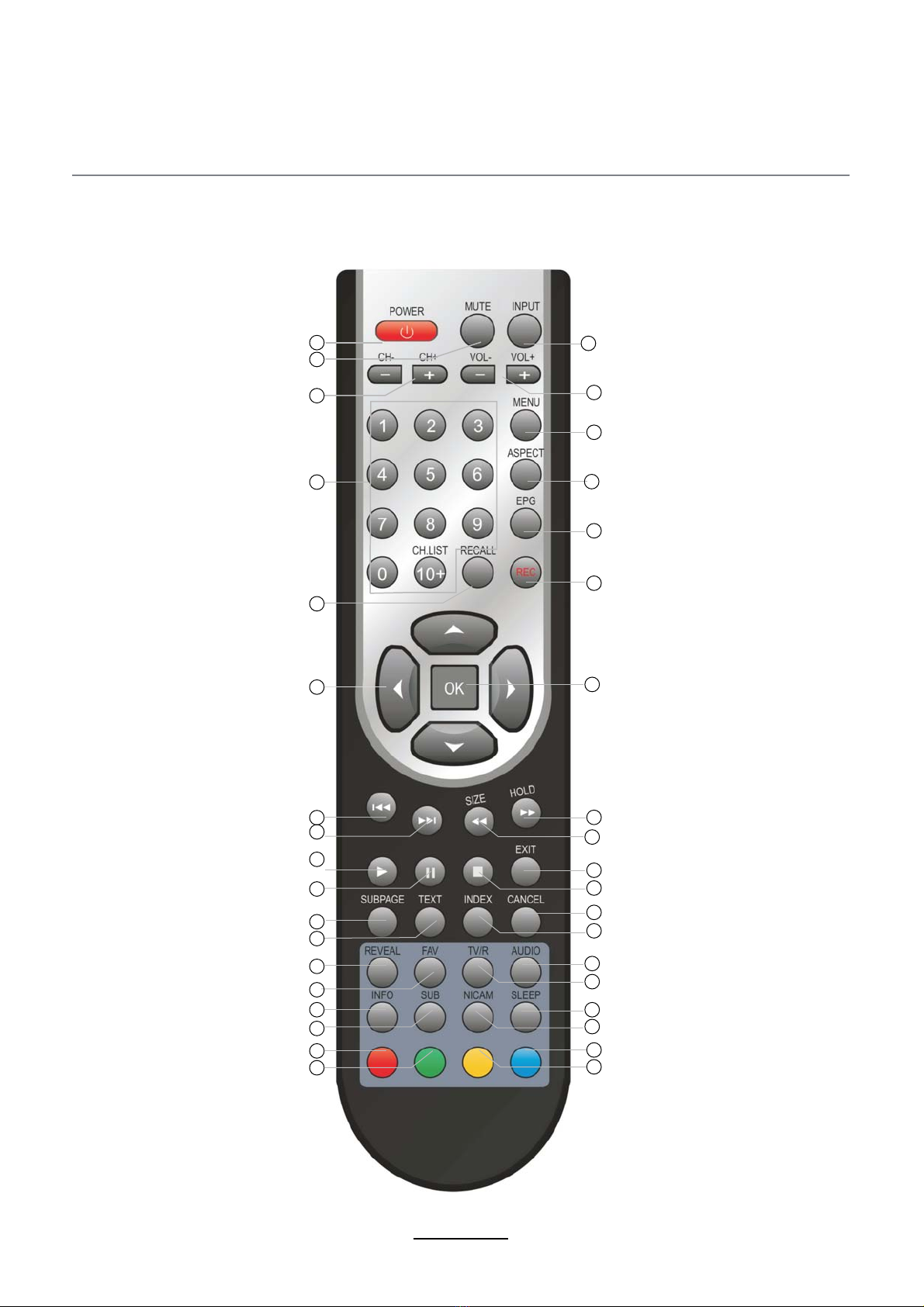

Remote Control

RECALL Return to previous channel.

MUTE

POWER

SUBPAGE

CH-List

CH-/CH+

[0-10+]

- Display the channel list(only in DTV).

Press this button to mute or restore sound.

Press this button to switch on the TV when at standby mode or enter standby mode.

Changes the channels up and down.

REC

Chapter Previous button

Chapter Forward button

PLAY button

PAUSE button

BLUE

NICAM

YELLOW

The button used in teletext mode.

TEXT

EPG

Vol-/Vol+

RED

ASPECT

Display red screen in TELETEXT mode.

GREEN

Display green screen in TELETEXT mode.

To show the Electronic Programmes Guide during no-menu state only.

Press this button to enter the menu screens for various optional adjustable setting.

Display blue screen in TELETEXT.

Press repeatedly to cycle through the NICAM mode.

Display yellow screen in TELETEXT.

INPUT

FAV

REVEAL

INFO

EXIT

SIZE

HOLD

TV/R

INDEX

SLEEP

CANCEL

AUDIO button

-To return to the screen.

-Videotext sub-page button.

Direction button.

-Videotext hidden button

-TV and Radio Channels.

-Request the index page in teletext mode.

- Press OK to Confirm your operartion

Press input to change the singal source.

Favorite program.

To reveal or hide the hidden words.

Display a variety of information about current channel.

SUB button

FAST FORWARD button

FAST REVERSE button

Change the display size in teletext mode.

Freezes a multi-page passage on screen in Teletext mode.

STOP button

Cycles through the LCD TV sleep time.

Subtitle button.

Aspect Ratio

Adjust the volume.

Record button

Directly elect a TV channel

NUM. BUTTON&FUNCTION
