Denon AVR-3313CI Manuel utilisateur
MODEL: AVR-3313CI
Model Information
INTEGRATED NETWORK AV RECEIVER
I/R Codes
Product Specifications
Upgrades/Updates
Accessories
Reset Procedure
Warranty
Remote Control
Rear Panel
Front Panel
1
Model Information
Index
MI073015E3-1
NOTE:
This edition is missing the FAQ’s content (pages 15 and 16) ………………………………………………………..7/30/2015
This edition is missing the link to the IR Codes………………………………………………………………………....7/30/2015
Protection History
Display Mode

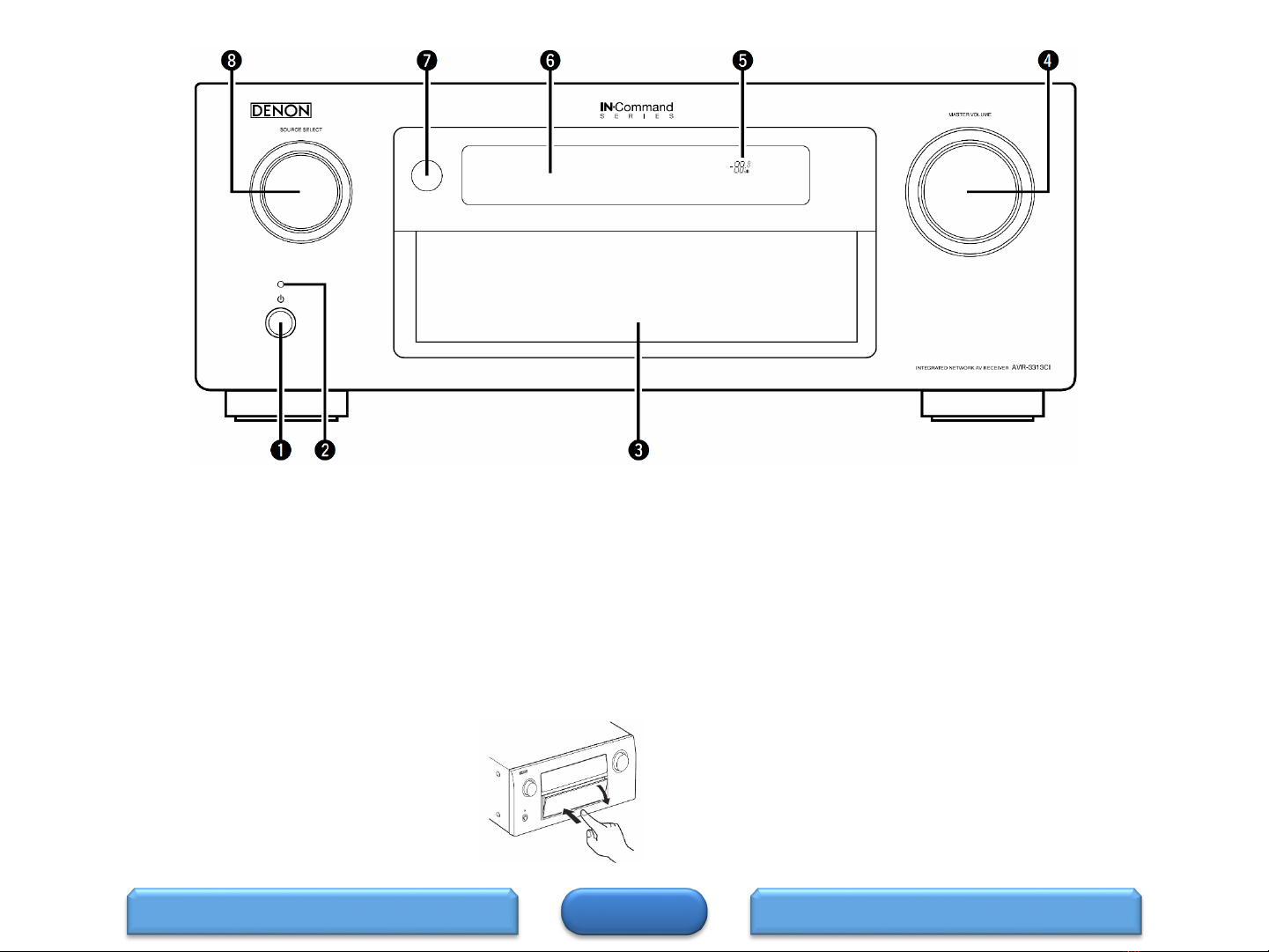

Front Panel
Power operation button (O)
Turns power to this unit on and off (standby).
Power indicator
(Power indicator status)
• Power on : Green
• Normal standby : Off
• When “HDMI Control” is set to “On” : Red
• When “IP Control” is set to “Always On” : Red
Door
When you are using buttons and/or connectors
behind the door, press the bottom of the door to
open it. Be careful not to catch your fingers when
closing the door.
MASTER VOLUME knob
This adjusts the volume level.
Master volume indicator
Display
This displays various pieces of information.
Remote control sensor
This receives signals from the remote control unit.
SOURCE SELECT knob
This selects the input source.
HOME Buttons and Connectors Behind the Front Door 2Buttons and Connectors Behind the Front Door 12

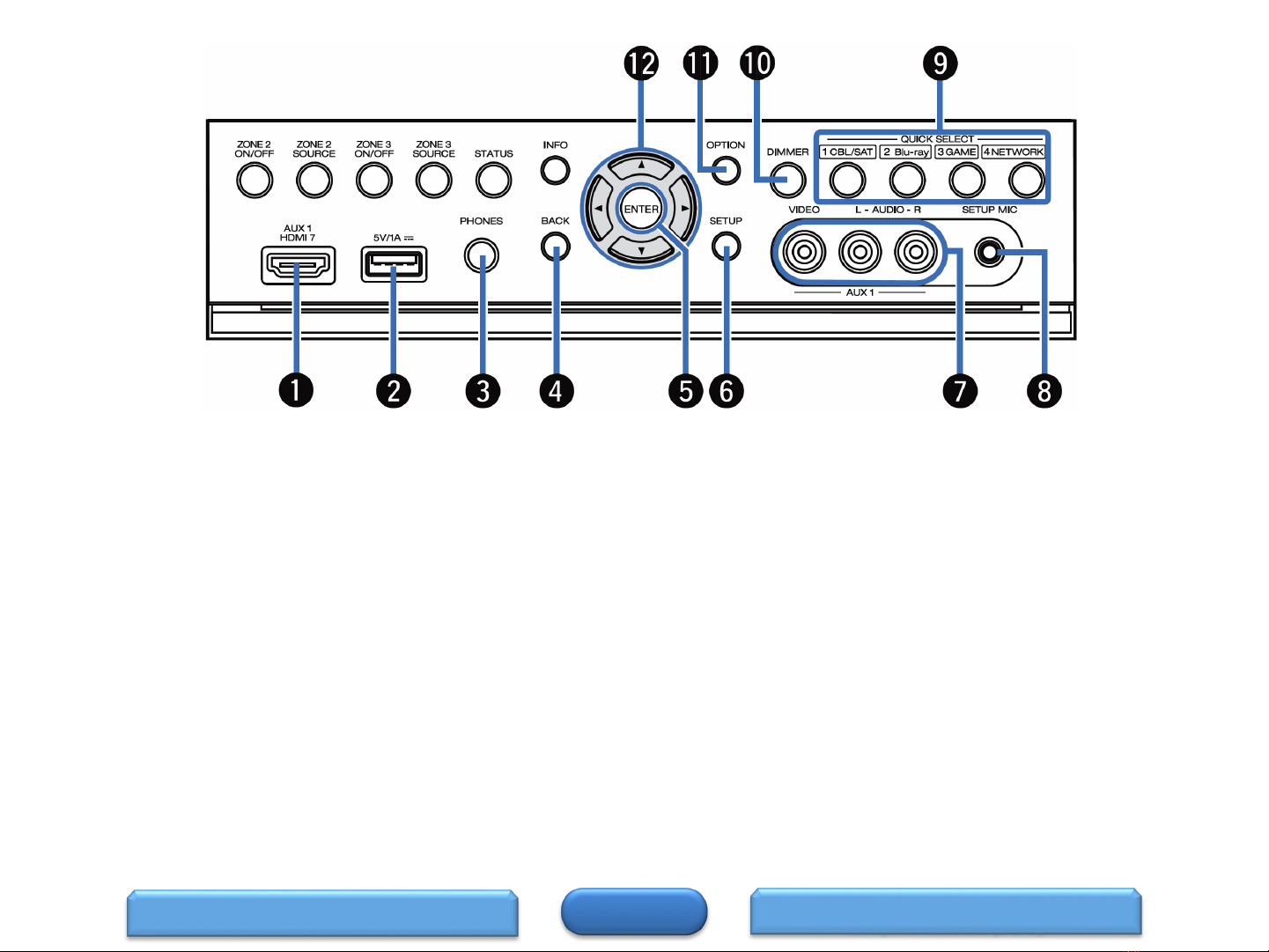

Buttons and Connectors Behind the Compartment Door (1 of 2)
AUX1 HDMI 7 connector
Used to connect HDMI output compatible devices such as video
cameras and game consoles.
Ipod/USB port
Used to connect USB storages (such as USB memory devices)
and the USB cable supplied with iPod.
Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers or from the
PRE-OUT connector.
NOTE: To prevent hearing loss, do not raise the volume
level excessively when using headphones.
BACK button
This returns to the previous screen.
ENTER button
This determines the selection.
SETUP button
This displays the menu on the TV screen.
AUX1 INPUT connector
Used to connect analog output compatible devices such as video
cameras and game consoles.
SETUP MIC jack
Used to connect the supplied Setup and measurement
microphone.
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings.
DIMMER button
Each press of this switches the brightness of the display.
OPTION button
This displays the option menu on the TV screen.
Cursor buttons ( )
These select items
HOME
FRONT PANEL Buttons and Connectors Behind the
Compartment Door (2 of 2) 3

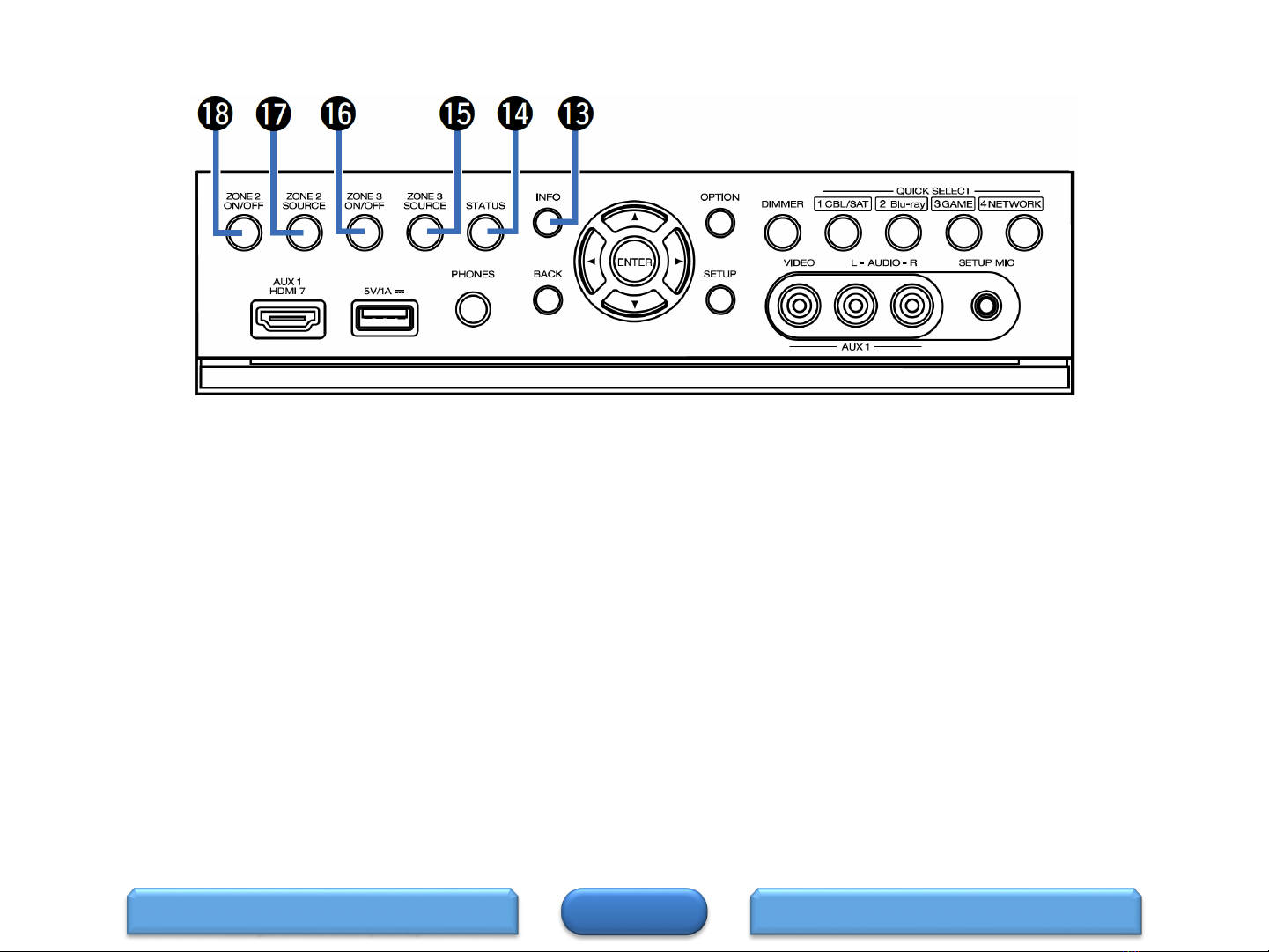

Buttons and Connectors Behind the Compartment Door (2 of 2)
Information button (INFO)
This displays the status information on the TV screen.
STATUS button
Each press of this switches the status information that is shown on
the display.
ZONE3 SOURCE button
This selects the input source for ZONE3.
ZONE3 ON/OFF button
This turns the power of ZONE3 on/off.
ZONE2 SOURCE button
This selects the input source for ZONE2.
ZONE2 ON/OFF button
This turns the power of ZONE2 on/off.
HOME DISPLAY
Buttons and Connectors Behind the
Compartment Door (1 of 2) 4
Information display
The input source name, sound mode, setting values and other
information are displayed here.
Front speaker indicator
This lights according to the setting of the front A and B speakers.
Output signal channel indicators
Lights when audio signals are being output from the speakers.
Master volume indicator
MUTE indicator
This lights when the mute mode is selected.
Sleep timer indicator
This lights when the sleep mode is selected.
MULTI ZONE indicators
This lights up when ZONE2, ZONE3 (separate room) power is
turned on.
Monitor output indicator
These light according to the HDMI monitor output setting.
When set to “Auto (Dual)”, the indicators light according to
connection status.
Tuner reception mode indicators
These light according to the reception conditions when the
input source is set to “HD Radio”.
STEREO : In FM mode, this lights up when receiving analog
stereo broadcasts.
TUNED : Lights up when the broadcast is properly tuned in.
Audyssey® indicator
This indicator lights when the “MultEQ® XT”, “Dynamic EQ”,
or “Dynamic Volume” setting is set to “On”.
Decoder indicator
These light when Dolby or DTS signals are input or when the
Dolby or DTS decoder is running.
Input mode indicators
Set the audio input modes for the different input sources
HOME REAR PANEL
Buttons and Connectors Behind the
Compartment Door (2 of 2) 5
Display
HOME
DISPLAY 6

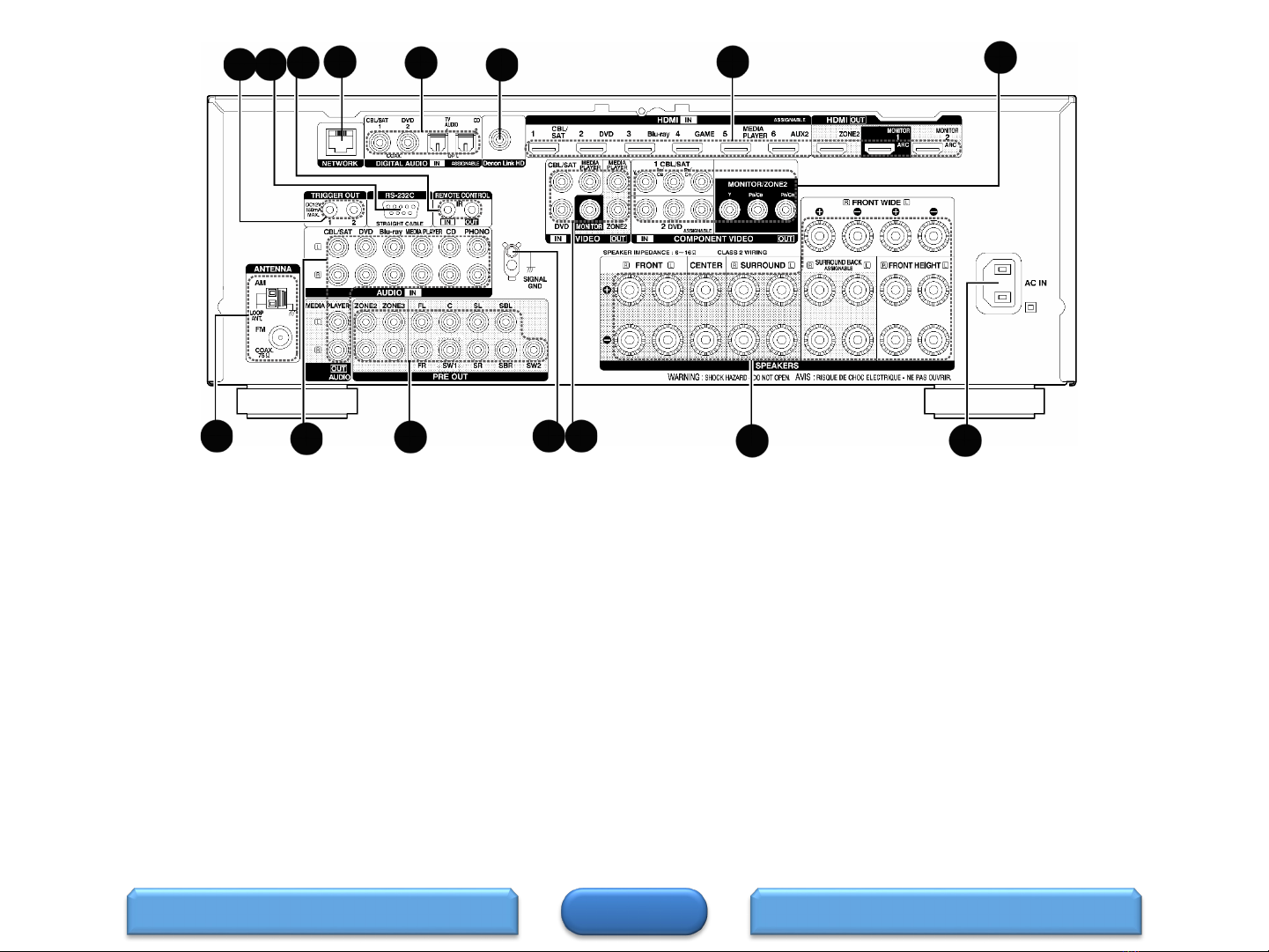

FM/AM antenna terminals (ANTENNA)
Analog audio connectors
(AUDIO)
PRE OUT connectors
SIGNAL GND terminal
Video connectors (VIDEO)
Speaker terminals
(SPEAKERS)
AC inlet (AC IN)
Component video connectors
(COMPONENT VIDEO)
HDMI connectors
Denon Link HD connector
Digital audio connectors
(DIGITAL AUDIO)
Network connector (NETWORK)
REMOTE CONTROL jacks
RS-232C connector
TRIGGER OUT jack
Rear Panel
1234567
8
9
10
11
12
13
14
15
REMOTE CONTROL 1
HOME

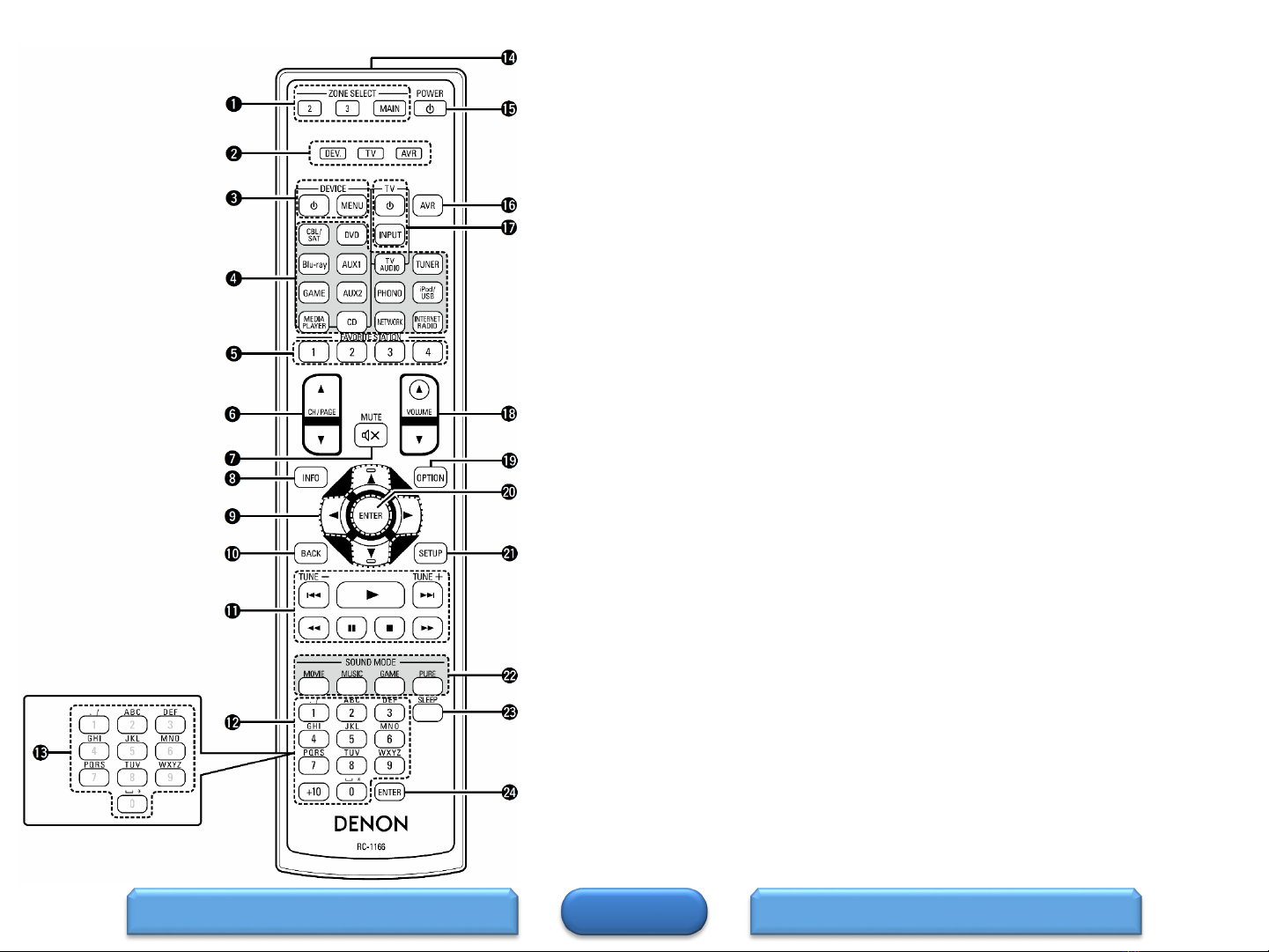

Remote Control (1 of 3)
ZONE SELECT buttons (MAIN, Z2, Z3)
These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated
through the remote control unit.
Operation mode indicators
The “AVR” operation mode indicator lights when the unit is being
operated.
The “DEV.” indicator lights when an external device is being operated.
The “TV” indicator lights when the TV is being operated.
Device operation buttons (DEVICEO/ DEVICE MENU)
These turn the power of external devices on/off and call up menus.
Preset codes need to be registered in order to use these buttons.
Input source select buttons
These select the input source.
FAVORITE STATION buttons (1 –4)
Channel/page search buttons (CH/PAGE )
These select radio stations registered to presets or switch pages.
MUTE button ( )
This mutes the output audio.
Information button (INFO)
This displays the status information on the TV screen.
Cursor buttons ()
These select items.
BACK button
REMOTE CONTROL 2REAR PANEL 7
HOME

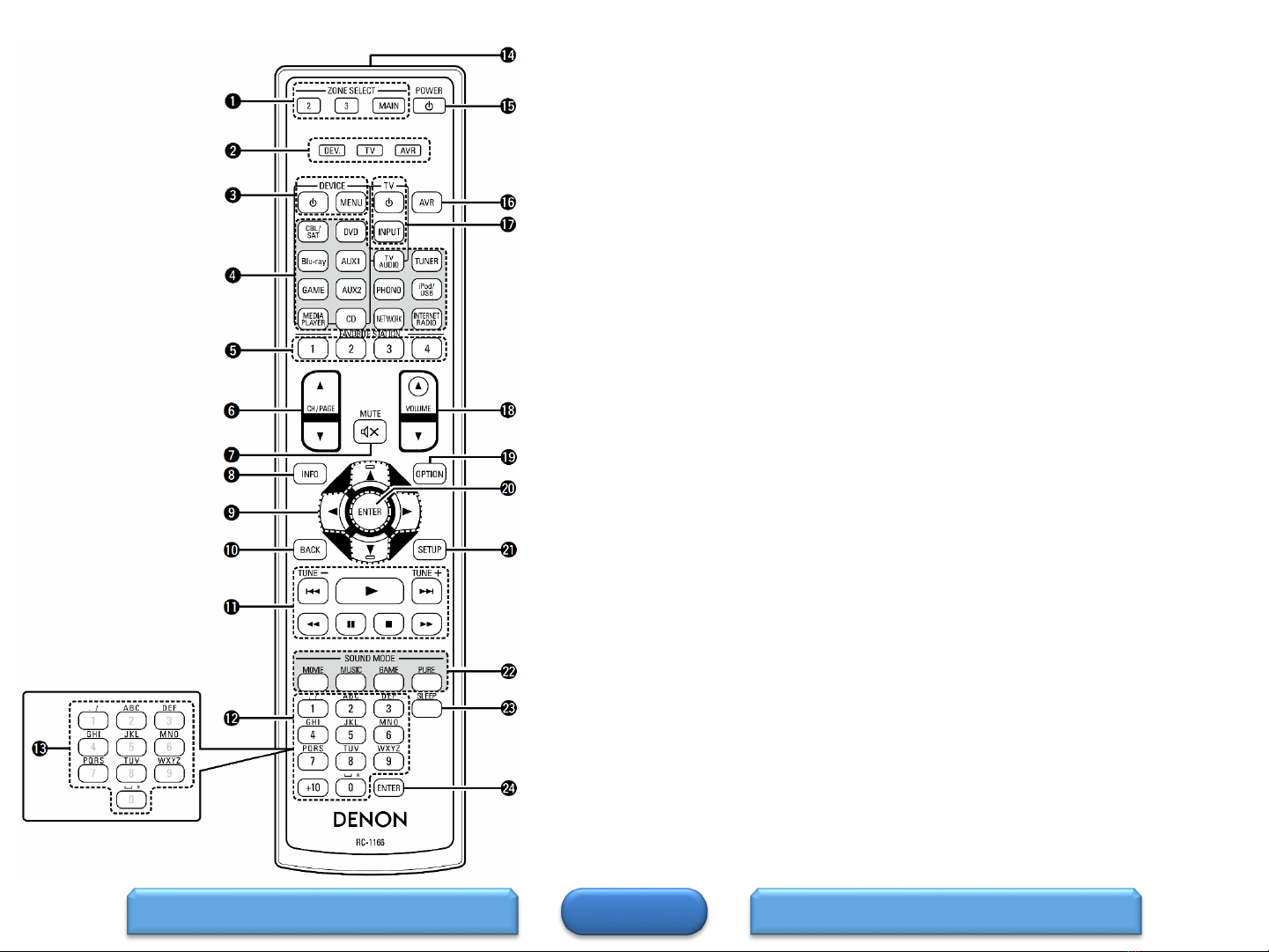

Remote Control (2 of 3)
System buttons.
These perform playback related operations.
Skip buttons ()
Play button ()
Search buttons ()
Pause button ()
Stop button ()
Tuning up / Tuning down buttons (TUNE +, –).
These select either FM broadcast or AM broadcast.
Number buttons
These enter numbers into the unit.
Character buttons
These enter letters into the unit.
Remote control signal transmitter
This transmits signals from the remote control unit.
POWER button (O)
This turns the power on/off.
AVR-operation mode button
When using a remote control with preset codes registered, press AVR before
other operations in order to operate the unit.
TV operation buttons
(TV X / INPUT)
REMOTE CONTROL 3REMOTE CONTROL 1 8
HOME

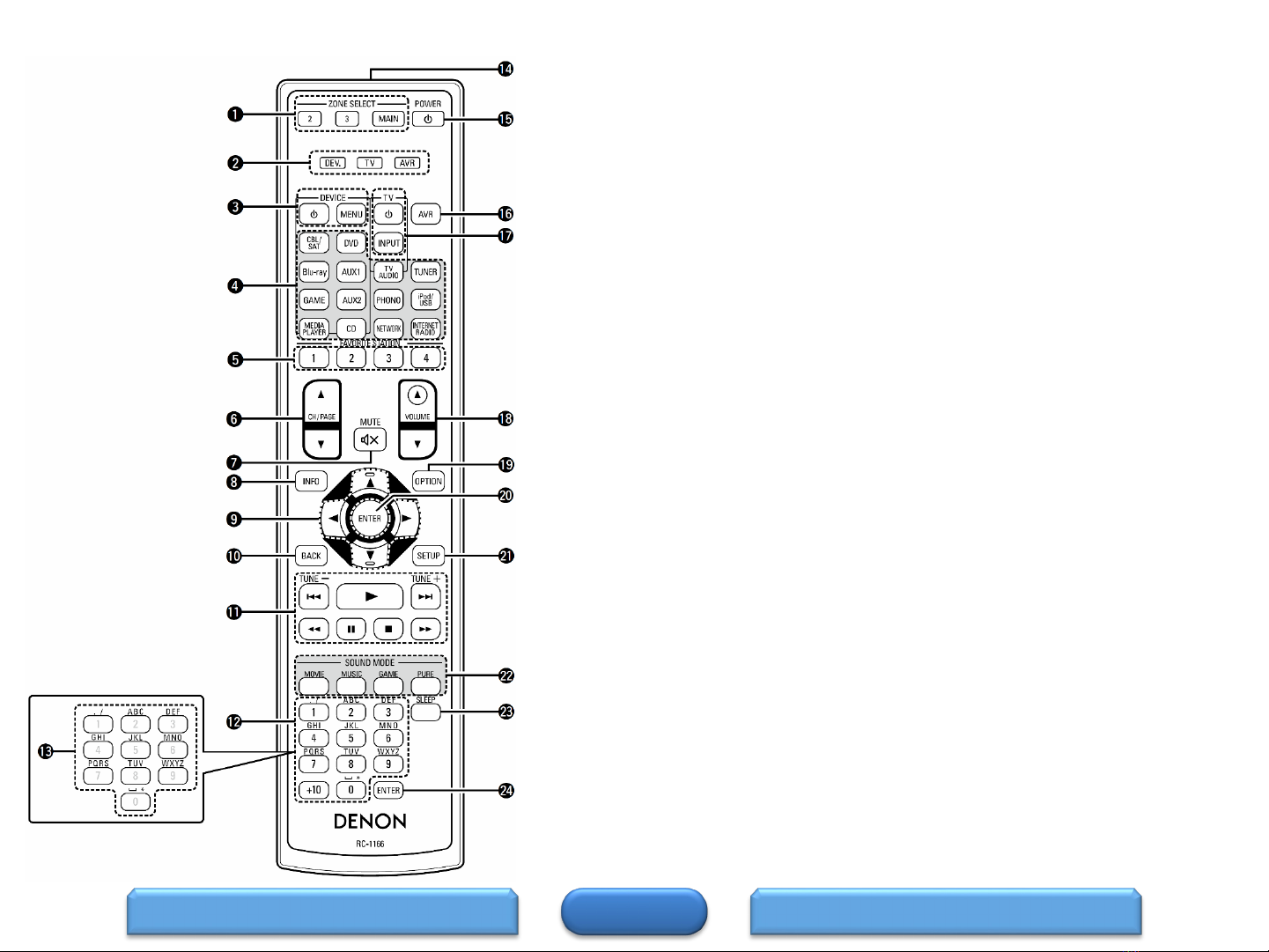

Remote Control (3 of 3)
VOLUME buttons ()
These adjust the volume level.
OPTION button
This displays the option menu on the TV screen.
ENTER button
This determines the selection.
SETUP button
This displays the menu on the TV screen.
SOUND MODE buttons
These select the sound mode.
•MOVIE button
•MUSIC button
•GAME button
•PURE button
SLEEP button
This sets the sleep timer.
ENTER button
Warranty 1REMOTE CONTROL 2 9
DENON LIMITED WARRANTY (1 of 2)
This warranty will be honored only in the U.S.A.
Length of Non-Transferable Warranty
This warranty on your DENON product which is distributed and warranted by DENON ELECTRONICS (USA), LLC remains in effect
for the following periods from the date of the original consumer purchase from an AUTHORIZED DENON ELECTRONICS (USA),
LLC DEALER.
DENON ELECTRONICS (USA), LLC
(a D&M Holdings Company)
100 Corporate Drive
Mahwah, NJ 07430-2041
(201) 762-6665
www.usa.denon.com
DENON FACTORY SERVICE by PANURGY OEM
701 Ford Road (South Dock)
Rockaway, NJ 07866-2053
(973) 625-4056
(973) 625-9489 Fax
http://www.panurgyoem.com/Denon/Denonrepair.html
See the next page for more information about the Denon limited warranty
HOME
3years for units purchased new
1year for refurbished (B-Stock) units
WARRANTY 2REMOTE CONTROL 3 10
