Denon AVR-X7200W Manuel utilisateur

MODEL: AVR-X7200W

Model Information

INTEGRATED NETWORK AV RECEIVER

MI070115E3-1

I/R Codes

Product Specifications

Upgrades/Updates

FAQ’s

Accessories

Reset Procedure

Warranty

Remote Control

Rear Panel

Front Panel

NOTE:

This edition is missing the FAQ’s content (pages 16 and 17) ………………………………………………………..7/1/2015

This edition is missing the link to the IR Codes………………………………………………………………………....7/1/2015

Model Information

Index

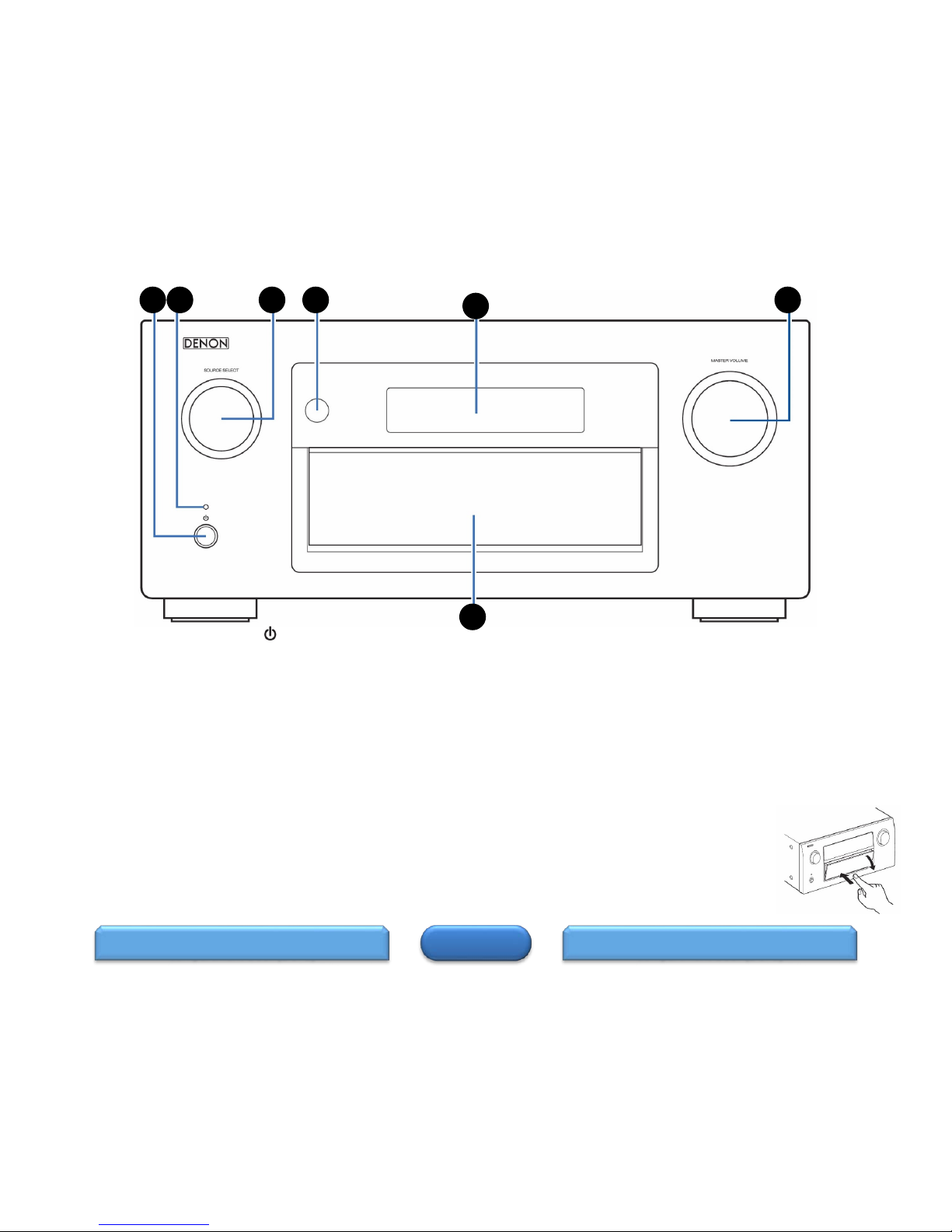

Front Panel

 Power operation button ( )

Used to turn the power of the MAIN ZONE

(room where this unit is located) on/off

(standby).

 Power indicator

This is lit as follows according to the power status:

•White: Power on

•Off: Normal standby

•Red:

•When “HDMI Pass Through” is set to “On”

•When “HDMI Control” is set to “On”

•When “IP Control” is set to “Always On”

 SOURCE SELECT knob

This selects the input source.

 Remote control sensor

This receives signals from the remote control unit.

 Display

This displays various pieces of information.

 MASTER VOLUME knob

This adjusts the volume level.

 Door

When you are using buttons and/or connectors behind the

door, press the bottom of the door to open it. Be careful not

to catch your fingers when closing the door.

1 2 3 4 56

HOME Buttons and Connectors Behind the

Compartment Door (2 of 2)

Buttons and Connectors Behind the

Compartment Door (1 of 2) 2

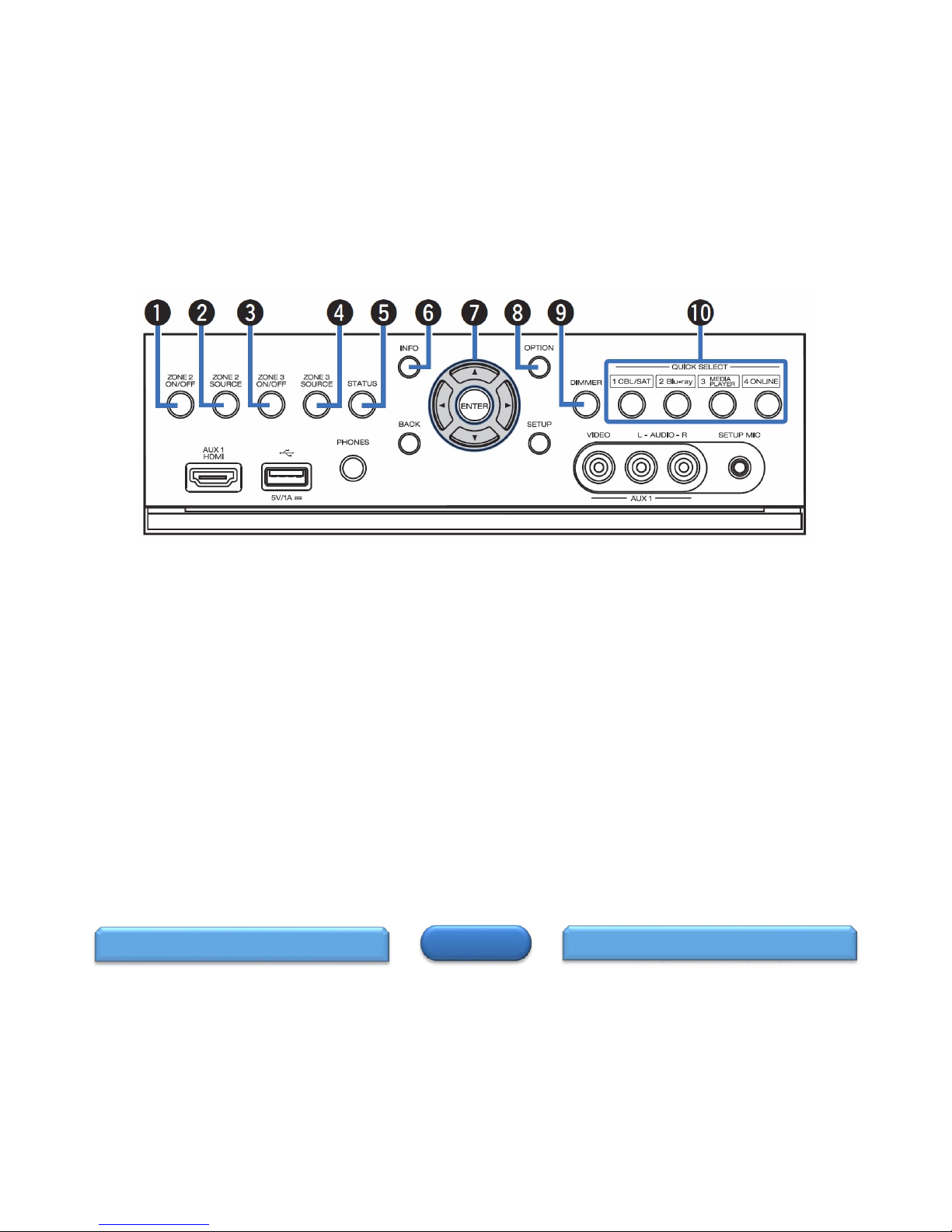

Buttons and Connectors Behind the Compartment Door (1 of 2)

 ZONE2 ON/OFF button

This turns the power of ZONE2 on/off.

 ZONE2 SOURCE button

This selects the input source for ZONE2.

 ZONE3 ON/OFF button

This turns the power of ZONE3 on/off.

 ZONE3 SOURCE button

This selects the input source for ZONE3.

 STATUS button

Each press of this switches the status information that is shown

on the display.

 Information button (INFO)

This displays the status information on the TV screen.

 Cursor buttons 

These select items.

OPTION button

This displays the option menu on the TV screen.

 DIMMER button

Each press of this switches the brightness of the display.

 QUICK SELECT buttons

These call up settings registered to each button, such as input

source, volume level and sound mode settings.

HOME

FRONT PANEL Buttons and Connectors Behind the

Compartment Door (2 of 2) 3

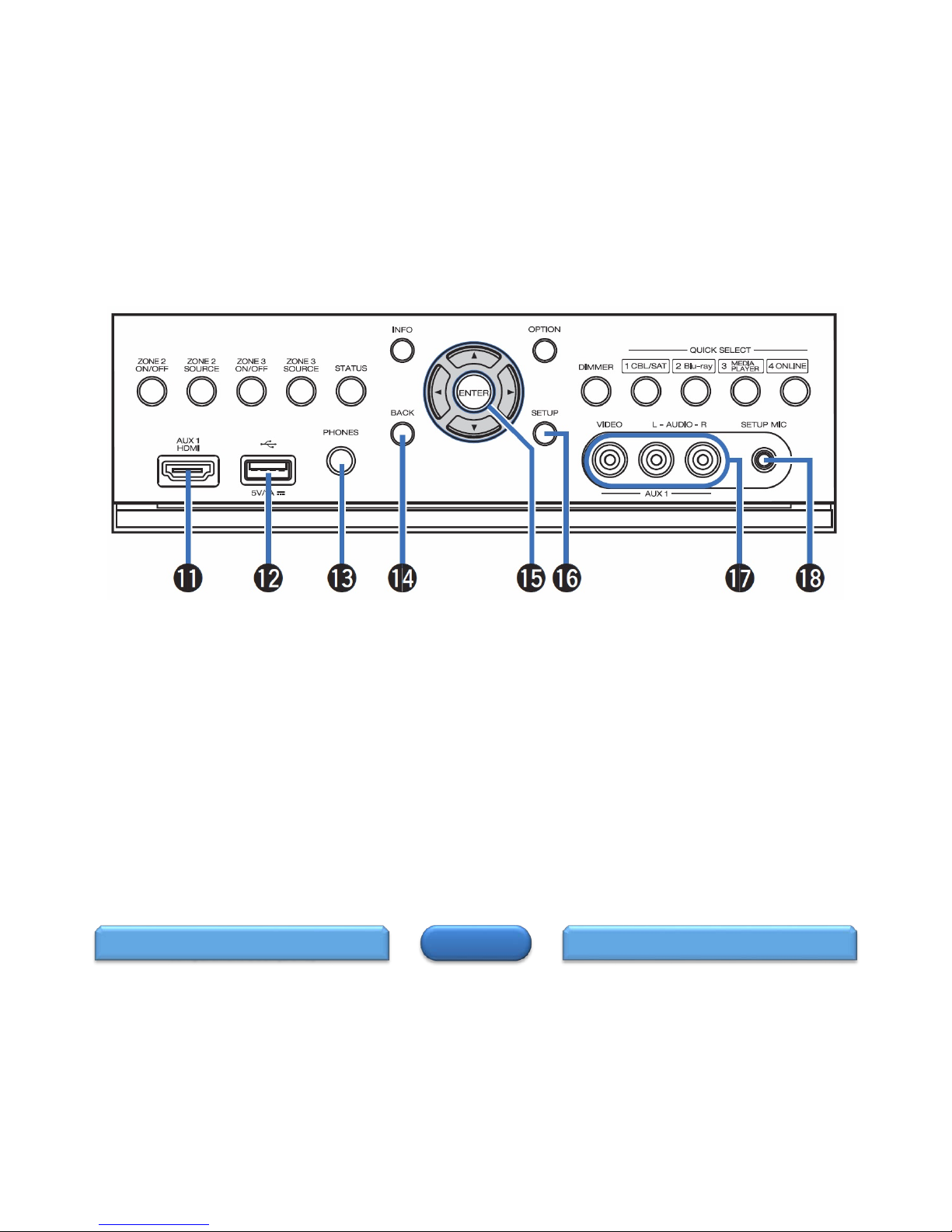

Buttons and Connectors Behind the Compartment Door (2 of 2)

 AUX1 HDMI connector

This is used to connect HDMI output compatible devices such as

video camcorders and game consoles.

 USB port

This is used to connect USB storages (such as USB memory devices)

and the USB cable supplied with iPod.

 Headphones jack (PHONES)

This is used to connect headphones.

When the headphones are plugged into this jack, audio will no longer

be output from the connected speakers or from the PRE OUT

connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively

when using headphones.

 BACK button

This returns to the previous screen.

 ENTER button

This determines the selection.

 SETUP button

This displays the menu on the TV screen.

 AUX1 INPUT connector

Used to connect analog output compatible devices such as video

camcorders and game consoles.

 SETUP MIC jack

This is used to connect the supplied Sound calibration microphone.

HOME DISPLAY

Buttons and Connectors Behind the

Compartment Door (1 of 2) 4

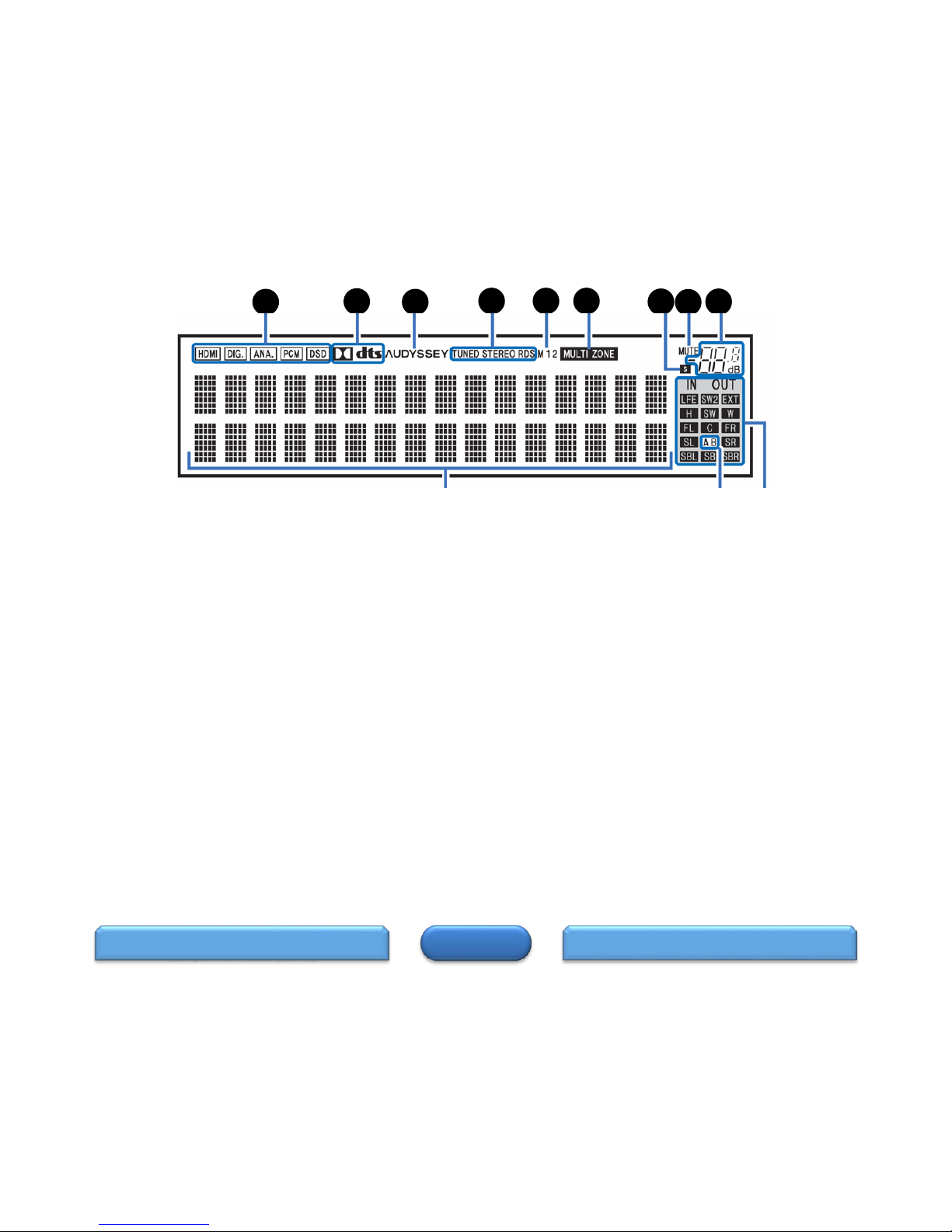

Display

 Input signal indicators

The respective indicator will light corresponding to the input signal.

 Decoder indicators

These light when Dolby or DTS signals are input or when the Dolby or DTS

decoder is running.

 Audyssey®indicator

This lights when “MultEQ®XT32”, “Dynamic EQ”, “Dynamic Volume”,

“Audyssey DSX®” or “Audyssey LFCTM” is set.

 Tuner reception mode indicators

These light up according to the reception conditions when the input source is

set to “HD Radio”.

TUNED: Lights up when the broadcast is properly tuned in.

STEREO: Lights up when receiving FM stereo broadcasts.

 Monitor output indicator

These light according to the HDMI monitor output setting. When set to

“Auto(Dual)”, the indicators light according to connection status.

 MULTI ZONE indicator

This lights up when ZONE2 or ZONE3 (separate room) power is turned on.

 Sleep timer indicator

This lights when the sleep mode is selected.

MUTE indicator

This blinks while the sound is muted. link,

 Volume indicator

 Information display

The input source name, sound mode, setting values and

other information are displayed here.

 Front speaker indicator

This lights according to the setting of the front A and B

speakers.

 Input/output signal channel indicators

The channel for input/output signals is displayed according to

the setting configured for “Channel Indicators”.

•When “Channel Indicators” is set to “Output” (Default)

These light when audio signals are being output from the

speakers.

•When “Channel Indicators” is set to “Input” These light

corresponding to the channels that include the input

signals.

When playing HD Audio sources, the EXT indicator lights

when a signal from an extension channel (a channel other

than the front, center, surround, surround back, front height,

front wide or LFE channel) is input.

123456789

  

HOME REAR PANEL 1

Buttons and Connectors Behind the

Compartment Door (2 of 2) 5

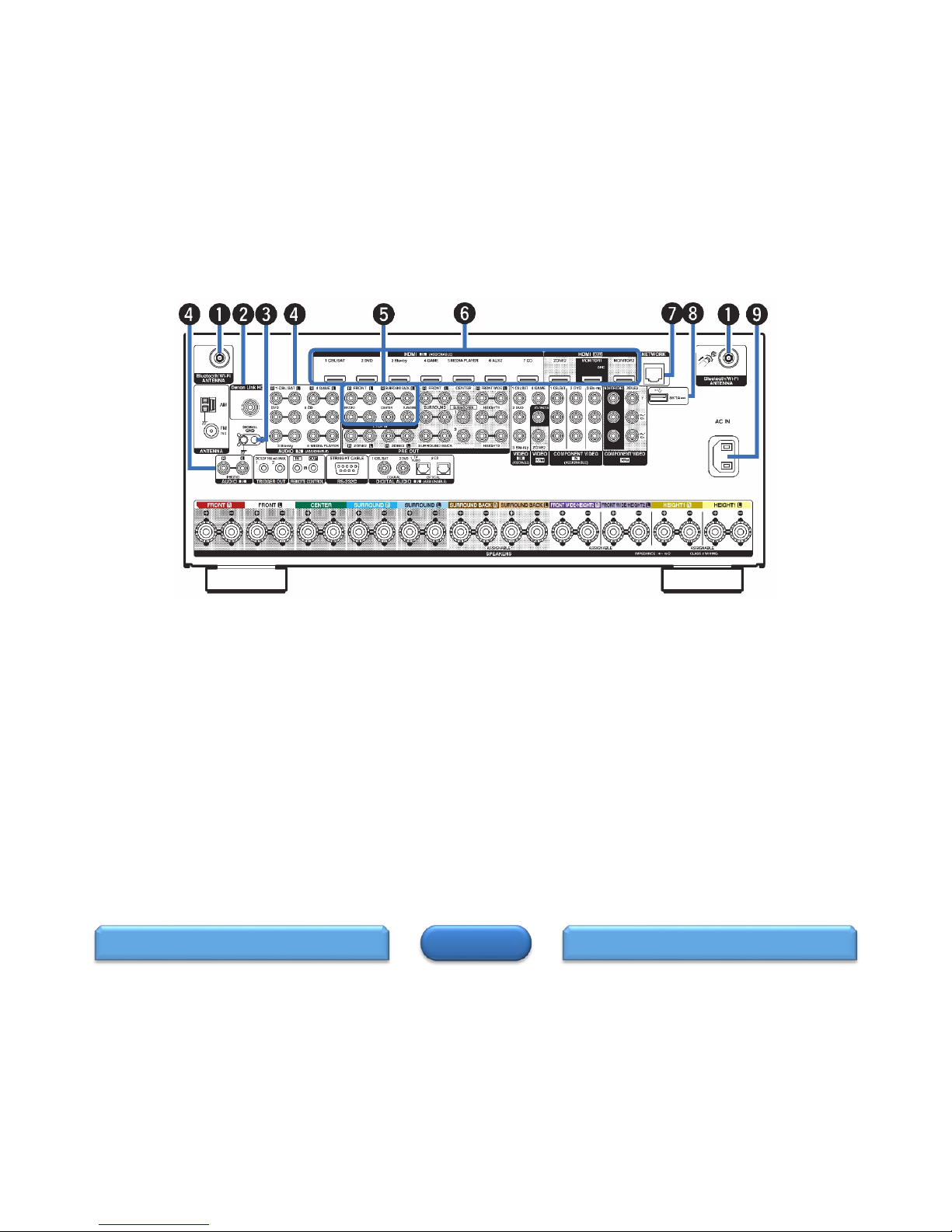

Rear Panel (1 of 2)

HOME

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for

Bluetooth/wireless connectivity when connecting to a network

via wireless LAN, or when connecting to a handheld device via

Bluetooth.

•Place the external antennas for Bluetooth/wireless

connectivity evenly over the screw terminal of rear.

•Turn clockwise until the antennas is fully connected.

•Rotate the antenna upwards for best reception.

Denon Link HD connector

Used to connect a Denon Link HD compatible Blu-ray Disc player.

SIGNAL GND terminal

Used to connect a ground wire for the turntable.

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

7.1-channel input connectors (7.1CH IN)

Used to connect to a device that has multi-channel audio output connectors.

HDMI connectors

Used to connect devices equipped with HDMI connectors.

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network.

USB port

This is used to connect USB storages (such as USB memory devices) and the

USB cable supplied with iPod.

AC inlet (AC IN)

Used to connect the power cord.

REAR PANEL 2DISPLAY 6

 FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas.

 TRIGGER OUT jacks

Used to connect devices equipped with the trigger function. 1@

REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to

operate this unit and external devices from a different room.

 RS-232C connector

Used to connect home automation controller devices fitted with

RS-232C connectors. Consult the owner’s manual of the home

automation controller for more information about serial control of

this unit.

•Perform the operation below beforehand.

•Turn on the power of this unit.

•Turn off the power of this unit from the external controller.

•Check that the unit is in the standby mode.

 Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

 Speaker terminals (SPEAKERS)

Used to connect speakers.

 PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or an external power

amplifier.

 Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

 Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors.

HOME

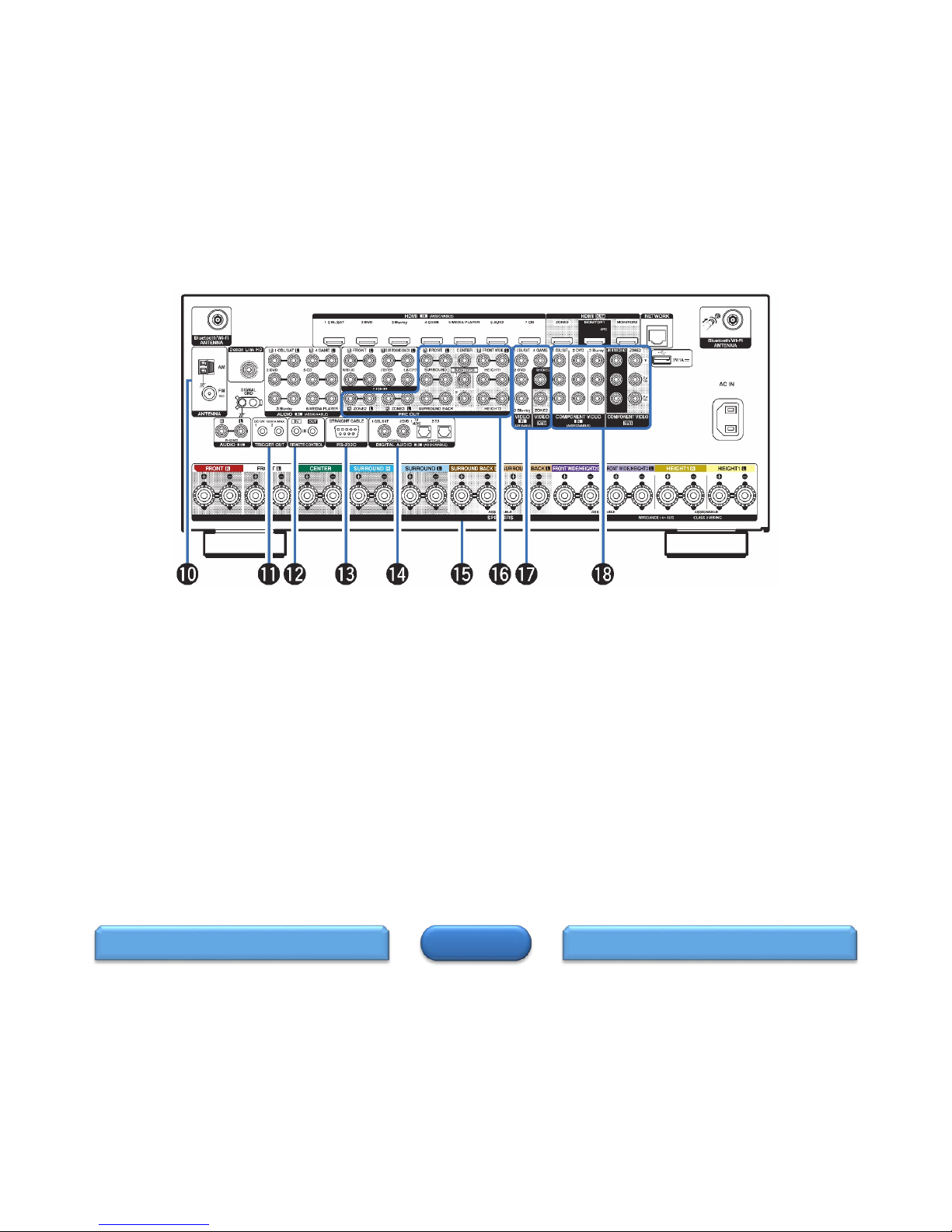

Rear Panel (2 of 2)

REMOTE CONTROL 1REAR PANEL 1 7

HOME

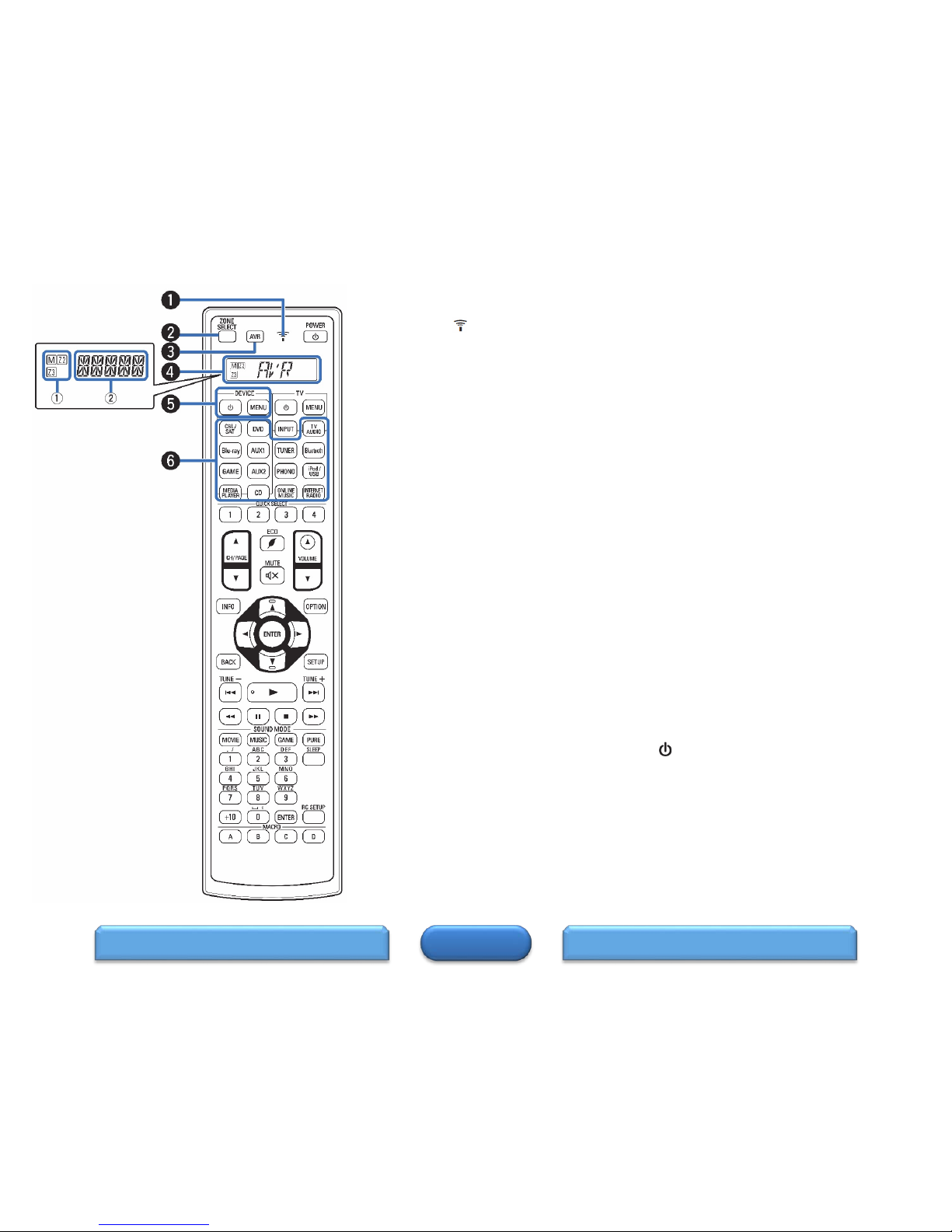

Remote Control (1 of 4)

indicator

This is lit when signals are sent from the remote control unit.

Zone select button (ZONE SELECT)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated

through the remote control unit.

AVR operation button

When preset codes are registered to the remote control unit, press

this button and then operate the menu on the unit.

Display

1. Zone select indicators

2. Information indicator

•This displays “AVR” when operating this unit.

•This displays the input source name when operating an external

device.

•This displays “TV” when operating TV.

•This displays details about the setting on the remote control unit.

Device operation buttons (DEVICE / DEVICE MENU)

These turn the power of external devices on/off and call up menus.

Preset codes need to be registered in order to use these buttons.

Input source select buttons

These select the input source.

REMOTE CONTROL 2REAR PANEL 2 8

HOME

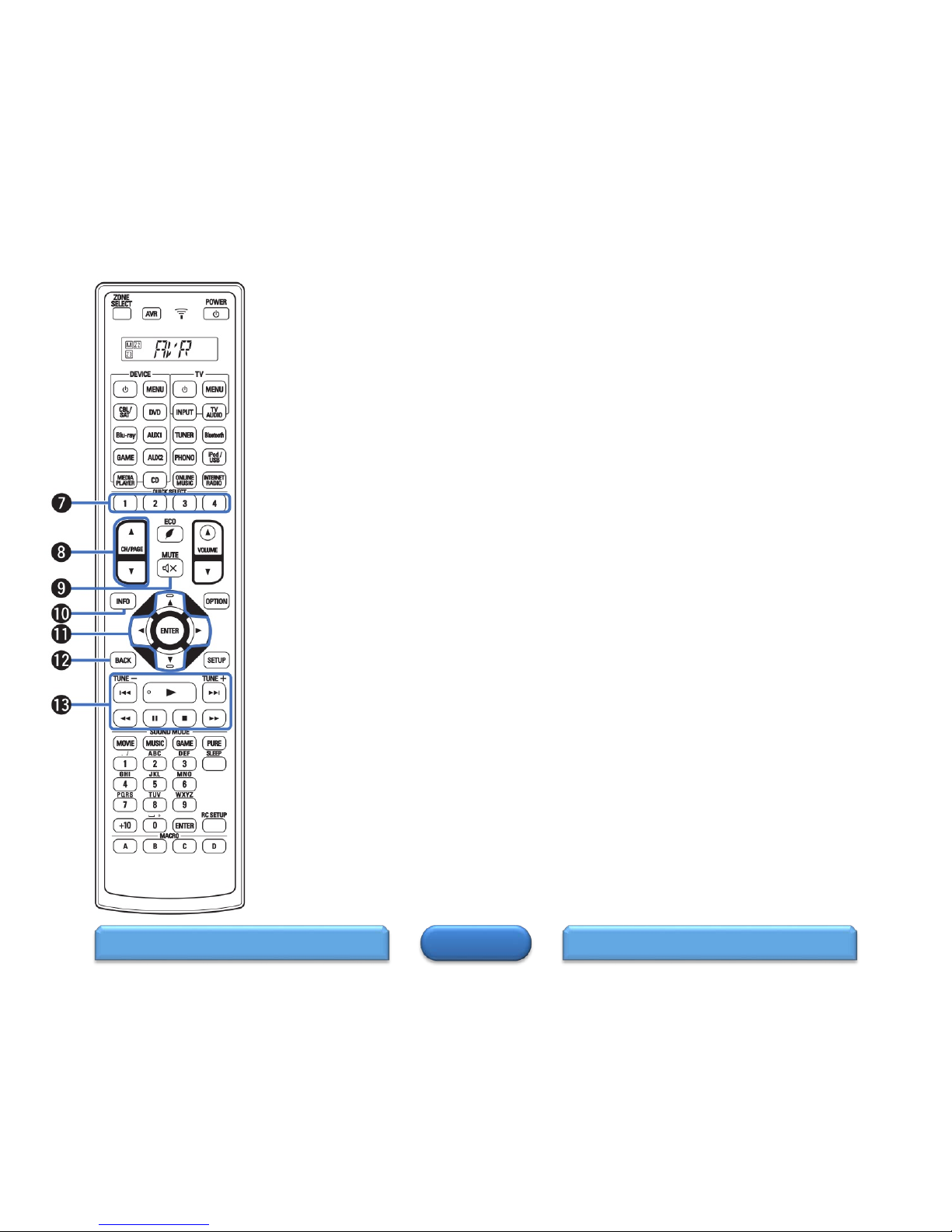

Remote Control (2 of 4)

 QUICK SELECT buttons (1 – 4).

These call up settings registered to each button, such as input source,

volume level and sound mode settings.

Channel/page search buttons (CH/PAGE ▲▼).

These select radio stations registered to presets or switch pages.

 MUTE button ().

This mutes the output audio.

 Information button (INFO).

This displays the status information on the TV screen.

 Cursor buttons ( ).

These select items.

 BACK button.

This returns to the previous screen.

 System buttons.

These perform playback related operations.

Skip buttons ()

Play button ()

Search buttons ()

Pause button ()

Stop button ()

Tuning up / Tuning down buttons (TUNE +, –).

These select either FM broadcast or AM broadcast.

REMOTE CONTROL 3REMOTE CONTROL 1 9

HOME

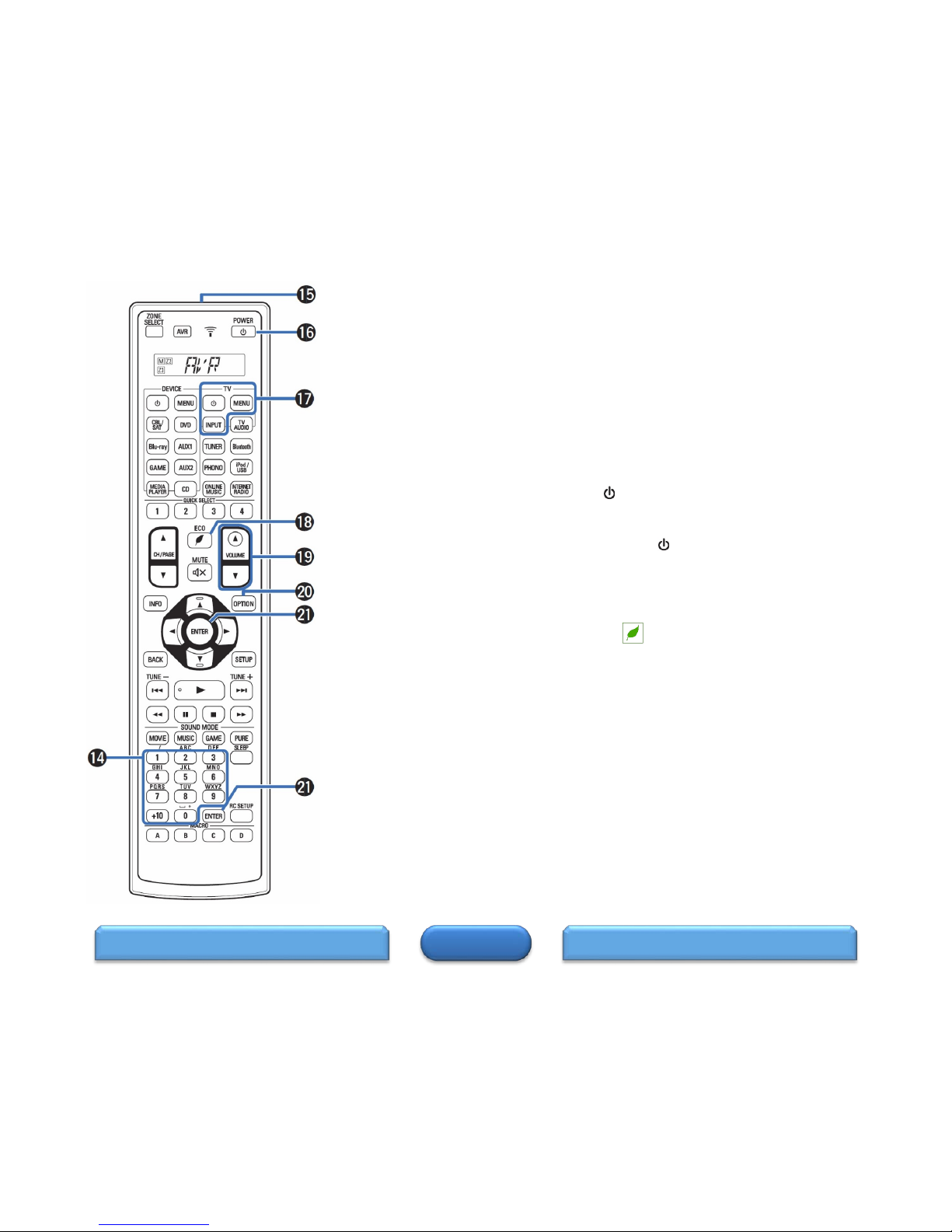

Remote Control (3 of 4)

Number / Character buttons

These enter letters or numbers into the unit.

Remote control signal transmitter

This transmits signals from the remote control unit.

POWER button ( )

This turns the power on/off.

TV operation buttons (TV / TV MENU / TV INPUT)

These turn the TV power on/off, switch the TV input and call up

menus.

Preset codes need to be registered in order to use these buttons.

ECO Mode button ( )

This switches to ECO Mode.

VOLUME buttons ()

These adjust the volume level.

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

















REMOTE CONTROL 4REMOTE CONTROL 2 10

Autres manuels pour AVR-X7200W

Table des matières

Autres manuels Denon Récepteur

Denon

Denon AVR-3312CI Manuel utilisateur

Denon

Denon AVR-97 Manuel utilisateur

Denon

Denon 4310CI - AVR AV Network Receiver Manuel utilisateur

Denon

Denon CEOL Piccolo DRA-N5 Manuel utilisateur

Denon

Denon AVR-4520CI Manuel utilisateur

Denon

Denon AVR-2312CI Manuel utilisateur

Denon

Denon AVR-X500 Manuel utilisateur

Denon

Denon AVR-2802 Manuel utilisateur

Denon

Denon AVR 688 - AV Receiver Manuel utilisateur

Denon

Denon AVR-X3000 Manuel utilisateur

Denon

Denon IN-Command AVR-X4000 Manuel utilisateur

Denon

Denon AVR-4208 Manuel utilisateur

Denon

Denon AVR-889 Manuel utilisateur

Denon

Denon In-Command AVR-2313CI Manuel utilisateur

Denon

Denon AVR 2805 - AV Receiver Manuel utilisateur

Denon

Denon AVR 2308CI - AV Receiver Guide de l'utilisateur

Denon

Denon AVR-987 Guide de l'administrateur

Denon

Denon AVR-4806CI Manuel utilisateur

Denon

Denon In-Command AVR-2313CI Manuel utilisateur

Denon

Denon AVR-1611 Manuel utilisateur

Denon

Denon AVR-S920W Manuel utilisateur

Denon

Denon AVR-S500BT Manuel utilisateur

Denon

Denon AVR-1708 Guide de l'administrateur

Denon

Denon AVR-786S Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
