AVR-X2200W
INTEGRATED NETWORK AV RECEIVER
Quick Start Guide
Read Me First....
Guide de conguration rapide / Guía de conguración rápida
Please do not return this unit to the
store.
If you need help…
Check our AVR setup tips online
Usa.denon.com/SetupTips
Ca.Denon.com/SetupTips
Call for Assistance
1-855-MY.DENON (USA) 1-855-693-3666
1-800-668-0652 (Canada)
Monday – Friday 10:00AM to 10:00PM E.S.T
Saturday 12:00PM to 8:00PM E.S.T
1. AVR-X2200WE3_QSG_ENG_150302.indd 1 2015/03/11 10:25:32
1
Thank you for choosing a Denon AV
receiver. This guide provides step-by-
step instructions for setting up your AV
receiver.
Welcome Before You Begin
Required for Setup
TV Speaker cables
HDMI cable Subwoofer cable Speaker systems
Optional
LAN cable Wi-Fi router
• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC
functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.
• These drawings are for illustrative purposes only and may not represent the actual product(s).
or
1. AVR-X2200WE3_QSG_ENG_150302.indd 1 2015/03/11 10:25:32
2
What’s In the Box
Quick Start Guide
FM indoor antenna
Safety Instructions AM loop antenna
Notes on radio Sound calibration
microphone
Warranty
(for North America
model only)
Sound calibration
microphone stand
Cable labels Remote control unit
Receiver R03/AAA batteries
Power cord
The supplied Sound calibration microphone stand is convenient for use when
performing Speaker Calibration. Using your own tripod or the supplied Sound
calibration microphone stand enables settings to be automatically configured to
the optimum listening environment, providing exceptionally high performance.
1. AVR-X2200WE3_QSG_ENG_150302.indd 2 2015/03/11 10:25:33
3
1Installing batteries in the
remote control unit
R03/AAA batteries
There are three steps to the setup
process.
1Installing batteries in the remote control unit
2Connecting the receiver
3Following the On-Screen Setup Assistant
Setup
1. AVR-X2200WE3_QSG_ENG_150302.indd 3 2015/03/11 10:25:33
4
2Connecting the receiver

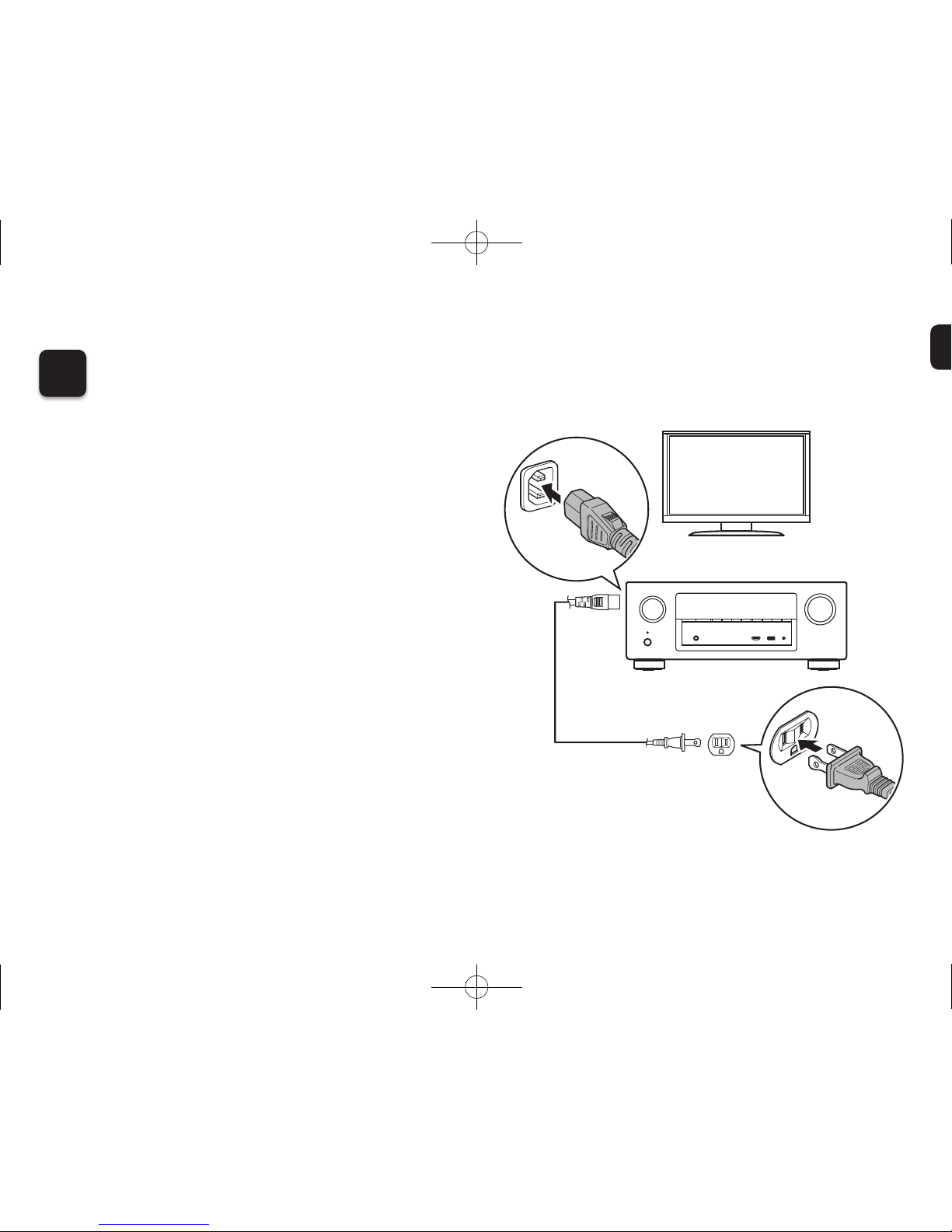

2.1) Place the receiver near your TV and
connect the power cord.
TV
Receiver
Power cord
(supplied)
Connect to household
power outlet
(AC 120 V, 60 Hz)
1. AVR-X2200WE3_QSG_ENG_150302.indd 4 2015/03/11 10:25:34
5
2.2) Connect to the network.
Wired LAN
When connecting cables (wired connection), connect a LAN
cable between your receiver and your network router.
AC IN
Internet Modem
Router
To WAN side
To LAN port
Wireless LAN
When using a wireless connection (Wi-Fi), rotate the antennas
upward.
AC IN
Router with
access point To WAN side
Internet Modem
1. AVR-X2200WE3_QSG_ENG_150302.indd 5 2015/03/11 10:25:34
6
2.4) Turn on the TV.
TV remote control unit
2.5) Select the appropriate HDMI input
on your TV.
HDMI TV/
VIDEO
INPUT or
TV remote control unit
2.3) Connect the receiver to your TV
with an HDMI cable.
AC IN
(ARC)
HDMI IN
HDMI OUT
MONITOR
(ARC)
HDMI cable
Receiver (Rear panel)
ARC (Audio Return Channel) :
If your TV supports ARC, your TV can send audio back to the AV receiver
when you are using your TV’s built-in video sources (TV tuner, Smart TV
streaming services, etc…) ARC requires that you enable HDMI CEC on
your TV. Please refer to your TV’s Owner’s Manual for instructions on how
to setup HDMI CEC. Note that some TV manufacturers use other names
for the HDMI CEC function.
1. AVR-X2200WE3_QSG_ENG_150302.indd 6 2015/03/11 10:25:34
7
2.6) Turn on the receiver.
•Press Xto turn on the receiver.
2.7) Verify the connection.
•Verify that you can see this screen on your TV.
AV Reciever Setup Assistant
Please select a language...
Español
Français
English
If this screen is not displayed, please go back and
retry the steps again in the recommended sequence.
1. AVR-X2200WE3_QSG_ENG_150302.indd 7 2015/03/11 10:25:34
8
3Following the On-Screen Setup Assistant
The Setup Assistant will walk you through connecting and
configuring your speakers and components to your Denon
receiver. Please use the remote control and follow the
on-screen instructions.
AV Reciever Setup Assistant
Please select a language...
Español
Français
English
1. AVR-X2200WE3_QSG_ENG_150302.indd 8 2015/03/11 10:25:34
9
Owner’s Manual
PDF
Overview
Connections
Playback
Settings
Tips
Appendix
PDF Download
INTEGRATED NETWORK AV RECEIVER
INTEGRATED NETWORK AV RECEIVER
WEB Manual
Copyright © 2015 D&M Holdings Inc. All Rights Reserved.
AVR-X2200W
Contents
English
Online Manual
•For more information, visit www.denon.com
•Refer to the Online Manual for other functions
information and operation procedure details.
manuals.denon.com/AVRX2200W/NA/EN/
1. AVR-X2200WE3_QSG_ENG_150302.indd 9 2015/03/11 10:25:35
