Denon AVR-X1100W Manuel utilisateur

AVR-X1100W

INTEGRATED NETWORK AV RECEIVER

Owner’s Manual

You can print more than one page of a PDF onto a single sheet of paper.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Accessories 7

Inserting the batteries 8

Operating range of the remote control unit 8

Features 9

High quality sound 9

High performance 9

Easy operation 12

Part names and functions 13

Front panel 13

Display 16

Rear panel 18

Remote control unit 21

Connections

Connecting speakers 25

Speaker installation 25

Speaker connection 28

Speaker configuration and Amp Assign settings 31

Connecting a TV 38

Connection 1 : TV equipped with an HDMI connector and

compatible with the ARC (Audio Return Channel) 39

Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC (Audio Return Channel) 40

Connection 3 : TV equipped without an HDMI connector 41

Connecting a playback device 42

Connecting a DVD player or Blu-ray Disc player 43

Connecting a set-top box (Satellite tuner/cable TV) 44

Connecting a video camcorder or game console 45

Connecting an iPod or USB memory device to the USB port 46

Connecting an FM/AM antenna 48

Connecting to a home network (LAN) 50

Wired LAN 50

Wireless LAN 51

Connecting an external control device 52

REMOTE CONTROL jacks 52

Connecting the power cord 53

Playback

Basic operation 55

Turning the power on 55

Selecting the input source 55

Adjusting the volume 56

Turning off the sound temporarily (Muting) 56

Playback a DVD player/Blu-ray Disc player 56

Contents Connections Playback Settings Tips Appendix

Contents

Front panel Display Rear panel Remote Index

Playing an iPod 57

Listening to music on an iPod 58

iPod Browse Mode settings 59

Performing repeat playback 61

Performing random playback 61

Playing a USB memory device 62

Playing files stored on USB memory devices 63

Listening to music on a Bluetooth device 65

Pairing with a Bluetooth device 66

Playing a Bluetooth device 67

Pairing with the Pairing Mode 69

Listening to FM/AM broadcasts 70

Listening to FM/AM broadcasts 71

Tuning in by entering the frequency (Direct Tune) 72

Changing the tune mode (Tune Mode) 73

Tuning in to stations and presetting them automatically (Auto

Preset) 73

Presetting the current broadcast station (Preset Memory) 74

Listening to preset stations 74

Specify a name for the preset broadcast station (Preset Name) 75

Skipping preset broadcast stations (Preset Skip) 76

Cancelling Preset Skip 77

Listening to Internet Radio 78

Listening to Internet Radio 79

Playing the last played Internet Radio station 80

Using vTuner to add Internet Radio stations to favorites 81

Playing back files stored on a PC and NAS 82

Applying media sharing settings 83

Playing back files stored on a PC and NAS 84

Viewing photographs on the Flickr site 86

Viewing photographs shared by particular users 87

Viewing all photographs on Flickr 89

Listening to Pandora®90

Listening to Pandora®91

Creating a new station 93

Listening to an existing station 94

Listening to created radio stations at random 94

Giving feedback and managing stations 95

Sign Out 96

Listening to SiriusXM Internet Radio 97

Listening to SiriusXM Internet Radio 98

Sign Out 99

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

AirPlay function 100

Playing songs from your iPhone, iPod touch or iPad 101

Playing iTunes music with this unit 101

Selecting multiple speakers (devices) 102

Perform iTunes playback operations with the remote control unit

of this unit 102

Spotify Connect function 103

Playing Spotify music with this unit 103

Convenience functions 104

Performing repeat playback 105

Performing random playback 105

Registering to Favorites 106

Playing back content added to the “Save to Favorite” 106

Deleting content added to favorites 107

Searching content with keywords (Text Search) 107

Playing back music and a favorite picture at the same time

(Slideshow) 108

Setting the Slideshow Interval 109

Adjusting the volume of each channel to match the input source

(Ch Level Adjust) 110

Adjusting the tone (Tone Control) 111

Displaying your desired video during audio playback (Video

Select) 112

Playing the same music in all zones (All Zone Stereo) 113

Selecting a sound mode 114

Selecting a sound mode 115

Direct playback 116

Pure Direct playback 116

Auto surround playback 117

HDMI control function 126

Setting procedure 126

Sleep timer function 127

Using the sleep timer 128

Quick select plus function 129

Calling up the settings 130

Changing the settings 131

Web control function 132

Controlling the unit from a web control 132

Playback in ZONE2 (Separate room) 134

Connecting ZONE2 134

Playback in ZONE2 136

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Settings

Menu map 138

Menu operations 141

Inputting characters 142

Using the keyboard screen 143

Audio 144

Dialog Level 144

Subwoofer Level 144

Surr.Parameter 145

Restorer 149

Audio Delay 150

Volume 150

Audyssey 151

Manual EQ 153

Video 155

HDMI Setup 155

On Screen Disp. 158

TV Format 159

Inputs 160

Input Assign 160

Source Rename 162

Hide Sources 162

Source Level 162

Input Select 163

Speakers 164

Audyssey® Setup 164

Procedure for speaker settings (Audyssey® Setup) 166

Error messages 172

Retrieving Audyssey® Setup settings 173

Manual Setup 174

Amp Assign 174

Speaker Config. 175

Distances 177

Levels 178

Crossovers 179

Bass 180

Front Speaker 181

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Network 182

Information 182

Connection 182

Wi-Fi Setup 183

Settings 185

IP Control 186

Friendly Name 187

Diagnostics 187

Maintenance Mode 188

General 189

Language 189

ECO 189

ZONE2 Setup 191

Zone Rename 192

Quick Sel.Names 192

Front Display 192

Information 193

Usage Data 194

Firmware 195

Setup Lock 197

Tips

Tips 199

Troubleshooting 201

Resetting factory settings 217

Appendix

About HDMI 218

Playing back a USB memory devices 221

Playing back a Bluetooth device 222

Playing back a file saved on a PC or NAS 223

Playing back Internet Radio 224

Personal memory plus function 224

Last function memory 224

Sound modes and channel output 225

Sound modes and surround parameters 226

Types of input signals, and corresponding sound modes 229

Explanation of terms 232

Trademark information 242

Specifications 244

Index 249

License 252

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Thank you for purchasing this Denon product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

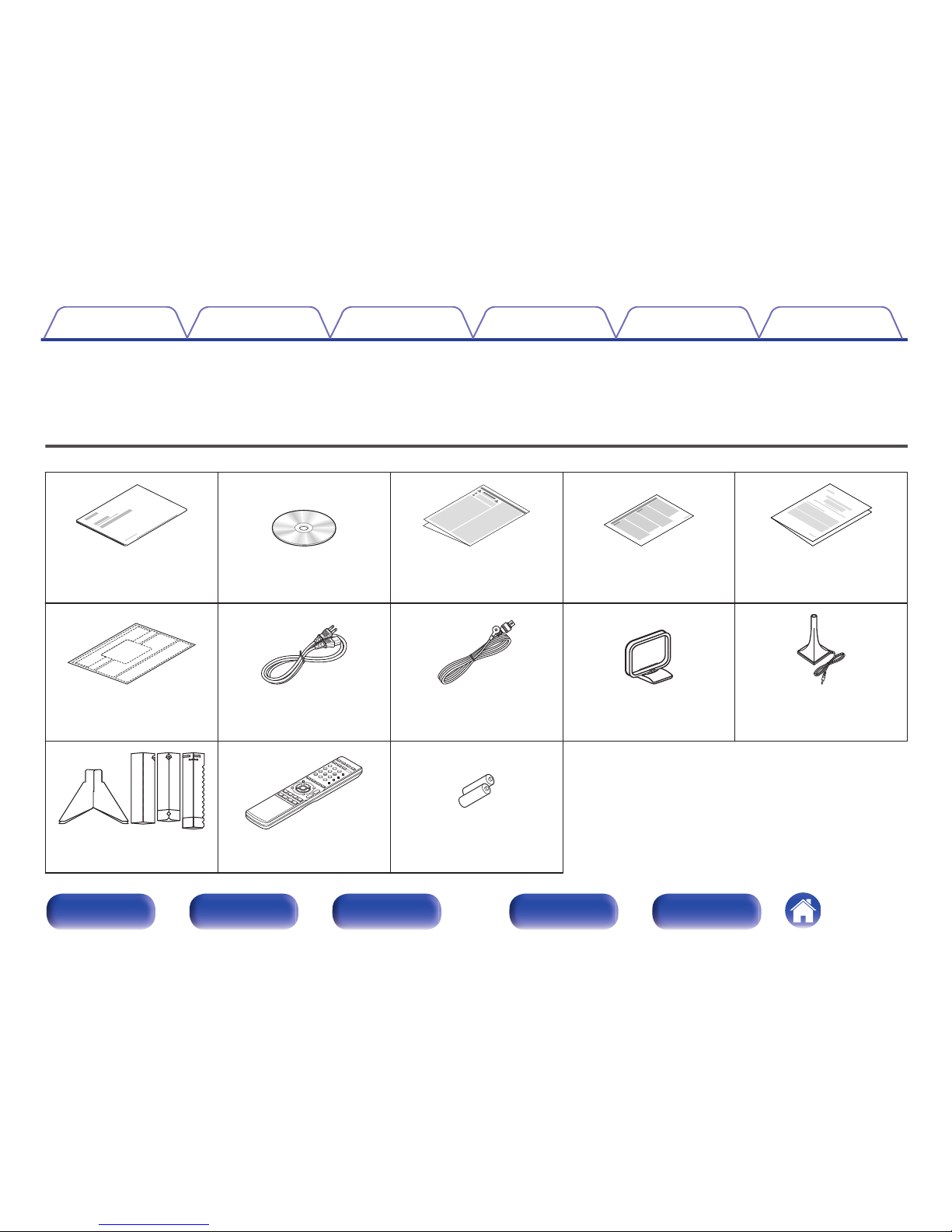

Check that the following parts are supplied with the product.

. .

Quick Start Guide CD-ROM

(Owner’s Manual) Safety Instructions Notes on radio Warranty

(for North America model

only)

. . . . .

Cable labels Power cord FM indoor antenna AM loop antenna Sound calibration

microphone

(ACM1HB)

. .

Microphone stand Remote control unit

(RC-1189) R03/AAA batteries

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Inserting the batteries

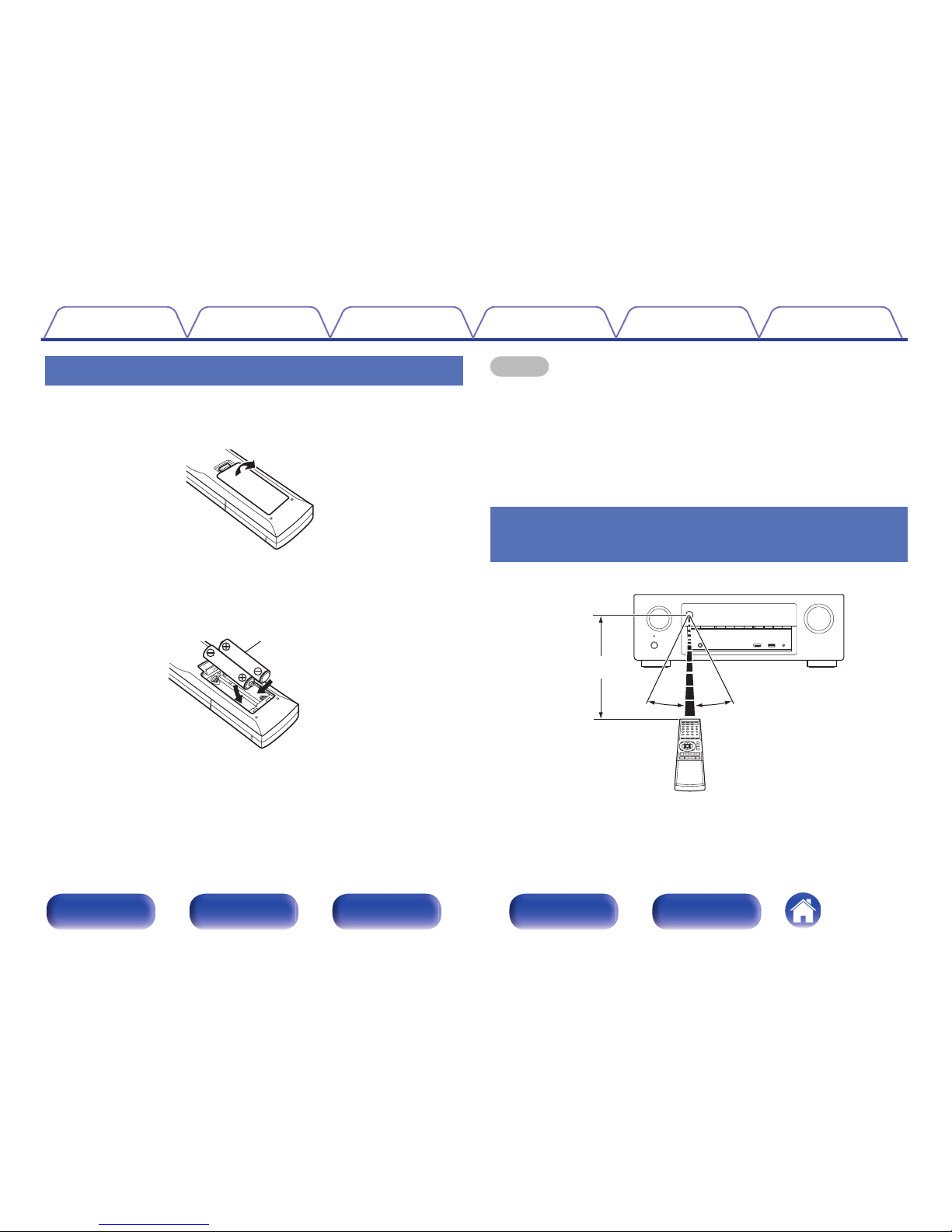

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

R03/AAA batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

Approx. 23 ft/7 m

30° 30°

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0With discrete circuit technology, the power amplifier provides

identical quality for all 7-channels (120 Watts x 7-channels)

For optimum realism and stunning dynamic range, the power amplifier

section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier

is able to easily drive high quality speakers.

High performance

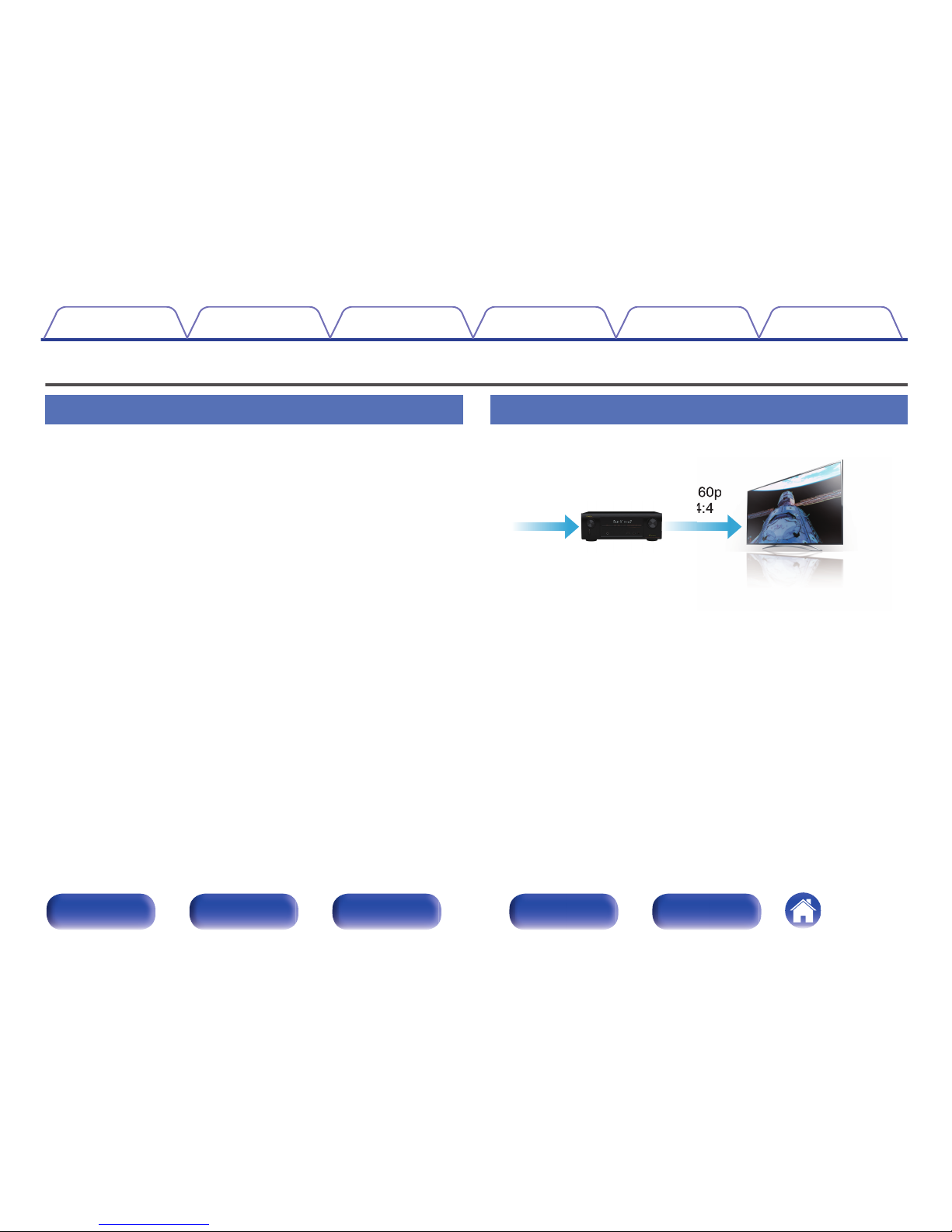

04K 60Hz input/output supported

4K 60p

4:4:4

4K 60p

4:4:4

When 4K Ultra HD (High Definition) is used, an input/output speed of 60

frames per second (60p) is achieved for video signals. When connected

to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy

the sense of realism only available from high-definition images, even

when viewing fast-moving video.

This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit

videos. By processing the video at the original resolution, this unit lets

you enjoy flawless, high-definition picture quality.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

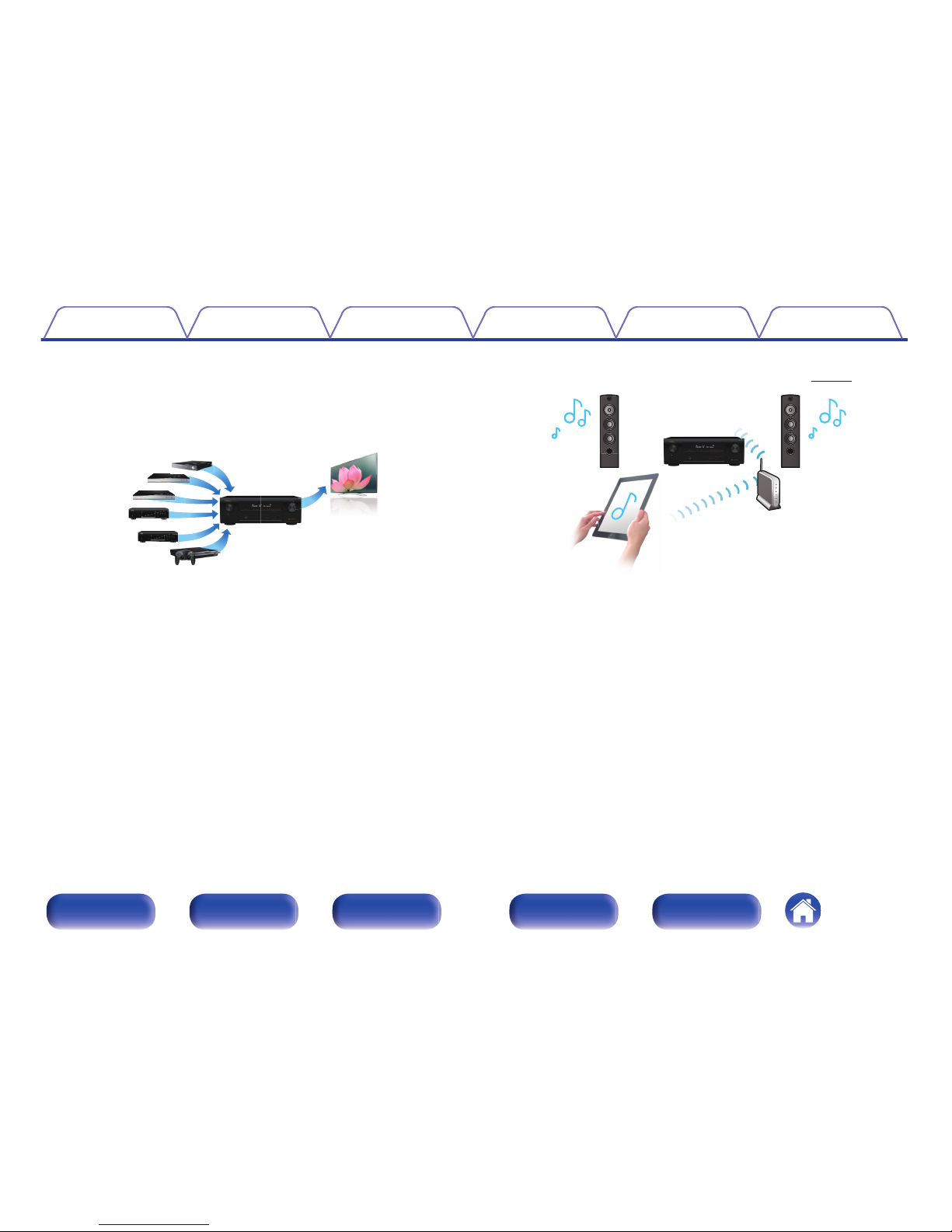

0HDMI connections enable connection to various digital AV

devices (6 inputs, 1 output)

In Out

This unit is equipped with 6 HDMI inputs and 1 HDMI output enabling

connection to various HDMI compatible devices such as Blu-ray Disc

players, game consoles and HD video camcorders.

0The device is equipped with a AirPlay® function in addition to

network functions such as Internet radio etc. (v p. 100)

You can enjoy a wide variety of content, including listening to Internet

Radio, playing audio files stored on your PC, and displaying

photographs stored on your PC on our television.

This unit also supports Apple AirPlay which lets you stream your music

library from an iPhone®, iPad®, iPod touch® or iTunes®.

0Playback of DSD and FLAC files via USB and networks

This unit supports the playback of high resolution audio formats such as

DSD (2.8 MHz) and FLAC 192 kHz files. It provides high quality

playback of high resolution files.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Autres manuels pour AVR-X1100W

Table des matières

Autres manuels Denon Récepteur

Denon

Denon AVR1910 - Multi-Zone Home Theater Receiver Manuel utilisateur

Denon

Denon CEOL Piccolo DRA-N5 Manuel utilisateur

Denon

Denon AVR-S920W Manuel utilisateur

Denon

Denon AVR-1802 Manuel utilisateur

Denon

Denon AVR-2106 Manuel utilisateur

Denon

Denon AVR-5805CI AV Manuel utilisateur

Denon

Denon AVR-X3100W Manuel utilisateur

Denon

Denon AVR-X3100W Manuel utilisateur

Denon

Denon AVR 2805 - AV Receiver Manuel utilisateur

Denon

Denon AVR-X7200W Manuel utilisateur

Denon

Denon AVR-2105/885 Manuel utilisateur

Denon

Denon AVR-3808CI Manuel utilisateur

Denon

Denon IN-Command AVR-X4000 Manuel utilisateur

Denon

Denon ADV-1000 Manuel utilisateur

Denon

Denon AV SURROUND RECEIVER AVR-891 Manuel utilisateur

Denon

Denon AVR-2307CI Manuel utilisateur

Denon

Denon AVR-1713 Manuel utilisateur

Denon

Denon AVR-485S Manuel utilisateur

Denon

Denon AVR-S510BT Manuel utilisateur

Denon

Denon AVR-3805 Guide de l'administrateur

Denon

Denon AVR-1506 Manuel utilisateur

Denon

Denon AVR-4810CI Manuel utilisateur

Denon

Denon DRA-F107 Manuel utilisateur

Denon

Denon AVR-2307CI Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
